48 in 1 MAME bootleg (ver 3.09, HPH-V000)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| dump date | 01/10/2007 |
| emulator | MAME 0.134u2 |
| dev | Guru |
| name | 48in1 on Arcade Database |
| description | 48 in 1 MAME bootleg (ver 3.09, HPH-V000) |
| year | 2004 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | LUPXA255A0-G7013098.2.c200 | main | ||
| 1x | ALTERA MAX.II-EPM240T100C-NBH9M0643A-VAH9M31772-383NA6W0Q | main |
Oscillators
1x oscillator 3.6864
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C4002F | bios | dumped |
| 1x | M5M29GT320VP | main | not dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x JAMMA edge connector
1x 5 legs connector (unused)
1x 4 legs power connector
1x VGA connector
1x mini jack sound connector
1x 4x2 switches DIP
Notes
Working
Files
-

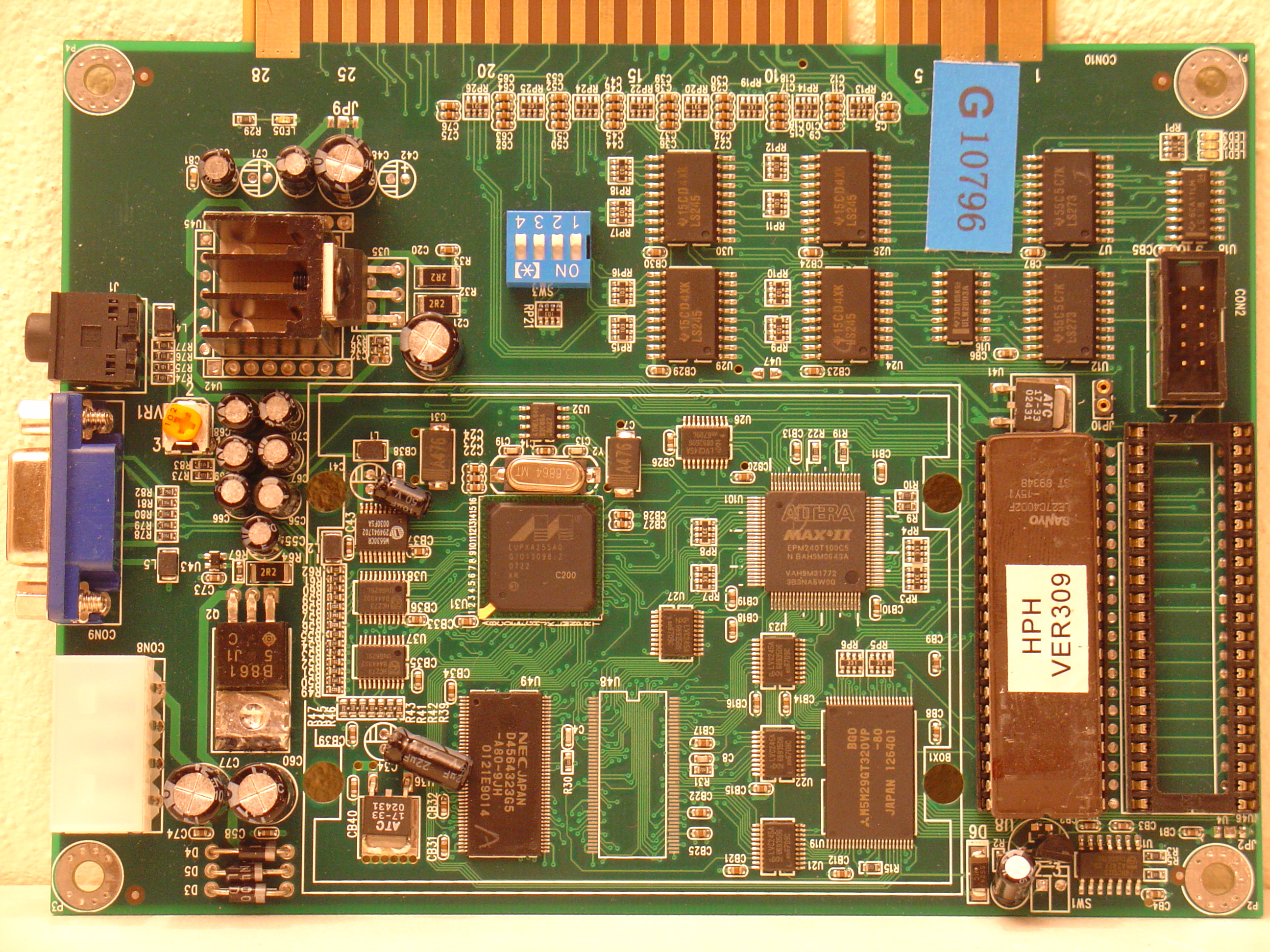

PCB component side
-

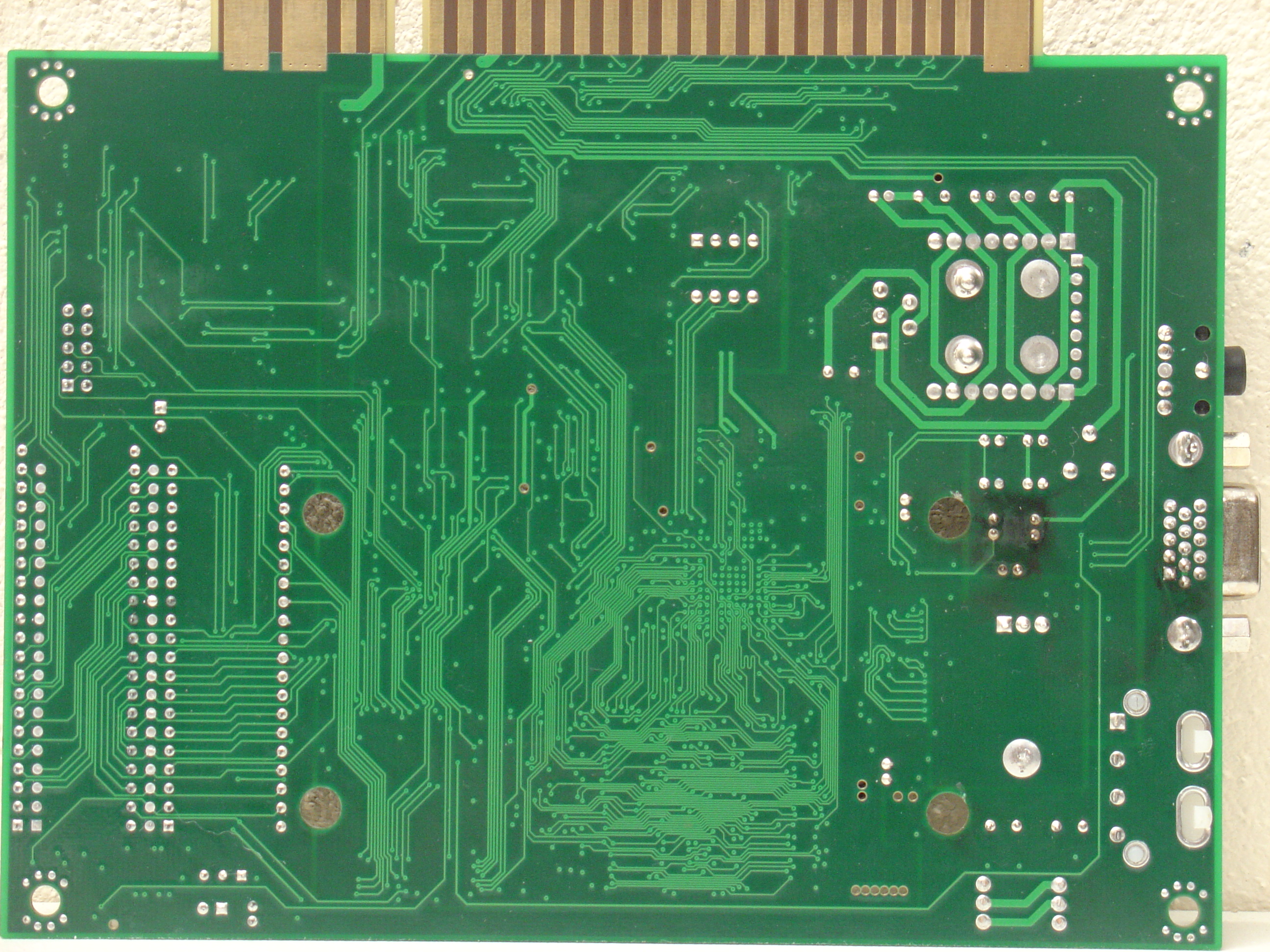

PCB solder side
