EMU Infos
| dumper |
f205v
|
| date |
16/12/2017
|
| emulator |
MAME 0.193
|
| dev |
Osso
|
PCB Infos
| name |
sbagmani on Arcade Database
|
| description |
Super Bagman (Itisa, Spain)
|
| year |
1984
|
| manufacturer |
Valadon Automation (Itisa license)
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
Nec D780C |
|
sub PCB |
8-bit Microprocessor - main
|
| 1x |
AY-3-8910 |
|
main PCB 3s |
Programmable Sound Generator - sound
|
| 1x |
LM3900 |
|
main PCB 1t |
Quad Operational Amplifier - sound
|
| 1x |
LM380 |
|
main PCB 0u |
Audio Amplifier - sound
|
| 1x |
oscillator |
18432 |
main PCB 5a |
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 4x |
2732 |
sub PCB a,b,c,d |
dumped
|
| 10x |
2732 |
main PCB 1-10 |
dumped
|
| 1x |
AM27S19 |
main PCB 6v |
dumped
|
| 2x |
6331-1 |
main PCB 6t,6u |
dumped
|
| 2x |
6331-1 |
sub PCB |
dumped
|
RAMs
| QTY
|
Type
|
position
|
| 4x |
SN74S201N |
main PCB 11u,11v,12t,12u (looks like another 2x 74S201 are missing at 11t,12v)
|
| 2x |
P5101L-1 |
main PCB 10a,10c
|
| 5x |
P2114A-5 |
main PCB 4b,6f,6h,10h,10j
|
| 1x |
MM2114N |
main PCB 4a
|
| 1x |
MK4802P |
main PCB 5b
|
PLDs
| QTY
|
Type
|
position
|
status
|
| 0x |
|
|
|
Others
1x 2x2 edge connector(main PCB)
1x trimmer (volume)(main PCB)
1x 8 DIP switches bank(main PCB 2a)
Notes
sub PCB is marked: "10-27 P1"
sound section is heavily modified with jumper wires
Files
1577
assembled PCBs component side
main PCB component side
main PCB solder side

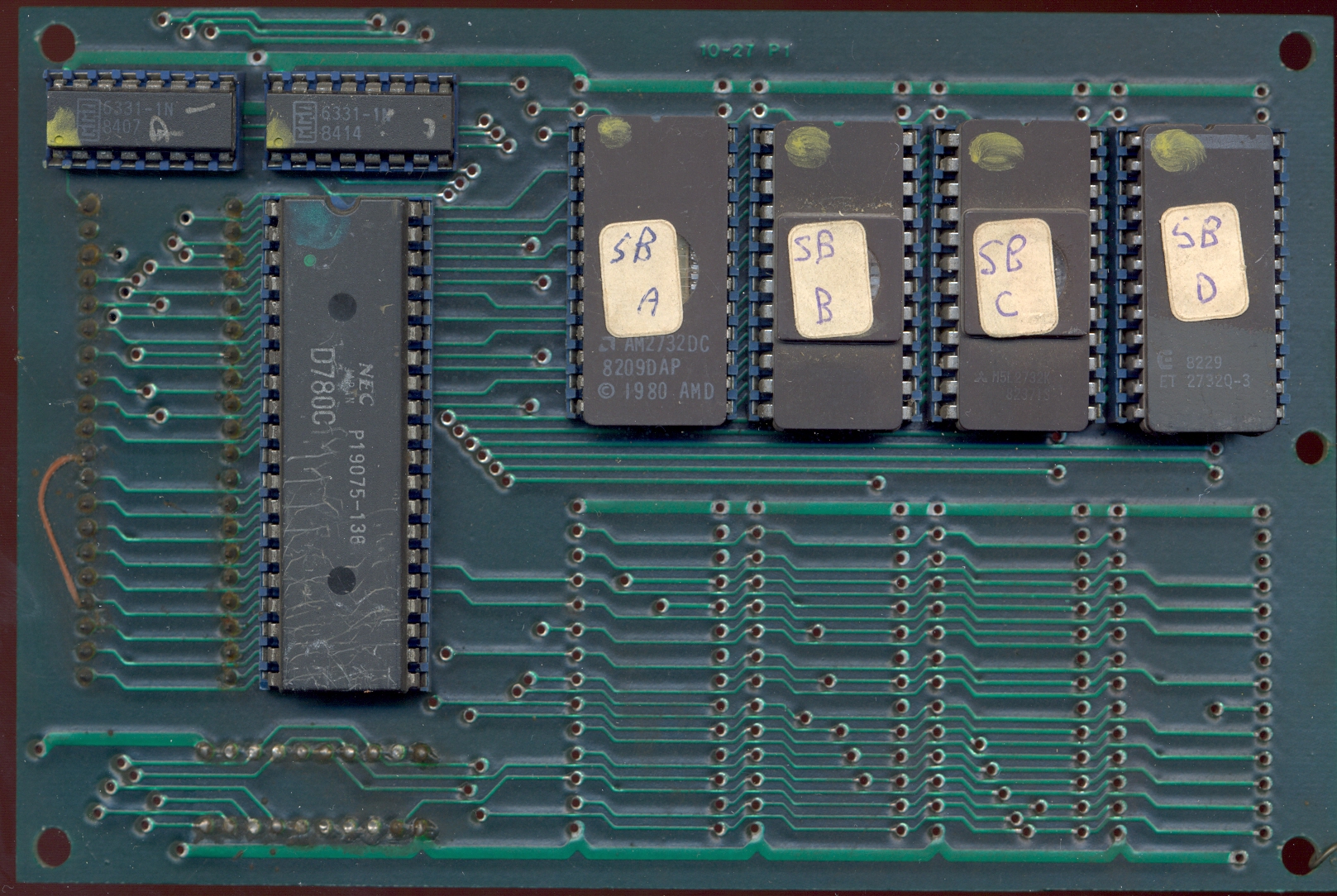

sub PCB component side
sub PCB solder side
