Monza GP (set 2)
From Citylan
| dumper | f205v, Antro, Vernimark |
| date | 18/12/2012 |
| emulator | MAME 0.148 |
| dev | f205v |
| name | monzagpb |
| description | Monza GP (bootleg) |
| year | 1981 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Intel P8035L | upper PCB | HMOS Single Component 8BIT Microcontroller - no internal ROM - 64x8 RAM | |
| 1x | National DP8350N | upper PCB | Video Output Graphics Controller - Programmable CRT Controller | |
| 1x | oscillator | 10535 | upper PCB | main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | 2708 | upper PCB 10-15 | dumped |
| 9x | 2708 | lower PCB 1-9 | dumped |
| 7x | MMI6300j | lower PCB 1-7 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | 2114 | upper PCB |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL10L8CJ | upper PCB | read protected |
Others
1x 8x2 dip switches (upper PCB)
1x 10 legs connector (power supply) (lower PCB)
2x 5 legs connector (lower PCB)
1x 20x2 legs connector for flat cable (lower PCB)
1x trimmer (lower PCB)
Notes
Files
-

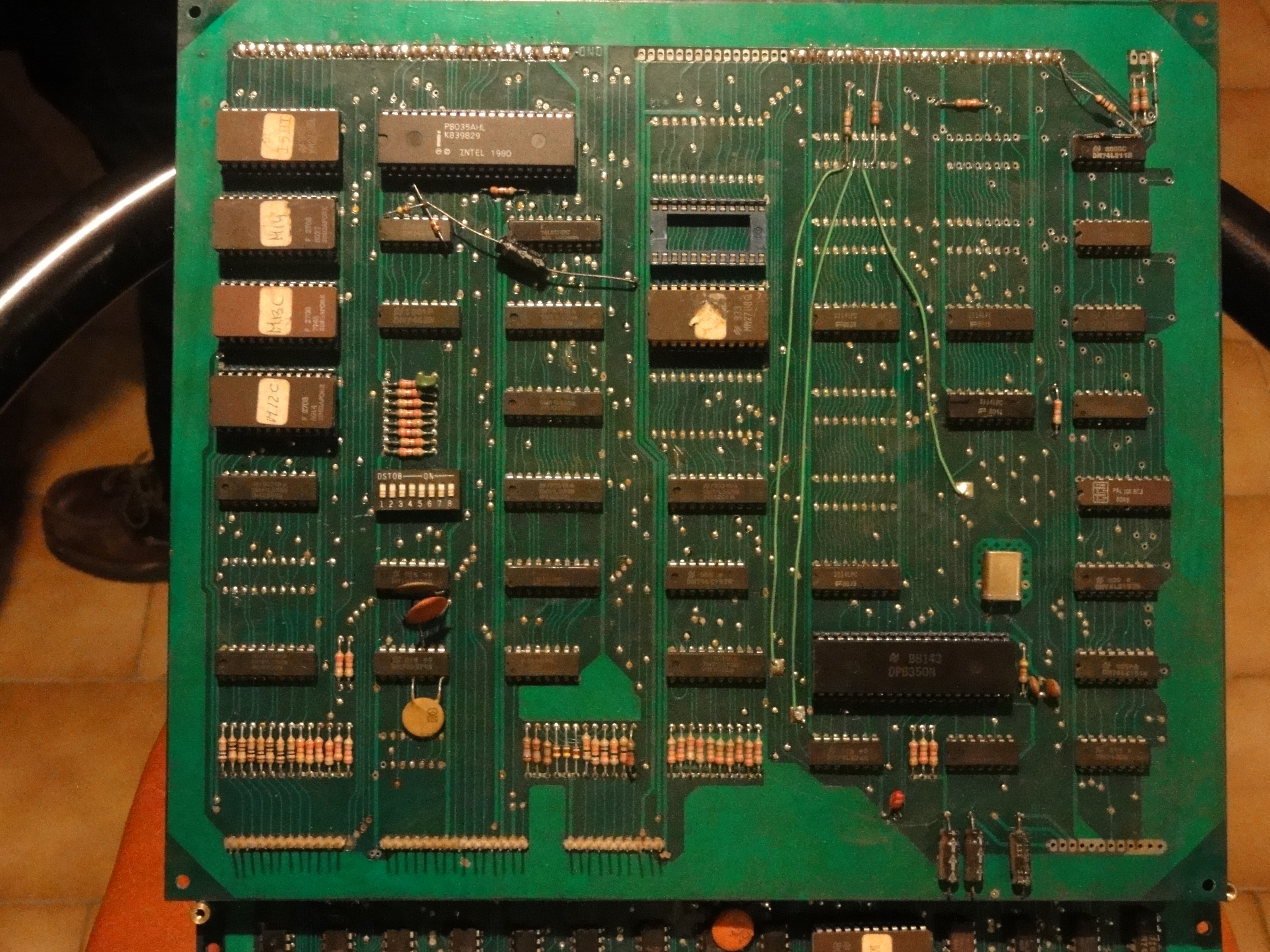

upper PCB component side 1
-

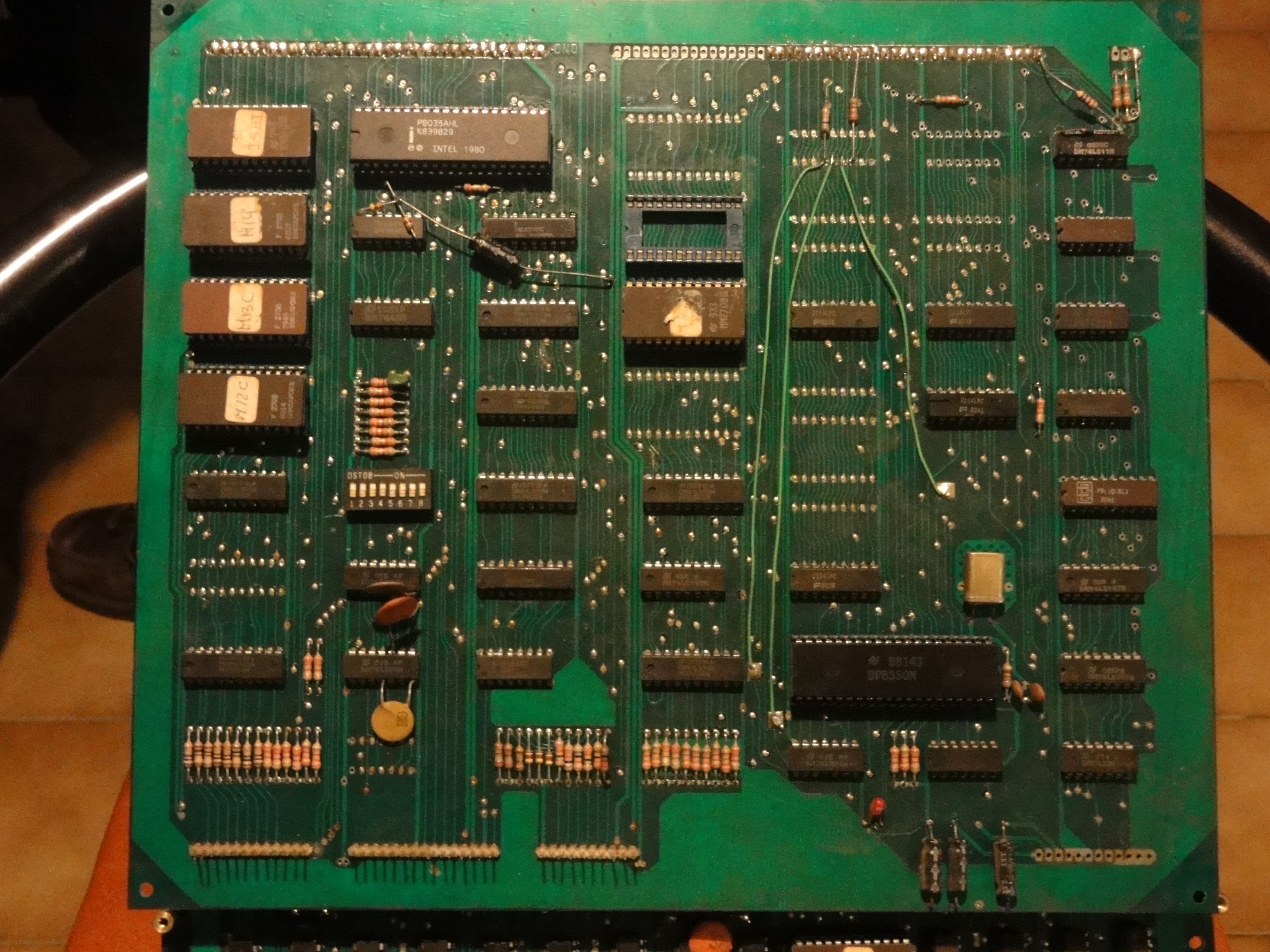

upper PCB component side 2
-

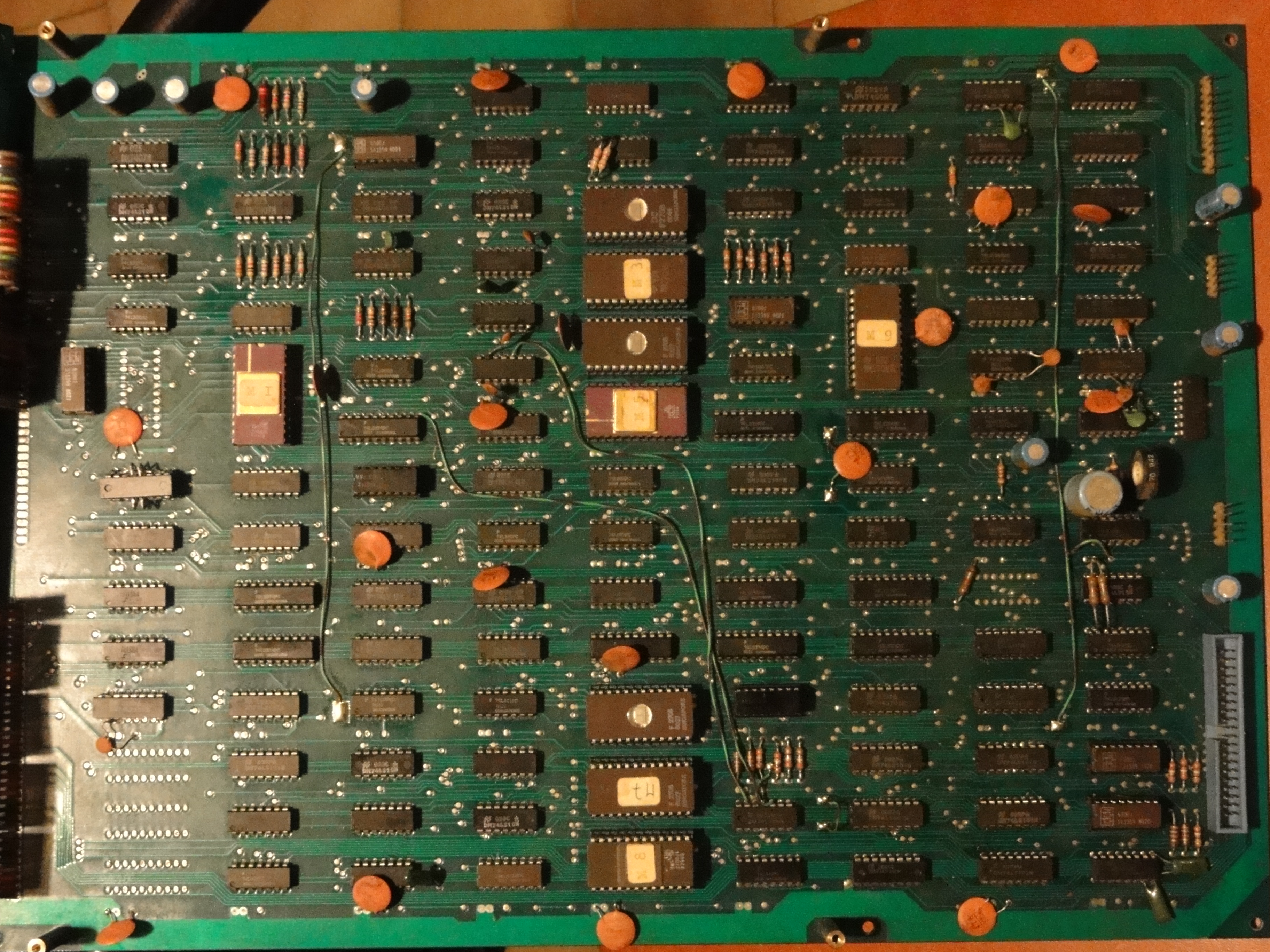

lower PCB component side 1
-

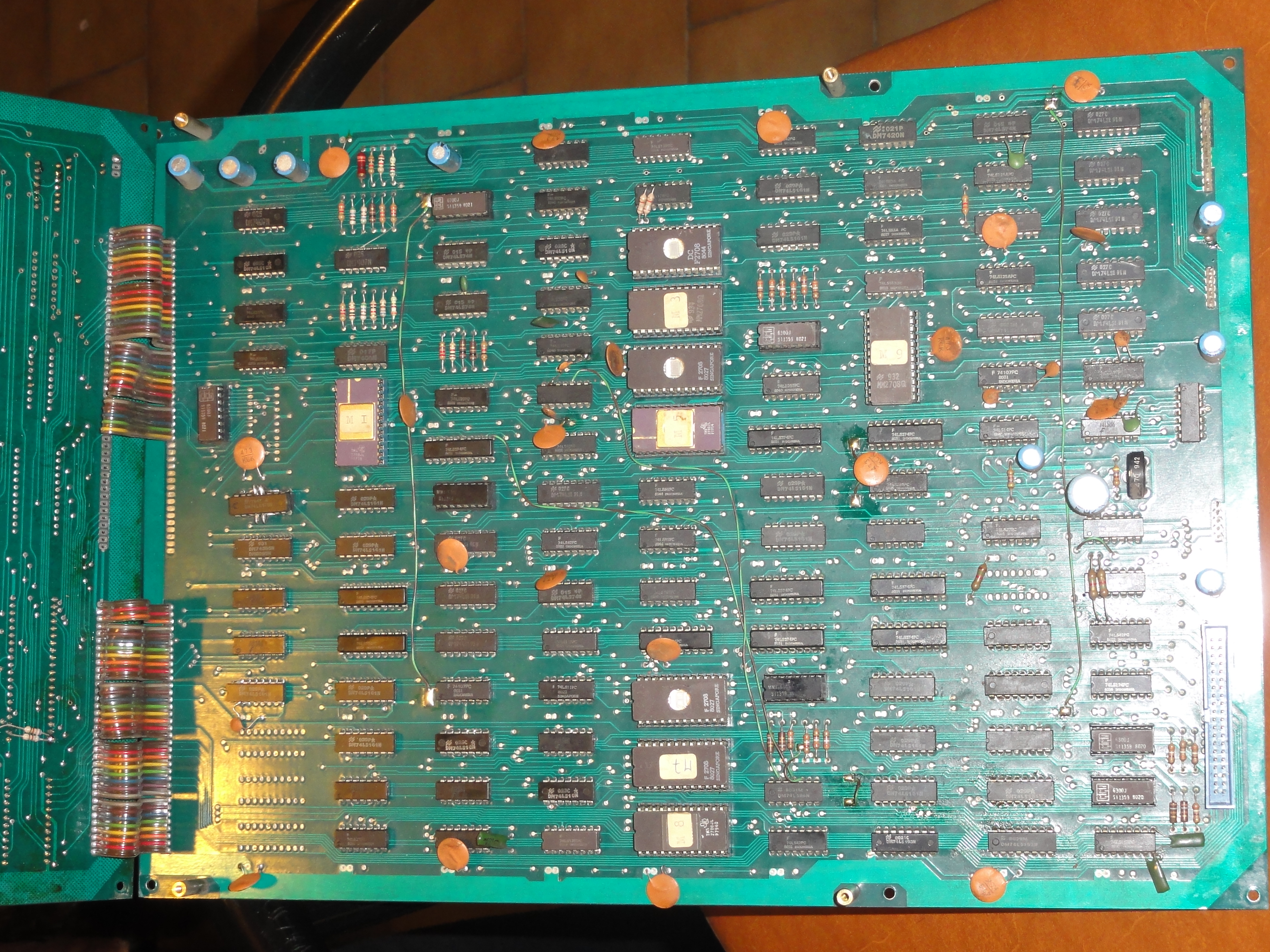

lower PCB component side 2
-

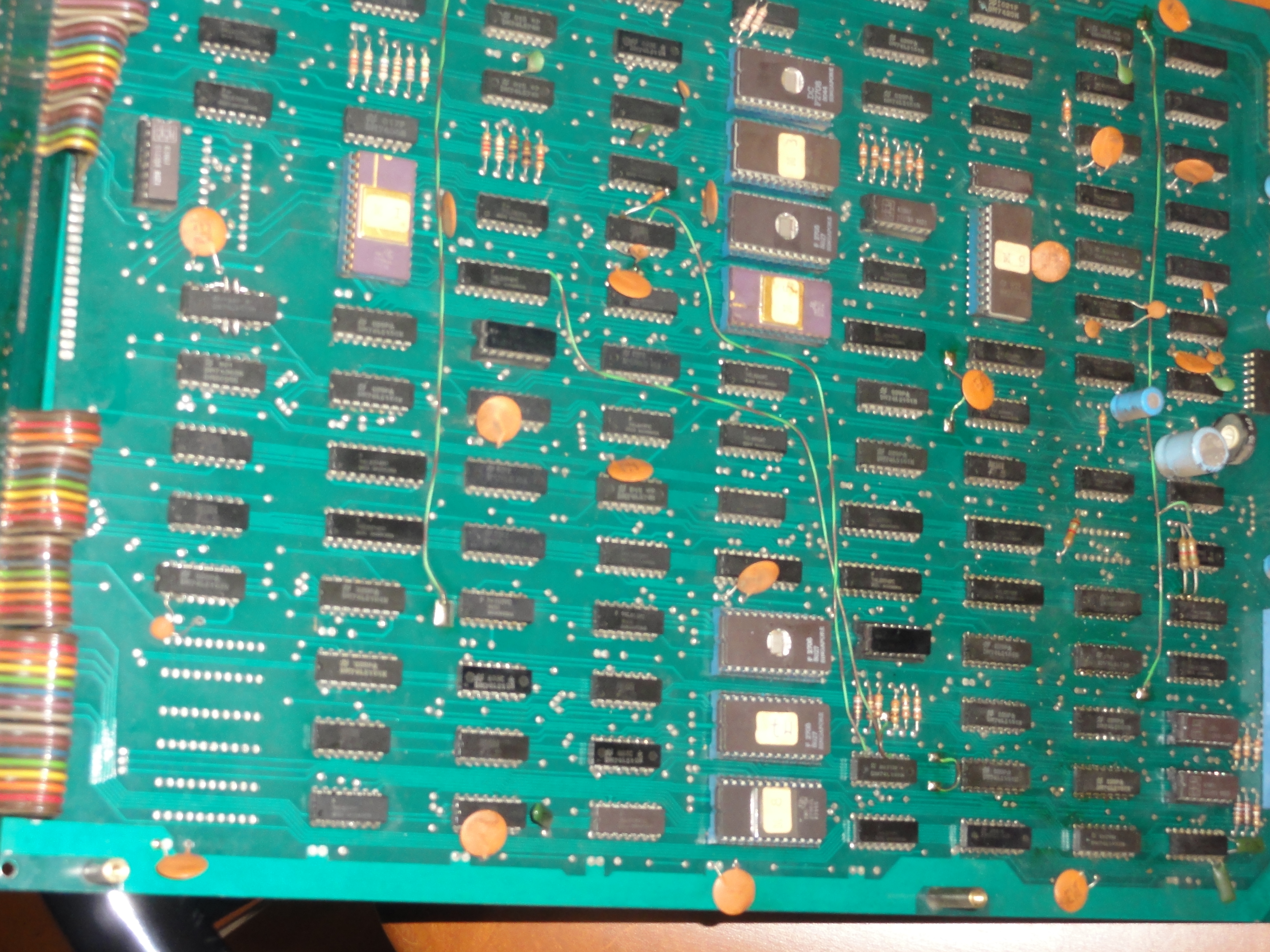

lower PCB component side 3
