Virtua Tennis 2 / Power Smash 2 (Rev A)

From Citylan
Revision as of 21:43, 30 January 2014 by WikiSysop (talk | contribs)
Jump to navigationJump to search
EMU Infos
dumper "someone"
dump date 12/10/2009
emulator MAME 0.134u4
dev ANY, The Dumping Union

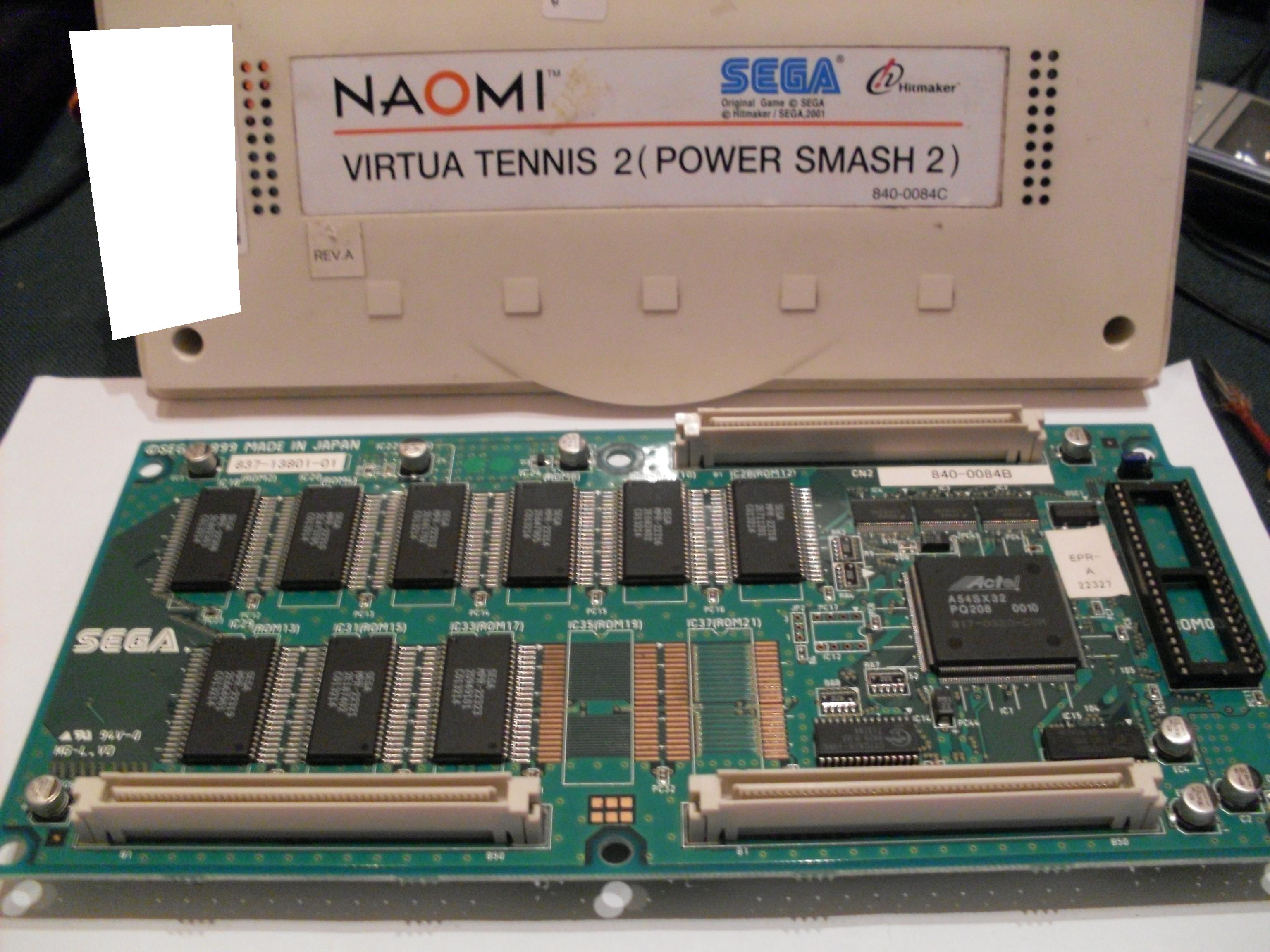

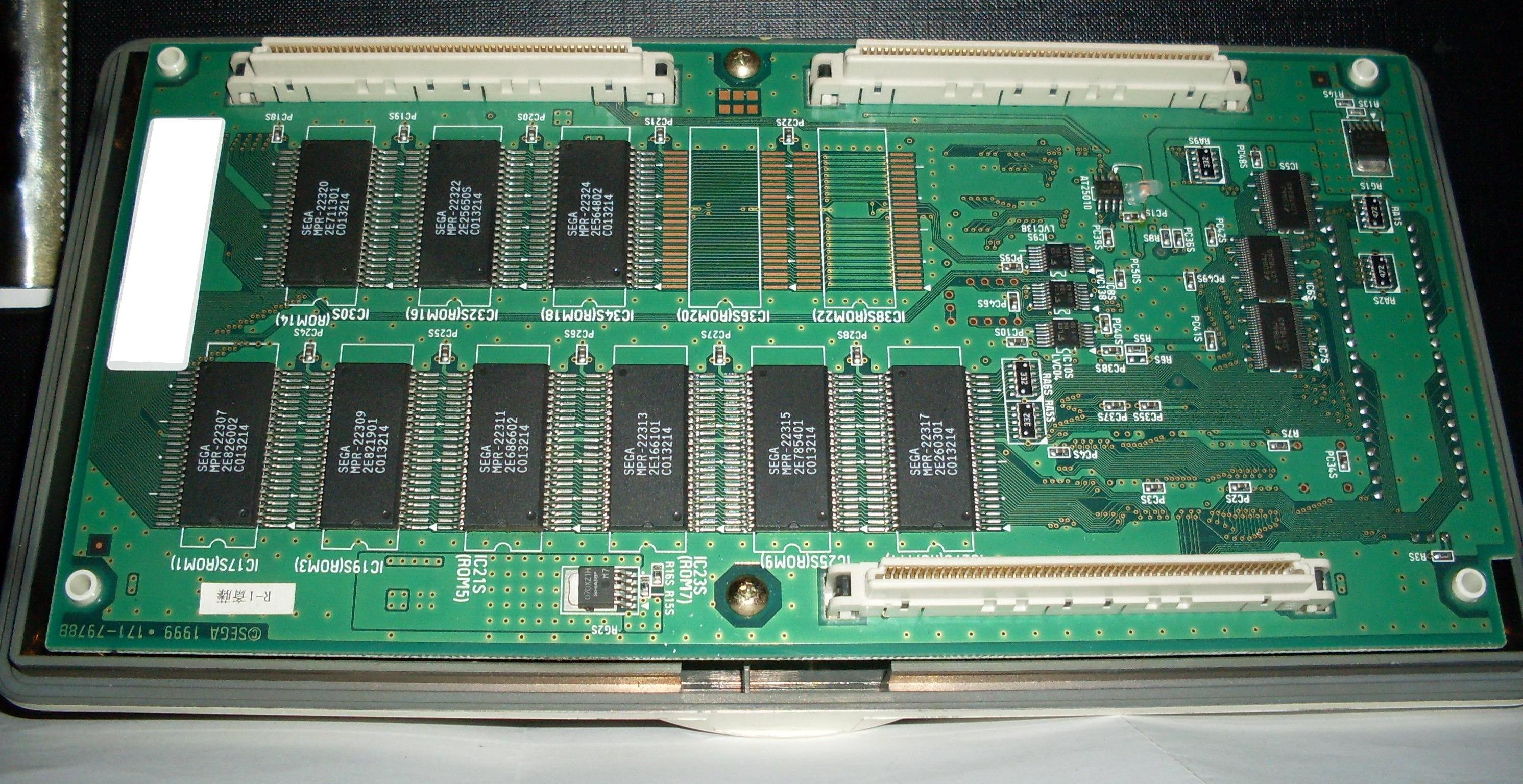

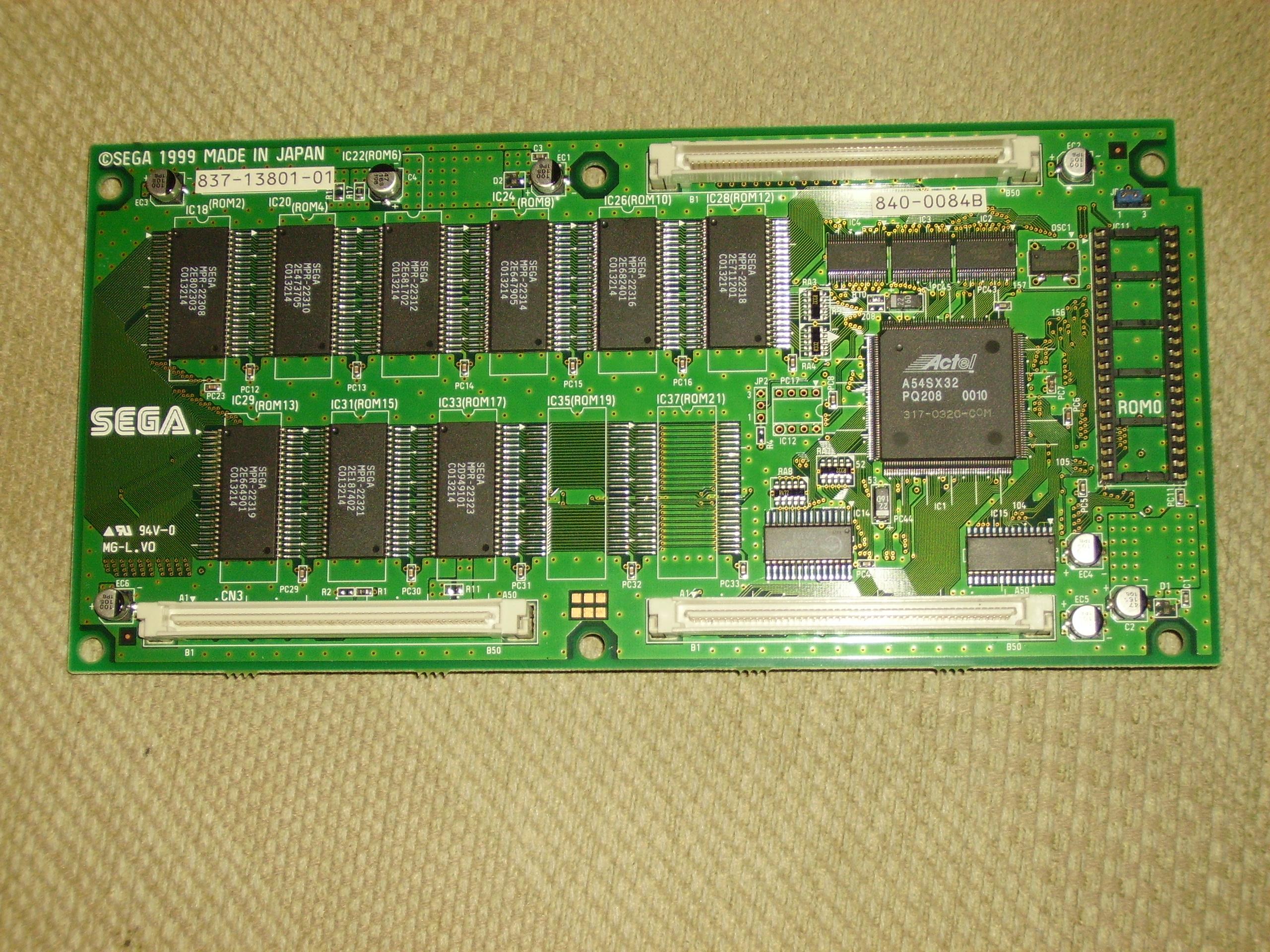

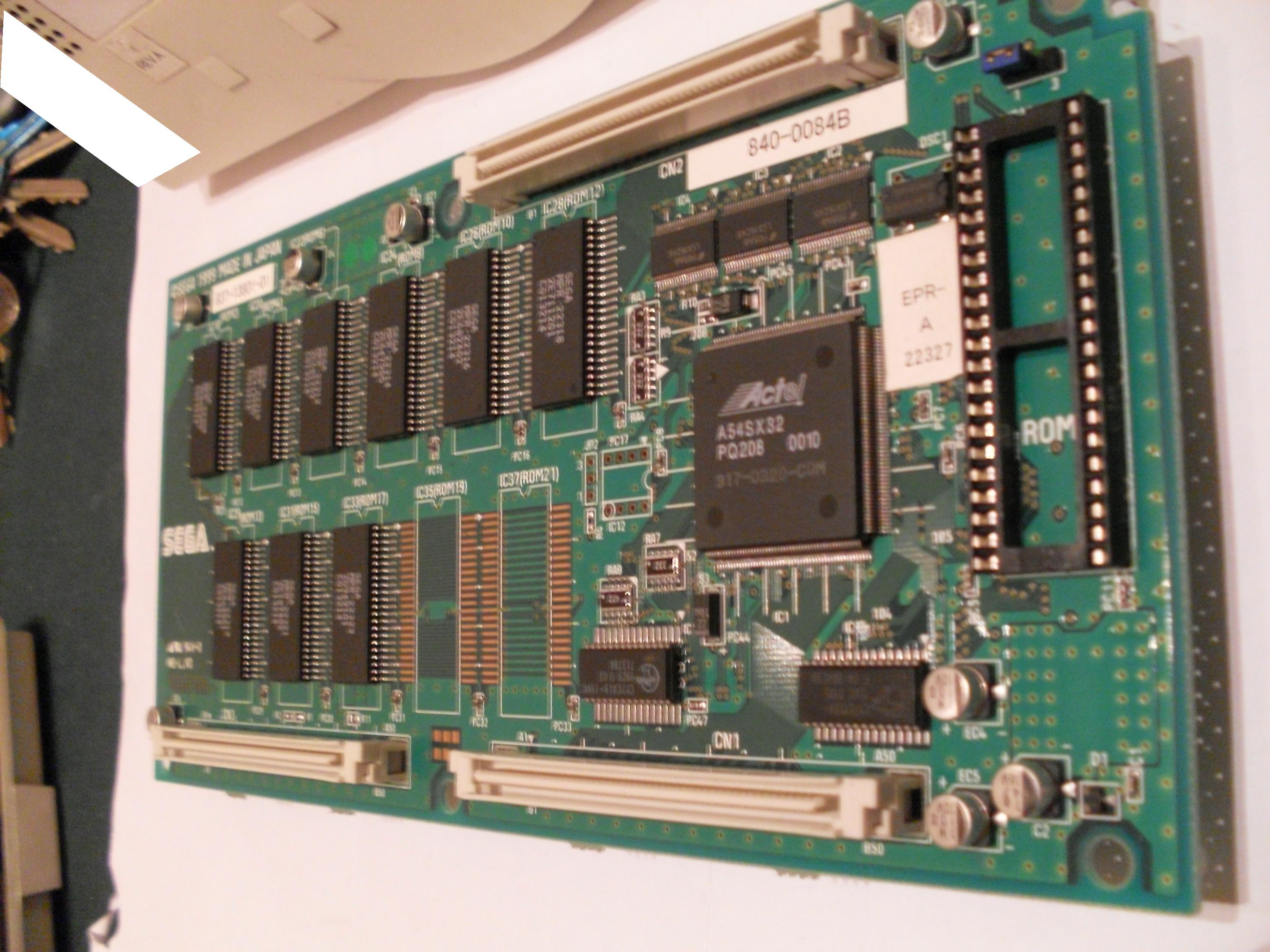

PCB Infos
name vtenis2c
description Power Smash 2 (JPN) / Virtua Tennis 2 (USA, EXP, KOR, AUS) (Cart, Rev A)
year 2001
manufacturer Sega

Technical references

CPUs

QTY Type clock position function
1x oscillator 50MHz osc1

ROMs

QTY Type position status
1x M27C322 22327a.ic11 dumped
18x MX23L641 22308.ic17s - 22324.ic34 dumped
1x 25LC040 ic13s not dumped

RAMs

QTY Type position
1x IDT71256 ic15

PLDs

QTY Type position status

Others

Notes

Working

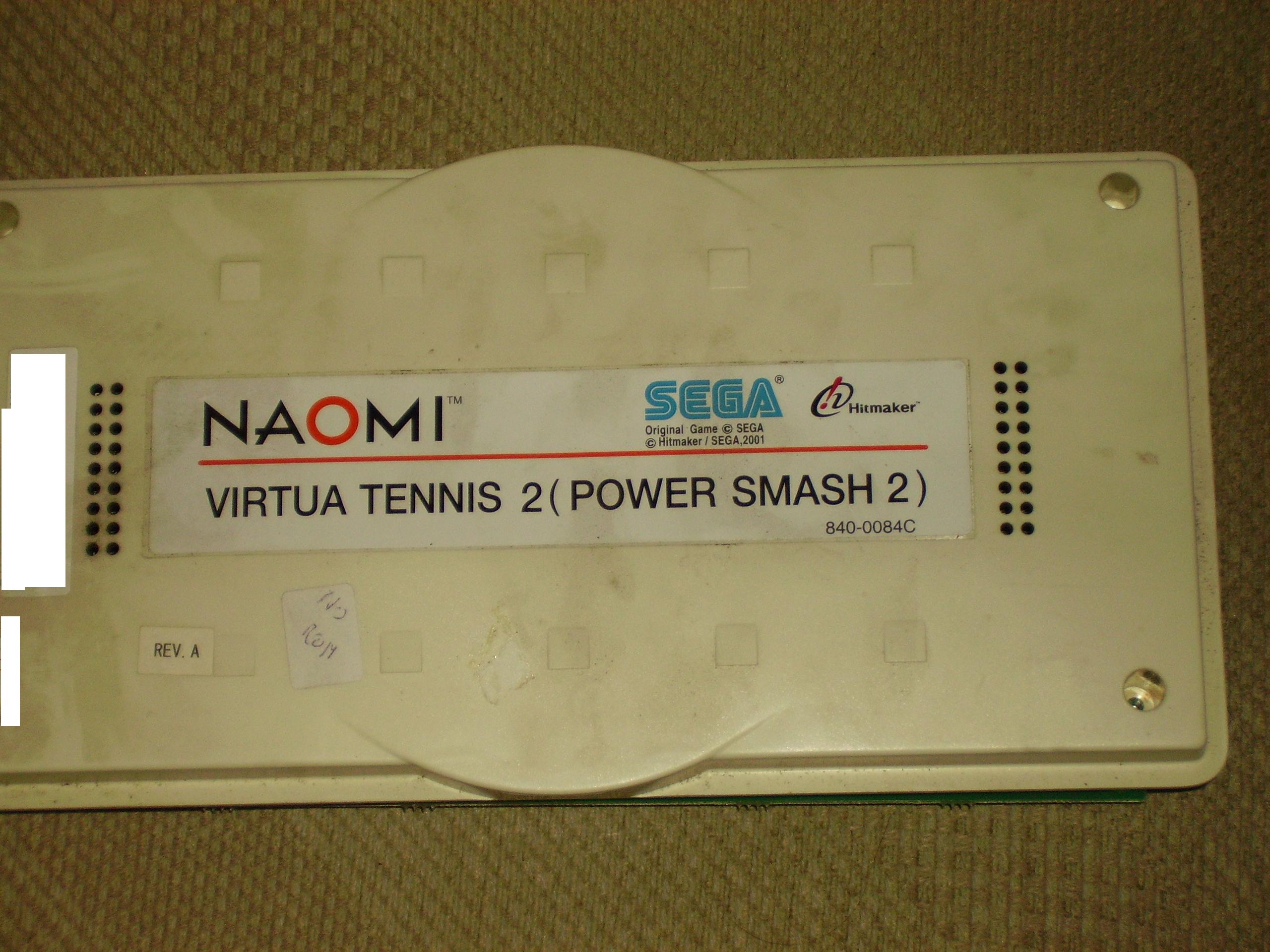

Cart type: 171-7978B
Cart N°: 840-0084C
Protection IC: ACTEL A54SX32A (317-0320-COM)

Files

844
