Street Fighter II': Magic Delta Turbo (bootleg, set 2)
From Citylan
| dumper | f205v |
| date | 24/02/2010 |
| emulator | |
| dev |
| name | 889 |
| description | Street Fighter II Magic Delta Turbo |
| year | |
| manufacturer | Playmark |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | 16/32-bit Microprocessor - main | ||
| 1x | Z0840006PSC | 8-bit Microprocessor - sound | ||
| 2x | M5205 | ADPCM Speech Syntesis IC - sound | ||
| 2x | LM324N | Quad Operational Amplifier - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | YM2151 | FM Operator Type-M (OPM) - sound | ||
| 1x | YM3012A | D/A Converter (DAC) - sound | ||
| 1x | oscillator | 28.322 | XL1 | |
| 1x | oscillator | 22118 | XL1 | |
| 1x | blu resonator | POE400B | XL1 | sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AM27C010 | 1 | dumped |
| 2x | ID27C010 | 2,4 | dumped |
| 2x | M27C4001 | 3,5 | dumped |
| 6x | MASKROM | pf4-pf9 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | KM62256ALP-8 | |
| 9x | MCM2018AN45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ACTEL A1020A-PL84C | read protected | |
| 3x | PALCE16V8H | read protected | |
| 2x | GAL20V8 | read protected | |
| 1x | VP20V8E | read protected |
Others
1x 28x2 edge connector
1x trimmer (volume)
3x 8x2 switches DIP
Notes
PCB's layout is identical to Street Fighter II (bootleg)
Files
-

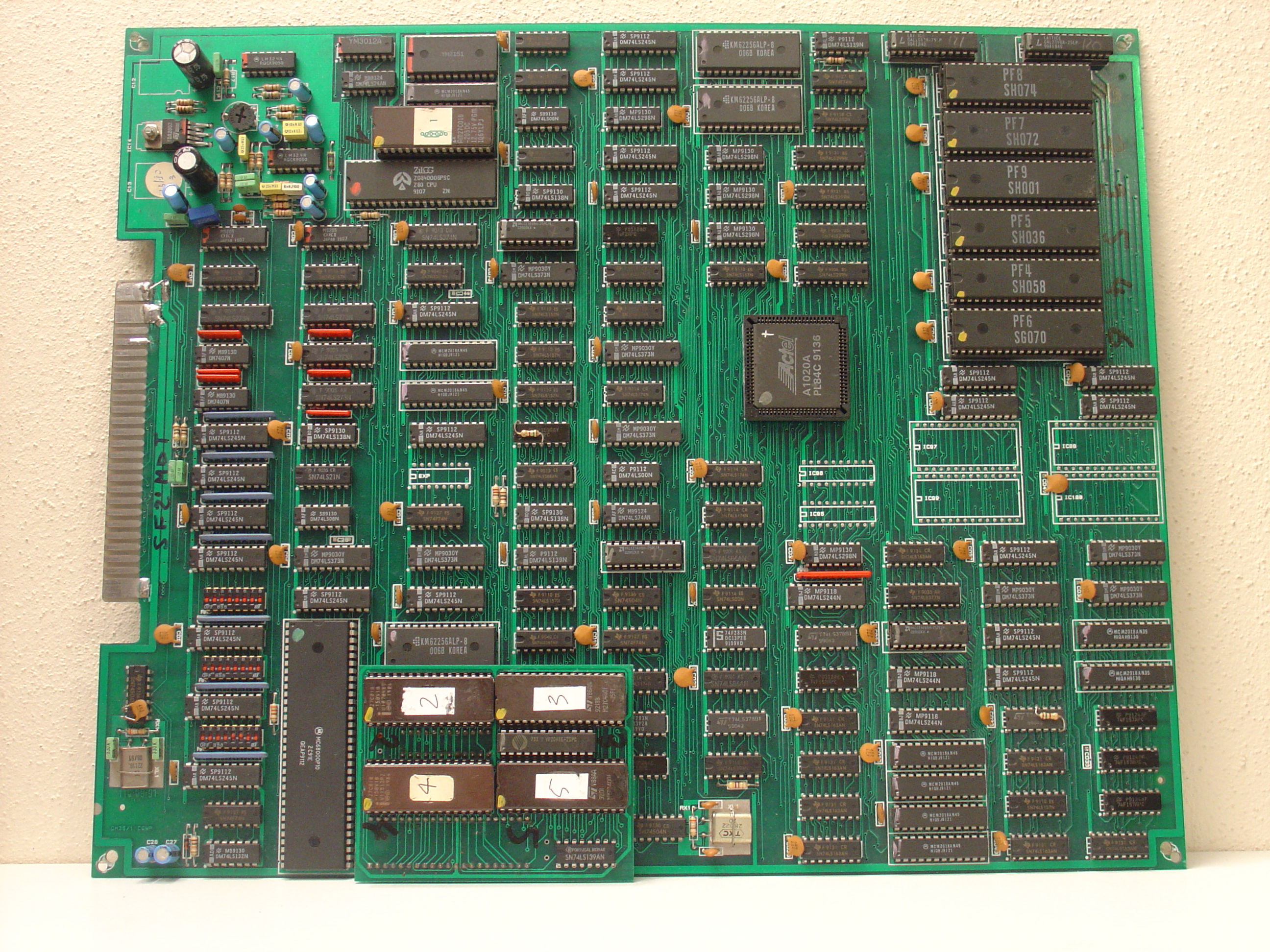

PCB component side
-

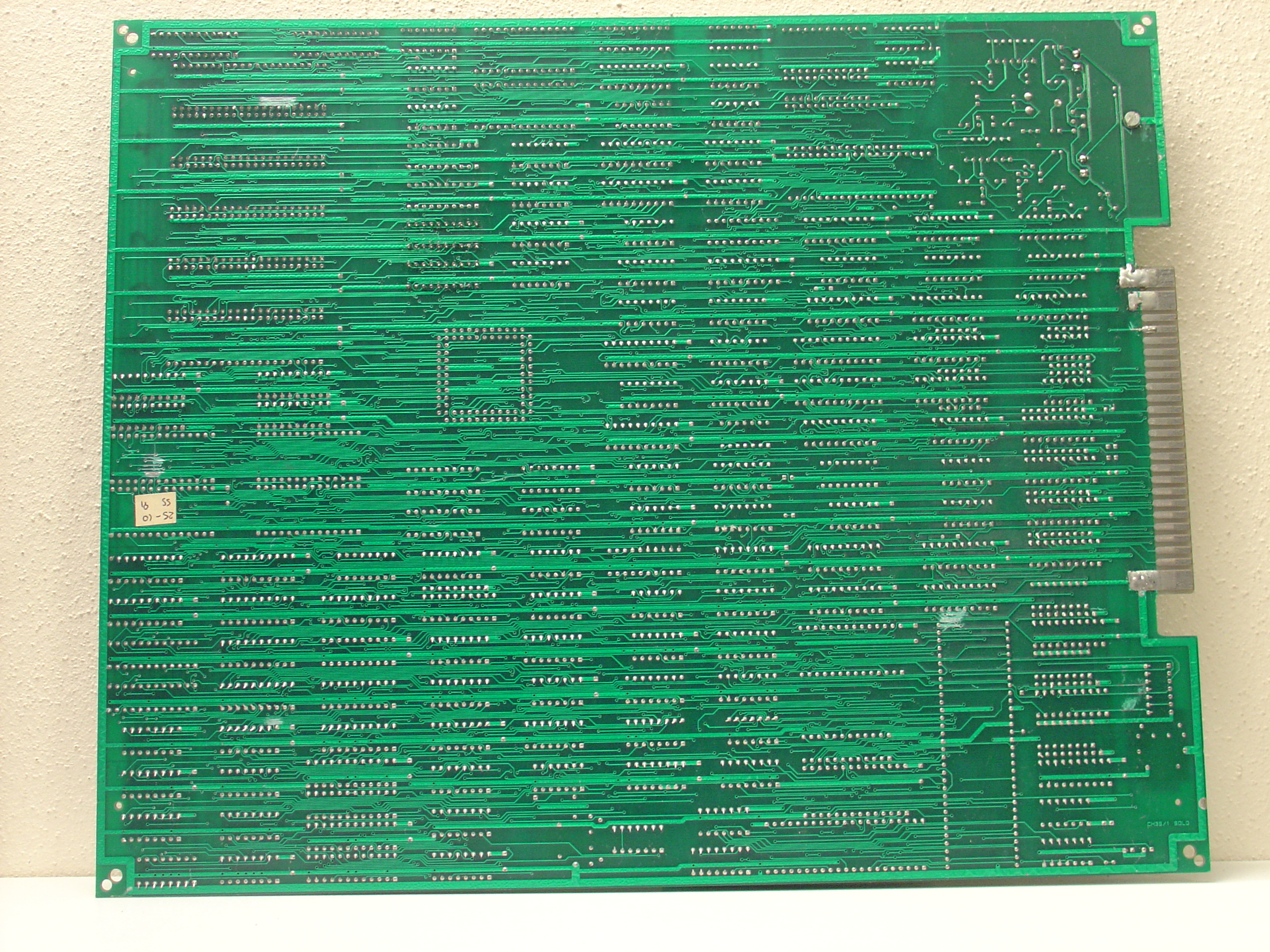

PCB solder side
-
