Magic's 10 2 (ver 1.1)
| dumper | Corrado Tomaselli, f205v |
| date | 11/09/2005 |
| emulator | MAME 0.100u4 |
| dev | Pierpaolo Prazzoli |
| name | magic102 on Arcade Database |
| description | Magic's 10 2 (ver 1.1) |
| year | 1997.07.01 |
| manufacturer | ABM Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000 | 1st PCB | 16/32-bit Microprocessor - main | |
| 1x | HD6473308CP10 | 1st PCB | 16-bit Single-Chip Microcomputer - main - NOT DUMPED | |
| 1x | OKI6295 | 1st PCB | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | oscillator | 30.000MHz | 1st PCB | |
| 1x | oscillator | 20.000MHz | 1st PCB near the 68k | |
| 1x | MC68HC000P10 | 2nd PCB u1 | 16/32-bit Microprocessor - main | |
| 1x | HD6473308CP10 | 2nd PCB label: version 1.1 | 16-bit Single-Chip Microcomputer - main - NOT DUMPED | |
| 1x | U6295 | 2nd PCB u31 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358 | 2nd PCB u33 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | 2nd PCB u34 | Audio Amplifier - sound | |
| 1x | oscillator | 20.000MHz | 2nd PCB osc1 | |
| 1x | oscillator | 30.000MHz | 2nd PCB osc2 | |
| 1x | blu resonator | 1000J | 2nd PCB xtal1 close to sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | 27010 | 1st PCB 1-6 | dumped |
| 1x | 27020 | 1st PCB 7 | dumped |
| 2x | M27C1001 | 2nd PCB 2,3 main | dumped |
| 4x | TMS27C010A | 2nd PCB 4,5,6,7 gfx | dumped |
| 1x | M27C2001 | 2nd PCB 1 snd | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | W2465-10L | 2nd PCB u4,u5,u43,u44 |
| 1x | 6116 | 2nd PCB u6 |
| 2x | HM3-65728BK-5 | 2nd PCB u61,u62 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | FPGA by Actel | 1st PCB | read protected |
| 1x | ACTEL A1020B-PL84C | 2nd PCB u50 | read protected |
| 1x | GAL22V10 | 2nd PCB u22 | read protected |
| 1x | GAL16V8V | 2nd PCB u54 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connectr
1x trimmer (volume)
1x 8x2 switches DIP
1x battery (missing on 2nd PCB)
Notes
1st PCB marked: ABM - 9605 Rev.02
2nd PCB marked: ABM - 9605 Rev.01
Update 20050928: the game formerly known as "Gambling" has now been correctly identified as "Magic's 10 2 (ver 1.1)" by Pierpaolo Prazzoli. (1st PCB)
Update 20080417: I found a PCB labeled "Super Pool (Ver 1.1.) (2nd PCB)
Update 20121202: I just rechecked this PCB, and it is NOT "Super Pool (Ver 1.1)", it is a slightly different revision of "Magic's 10 2"! It is a very simple addition to MAME, it perfectly fits into magic10.c (2nd PCB)
Update 20250328: games 245 and 686 have been merged into 1 single page; 2nd PCB has only 1 bit difference from 1st, 100% due to bad dumping.
Files
-
Readme
-

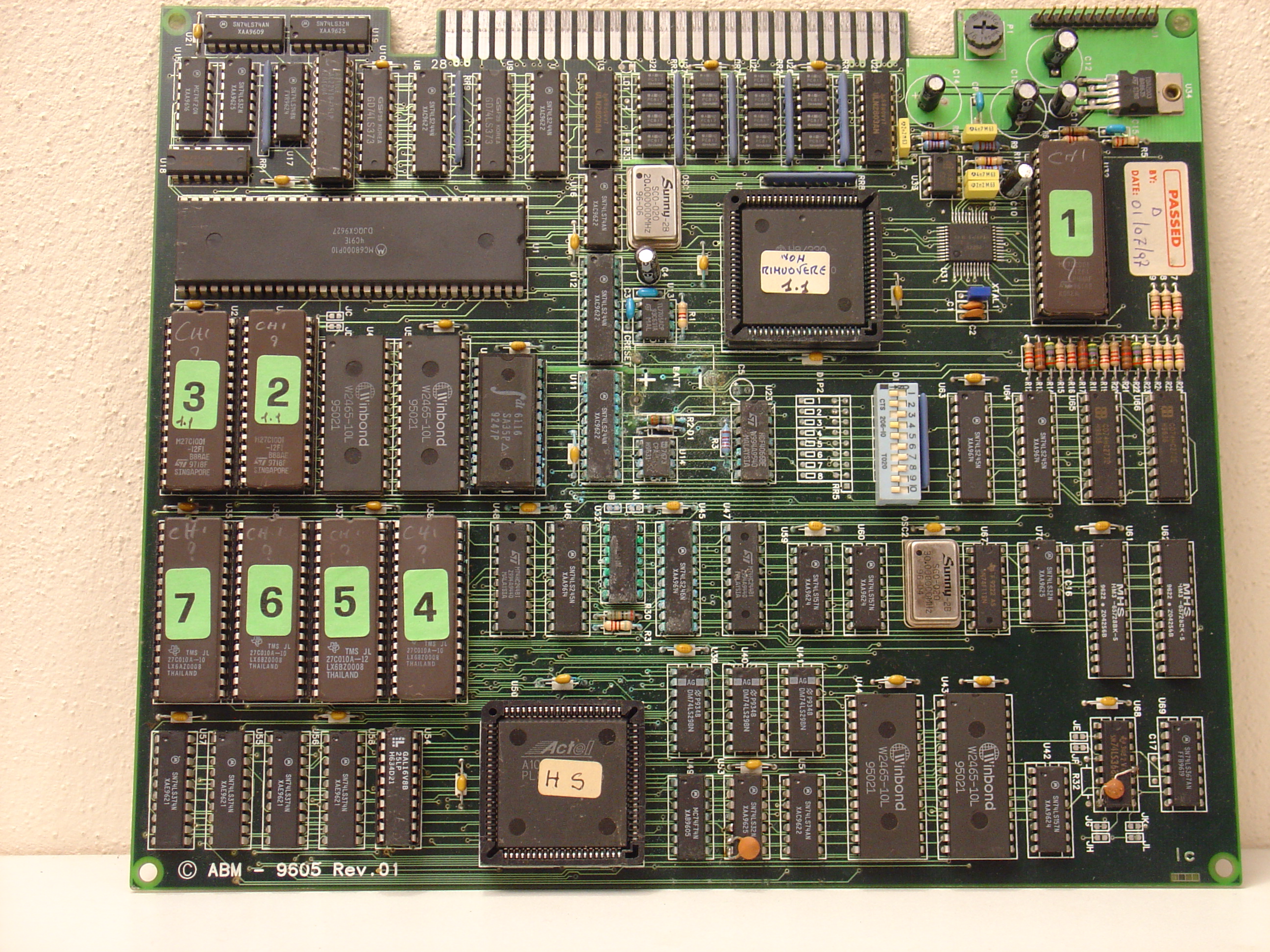

PCB component side
-

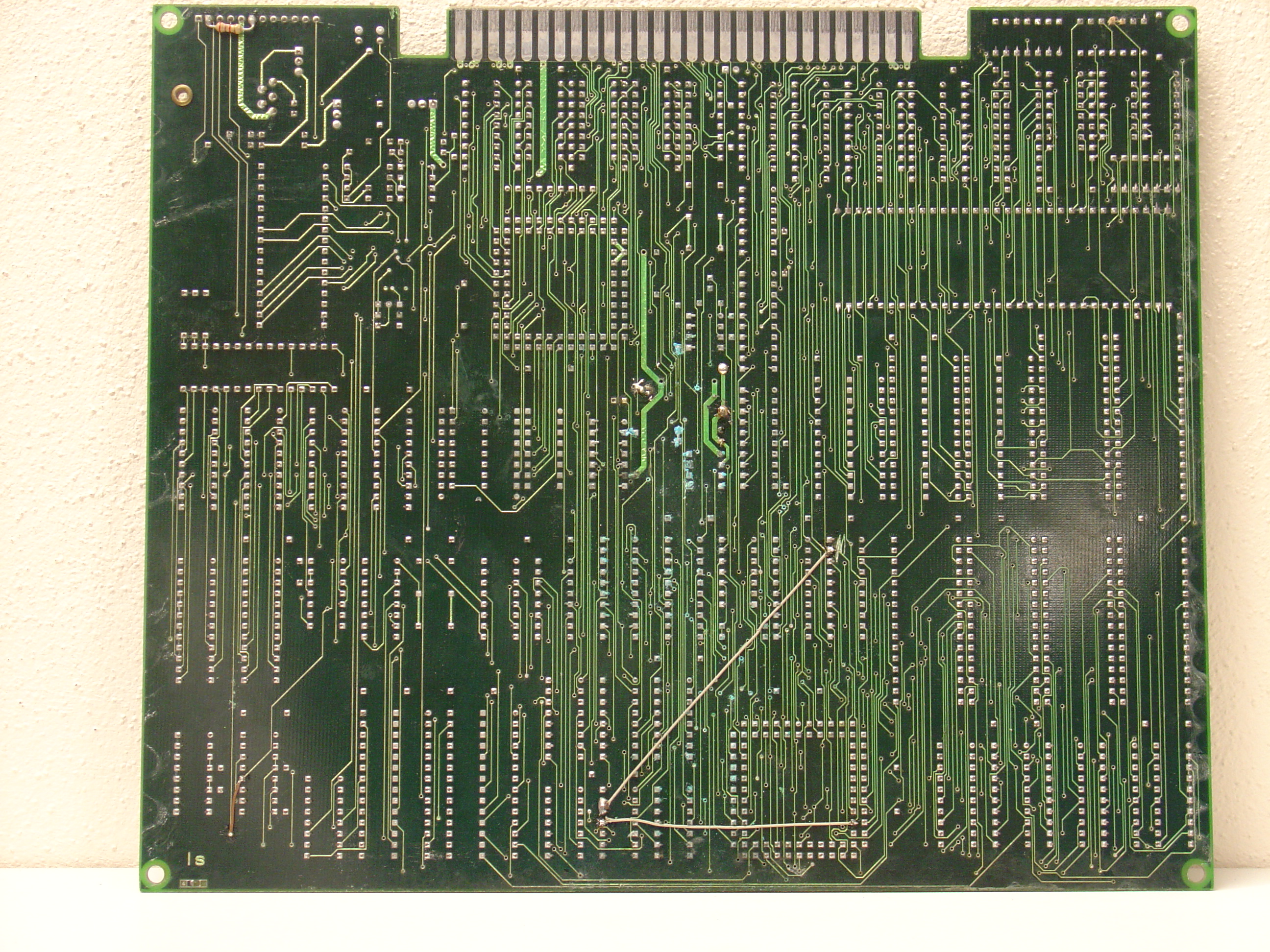

PCB solder side
-

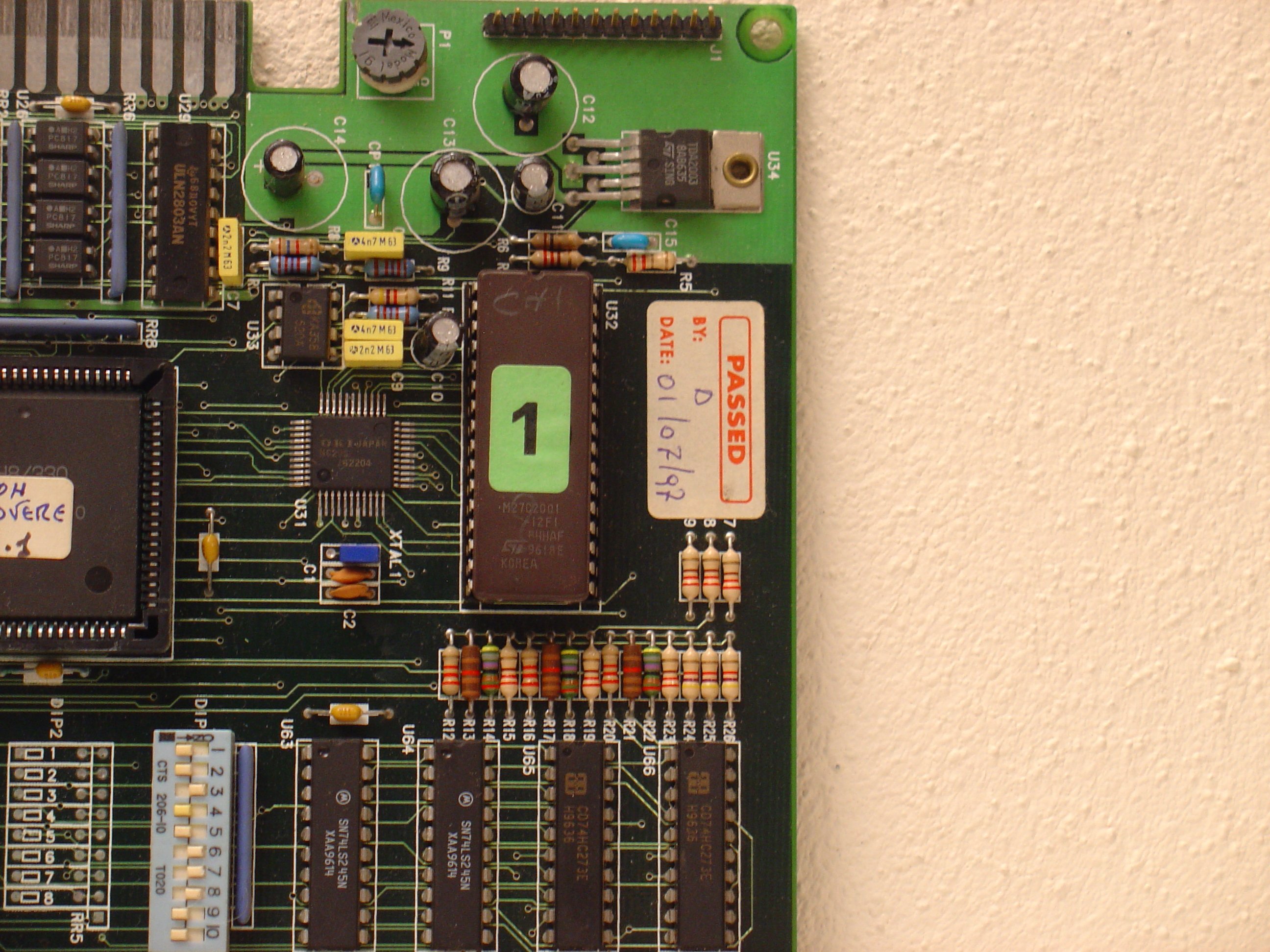

Resistors detail
