Star Horse 2002 (main screens)
From Citylan
| dumper | f205v, RTW |
| date | 30/08/2020 |
| emulator | MAME 0.225 |
| dev | MetalliC |
| name | shors2k2m on Arcade Database |
| description | Star Horse 2002 (main screens) |
| year | 2002.05.18 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-23851.ic22 | dumped |
| 6x | MaskROM 128Mb TSOP48 | MPR-23852.ic1 - MPR-23857.ic6 | dumped |
| 1x | X76F100 | ic46 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI satellite cart.
Cart type: 171-8132B
Cart N°: 840-0102C
Key: no key
Files
-

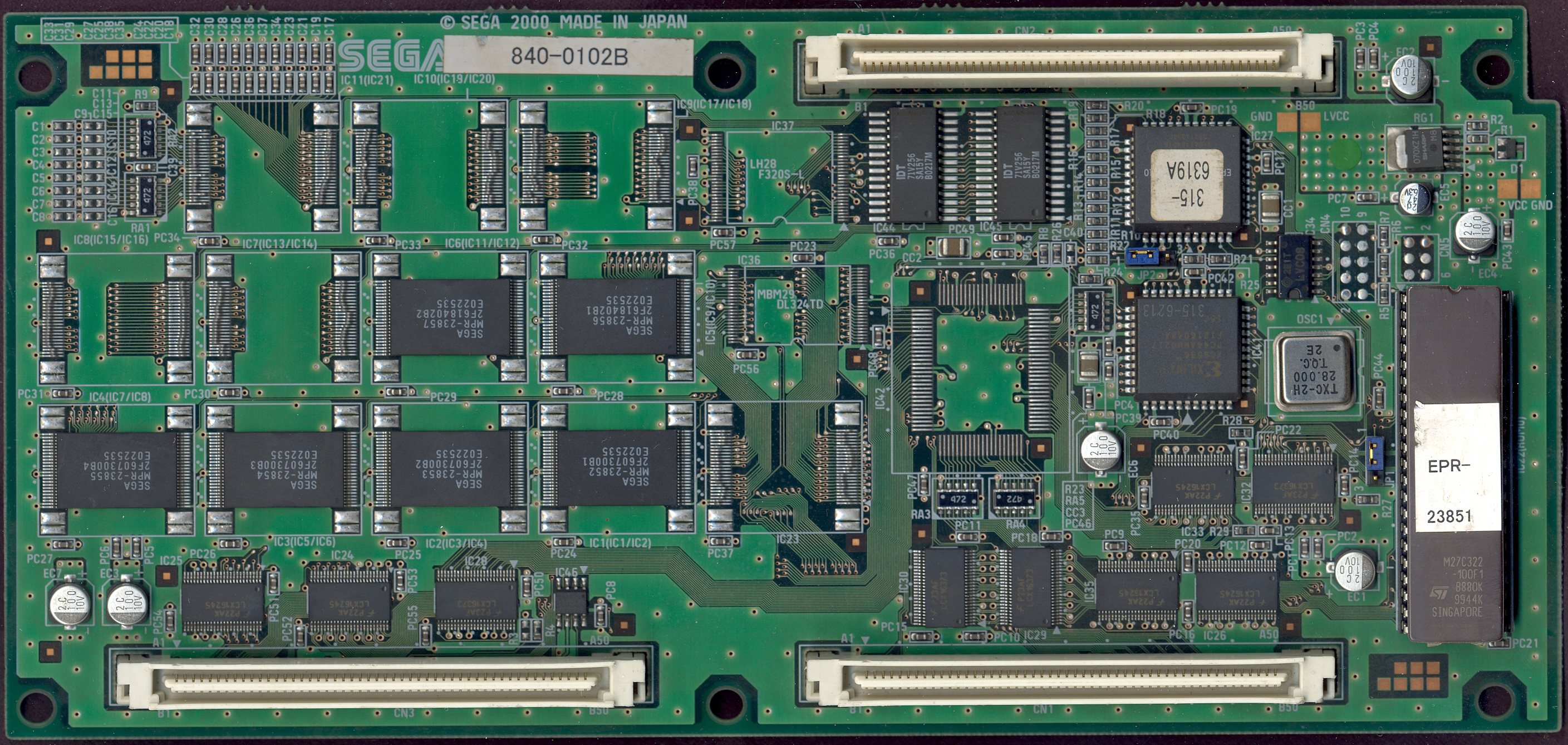

PCB component side
-

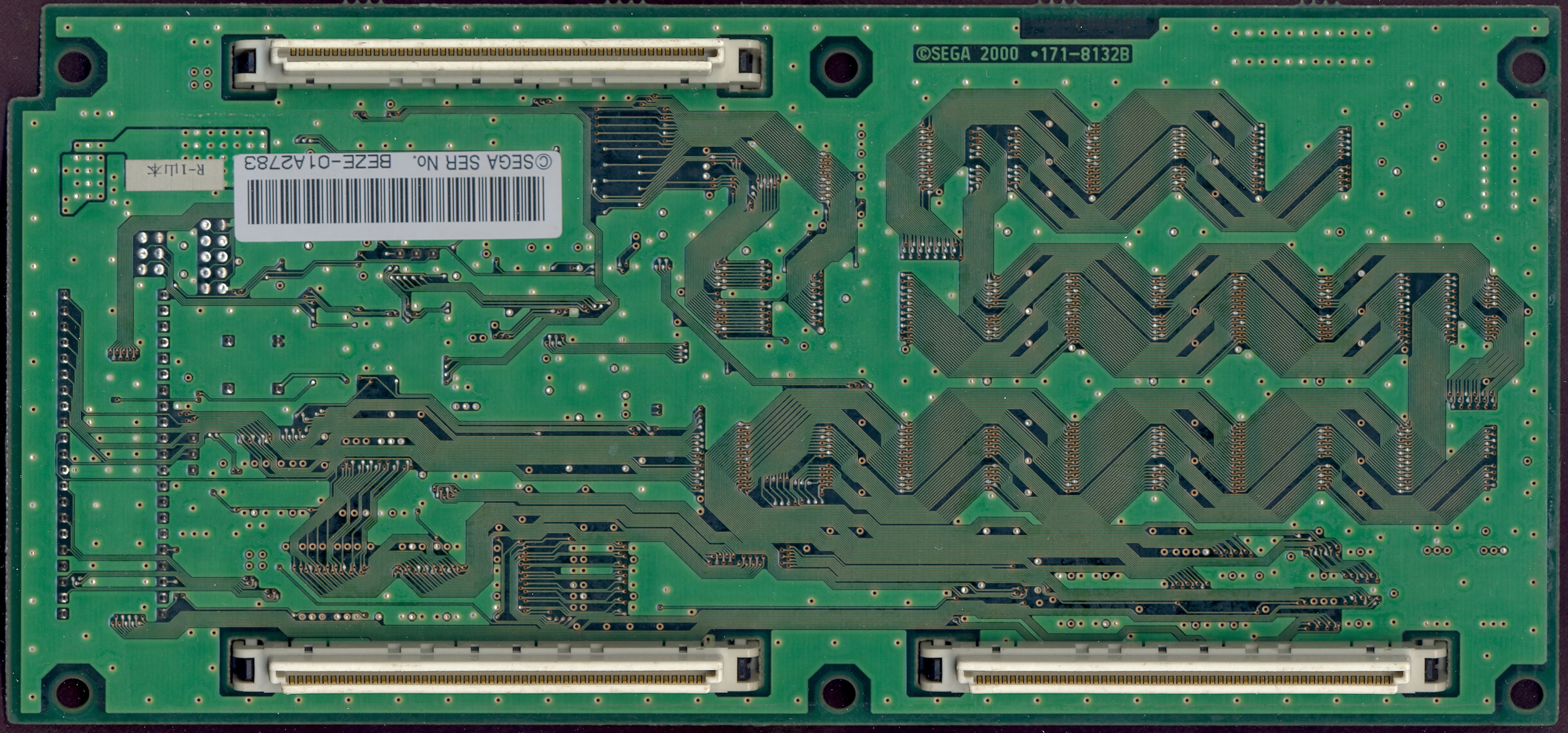

PCB solder side
-

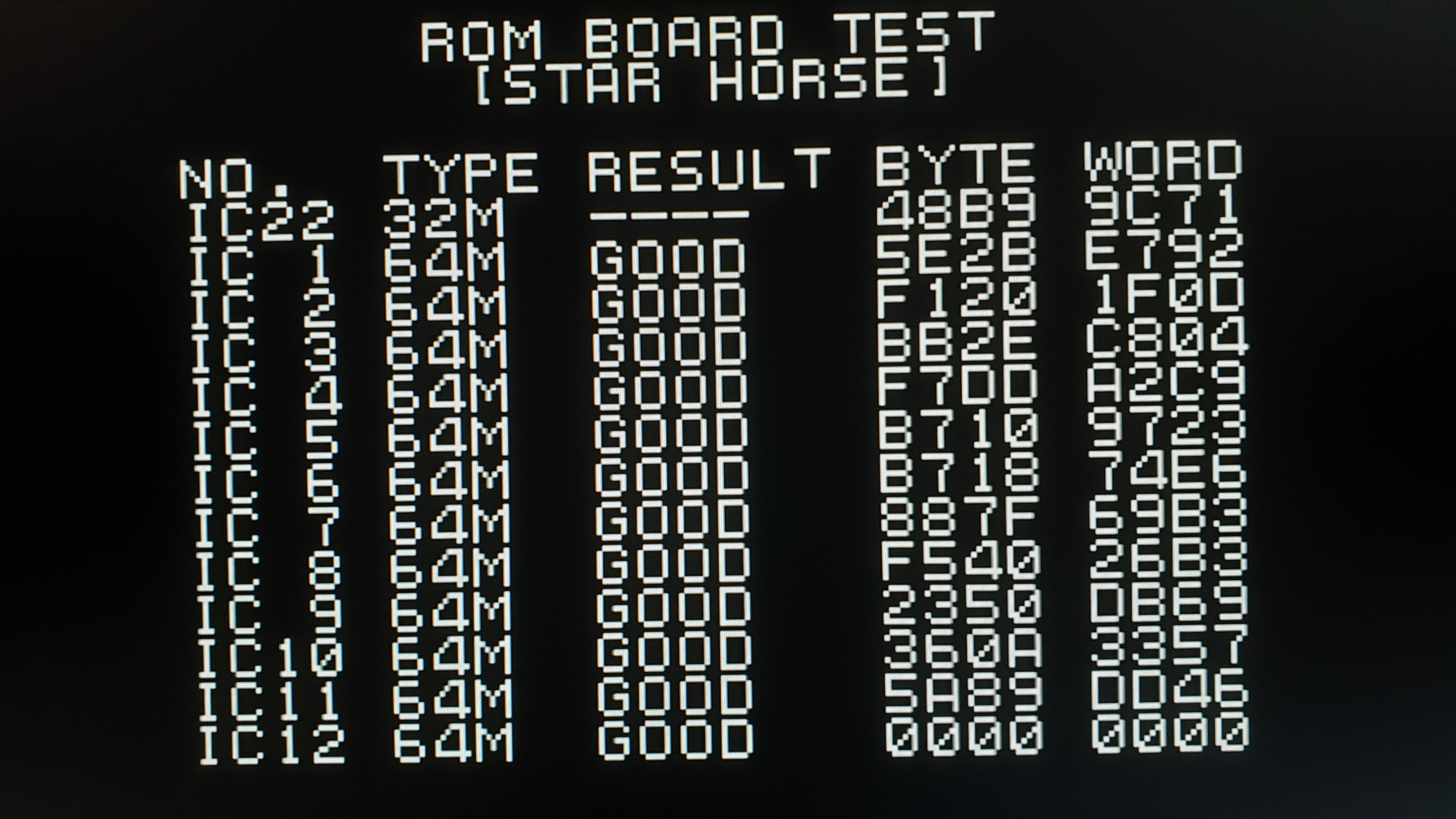

ROM BOARD TEST
-
