Wave Runner GP
From Citylan
dumper | CaH4e3 |
date | 25/09/2010 |
emulator | MAME 0.139u4 |
dev | R. Belmont |
name | wrungp on Arcade Database |
description | Wave Runner GP |
year | 2001.08.01 |
manufacturer | CRI - Sega |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | oscillator | 28.000 | osc1 |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | M27C322 | 24059.ic22 | dumped |
5x | MaskROM 128Mb TSOP48 | MPR-23719.ic1 - 23724.ic6 | dumped |
RAMs
QTY | Type | position |
---|---|---|
2x | IDT71V256 | ic44,ic45 |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | 315-6213 | ic41 | read protected |
1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8132B
Cart N°: 840-0064C
Protection IC: not present @ IC42
Key: no key
Files
-

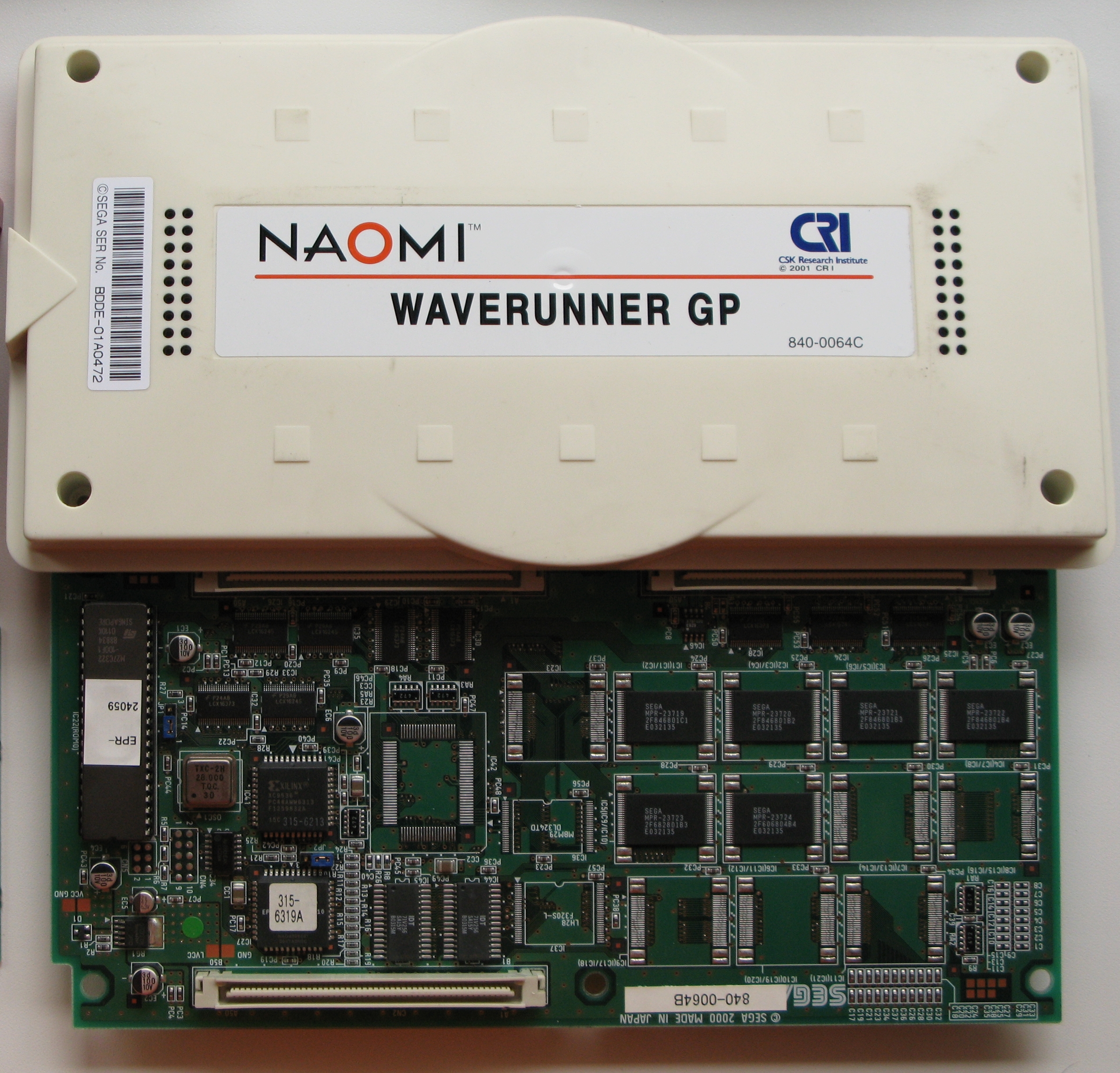

Cart and PCB component side
