EMU Infos
dumper Guru
date 03/11/2003
emulator MAME 0.114u1
dev Guru
PCB Infos
name suchie3 on Arcade Database
description Idol Janshi Suchie-Pai 3 (Japan)
year 1999.09.23
manufacturer Jaleco

Technical references

CPUs

QTY Type clock position function
1x oscillator 28.000 osc1

ROMs

QTY Type position status
1x M27322 EPR-21979.ic22 dumped
14x M27W064 MPR-21980.ic1 - MPR-21993.ic14s dumped
1x X76F100 ic37 to be checked if present

RAMs

QTY Type position
2x IDT71256 ic44,ic45

PLDs

QTY Type position status
1x 315-6213 ic41 read protected

Others

Notes

It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 841-0002C
Protection IC: SEGA 315-5881 (317-5047-JPN)
Key: 0x000368e1

Files

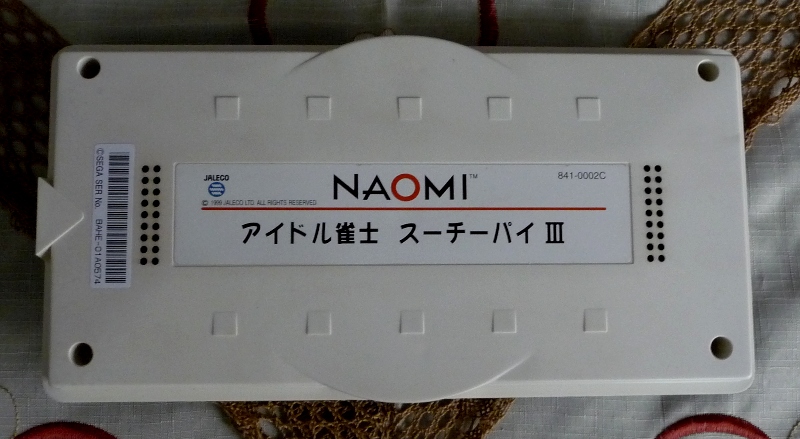

  • Cart

    Cart

  • readme

    readme
