EMU Infos
dumper Guru
date 11/08/2003
emulator MAME 0.114u1
dev Guru
PCB Infos
name pstone2 on Arcade Database
description Power Stone 2
year 2000.04.05 - 09:06:57
manufacturer Capcom

Technical references

CPUs

QTY Type clock position function
1x oscillator 28.000 osc1

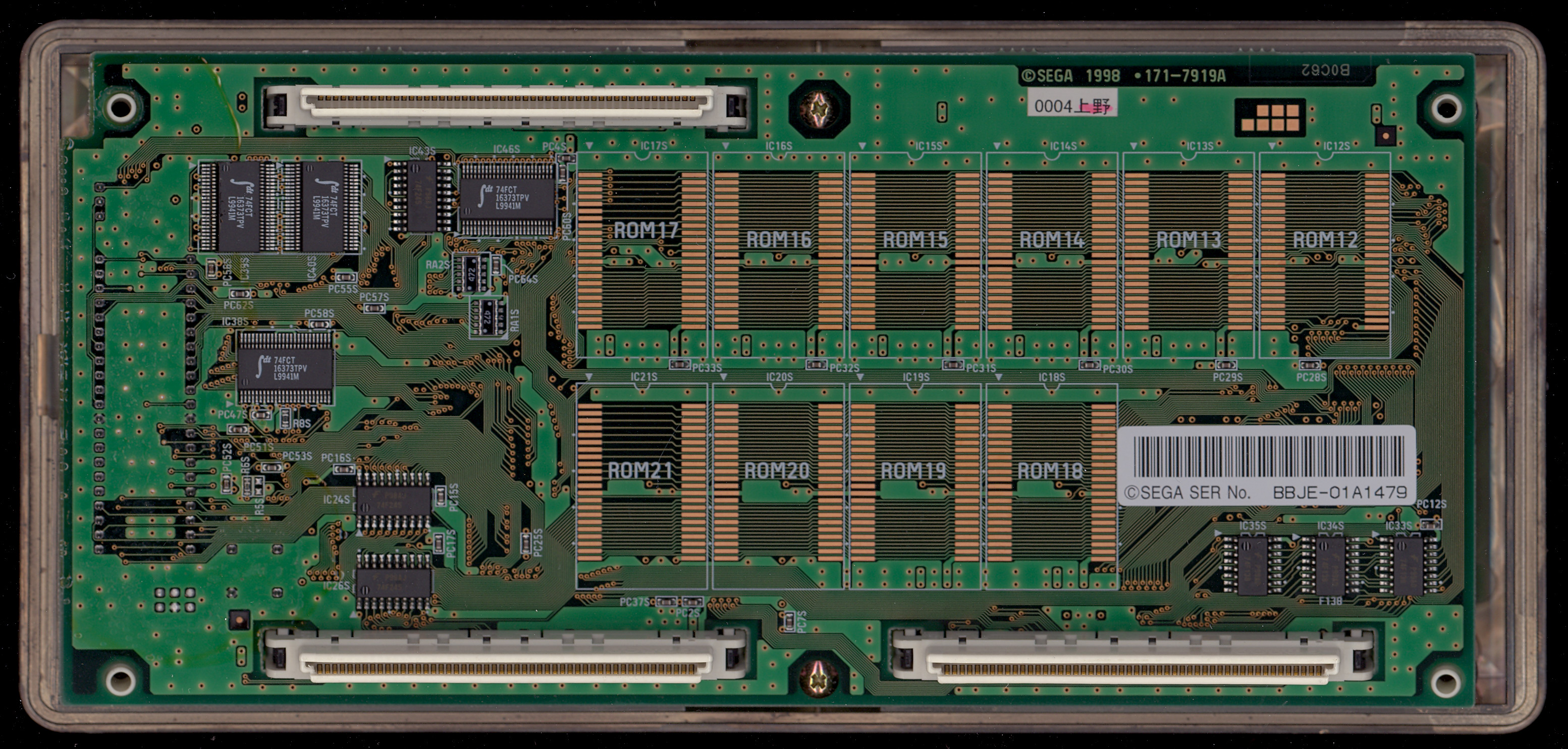

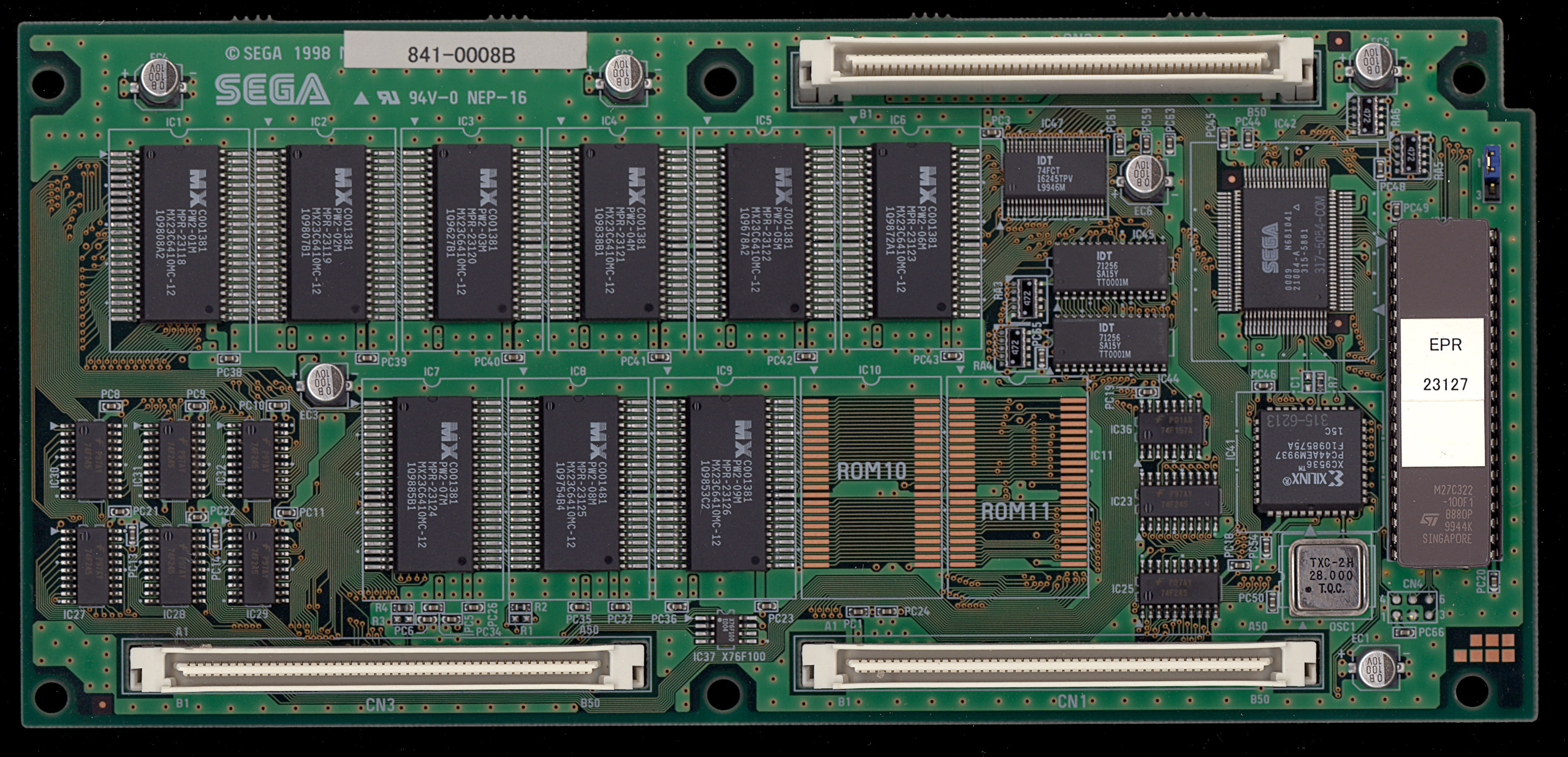

ROMs

QTY Type position status
1x M27C322 EPR-23127.ic22 dumped
9x MX23C6410MC-12 MPR-23118.ic1 - MPR-23129.ic9 dumped
1x X76F100 ic37 dumped

RAMs

QTY Type position
2x IDT71256 ic44,ic45

PLDs

QTY Type position status
1x 315-6213 ic41 read protected

Others

Notes

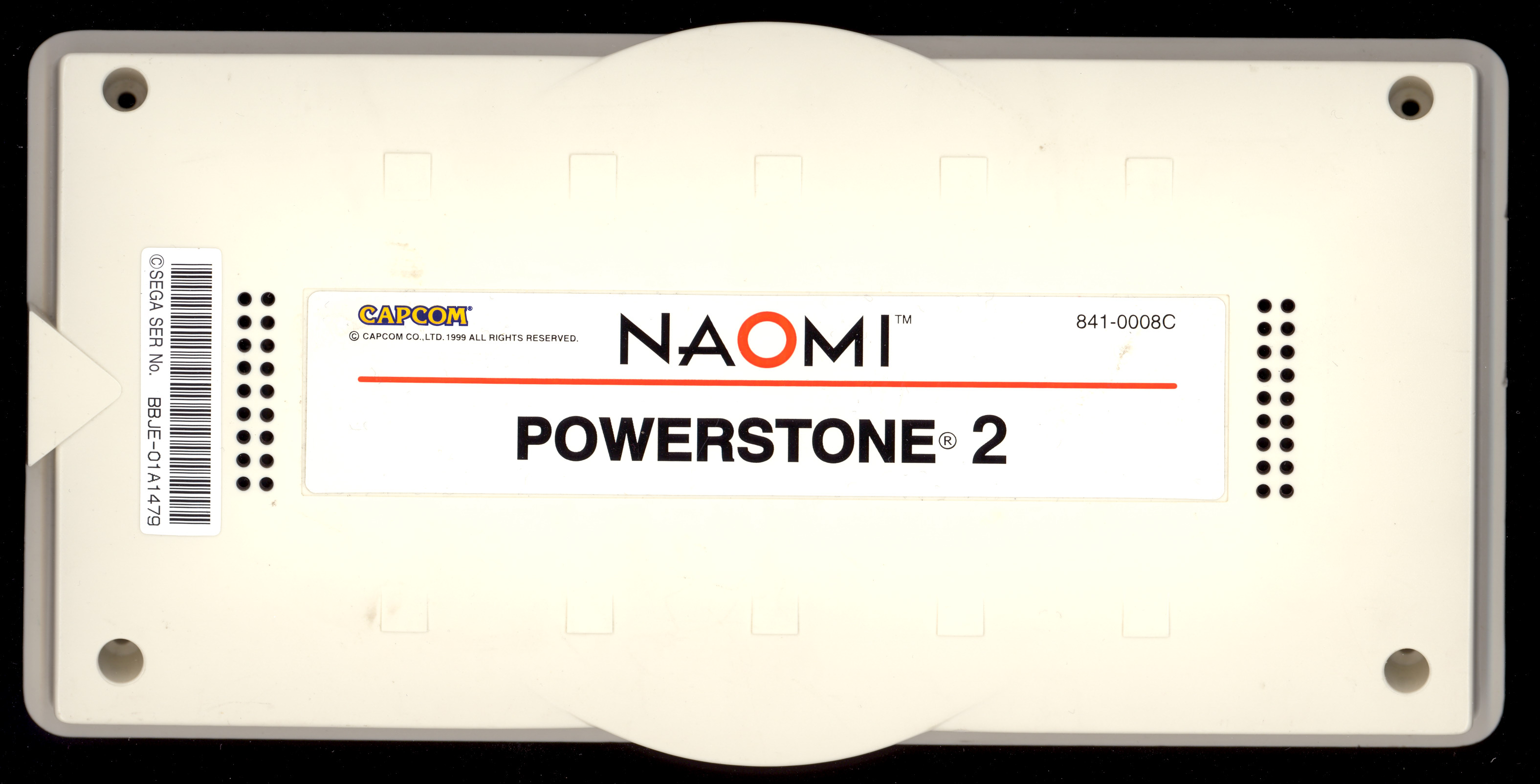

It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 841-0008C
Protection IC: SEGA 315-5881 (317-5054-COM)
Key: 0x000b8dc0
