OutTrigger

EMU Infos

dumper	Guru
date	20/06/2003
emulator	MAME 0.114u1
dev	Guru

PCB Infos

name	otrigger on Arcade Database
description	OutTrigger
year	1999.10.01
manufacturer	Sega

Technical references

CPUs

QTY	Type	clock	position	function
1x	oscillator	28.000	osc1

ROMs

QTY	Type	position	status
1x	M27322	EPR-22163.ic22	dumped
19x	M27W064	MPR-22142.ic1 - MPR-22160.ic19s	dumped
1x	X76F100	ic37	to be checked if present

RAMs

QTY	Type	position
2x	IDT71256	ic44,ic45

PLDs

QTY	Type	position	status
1x	315-6213	ic41	read protected

Notes

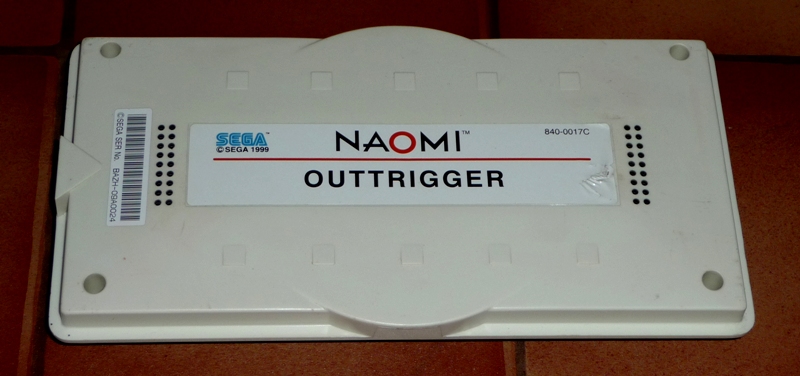

It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0017C
Protection IC: SEGA 315-5881 (317-0266-COM)
Key: 0x280fea94
requires regular 837-13551 and 837-13938 rotary JVS boards, and special panel
