EMU Infos
| dumper |
Guru
|
| date |
02/02/2010
|
| emulator |
MAME 0.136u3
|
| dev |
R. Belmont
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
oscillator |
28.000 |
osc1 |
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 1x |
M27C322 |
EPR-23450.ic22 |
dumped
|
| 10x |
MaskROM 128Mb TSOP48 |
MPR-23525.ic1 - MPR-23534.ic10 |
dumped
|
| 1x |
X76F100 |
ic46 |
not dumped - unknow if it's really there
|
RAMs
PLDs
Others
Notes

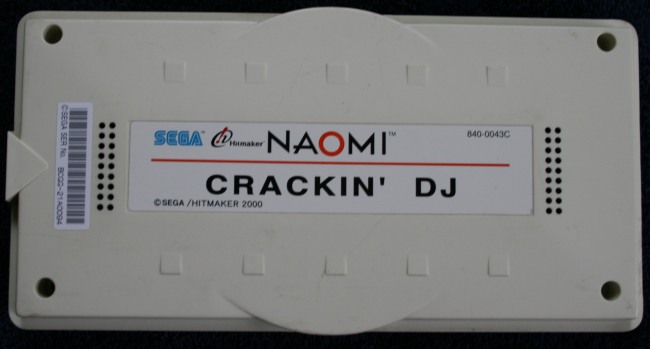

It's a NAOMI cart.
Cart type: 171-8132B
Cart N°: 840-0043C
Protection IC: SEGA 315-5881 (317-0288-COM)
Key: 0x281c2347
requires regular 837-13551 and 837-13938 rotary JVS boards, and turntable simulation
