Win Bingo 2006
From Citylan
| dumper | f205v |
| dump date | 26/04/2009 |
| emulator | MAME 0.227 |
| dev | Osso |
| name | wbingo06 on Arcade Database |
| description | Win Bingo 2006 |
| year | 2006 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD64F3068F25V | u1 | 16-bit Single-Chip Microcomputer - main (not dumped) | |
| 1x | SX28AC | u34 | Configurable Communications Controller (not dumped) | |
| 1x | oscillator | 12.2880 | ||
| 1x | oscillator | 32768 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M29F040B | u21 | not dumped |
| 3x | M27C801 | u12,u13,u14 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | K6X1008C2D | u4 u11 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A42MX16 | u10 | not dumped |
| 1x | 22CV10 | u2 | not dumped |
Others
1x 28x2 edge connector
1x 10 legs connector
1x 4 legs connector
1x RS232 connector
1x pushbutton (maybe an antitampering)
1x trimmer (volume)
Notes
PCB is marked: "SH 074 d" and "LC" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "PB free", "3306 KCS" and "LS" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labelled: "WIBN1252" on component side
update 20210128: better pics, better description.
Files
-

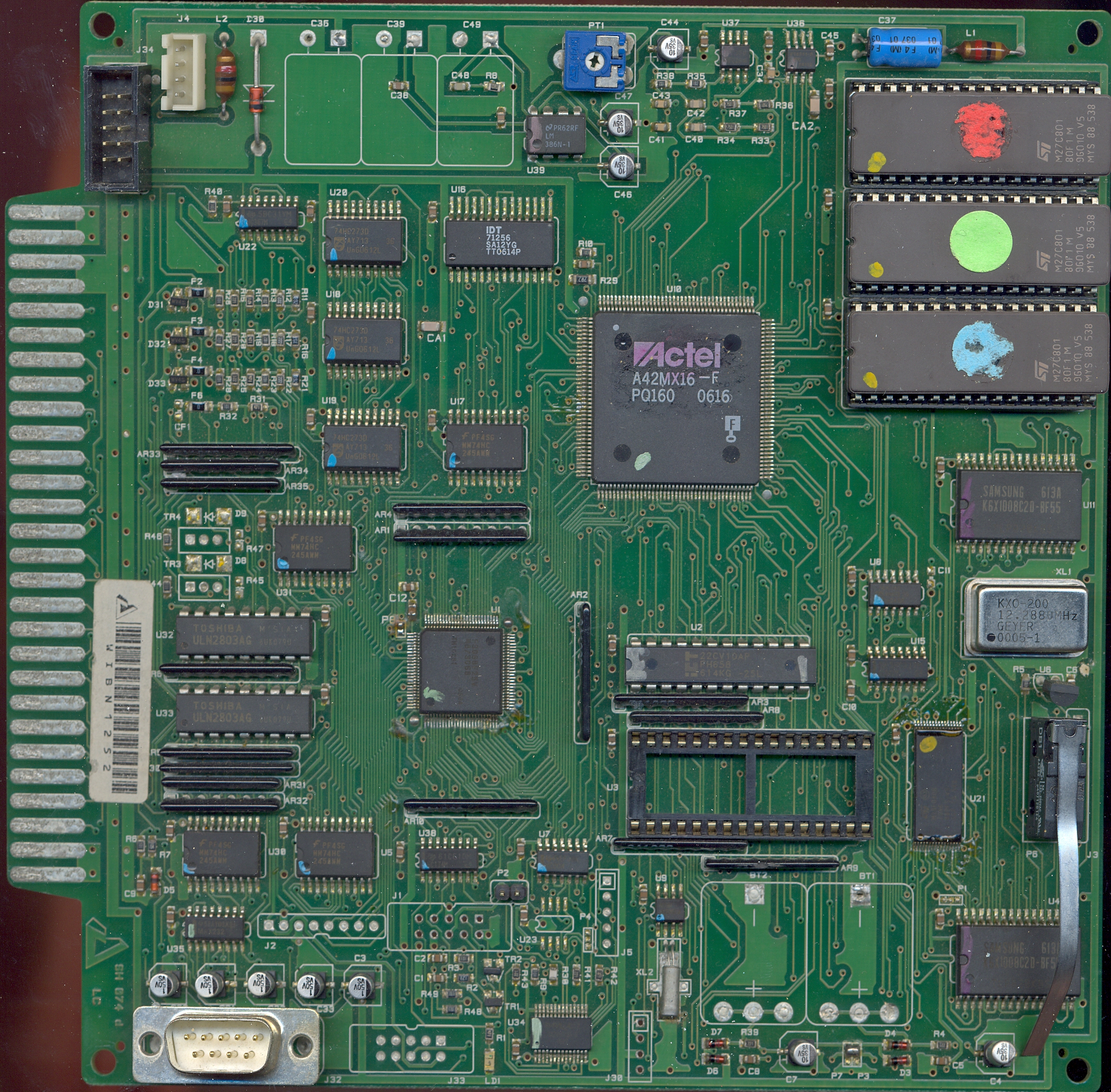

PCB component side 1
-
PCB component side 2
-

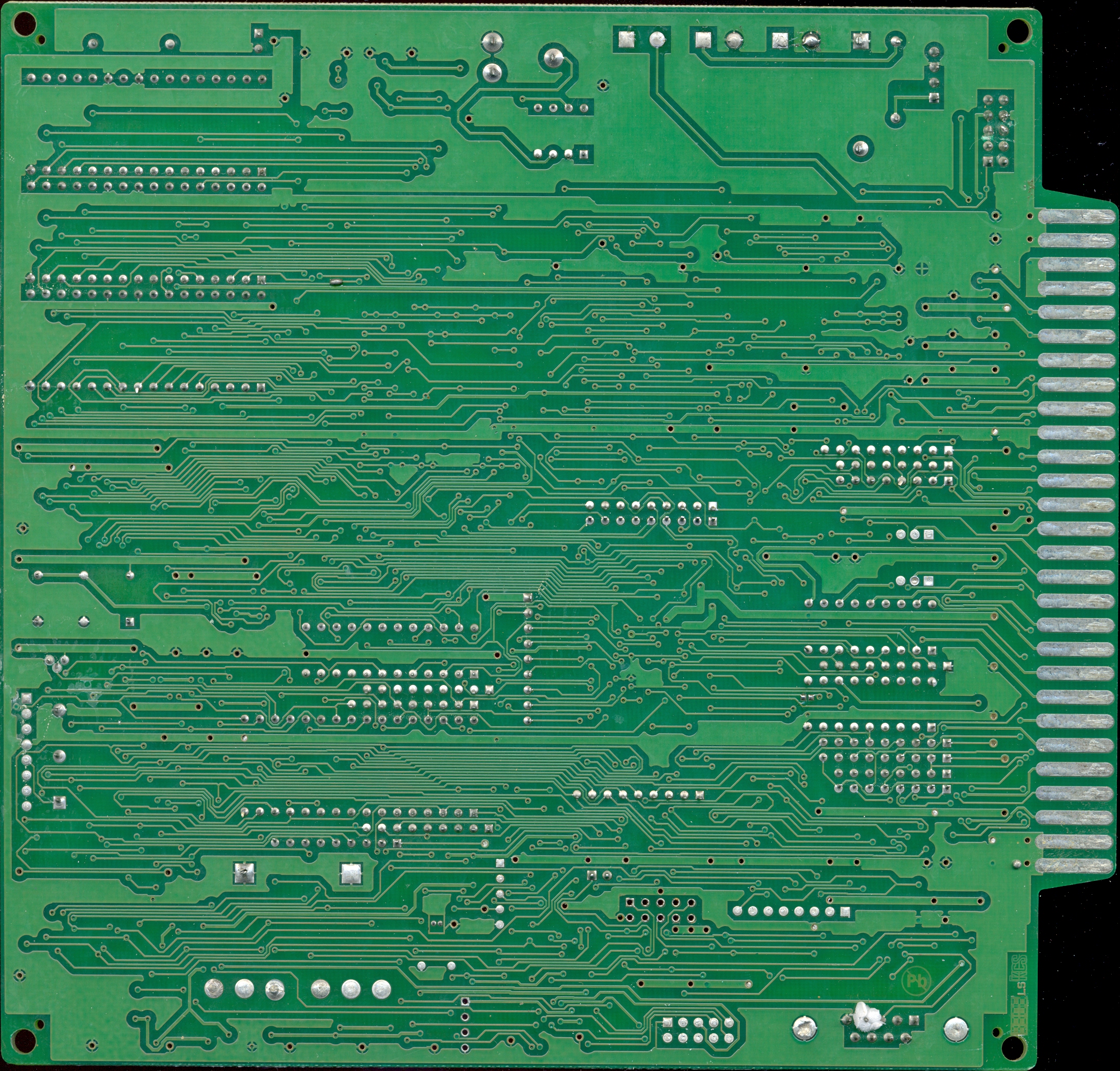

PCB solder side 1
-
