Beauty Block
From Citylan
| dumper | f205v |
| date | 13/05/2008 |
| emulator | MAME 0.125u2 |
| dev | David Haywood |
| name | beautyb on Arcade Database |
| description | Beauty Block |
| year | 1991 |
| manufacturer | A.M.T. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TS68000CP10 | main on a small piggyback | 16/32-bit Microprocessor - main | |
| 1x | TMPZ84C00AP | 8-bit Microprocessor - sound | ||
| 1x | YM2151 | FM Operator Type-M (OPM) - sound | ||
| 1x | YM3012A | D/A Converter (DAC) - sound | ||
| 1x | LM324N | - | Quad Operational Amplifier - sound | |
| 1x | uPC1242H | - | Audio Amplifier - sound | |
| 1x | oscillator | 24.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27C256 | 13,23 main on a small piggyback | dumped |
| 1x | 27C256 | 1 sound | dumped |
| 3x | 27C512 | 43,53,63 GFX | dumped |
| 1x | 74S288 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL16L8AJC | read protected | |
| 3x | PAL16R4ACN | dumped | |
| 1x | PAL20L8ACN | dumped |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks
Notes
PCB is marked: "142P003" on solder side
PCB is labelled: "QC OK DATE:25 1991" on component side
Files
-

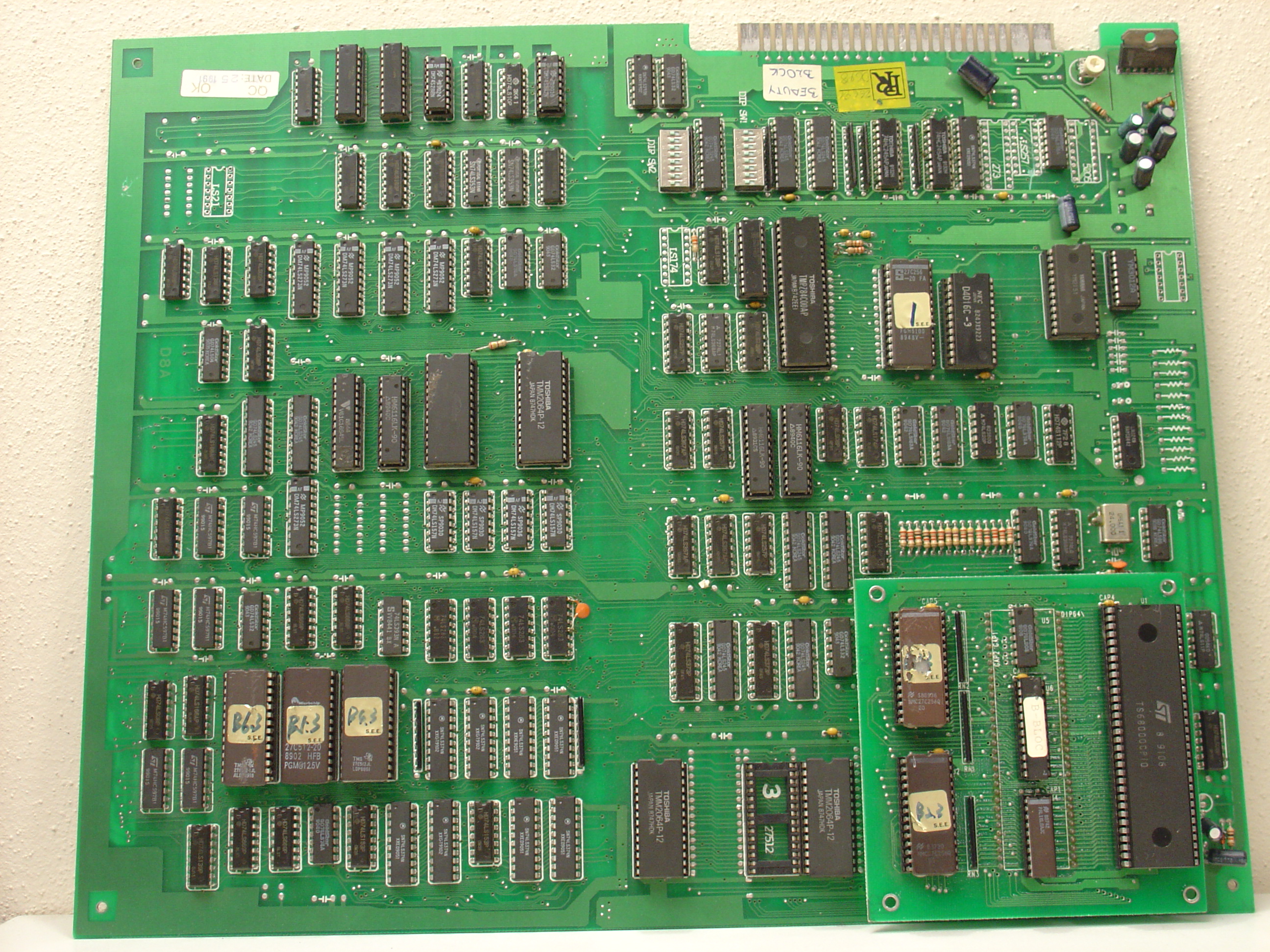

PCB component side
-

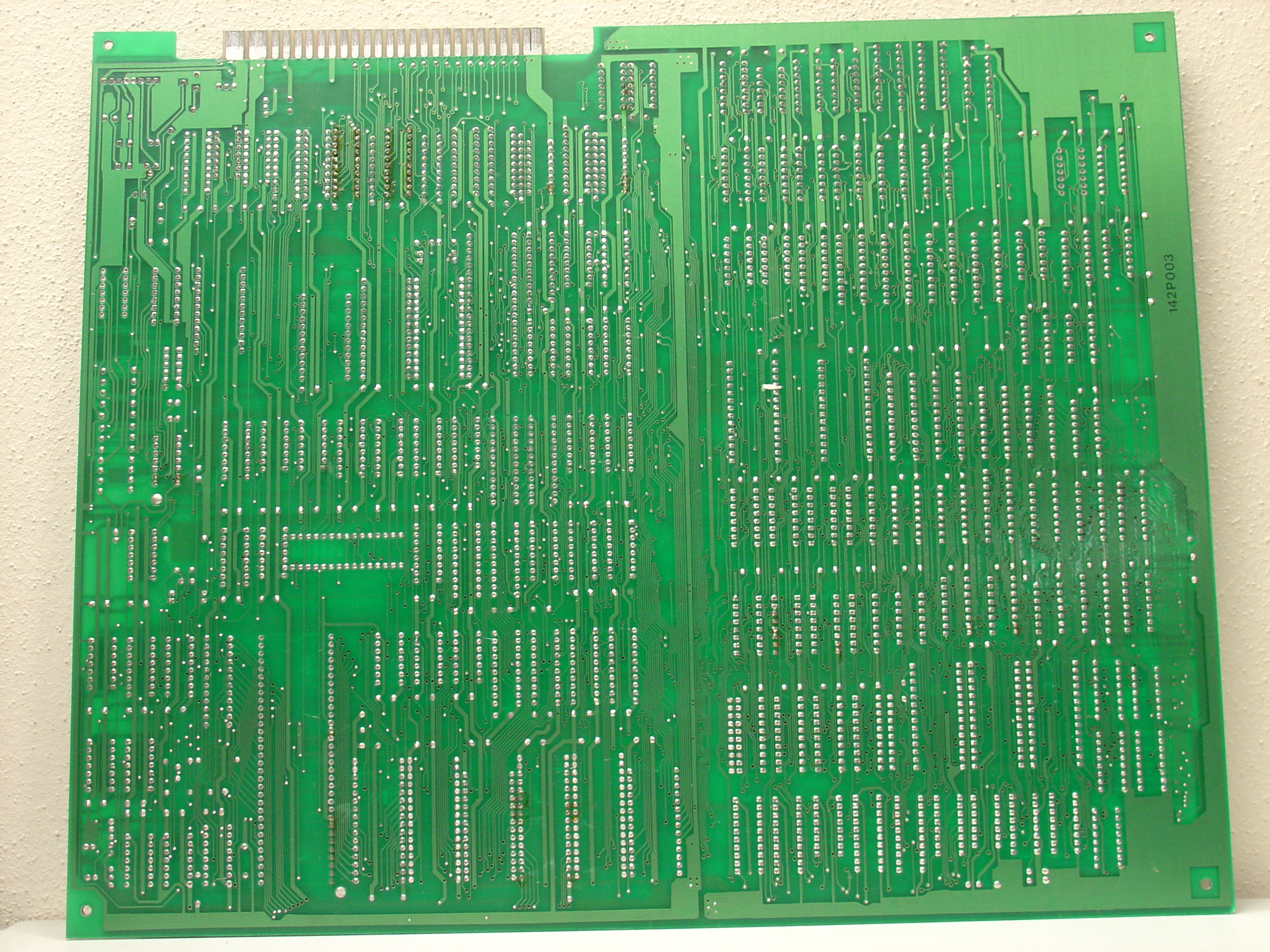

PCB solder side
-

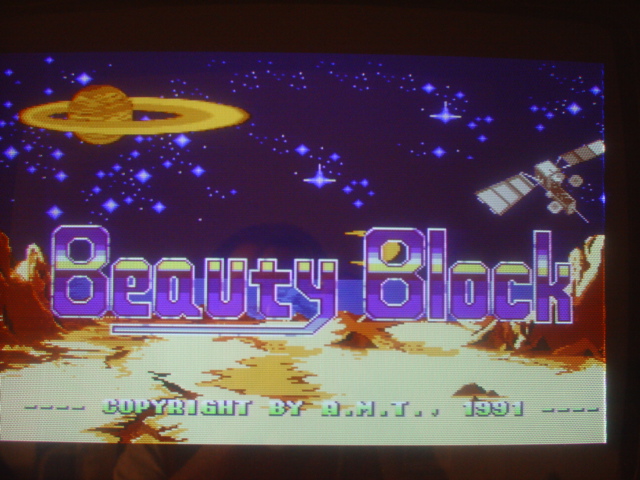

Title
-

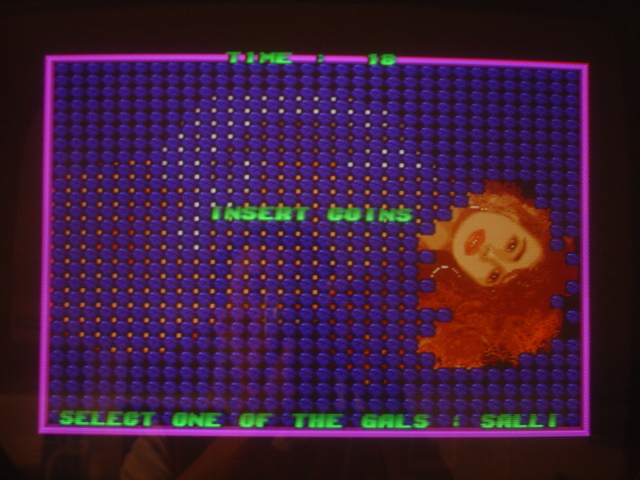

Attract mode
-

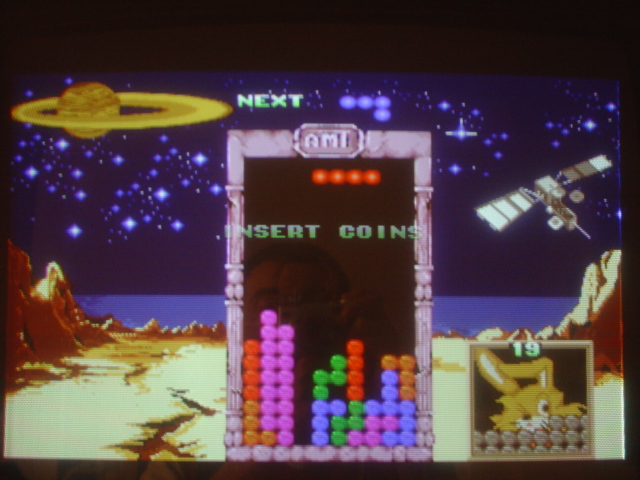

In game
