Painter (hack of Crush Roller)
From Citylan
| dumper | Lorenzo Fongaro, f205v |
| date | 31/05/2021 |
| emulator | MAME 0.233 |
| dev | Osso |
| name | painter on Arcade Database |
| description | Painter (hack of Crush Roller) |
| year | 1984 |
| manufacturer | Monshine Ent |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | NEC D780C | 6a | 8-bit Microprocessor - main | |
| 1x | oscillator | 18.432MHz | x1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | D2732D | 6 | dumped (bad dump, PIN22 (address line 9) is stuck) |
| 3x | M5L2732K | 1,4,5 | dumped |
| 2x | HN462732G | 2,3 | dumped |
| 1x | MB7051 | 7f | dumped |
| 1x | DM74S287N - N82S129N | 4a | dumped |
| 2x | MB7052 | 1m,3m | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | D2125A-2 | 2a,2b,2c,2d |
| 6x | uPD2114LC-2 | 4k,4l,4m,4m,4p,4r |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 18x2 edge connector
1x trimmer (volume)(9a)
Notes
PCB is marked: "CRUSH ROLLER" on component side
PCB is labelled: "PENNELLO 2" on component side ("pennello" is the Italian word for "brush")
Not Working
update 20210606: full redump
update 20210713: full redump, including PROMs
Files
-

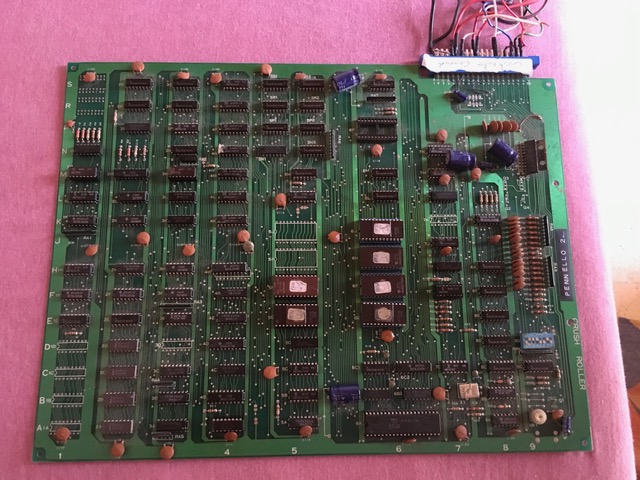

PCB component side
-

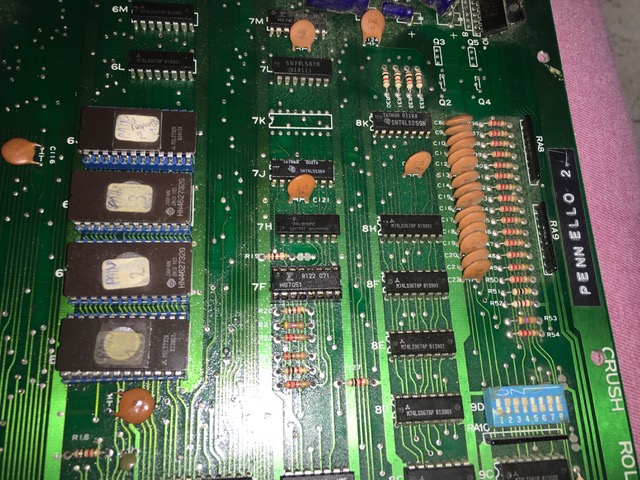

PCB component side detail 1
-

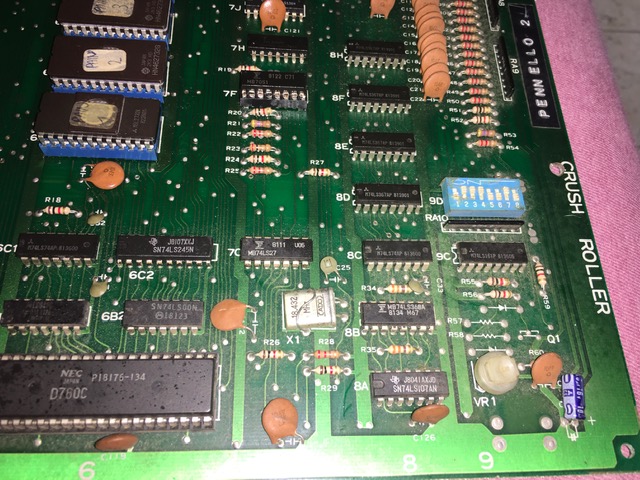

PCB component side detail 2
-

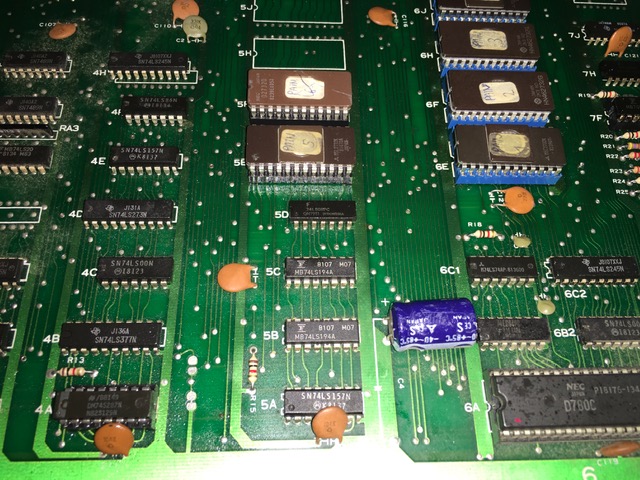

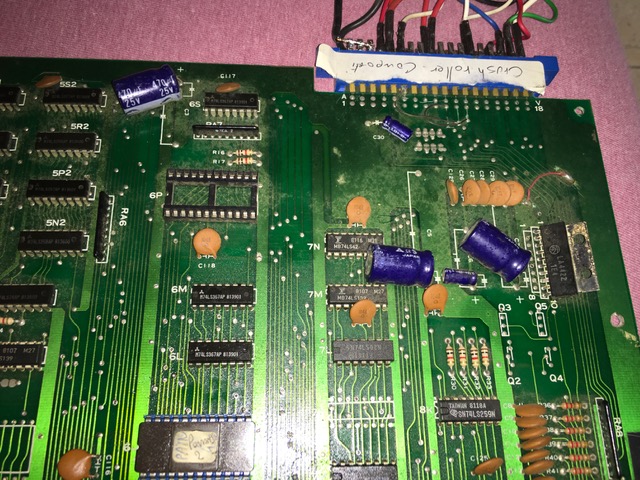

PCB component side detail 3
-
PCB component side detail 4
-

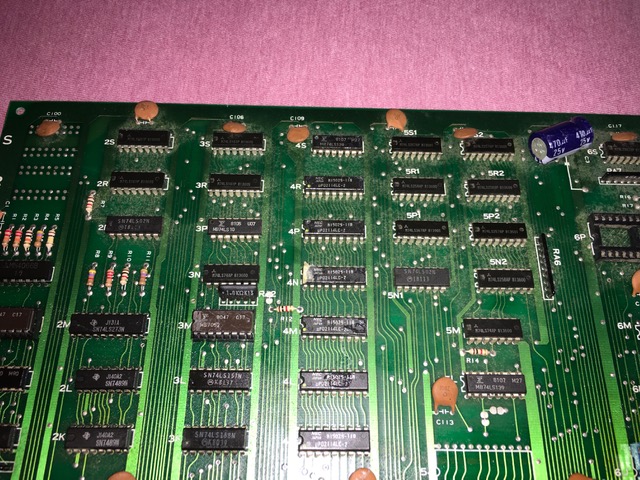

PCB component side detail 5
-

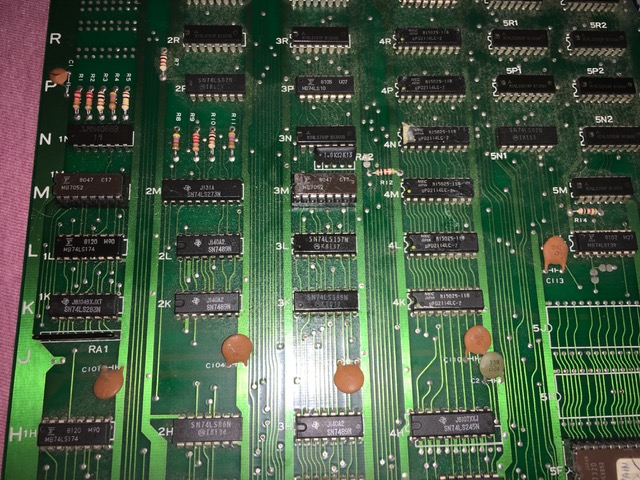

PCB component side detail 6
-

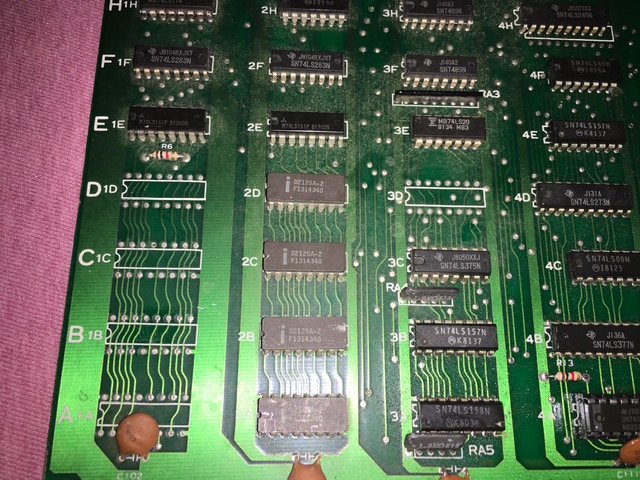

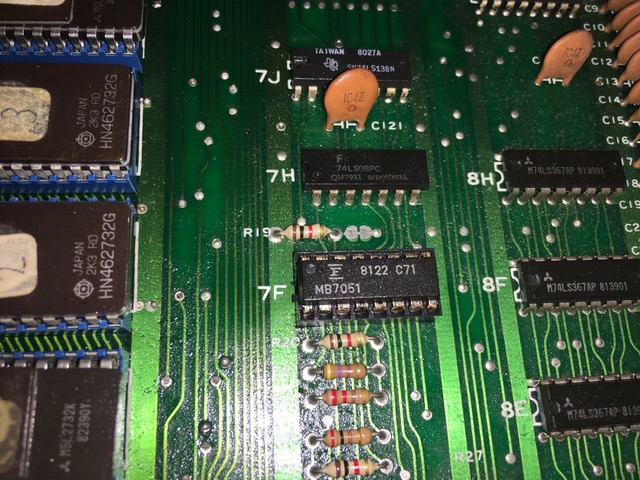

PCB component side detail 7
-
PCB component side detail 8
-

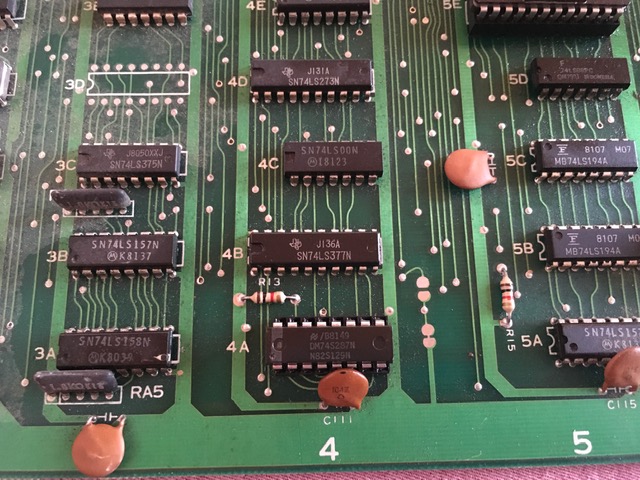

PCB component side detail 9
