Super Volleyball (Japan)
From Citylan
| dumper | f205v |
| date | 23/02/2007 |
| emulator | MAME 0.37b1 |
| dev | Aaron Giles, Robiza |
| name | svolley on Arcade Database |
| description | Super Volleyball (Japan) |
| year | 1989 |
| manufacturer | V-System Co. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TS68000CP10 | CPUs PCB | 16/32-bit Microprocessor - main | |
| 1x | Z8400BB1-Z80BCPU | CPUs PCB | 8-bit Microprocessor - sound | |
| 1x | D7759C | CPUs PCB | ADPCM Speech Synthesizer LSIs - sound | |
| 1x | YM2151 | CPUs PCB | FM Operator Type-M (OPM) - sound | |
| 1x | oscillator | 16.0 | CPUs PCB | |
| 1x | oscillator | 13.0 | lower PCB |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27256 | 1 CPUs PCB | dumped |
| 2x | S27256 | 12,14 CPUs PCB | dumped |
| 13x | AM27C512 | 2,3,4,5,6,7,8,9,10,11,13,15,17 CPUs PCB | dumped |
| 1x | AM27C010 | 16 CPUs PCB | dumped |
| 1x | 63S141N | CPUs PCB | not dumped yet |
| 3x | M27256 | 18,19,21 lower PCB | dumped |
| 1x | TMS27C256 | 22 lower PCB | dumped |
| 2x | AM27C512 | 20,23 lower PCB | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | PAL16L8ACN | CPUs PCB | read protected |
| 1x | PAL16L8ACN | lower PCB | read protected |
Others
1x 28x2 JAMMA edge connector (CPUs PCB)
2x 50 pins flat cable connector from CPUs board to lower board
1x trimmer (volume VR) (CPUs PCB)
1x 8x2 switches DIP (CPUs PCB)
1x 4x2 switches DIP (CPUs PCB)
Notes
CPUs PCB is labeled: 8919
lower PCB is labeled: 8918
update 20071120: Now I've got a second PCB.
update 20081209: Update from Robiza: It's the same dump already in MAME, only exception is EPROM 10 which is double size (first half identical to MAME, second half OxOO)
Files
-

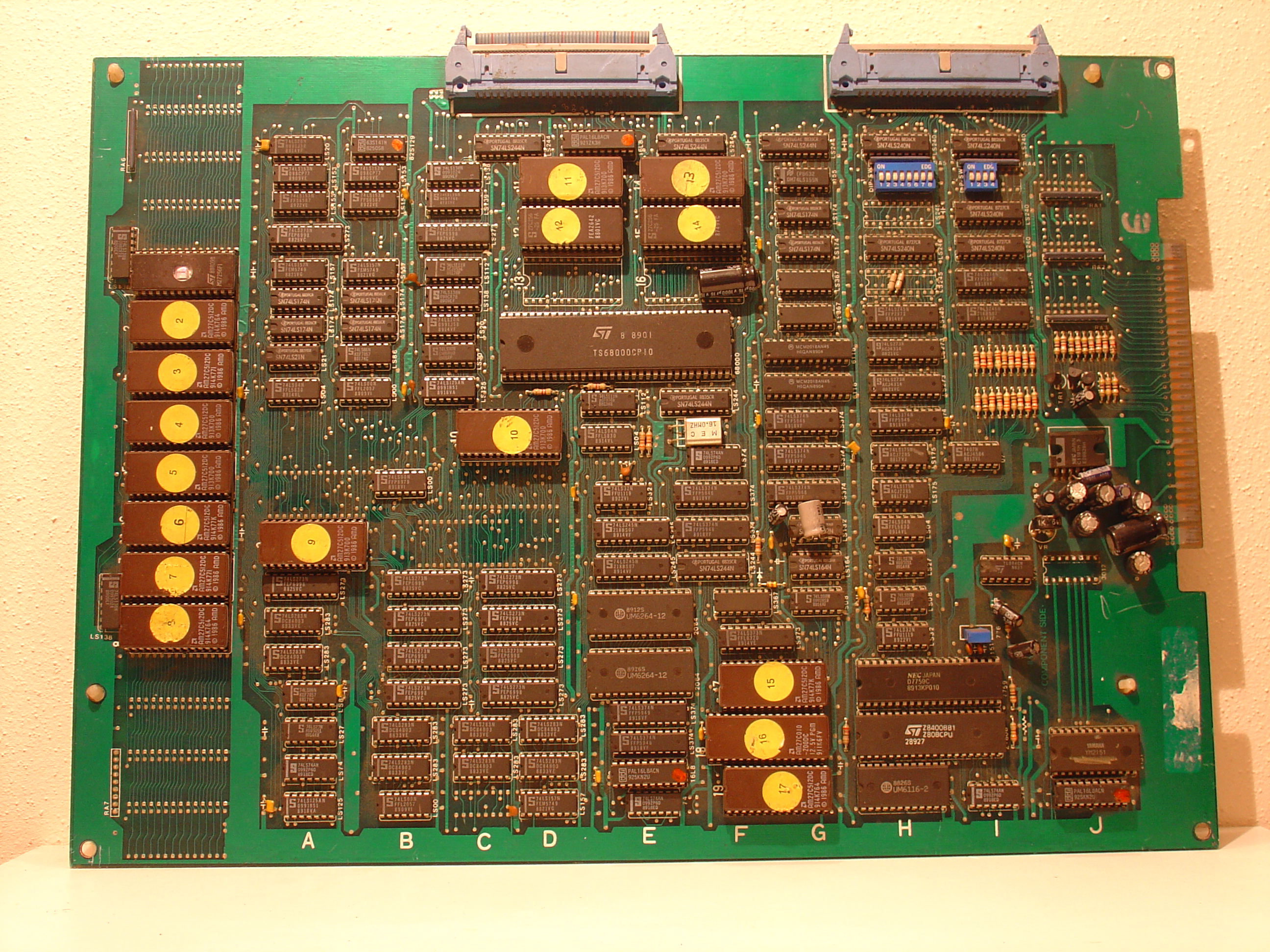

CPUs PCB component side
-

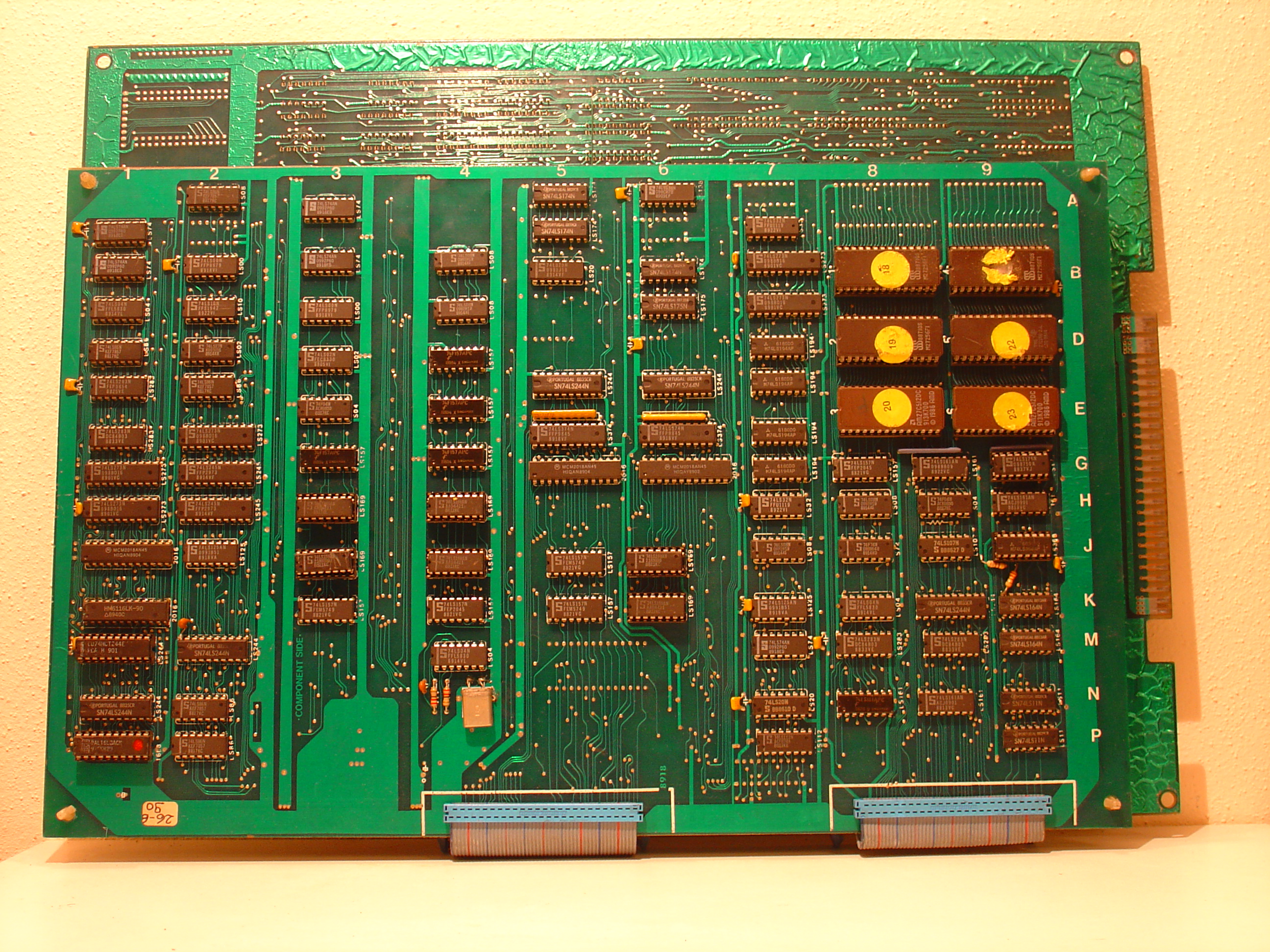

lower PCB component side
