Sexy Boom
From Citylan
| dumper | f205v |
| date | 08/06/2006 |
| emulator | MAME 0.106u6 |
| dev | David Haywood, Tomasz Slanina |
| name | sexyboom on Arcade Database |
| description | Sexy Boom |
| year | 1992 |
| manufacturer | Sang Ho Soft |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | V9958 | u17 CUSTOM 2 | VDP Video Display Processor | |
| 1x | Z8400B | u12 | 8-bit Microprocessor - main | |
| 1x | UM3567 | u24 CUSTOM 1 | FM Operator Type-LL - sound | |
| 1x | TDA2003 | - | Audio Amplifier - sound | |
| 1x | oscillator | 21.47727MHz | x-tal |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS27C010A | 1-12 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | HY53C464LS-80 | u14,u15,u16,u21,u22,u23 |
PLDs
| QTY | Type | position | status | 1x | ATT3030-70M84 | CUSTOM 3 | read protected |
|---|
Others
1x 28x2 JAMMA edge connector
3x unpopulated sockets (ROM13-15)
1x trimmer (volume)
1x 8 DIP switches bank
1x battery
Notes
PCB is marked: "PUZZLE STAR" and "SANG HO SOFT." on component side
piggyback PCB is marked: "SANG HO" on SOLDER side
PCB is marked: "MADE IN KOREA" on solder side
Files
-

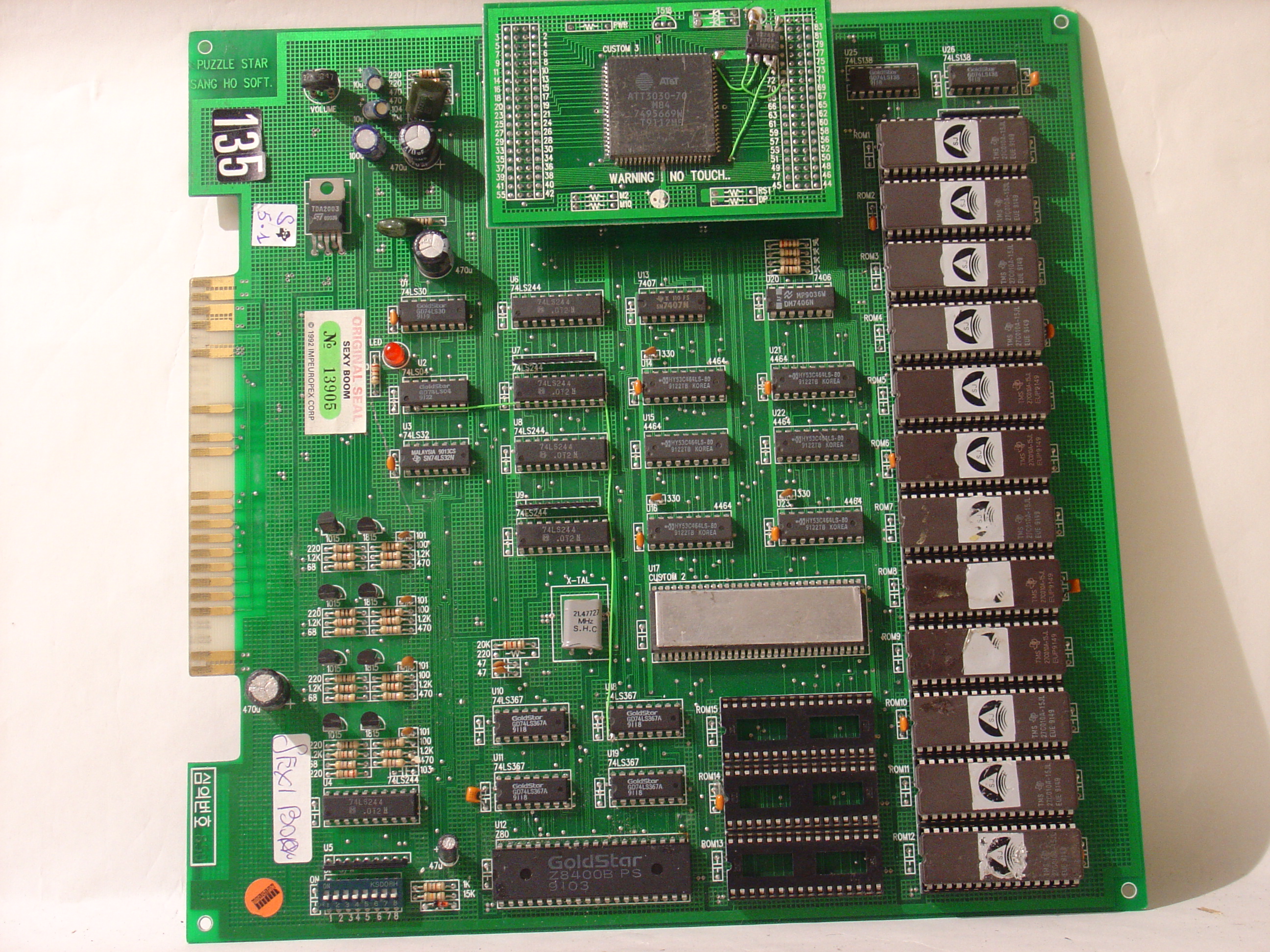

PCB component side
-

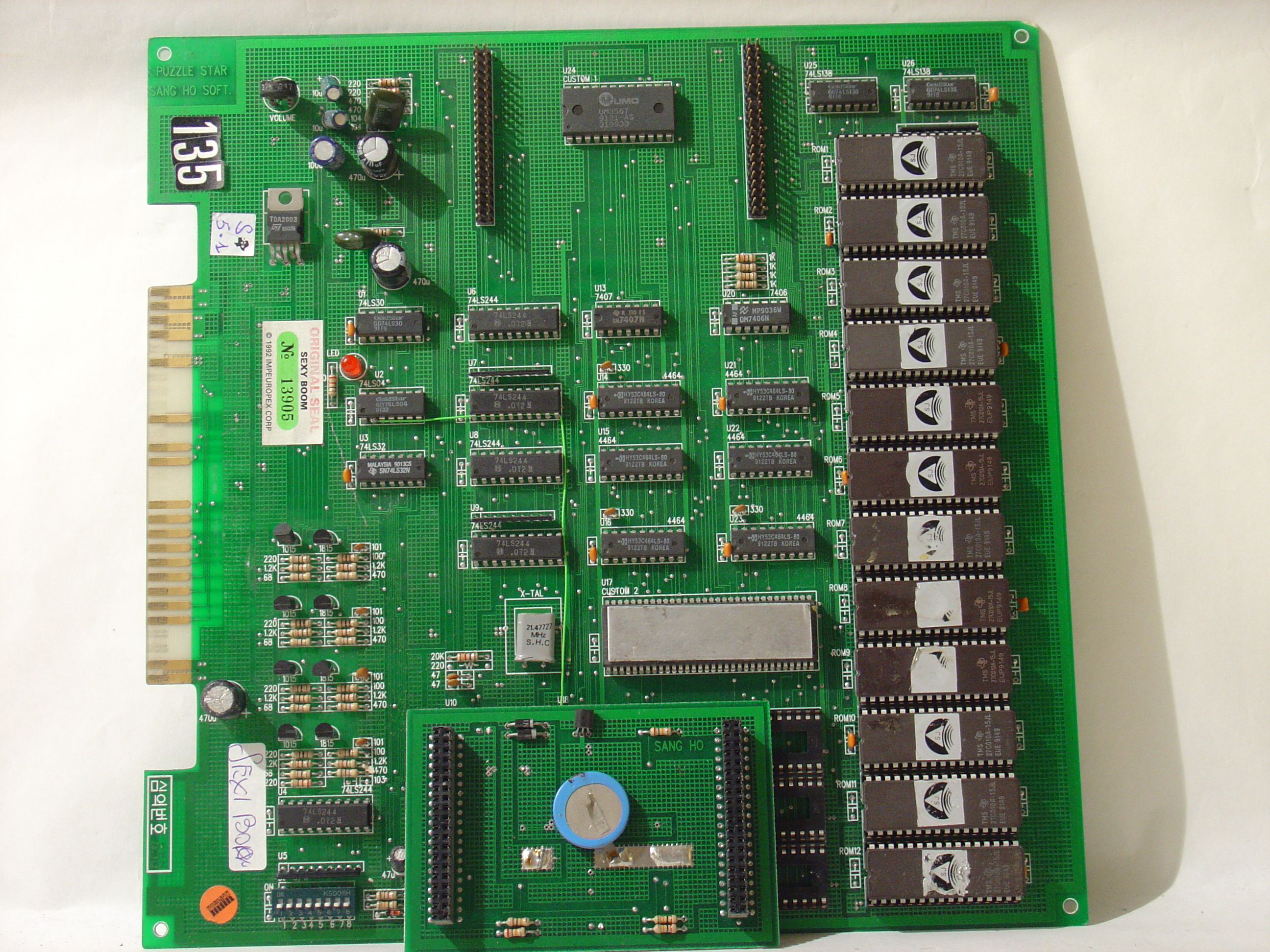

PCB component side piggyback removed
-

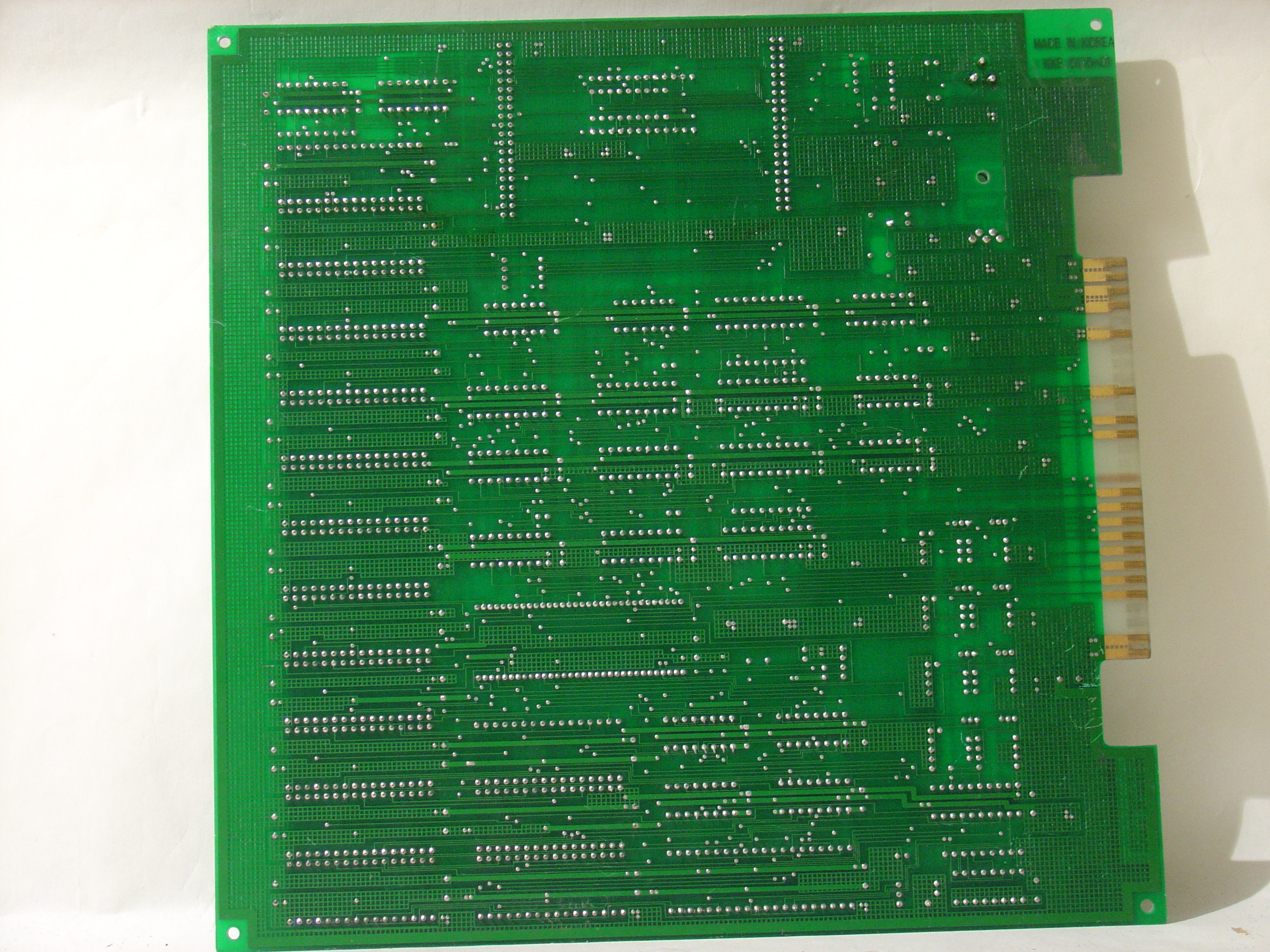

PCB solder side
-

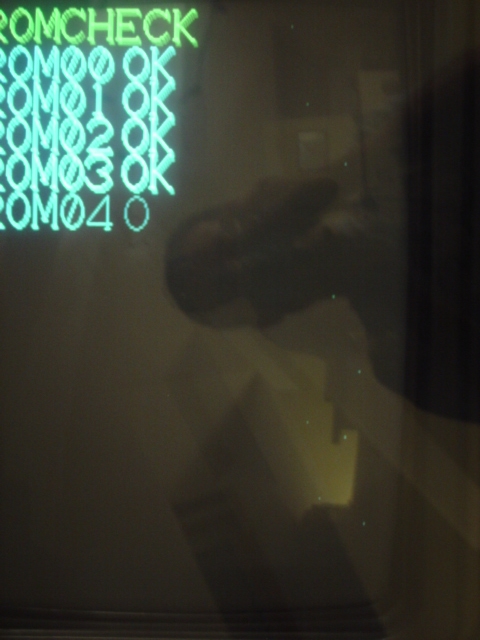

Boot screen 1
-

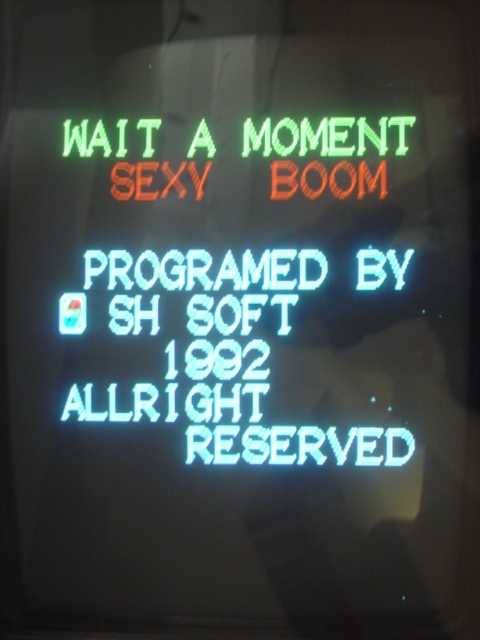

Boot screen 2
-

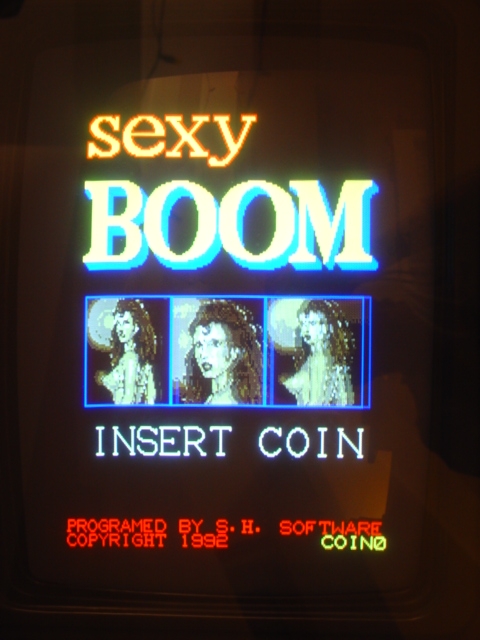

Title
-

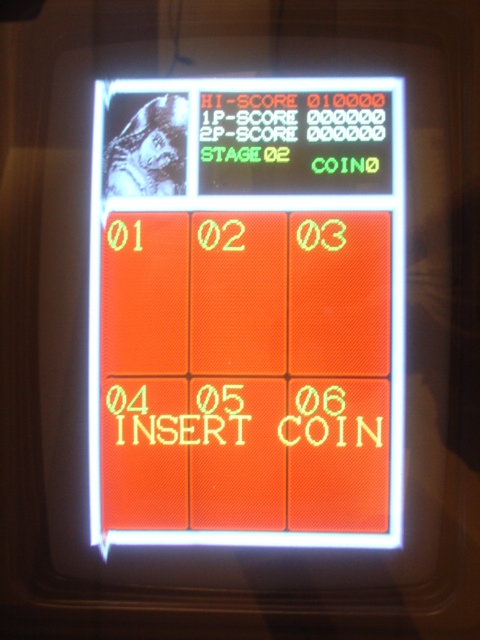

Intro 1
-

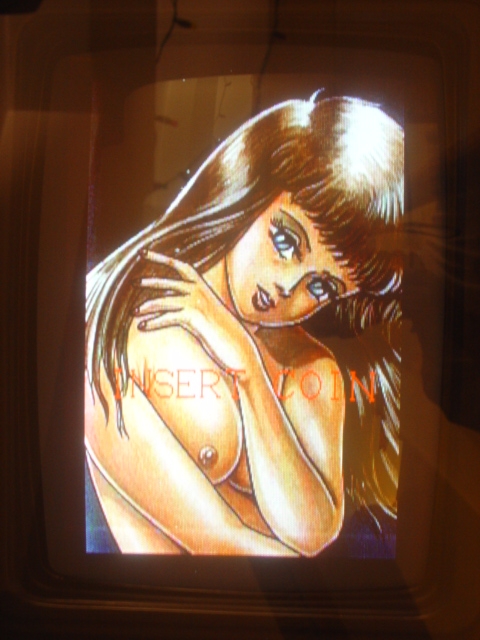

Intro 2
-

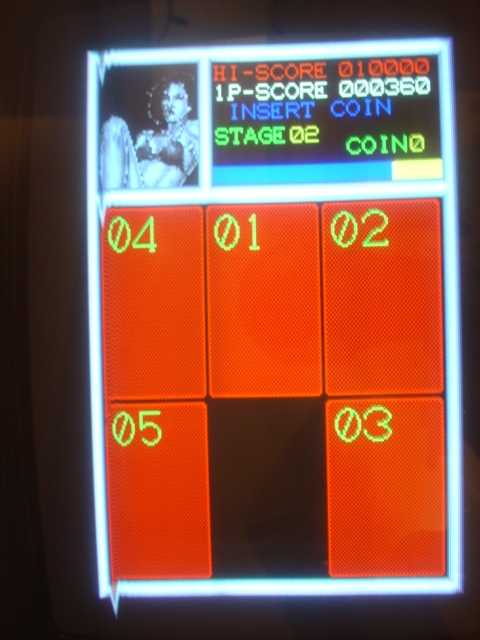

In game 1
-
In game 2
-

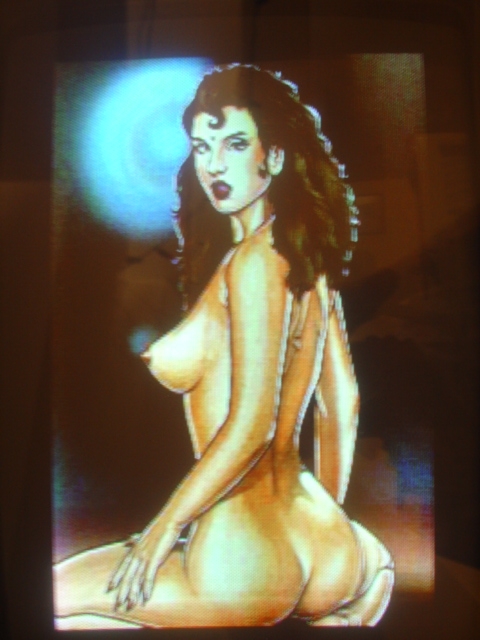

In game 3
-

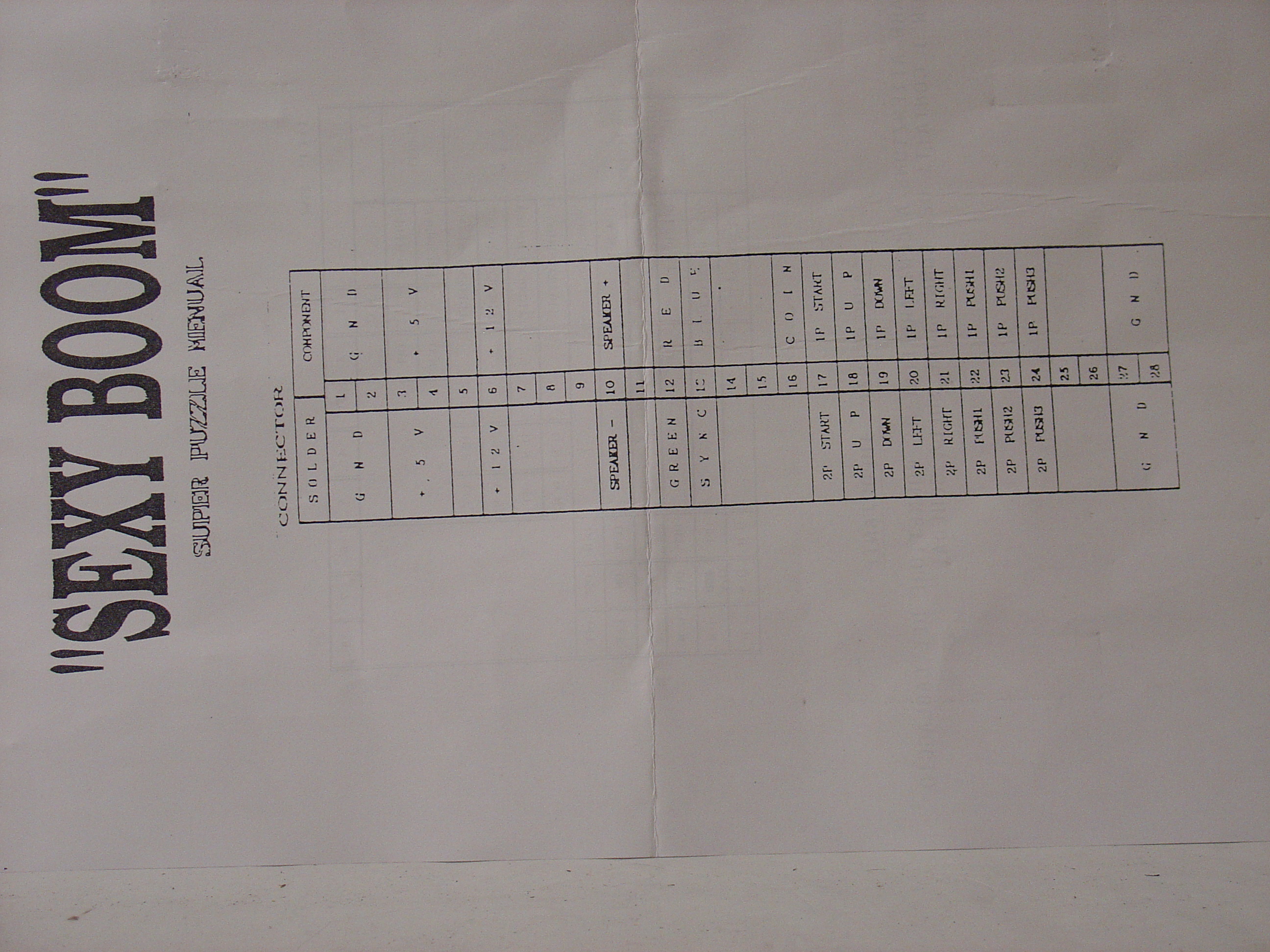

edge connector pinout
-

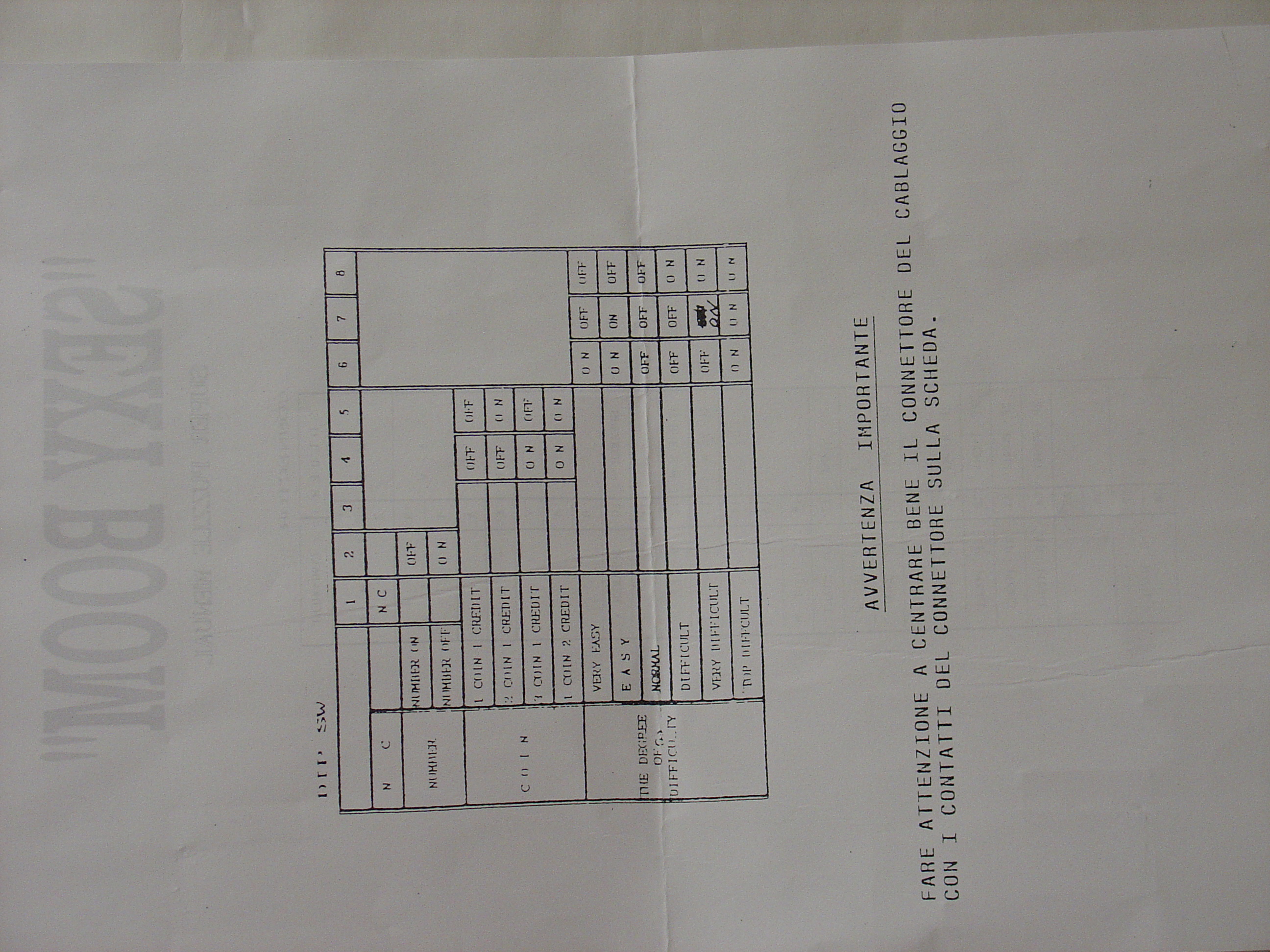

DIP switches
