Super Qix (bootleg, No MCU)

From Citylan
Revision as of 14:40, 27 September 2024 by WikiSysop (talk | contribs)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)
Jump to navigationJump to search
EMU Infos
dumper f205v
date 24/12/2005
emulator MAME 0.31
dev Nicola Salmoria, Mirko Buffoni
PCB Infos
name sqixb2 on Arcade Database
description Super Qix (bootleg, No MCU)
year 1987
manufacturer

Technical references

CPUs

QTY Type clock position function
1x Z8400B-Z80B-CPU u12.4b 8-bit Microprocessor - main
2x AY-3-8910 u8.13b u9.11b Programmable Sound Generator - sound
1x oscillator 12.000MHz 2j

ROMs

QTY Type position status
2x TMM24256AP 2.u101.16j 6.u23.6c dumped
1x TMM24512P 3.u102.15j dumped
3x M27512ZB 1.u100.17j 4.u103.13j 5.u22.7c dumped

RAMs

QTY Type position
4x TMS44-20NL64 u45.13e u46.12e u56.15f u57.14f
1x MSM2128-15RS u6.15b
1x SRM2064C15 u35.8d

PLDs

QTY Type position status
0x

Others

1x 28x2 edge connector
1x trimmer (volume)(3a)
2x 8 DIP switches banks(u10.8b u21.8c)

Notes

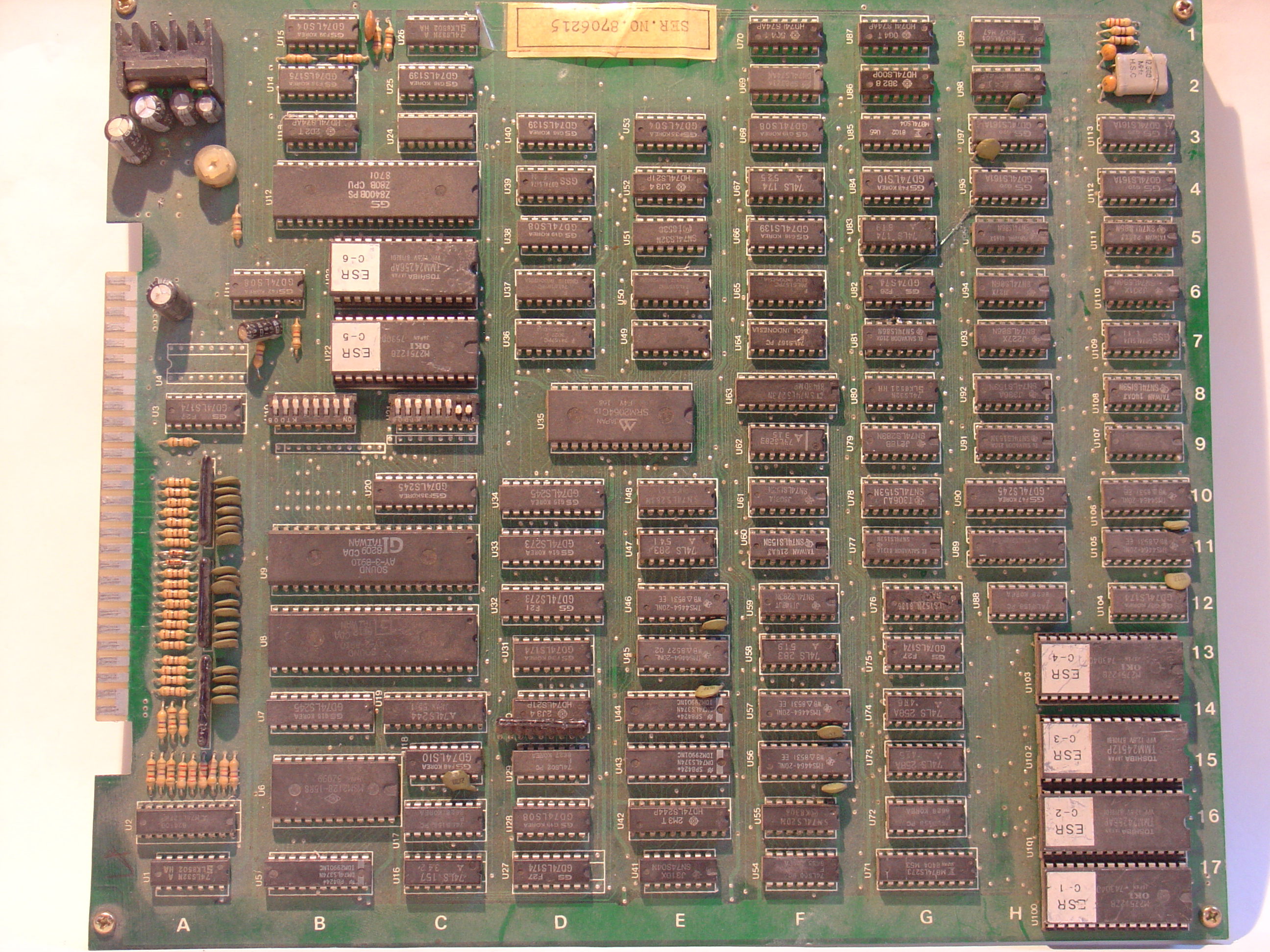

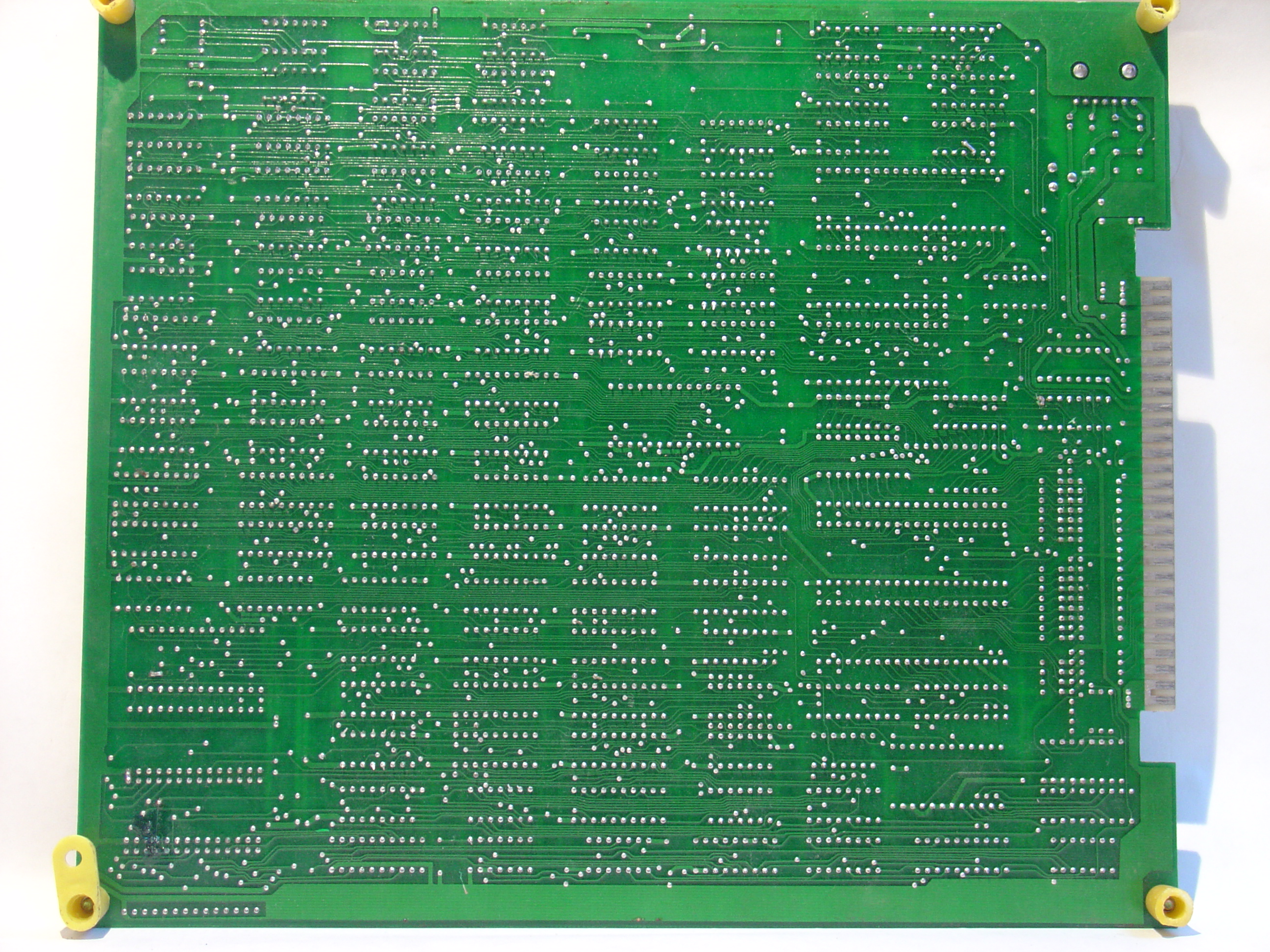

PCB is labelled: "SER.NO.8706215" on component side

label format is:
-------
| ESR | -> game name
| C-5 | -> rom number
-------
