Mosaic (F2 System)
From Citylan
| dumper | f205v |
| date | 25/11/2005 |
| emulator | MAME 0.102u5 |
| dev | Pierpaolo Prazzoli |
| name | mosaicf2 on Arcade Database |
| description | Mosaic (F2 System) |
| year | 1999 |
| manufacturer | F2 System |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Hyperstone E1-32XN | u50 | 32-bit Microprocessor - main | |
| 1x | BS901 | u34 | FM Operator Type-M (OPM) - sound | |
| 1x | BS902 | u33 | D/A Converter (DAC) - sound | |
| 1x | 6295 | u32 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 2x | LM324N | - | u35, u36 | Quad Operational Amplifier - sound |
| 1x | uPC1241 | - | u38 | Audio Amplifier - sound |
| 1x | oscillator | 20.000MHz | y2 | |
| 1x | oscillator | 14.31818 | osc2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TNS27C020 | SND | dumped |
| 1x | AM27C040 | ROM1 | dumped |
| 8x | MX29F1610ML | L00, L01, L02. L03, U00, U01, U02, U03 | dumped |
| 1x | 93C46 | u79 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | KM6161002CJ-12 | VRAML, VRAMU |
| 2x | GM71C18163CJ6 | DRAML, DRAMU |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | QuickLogic QL2003-XPL84C | read protected |
Others
1x 28x2 JAMMA edge connector
2x pushbutton (S1 SETUP, S3 RESET)
1x trimmer (volume)
Notes
PCB is marked: "F-E1-32-009" on component side
update 20231125: better description
Files
-

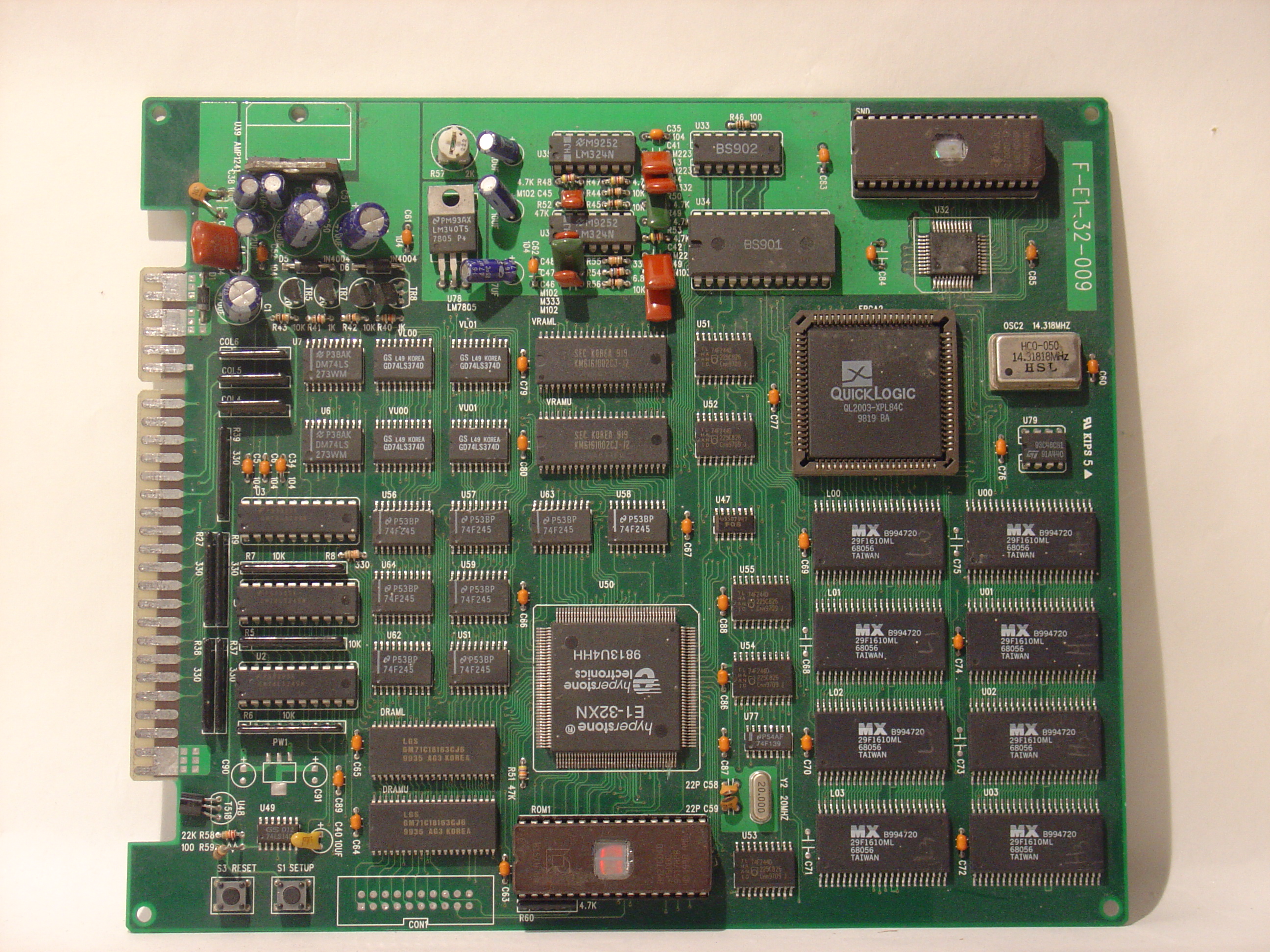

PCB component side
-

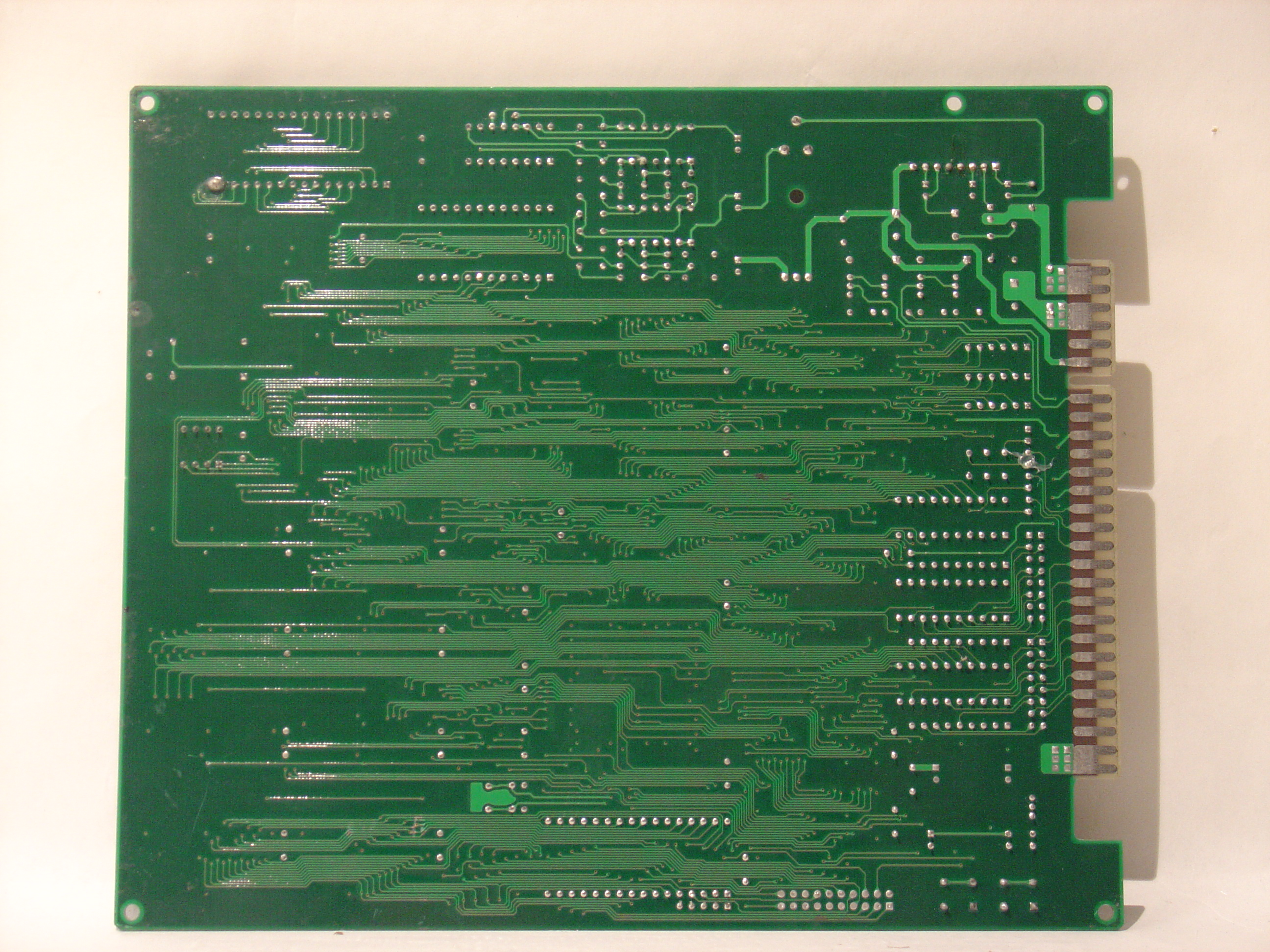

PCB solder side
-

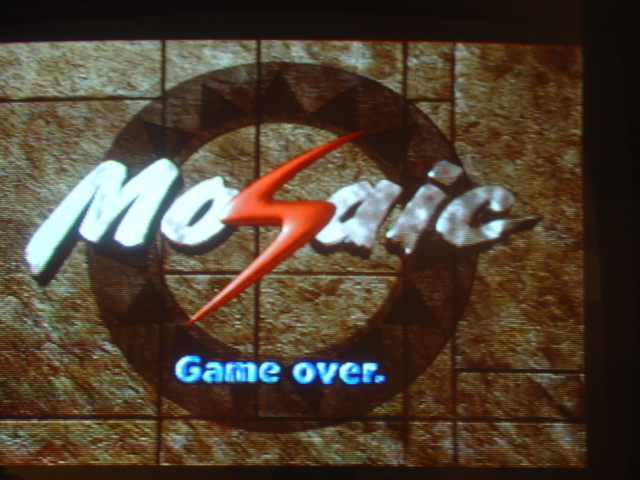

Title
-

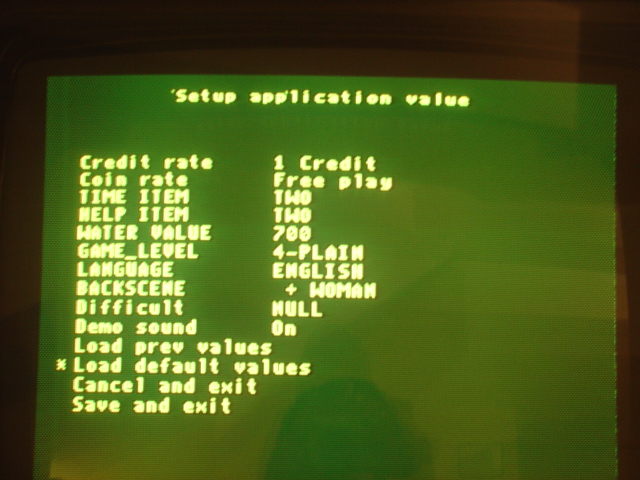

Setup
-

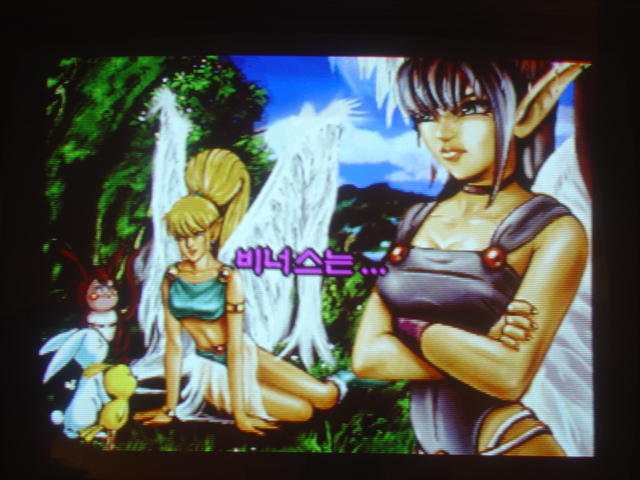

Attract mode 1
-

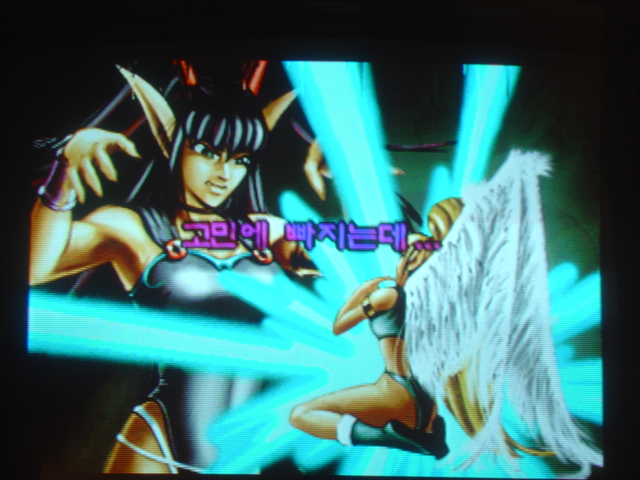

Attract mode 2
-

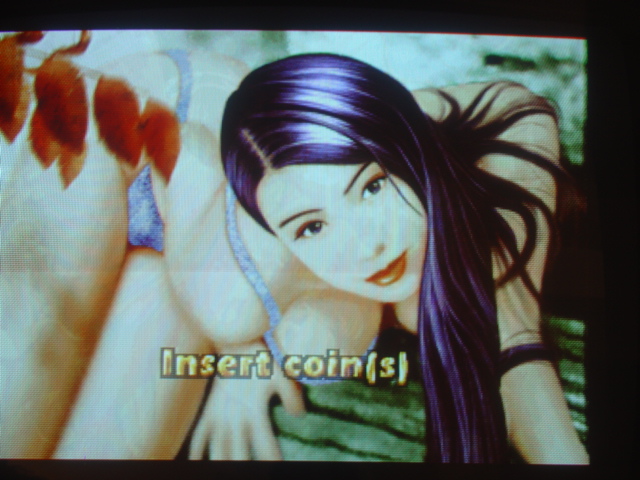

Attract mode 3
-
Logo
-

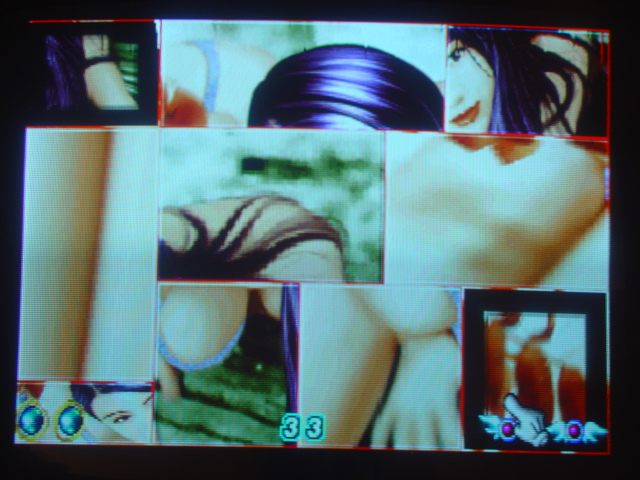

In game
