EMU Infos
dumper f205v
date 25/11/2005
emulator MAME 0.102u2
dev David Haywood
PCB Infos
name spec2kh on Arcade Database
description Spectrum 2000 (horizontal, buggy) (Europe)
year 2000
manufacturer Yona Tech

Technical references

CPUs

QTY Type clock position function
1x oscillator 12.000MHz
1x oscillator 4.000MHz

ROMs

QTY Type position status
1x TMS27C512 1 dumped
2x TMS27C010A 2,4 dumped
2x TMS27C020 5,6 dumped
1x MX27C4000 3 dumped
3x MX29F1610ML uc1,uc2,uc3 dumped

RAMs

QTY Type position

PLDs

QTY Type position status

Others

1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks

Notes

Files

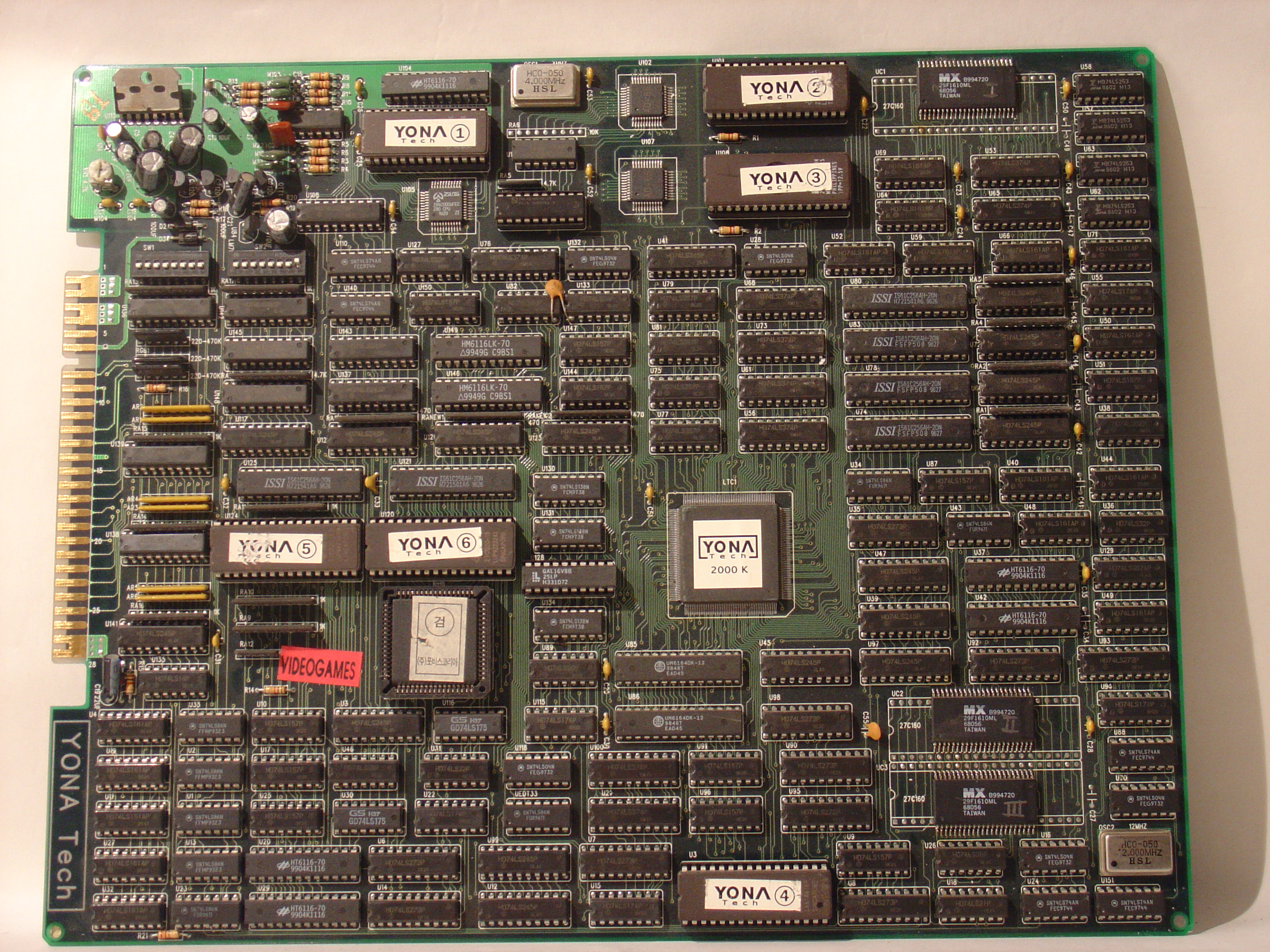

  • PCB component side

    PCB component side

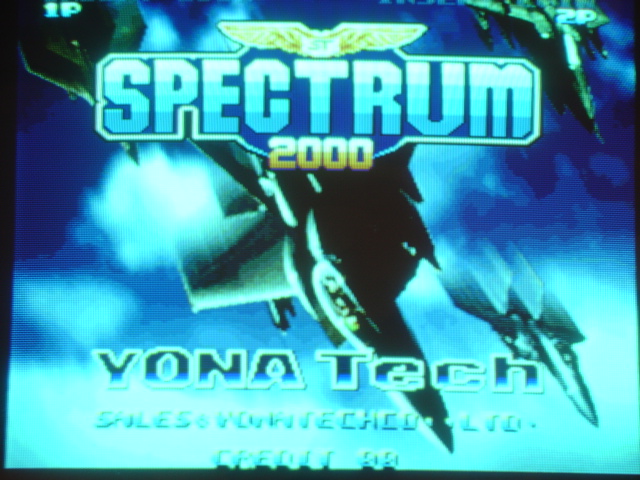

  • Title

    Title

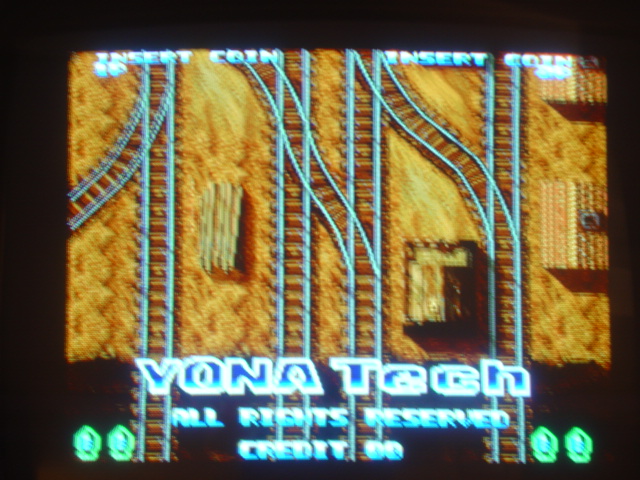

  • Attract mode

    Attract mode

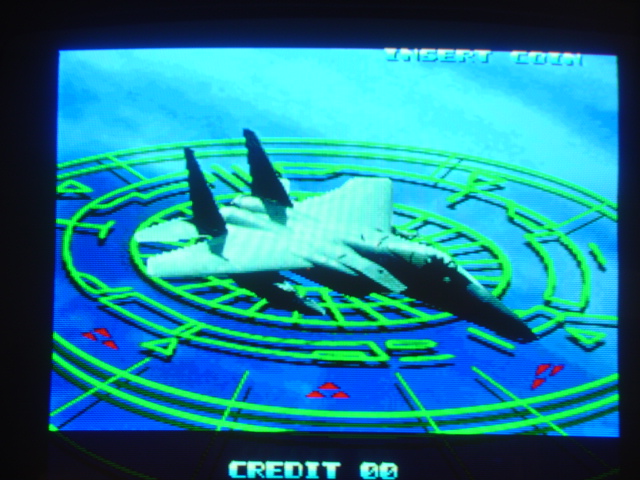

  • Intro

    Intro
