New Magic Card
From Citylan
| dumper | f205v |
| dump date | 15/11/2007 |
| emulator | MAME 0.128u5 |
| dev | David Haywood, Angelo Salese |
| name | newmcard on Arcade Database |
| description | New Magic Card |
| year | 2000.05.15 |
| manufacturer | High Video |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | NEC 9145N5-V30-D70116C-8 | ic1 | 16-bit Microprocessor - main | |
| 1x | M6376 | ic14 | sound | |
| 1x | TDA2003 | ic20 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000MHz | x1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C2001 | ic31 | dumped |
| 2x | M27C4001 | ic32,ic33 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | ADV476KP35-9948-F112720.1 | ic17 |
| 4x | MB84256C-10L | ic7,ic7,ic18,ic19 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2032 | ic12 | not dumped |
| 1x | ispLSI1032E | ic16 | read protected |
Others
1x 28x2 edge connector (J1)
1x 8x2 legs connector J2)
1x trimmer (volume) (R15)
1x pushbutton (P1)
1x 3 legs jumper (J4)
1x battery 3.6V (B1)
Notes
PCB is marked: "COMP V150500" and "V150500 CE type 001/v0" and "E178247" on component side
PCB is marked: "SOLD" and "V150500" on solder side
Files
-

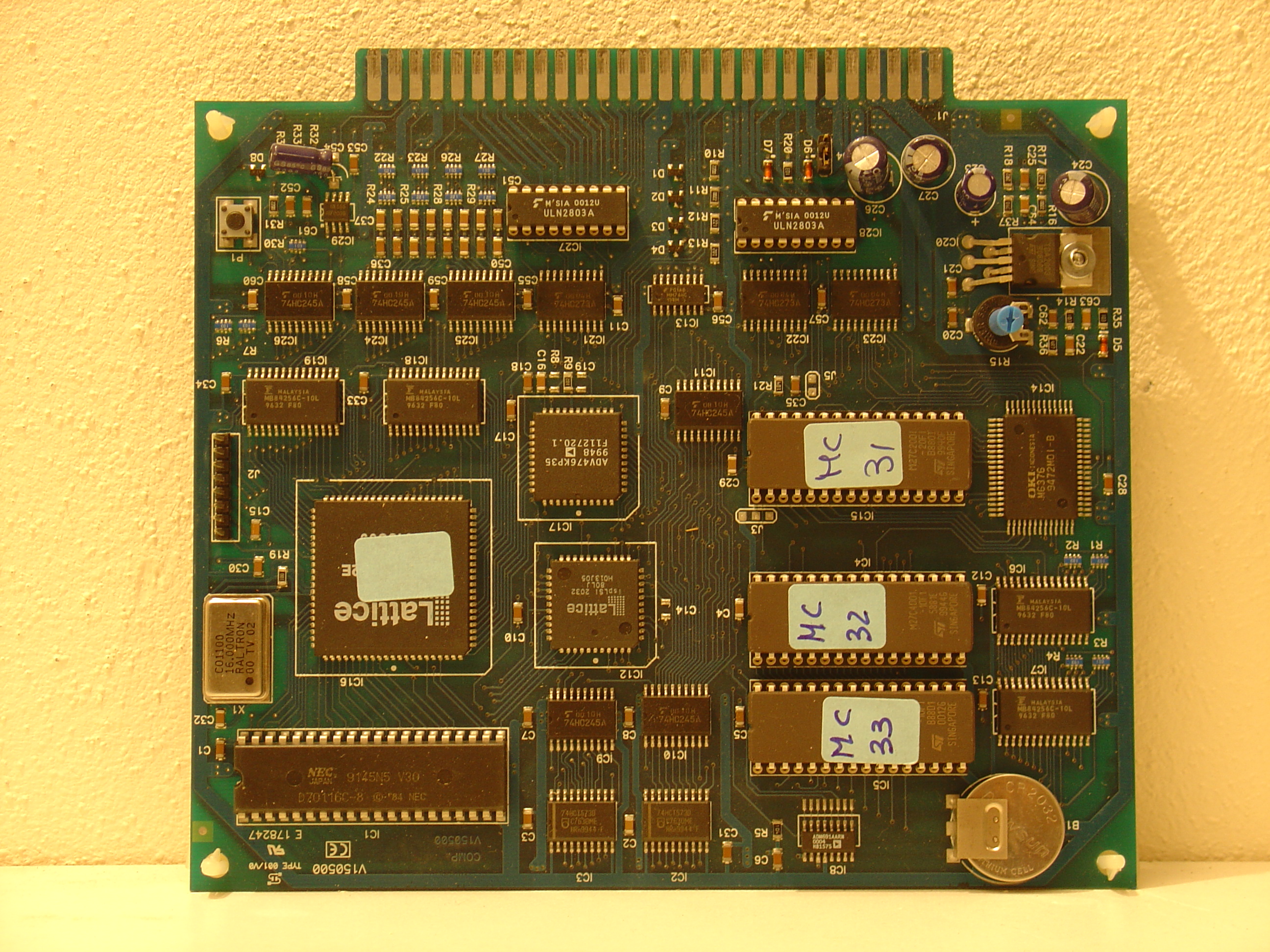

PCB component side
-

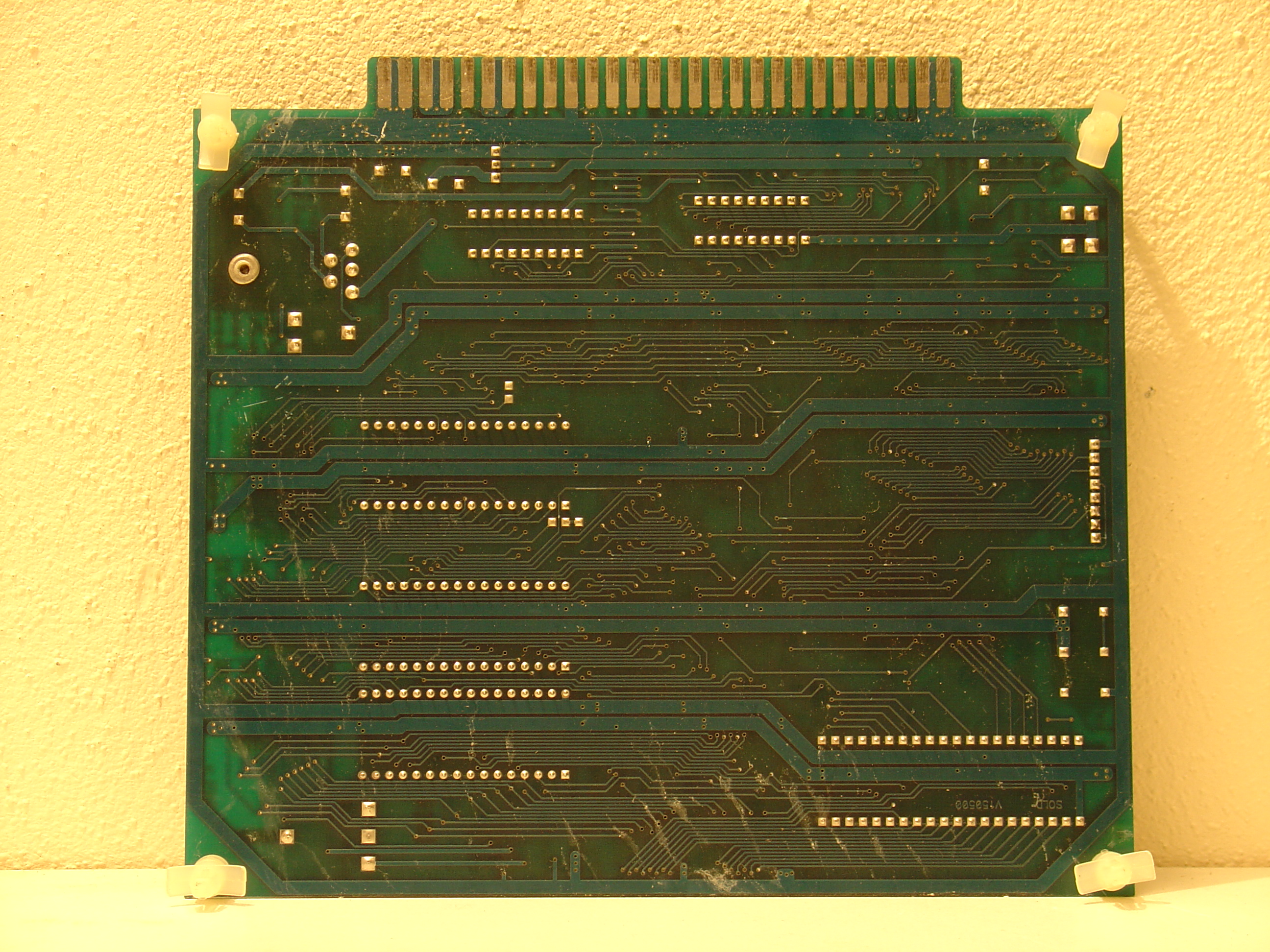

PCB solder side
