Squash (Itisa)
| dumper | f205v |
| date | 10/06/2008 |
| emulator | MAME 0.125u5 |
| dev | David Haywood |
| name | squaitsa on Arcade Database |
| description | Squash (Itisa) |
| year | 1984 |
| manufacturer | Itisa - Valadon - Gecas |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | SGS Z8400AB1-Z80ACPU | 8-bit Microprocessor - main | ||
| 2x | AY-3-8910 | Programmable Sound Generator - sound | ||
| 1x | LM380 | - | Audio Amplifier - sound | |
| 1x | oscillator | 18432 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 7x | 2732 | dumped | |
| 2x | MMI6331 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
1x 8 DIP switches bank
Notes
This is a strange thing: the PCB is marked "Valadon Automation (C) 1983" and "Fabrique sous licence par GECAS/MILANO" (manufactured under license from GECAS/MILANO)"
But if you look in ROM 7 with an HEX editor you can see the following: "(C) 1984 ITISA" and "UN BONJOUR A JACQUES DE PEPE PETIT AND HENK" ( a good morning to Jaques from Pepe Petit and Henk". These are the programmers in ITISA, Henk Spits, Josep M. Petit, Josep Morilas, the very same 3 persons working on BOTANIC (1984)(ITISA).
Game writings in the EPROM are in English and Spanish.
So we have an English/Spanish game with a French easter egg on a French PCB manufactured under license from an Italian company! Let's call it melting pot!
Files
-

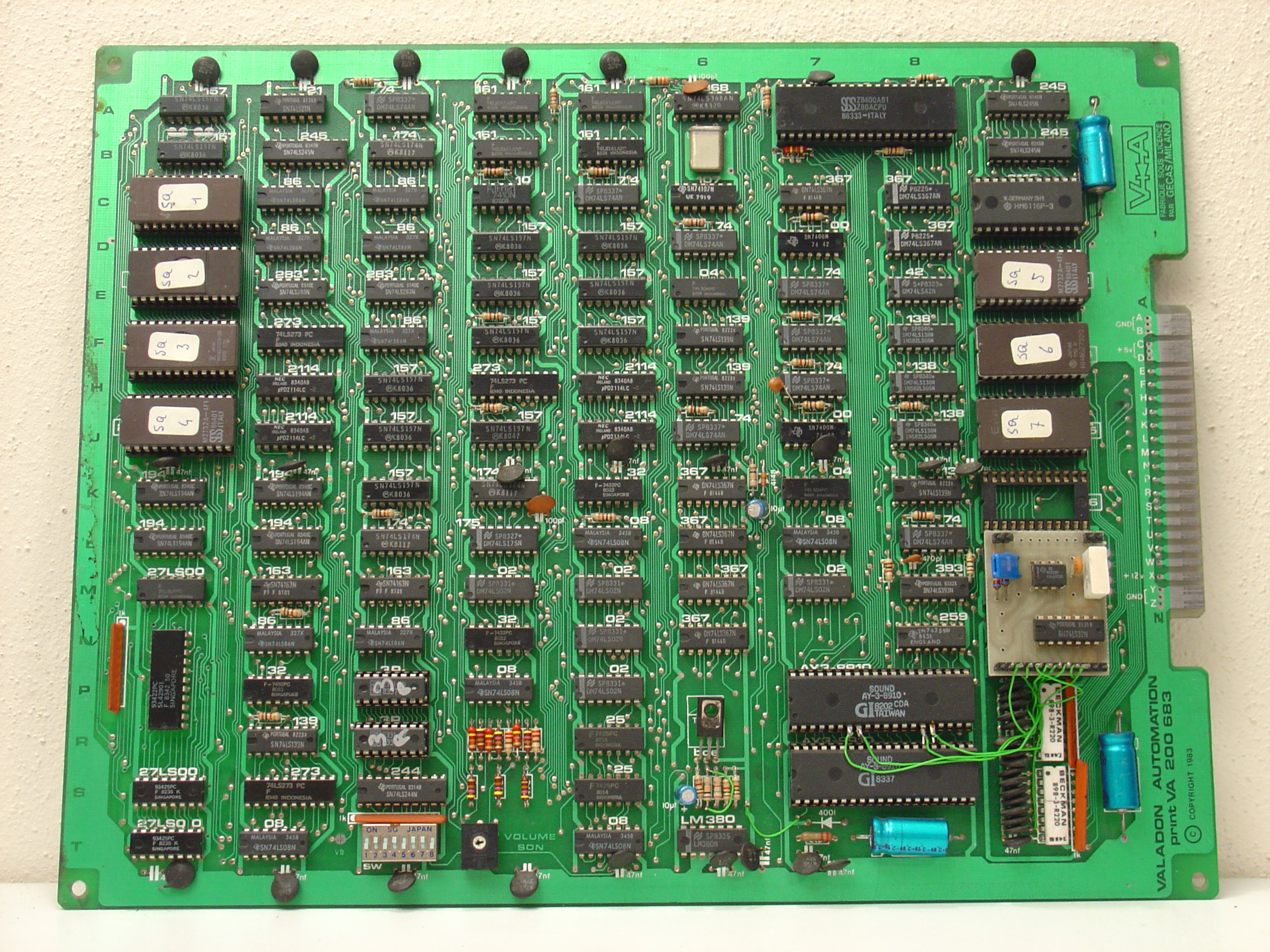

PCB component side
-

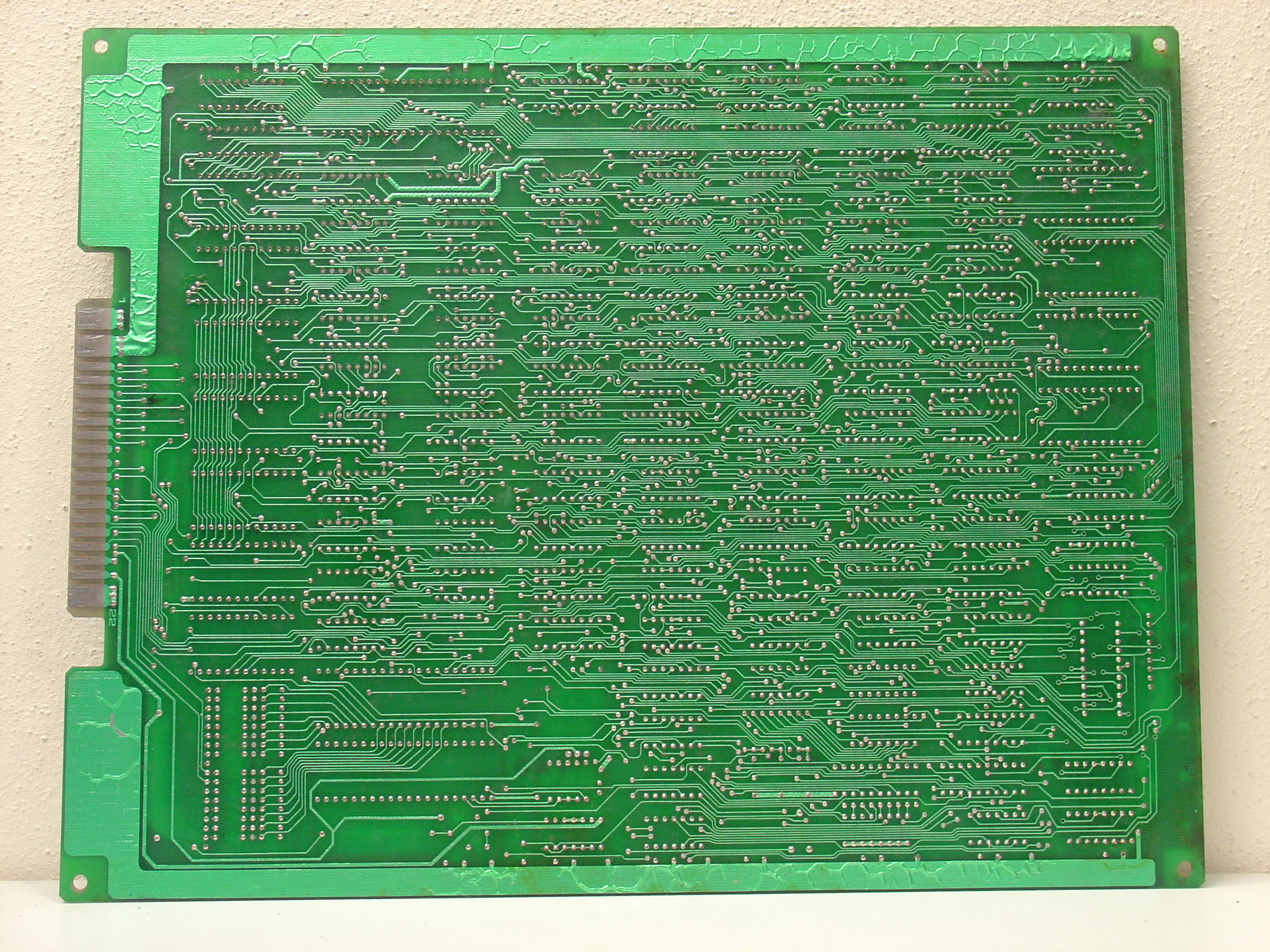

PCB solder side
-
