Circus Charlie (level select, set 3)
From Citylan
| dumper | f205v |
| date | 18/03/2006 |
| emulator | MAME 0.104u7 |
| dev | Osso |
| name | circusc3 on Arcade Database |
| description | Circus Charlie (level select, set 3) |
| year | 1984 |
| manufacturer | Konami |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Konami-1 | main PCB 10g | main encrypted 6809 | |
| 1x | 602 | main PCB 8a | DIP40-600mil | |
| 1x | 082 | main PCB 9d | DIP28-600mil | |
| 1x | unmarked | sound PCB 4c | 8-bit Microprocessor - sound | |
| 1x | M5224P | - | sound PCB 5h | Quad Operational Amplifier - sound |
| 1x | HA1368 | - | sound PCB 2h | Audio Power Amplifier - sound |
| 1x | oscillator | 18432.00kHz | main PCB xtal.16g |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 11x | M5L2764K | main PCB 4a,5a,4h,5h,6h,11e,12e,13e,14e,15e,16e | dumped |
| 1x | HN482764G | main PCB 7h | dumped |
| 1x | uPD2764D | main PCB 3h | dumped |
| 2x | MMI6301 | main PCB 7b,10c | dumped |
| 1x | 18S30 | main PCB 2a | dumped |
| 2x | M5L2764K | sound PCB 5c,7c | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | MB8128-15 | main PCB 1h,2h,3e |
| 2x | TMM2114APL-1 | main PCB 2f,3f |
| 2x | TMM2114AP-15 | sound PCB 4f,5f |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 2 legs connector (GND VCC)(main PCB)
1x 40 pins flat cable connector from main PCB to sound PCB
1x 18x2 edge connector(sound PCB)
1x 2 legs connector (power)(sound PCB)
1x trimmer (volume)(sound PCB VR1.1h)
2x 8 DIP switches banks(sound PCB DIPSW1.2a DIPSW2.2c)
Notes
main PCB is marked: "Konami(R)", "GX380" and "PWB(A) 2000161A" on component side
sound PCB is marked: "Konami(R)", "GX380" and "PWB(B) 3000148" on component side
sound PCB is labelled: "Konami(R) SERIAL NO 0044515" on component side
update 20231202: better description
Files
-
assembled PCBs
-
main PCB component side
-
main PCB component side notes
-

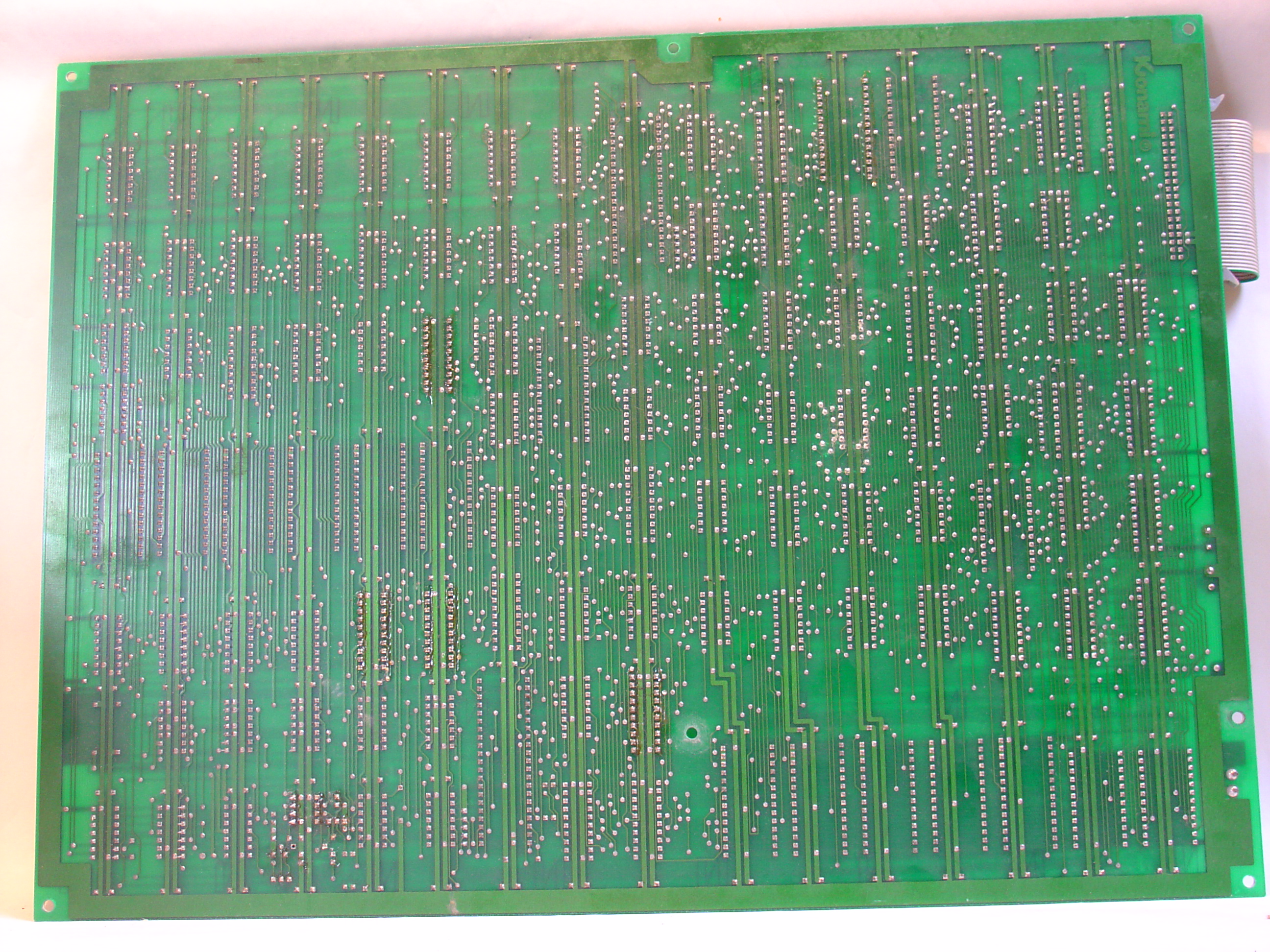

main PCB solder side
-
sound PCB component side
-

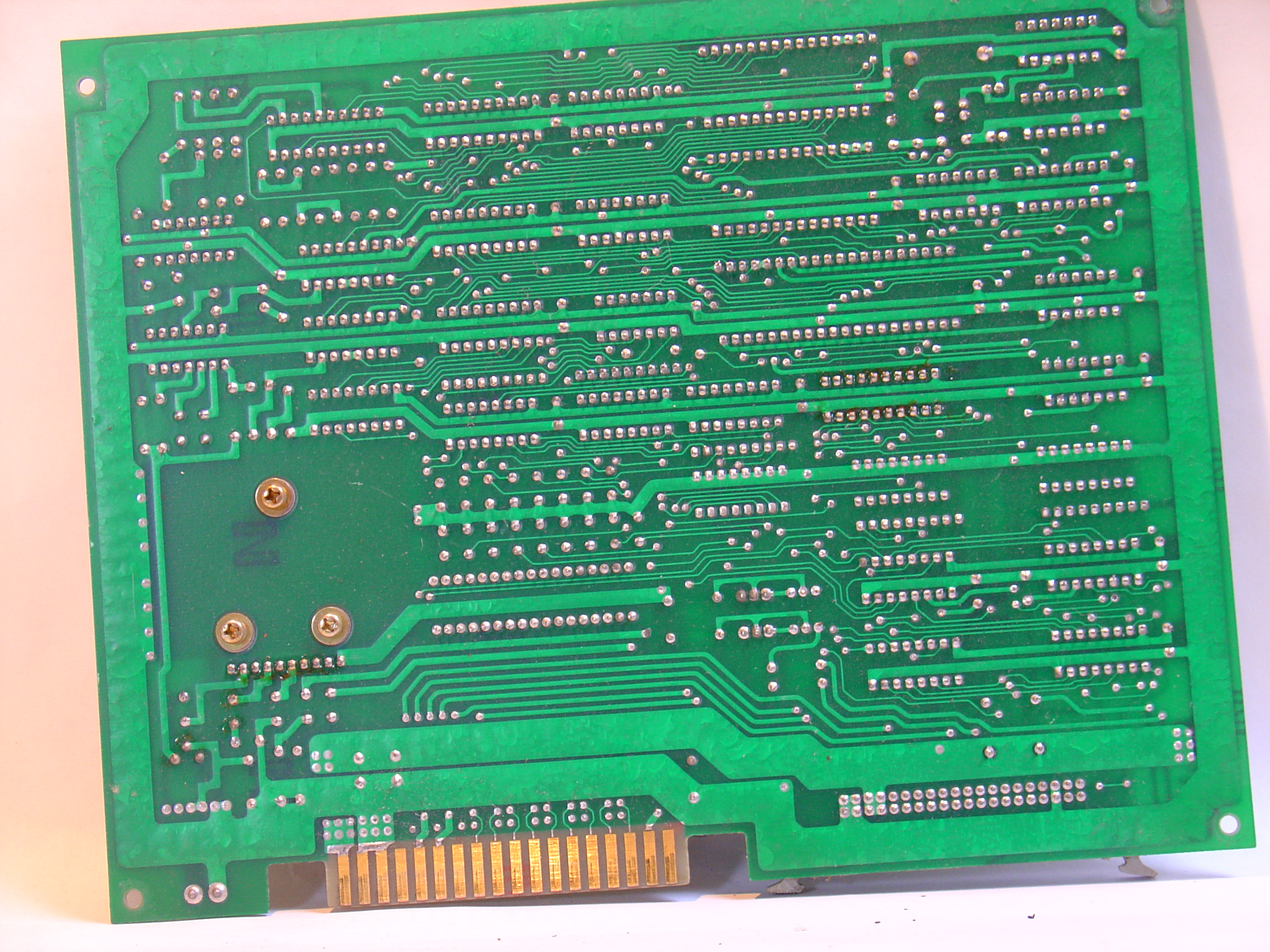

sound PCB solder side
