Atom (bootleg of Bombjack Twin)
From Citylan
| dumper | f205v |
| date | 18/05/2013 |
| emulator | MAME 0.148u5 |
| dev | David Haywood |
| name | atombjt on Arcade Database |
| description | Atom (bootleg of Bombjack Twin) |
| year | 1993 |
| manufacturer | Kyon K. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TS68000CP12 | 16/32-bit Microprocessor - main | ||
| 1x | 6295 | u12 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM348 | Quad Bipolar Operational Amplifier - sound | ||
| 1x | TDA2003 | u14 | Audio Amplifier - sound | |
| 1x | oscillator | 28.000 | ||
| 1x | oscillator | 10.000 | Y2 | |
| 1x | blu resonator | 1000J | Y1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS27C010A | 21,22 | dumped |
| 4x | M27C2001 | 27-30 | dumped |
| 5x | AM27C040 | 20,23-26 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | MS62256L-10PC | |
| 2x | MS6516L-10PC | |
| 6x | MCM2018AN45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | read protected | |
| 2x | GAL16V8B | read protected | |
| 1x | GAL22V10B | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8x2 switches DIP
Notes
Files
-

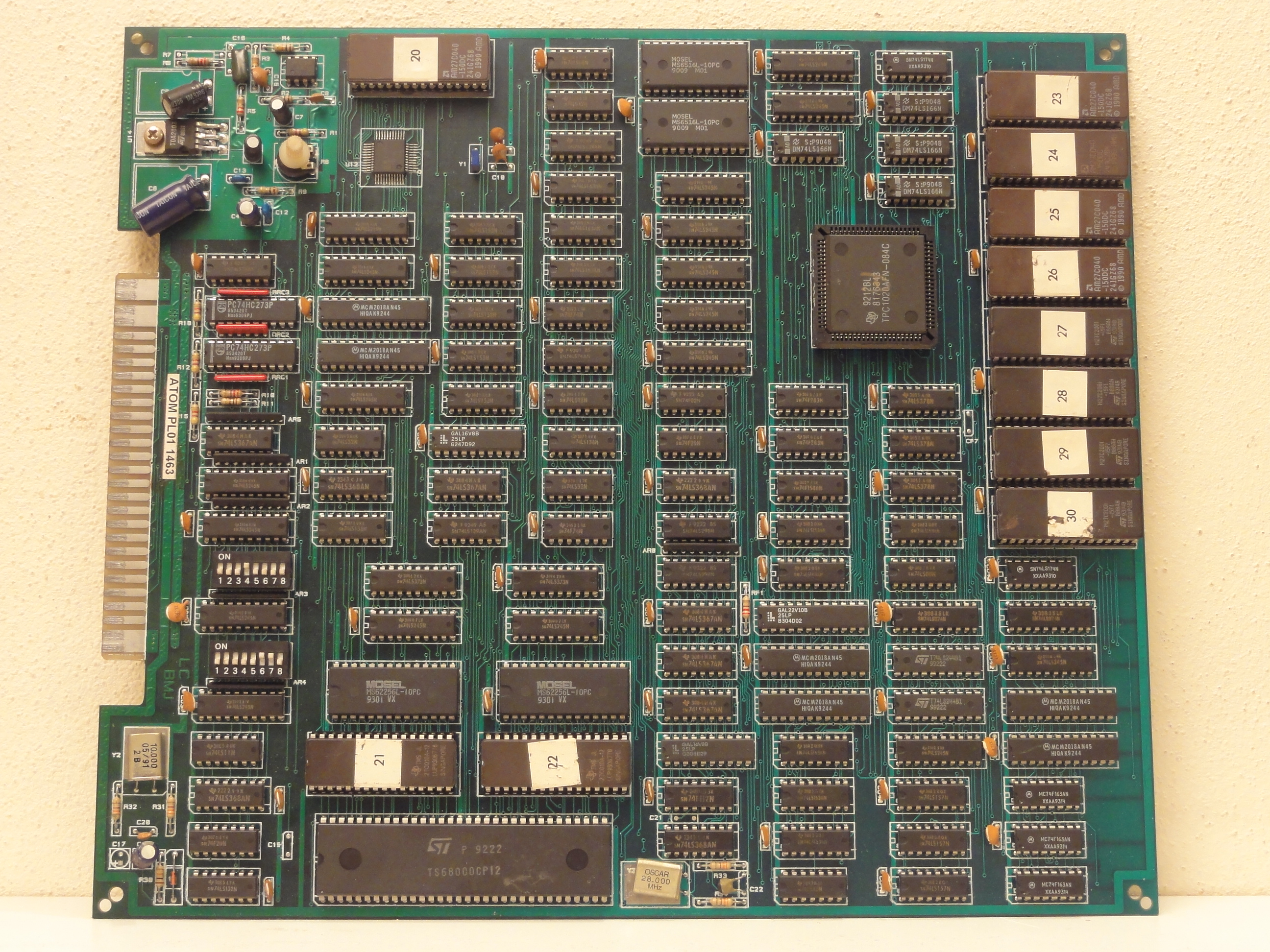

PCB component side
-

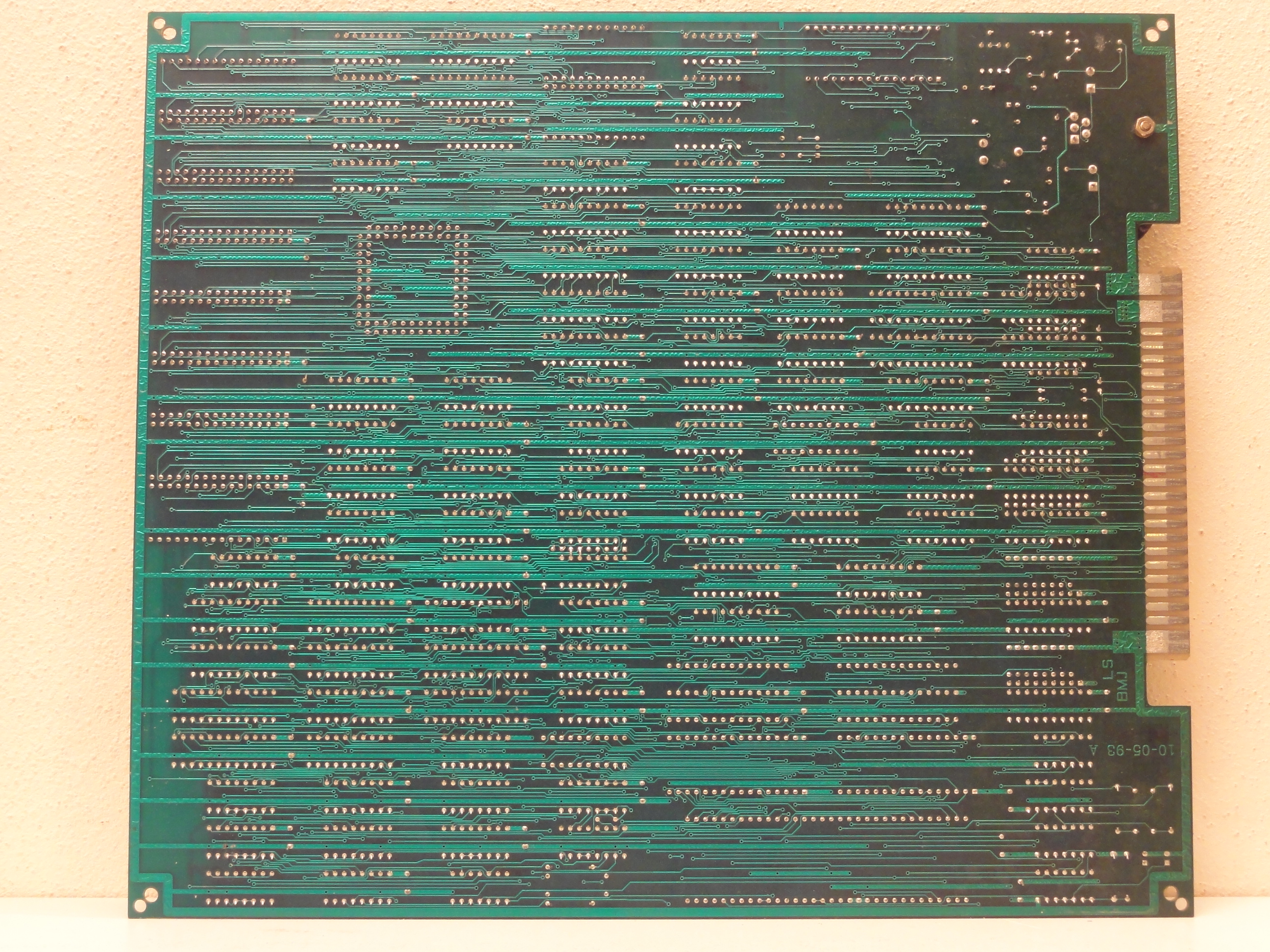

PCB solder side
-
Manual
