Amidar (bootleg, set 1)

From Citylan
Revision as of 20:46, 11 December 2023 by WikiSysop (talk | contribs)
Jump to navigationJump to search
EMU Infos
dumper f205v, Gnoppi, Corrado Tomaselli
date 10/04/2006
emulator MAME 0.105u3
dev Brian Troha
PCB Infos
name amidarb on ProgettoEMMA
amidarb on Arcade Database
description Amidar (bootleg, set 1)
year 1982
manufacturer

Technical references

CPUs

QTY Type clock position function
1x LH0080-Z80CPU main PCB 1a 8-bit Microprocessor - main
1x oscillator 18.432MHz main PCB 6a
1x LH0080-Z80CPU sound PCB 9b 8-bit Microprocessor - sound
2x AY-3-8910 sound PCB 6c,7c Programmable Sound Generator - sound
1x M5l8255AP sound PCB 4c Programmable Peripheral Interface
1x oscillator 14.318MHz sound PCB X1

ROMs

QTY Type position status
1x M5L2732K main PCB 2c dumped
3x HN462732G main PCB 2f,2j,2m dumped
2x D2716D main PCB 5f,5h dumped
1x N82S123N main PCB 6e dumped
2x M5L2732K sound PCB 9d,11d dumped

RAMs

QTY Type position
5x N82S16N main PCB 10b,10c,10d,10e,10f
4x uDP2114LC main PCB 3j,3k,3l,3m
2x uDP2114LC sound PCB 10b,11b

PLDs

QTY Type position status
0x

Others

1x 18x2 edge connector (sound PCB)
1x 50 pins flat cable connector from main board to sound board
1x trimmer (volume)(sound PCB VR1, missing)
1x 6 DIP switches bank (sound PCB 2c)

Notes

Files

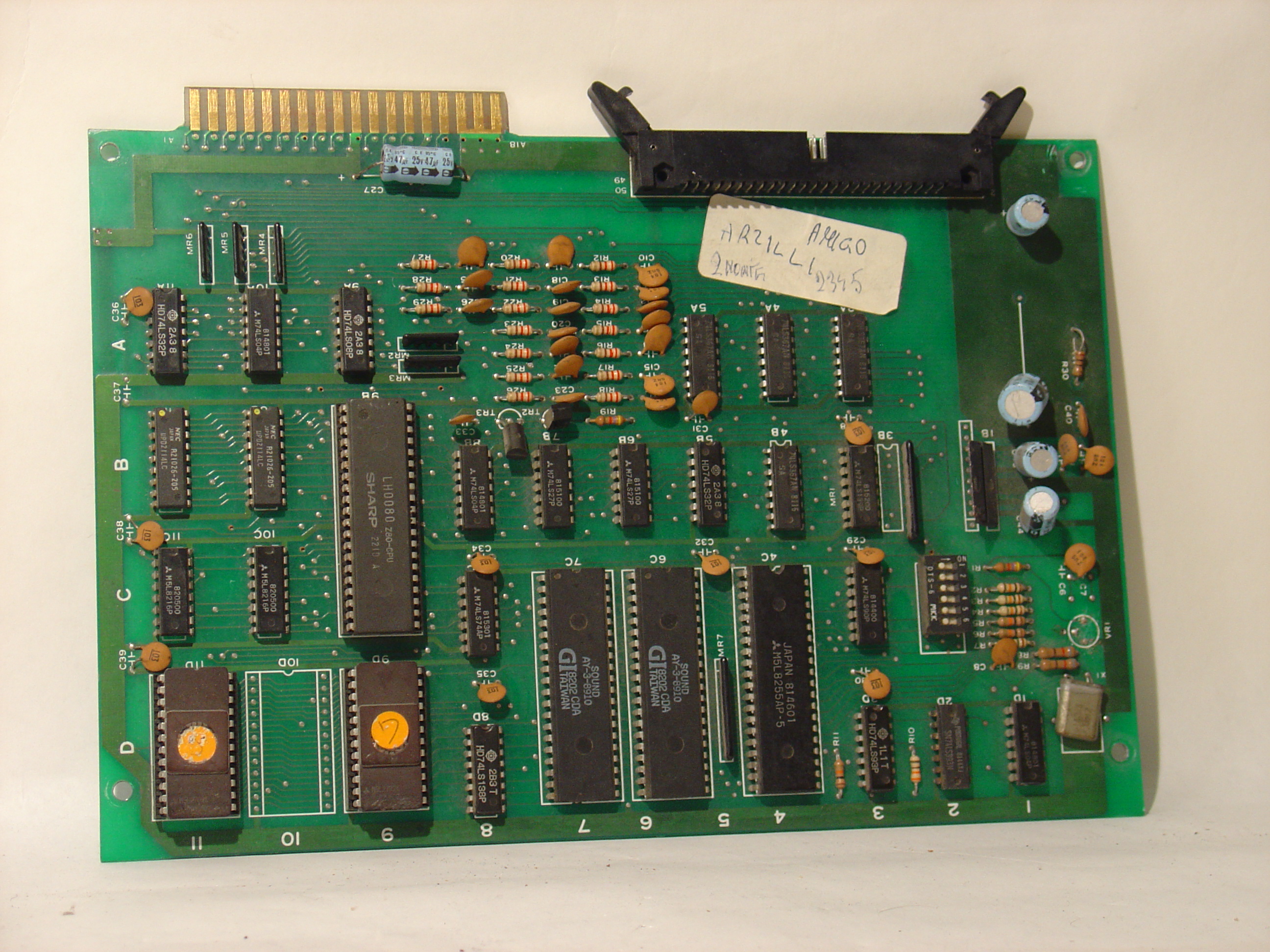

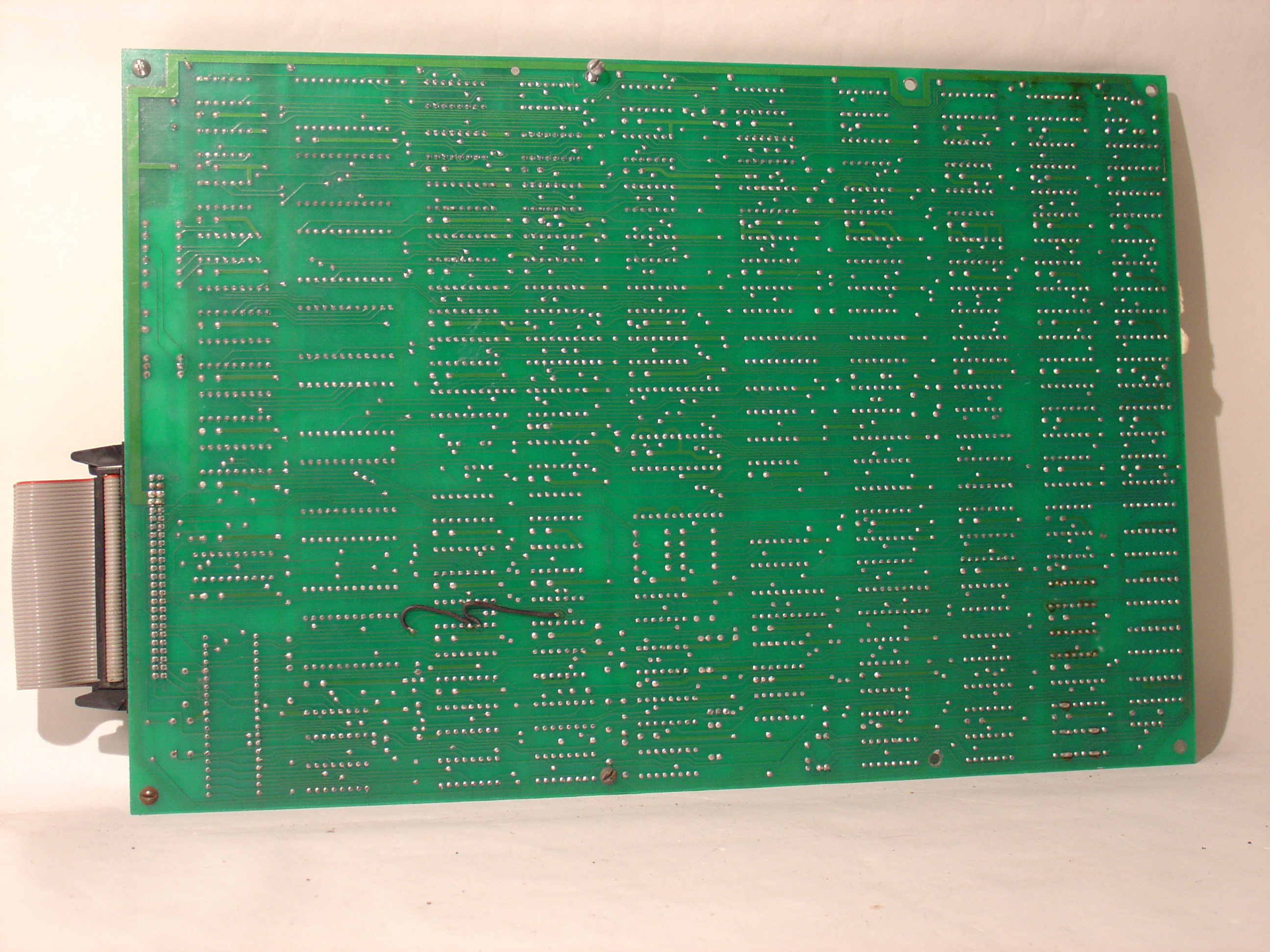

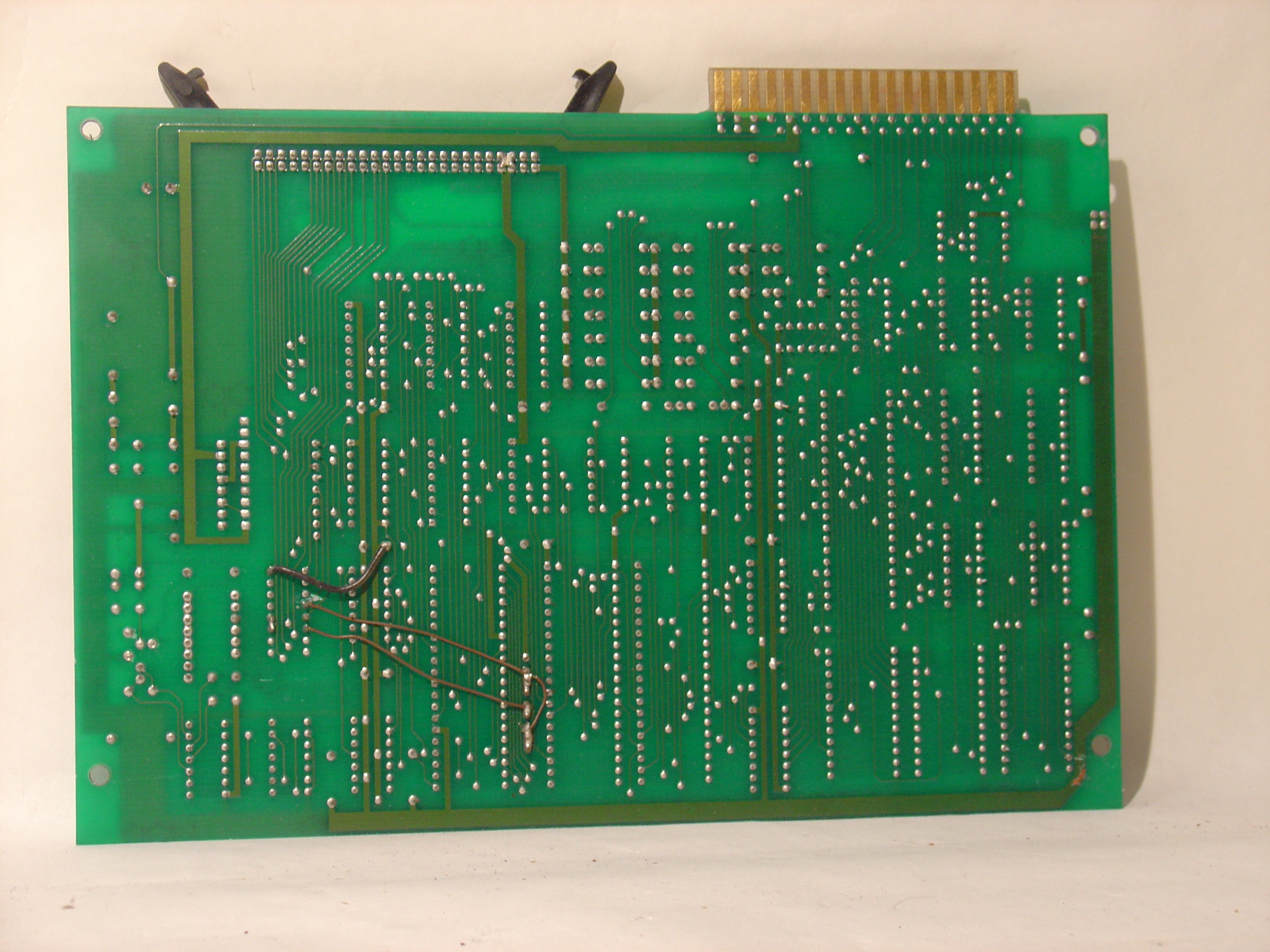

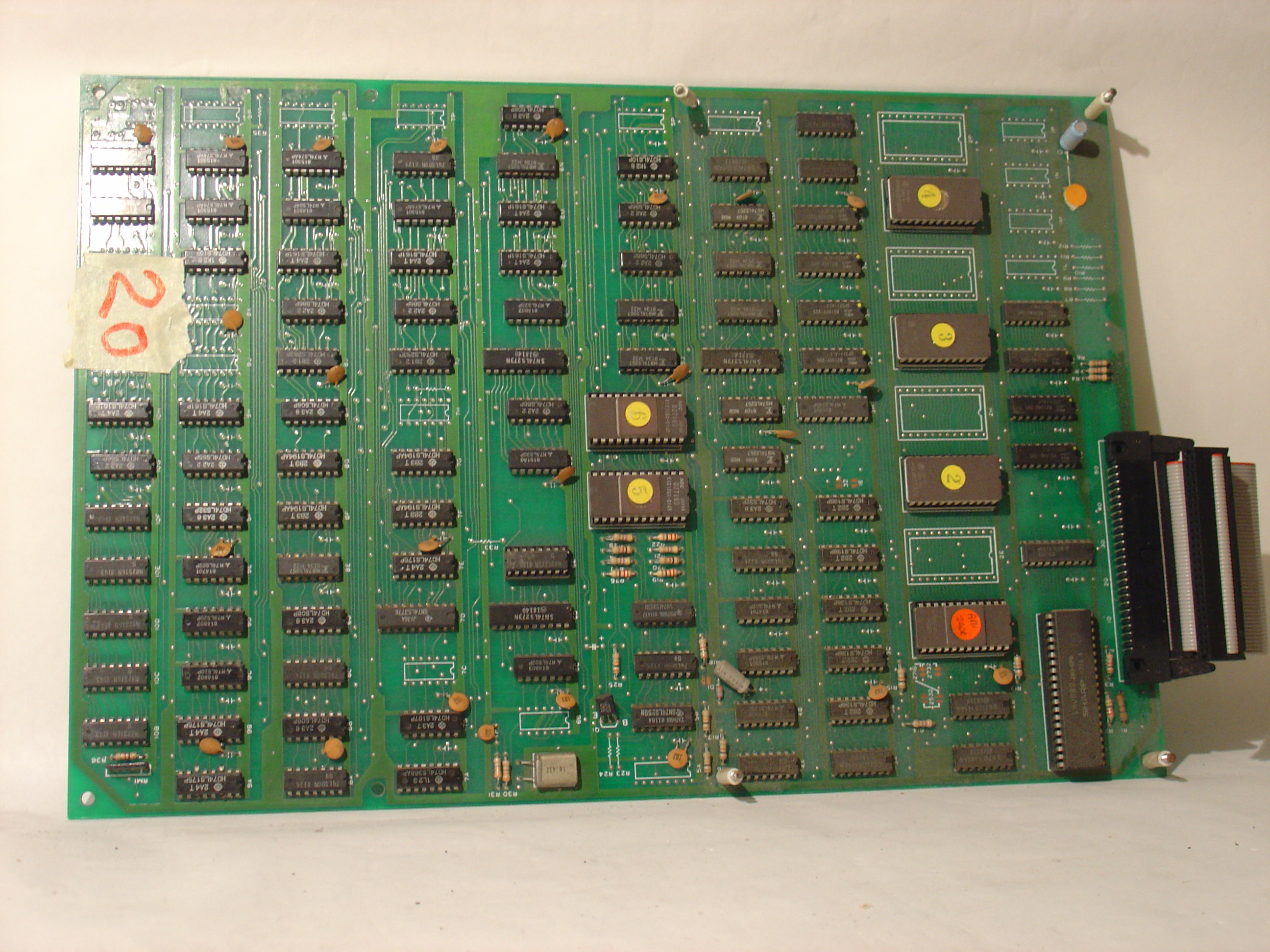

404
