Mang-Chi
From Citylan
| dumper | Corrado Tomaselli |
| date | 15/04/2006 |
| emulator | MAME 0.105u2 |
| dev | David haywood, Brian Troha |
| name | mangchi on ProgettoEMMA mangchi on Arcade Database |
| description | Mang-Chi |
| year | 2000 |
| manufacturer | Afega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TMP68HC000P-10 | 16/32-bit Microprocessor - main | ||
| 1x | Z80C006 | 8-bit Microprocessor - sound | ||
| 1x | AD65 | 4-Channel Mixing ADCPM Voice Synthesis LSI - | ||
| 1x | CY5001 | FM Operator Type-M (OPM) - sound | ||
| 1x | oscillator | 12.000MHz | ||
| 1x | oscillator | 4.000MHz |
ROMs
| QTY | Type | position | status |
|---|
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | FPGA | not dumped | |
| 1x | unmarked SMD ASIC | not dumped |
Others
2x 8 DIP switches banks
Notes
Files
-

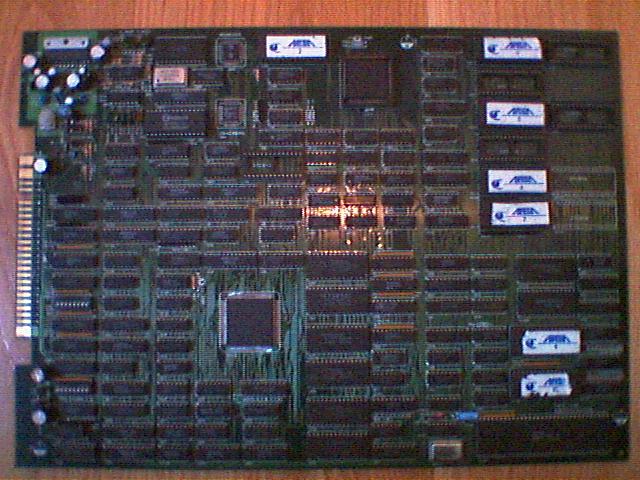

PCB component side
-
