EMU Infos
dumper f205v
date 04/04/2006
emulator MAME 0.105u1
dev David Haywood
PCB Infos
name pangpang on ProgettoEMMA
pangpang on Arcade Database
description Pang Pang
year 1994
manufacturer Dong Gue La Mi Ltd.

Technical references

CPUs

QTY Type clock position function
1x MC68000P10 16/32-bit Microprocessor - main
1x PIC16C57 8bit CMOS Microcontroller - main (internal ROM not dumped)
1x M6295 u1 4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x oscillator 8.000MHz
1x oscillator 14.000MHz
1x oscillator 12.000MHz

ROMs

QTY Type position status
2x M27C2001 2,3 main dumped
8x 27C02 4-11 gfx dumped
1x AM27C040 1 sound dumped

RAMs

QTY Type position

PLDs

QTY Type position status

Others

1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks

Notes

PCB is marked: "Dong Gue Ra Me" on component side

Files

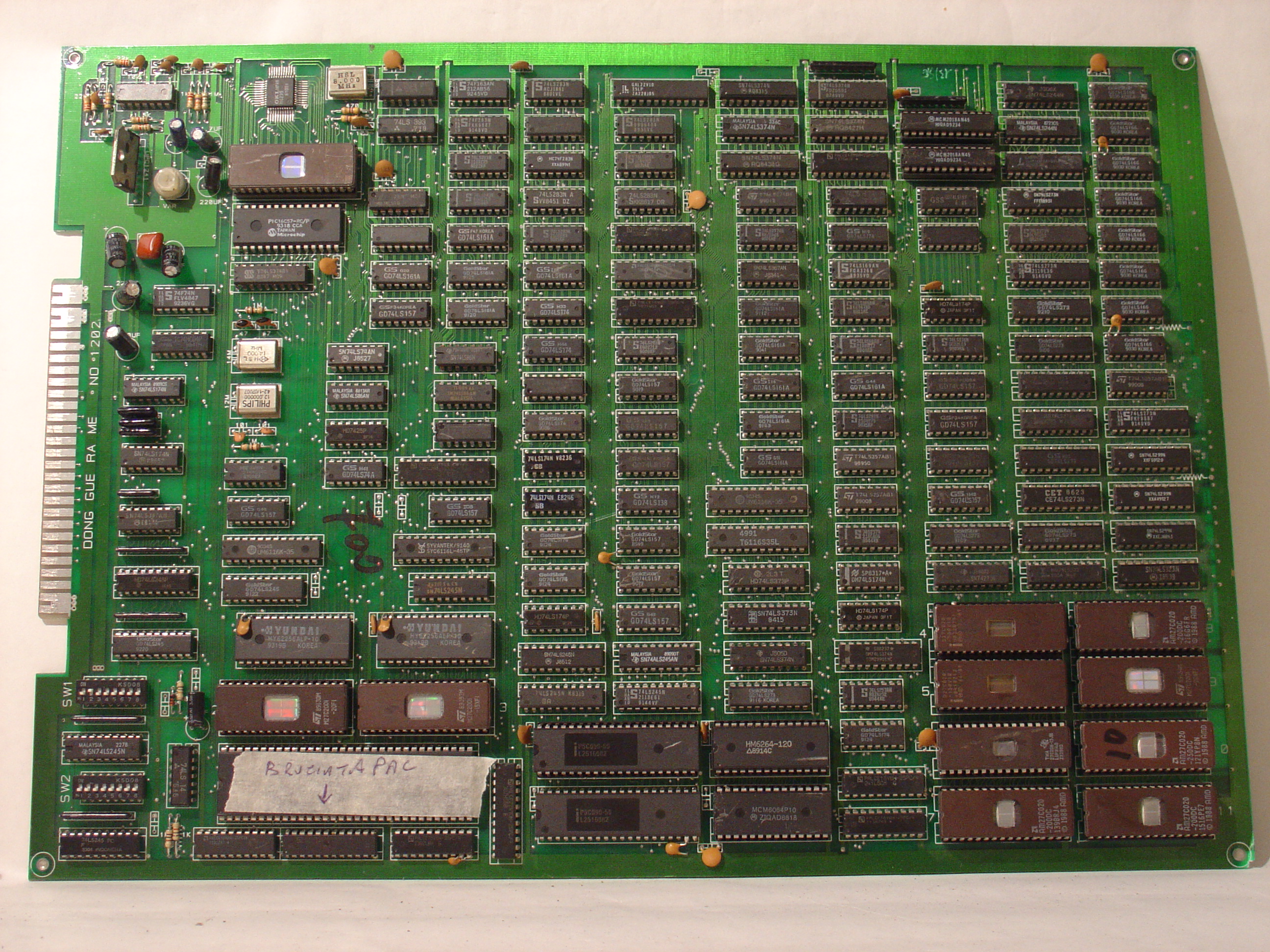

  • PCB component side

    PCB component side

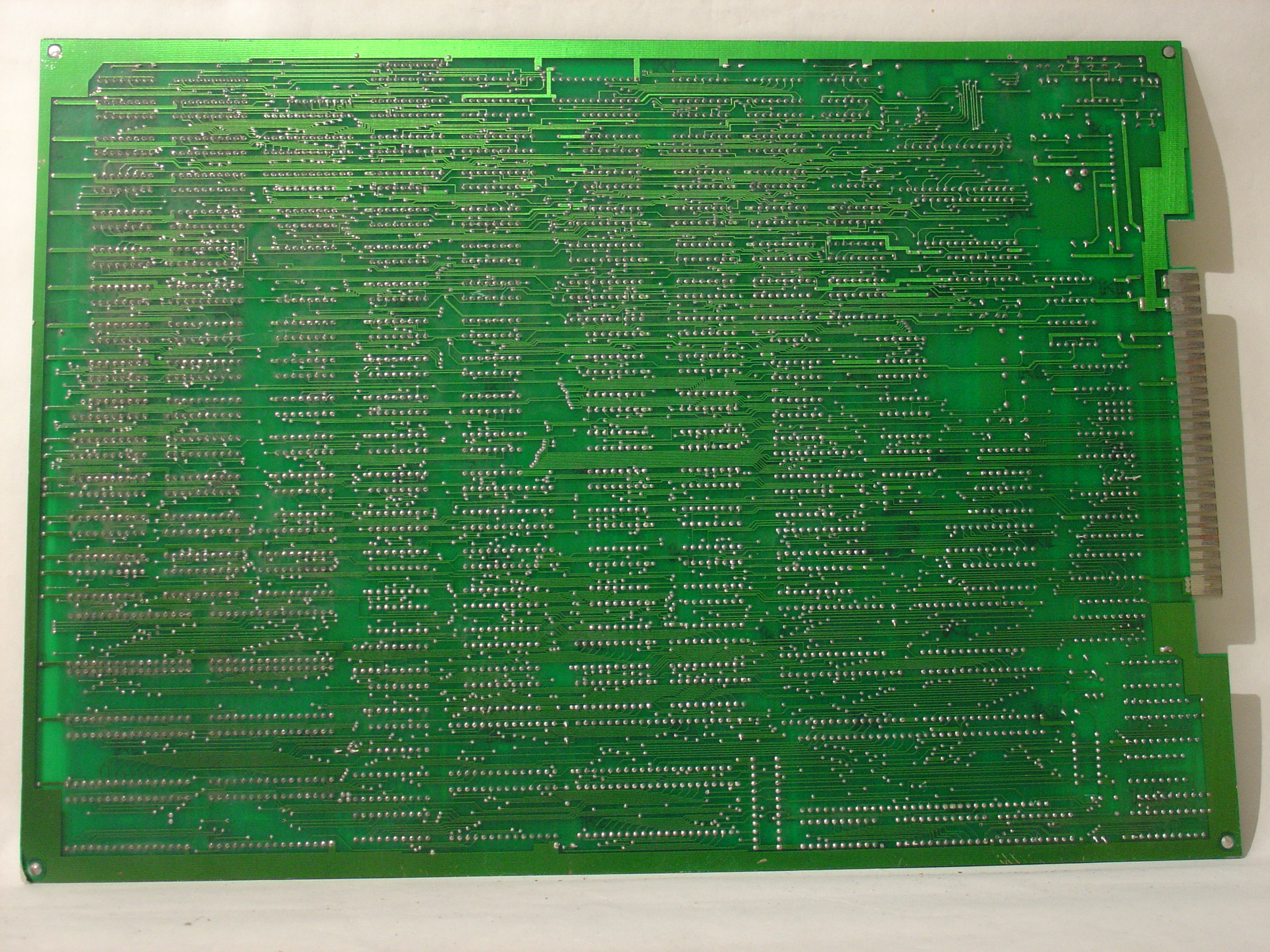

  • PCB solder side
