EMU Infos
dumper f205v
date 04/01/2005
emulator MAME 0.104u3
dev Pierpaolo Prazzoli
PCB Infos
name agressb on ProgettoEMMA
agressb on Arcade Database
description Agress - Missile Daisenryaku (English bootleg)
year 2003
manufacturer Palco System

Technical references

CPUs

QTY Type clock position function
1x MC68000P10 16/32-bit Microprocessor - main
1x unknown QFP80-(24x16)-20x14mm marked "TECMO" ic24
1x Z80 ic71 8-bit Microprocessor - sound
1x M6295 ic79 4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x YM2151 ic76 FM Operator Type-M (OPM) - sound
1x YM3012 ic80 D/A Converter (DAC) - sound
2x MB3615 - ic99,ic100 Quad Operational Amplifier - sound
1x M51516 - ic112 Audio Amplifier - sound
1x oscillator 28.000MHz X1
1x oscillator 3.579545 X2
1x oscillator 20.000MHz X1

ROMs

QTY Type position status
1x 27256 ic73 dumped
3x TMS27C010 ic78,ic81,ic91 dumped
1x MB7114H ic25 dumped

RAMs

QTY Type position
3x MCM2018AN45 ic75,ic87,ic88
2x MB8464-10L ic68,ic70

PLDs

QTY Type position status
0x

Others

1x 28x2 JAMMA edge connector
1x trimmer (volume)(VR1)
2x 8 DIP switches banks (SW1,SW2)

Notes

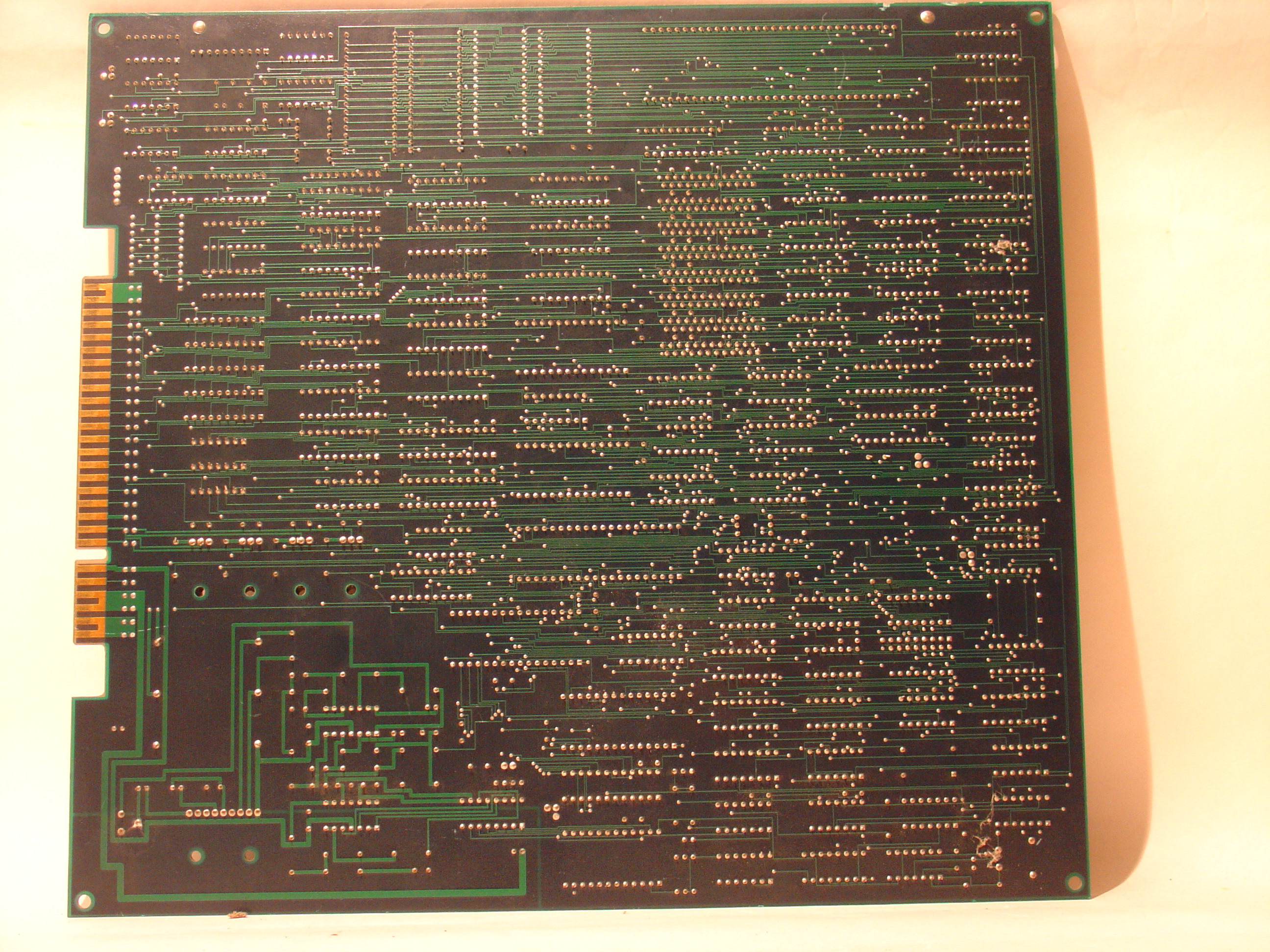

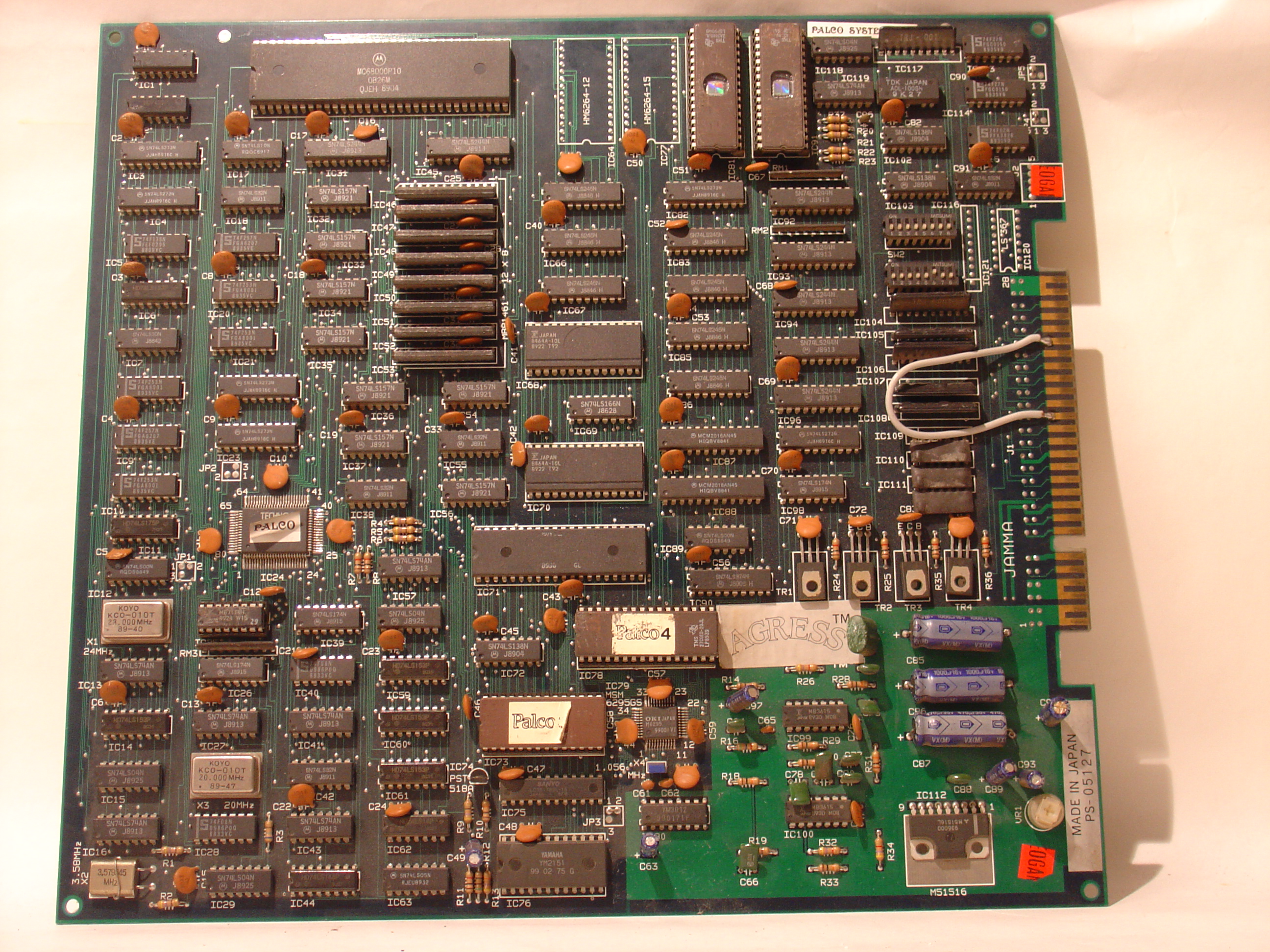

PCB is labelled: "PALCO SYSTEM", "AGRESS TM" and "MADE IN JAPAN PS-05127" on component side
