Unknown SACE 2/0098
From Citylan
| dumper | f205v |
| date | 05/12/2021 |
| emulator | |
| dev |
| name | 1745 |
| description | Unknown SACE 2/0098 |
| year | 1992/03 |
| manufacturer | SACE snc |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | R6502P | MHz(@37) - MHz(@39) | 8-bit Microprocessor - main | |
| 1x | TDA2002 | - | Audio Amplifier - sound | |
| 1x | oscillator | 4.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C256B | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MK48Z02B-25 | dumped |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | GAL16V8AS-15HB1 | read protected |
Others
1x 36x2 edge connector
1x 34 pins flat cable connector
1x trimmer (volume)
1x 4 DIP switches bank
Notes
PCB is marked: "S.A.C.E. SNCx" and "COD. 2/0098" on component side
PCB is labelled: "n°8 3/92 A" and "EI SACE 3/1192 TEST OK" on component side
Files
-

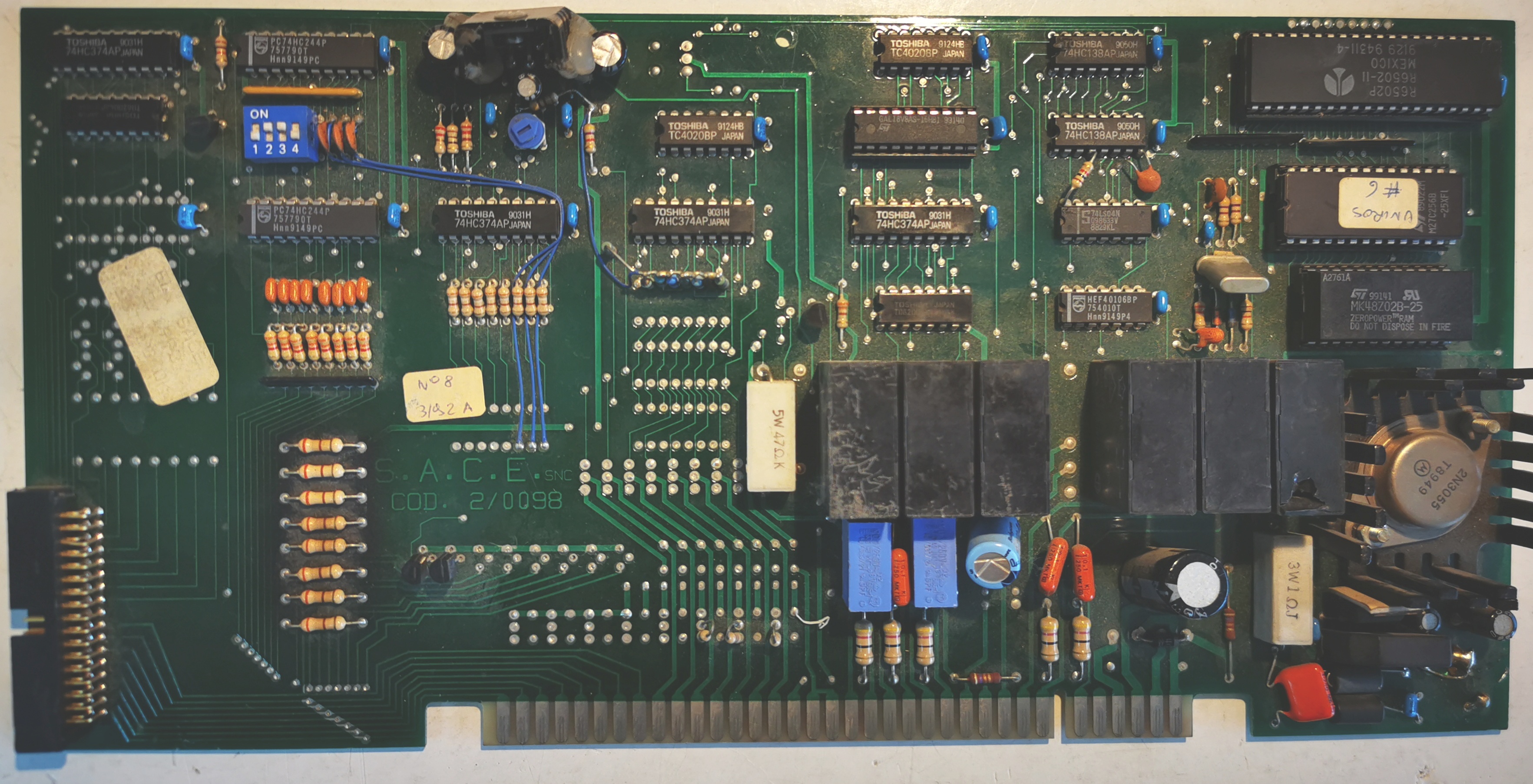

PCB component side
-

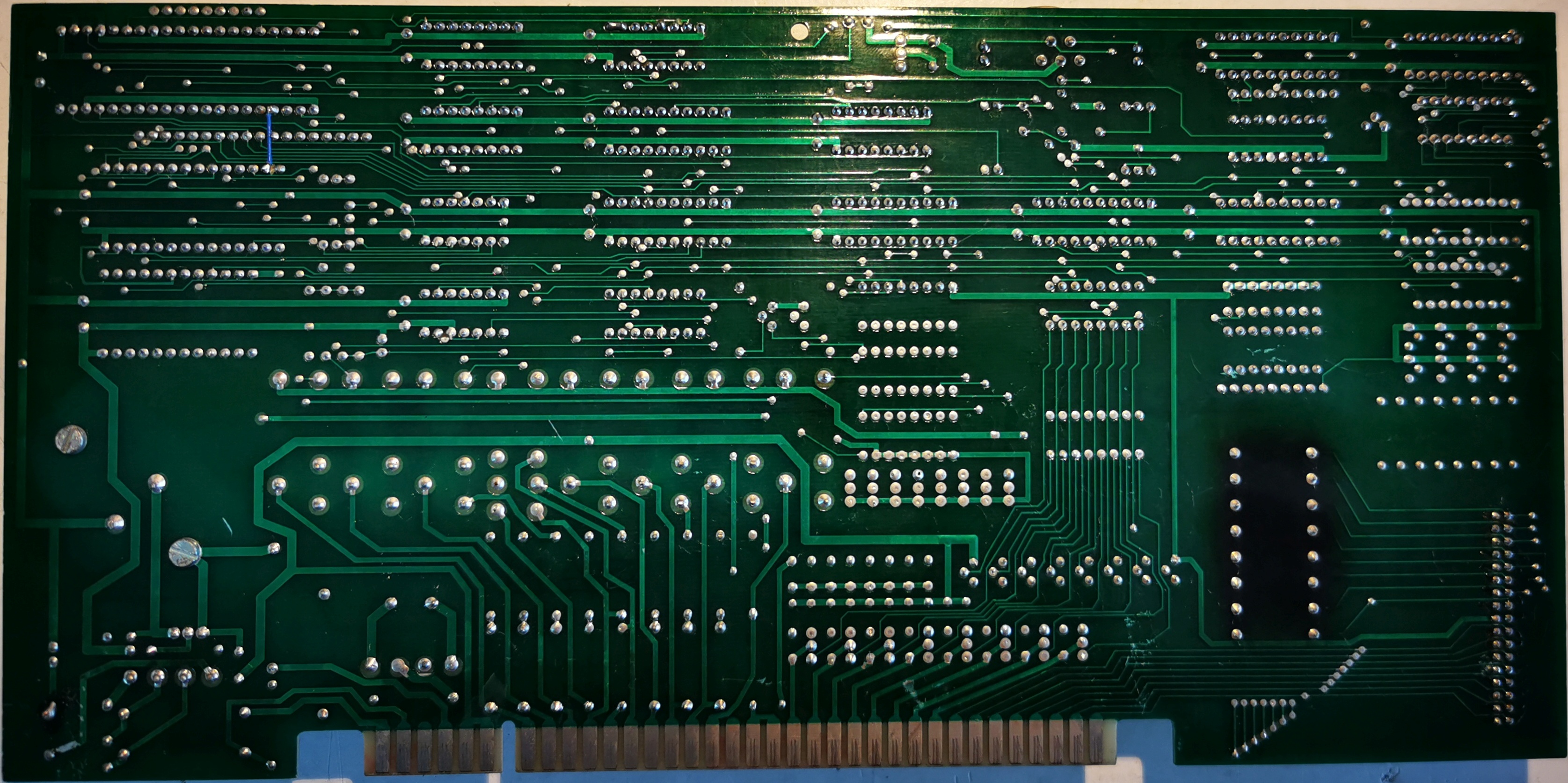

PCB solder side
-
ROMs
1745
