Lunar Lander (rev 1)

EMU Infos

dumper	f205v
date	21/10/2005
emulator	MAME 0.33b7
dev	Bernd Wiebelt

PCB Infos

name	llander1 on ProgettoEMMA llander1 on Arcade Database
description	Lunar Lander (rev 1)
year	1979
manufacturer	Atari

Technical references

CPUs

QTY	Type	clock	position	function
1x	SY6502A	MHz(@37) - MHz(@39)	3b	8-bit Microprocessor - main
2x	LM324	-	7r, 11r	Quad Operational Amplifier - sound
1x	oscillator		5a

ROMs

QTY	Type	position	status
6x	2716	1b,1c,1e,1f,3p,3r	dumped
1x	PROM 256x4	8c	dumped

RAMs

QTY	Type	position

PLDs

QTY	Type	position	status
0x

Others

1x 22x2 edge connector
1x 25x2 thin edge connector
1x pushbutton (RESET)
4x trimmer (X GAIN, X ZERO, Y GAIN, Y ZERO)
2x trimmer (AUDIO 1, AUDIO 2)
1x trimmer (5V)
1x 8 DIP switches bank (8p)

Notes

PCB is marked: "LUNAR LANDER", "ATARI (c)79", "A034230-02" and "MADE IN USA" on component side ("-02" is handwritten)
PCB is marked: "034231" and "[A]" on solder side

---

update 20051023: dumped PROM

Files

•

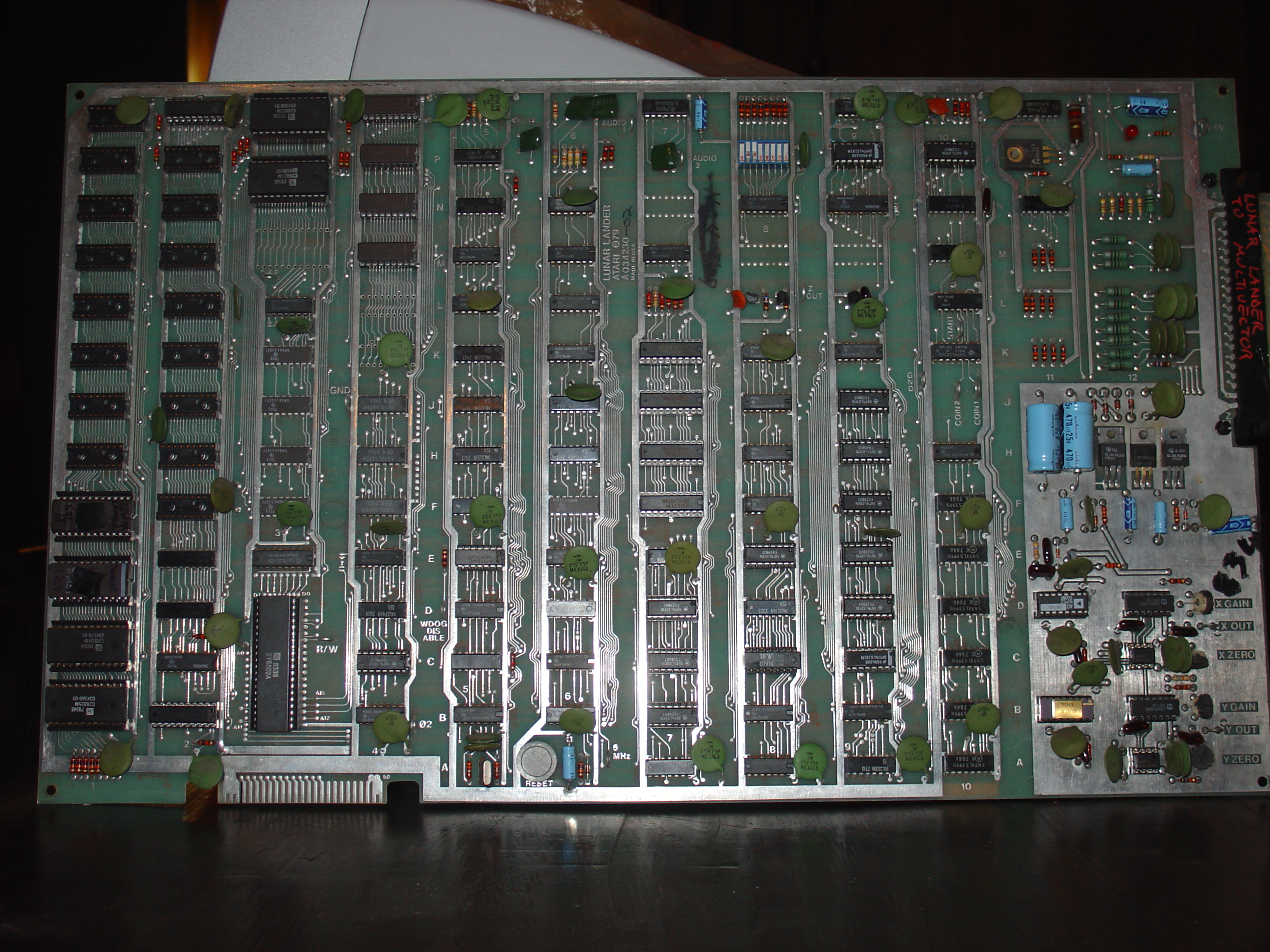

  PCB component side

•

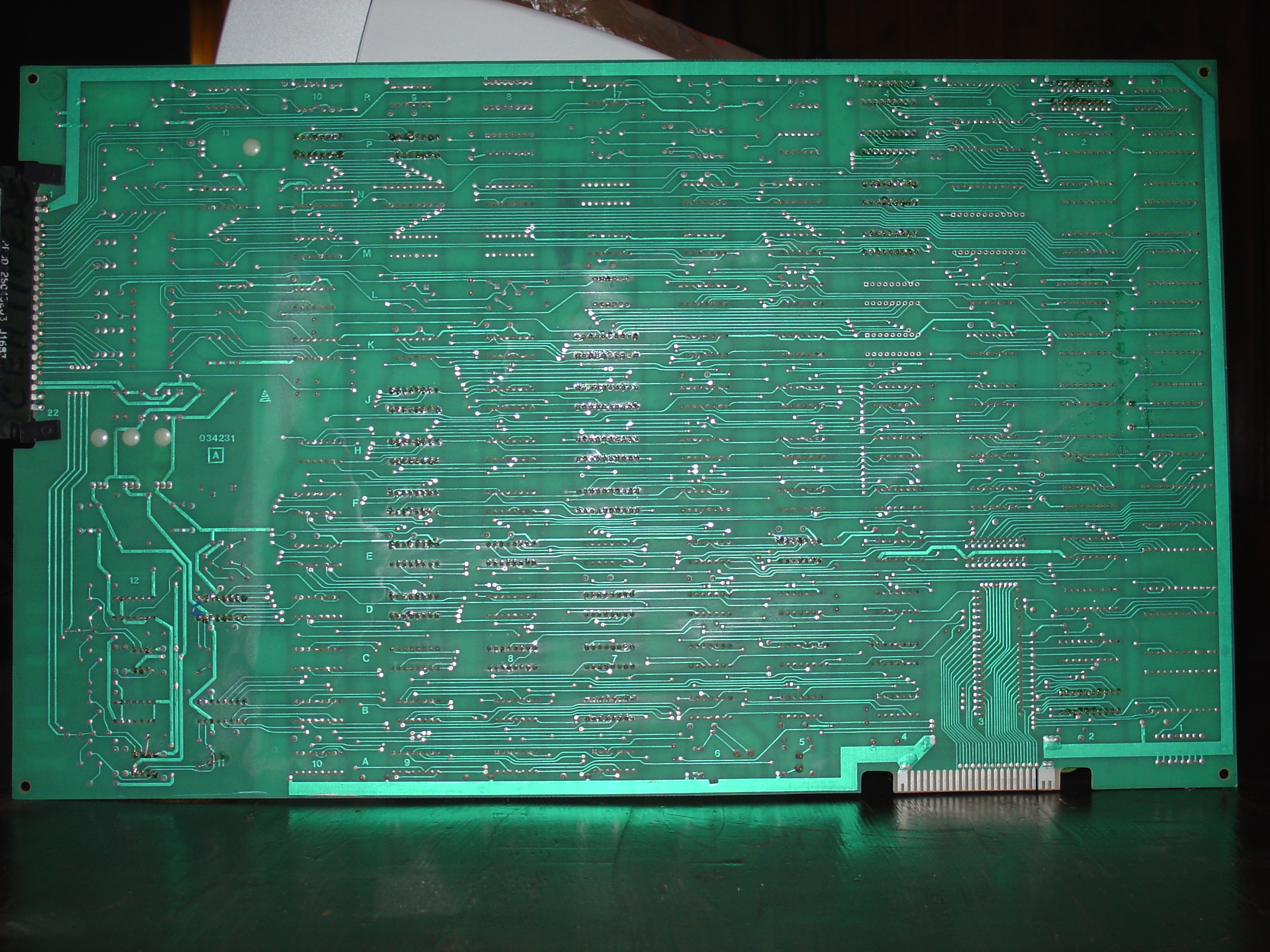

  PCB solder side
