Driving Simulator
From Citylan
| dumper | Rtw |
| date | 30/05/2021 |
| emulator | MAME 0.233 |
| dev | MetalliC |
| name | sgdrvsim on ProgettoEMMA sgdrvsim on Arcade Database |
| description | Driving Simulator |
| year | 2007 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A | 317-0502-JPN.ic3 | EPROM-Based 8-Bit CMOS Microcontroller (dumped) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCF01SVG | ic4 | not dumped |
| 8x | S29GL512N10T | ic8-ic15 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI 2 cart.
Cart type: 171-8346C
Cart N°: 840-0178C
EPR.ic7: not present
IC2# is labeled "VER.2" - IC4# is marked "8A", require 3 comm.bd. linked Naomi
Files
-

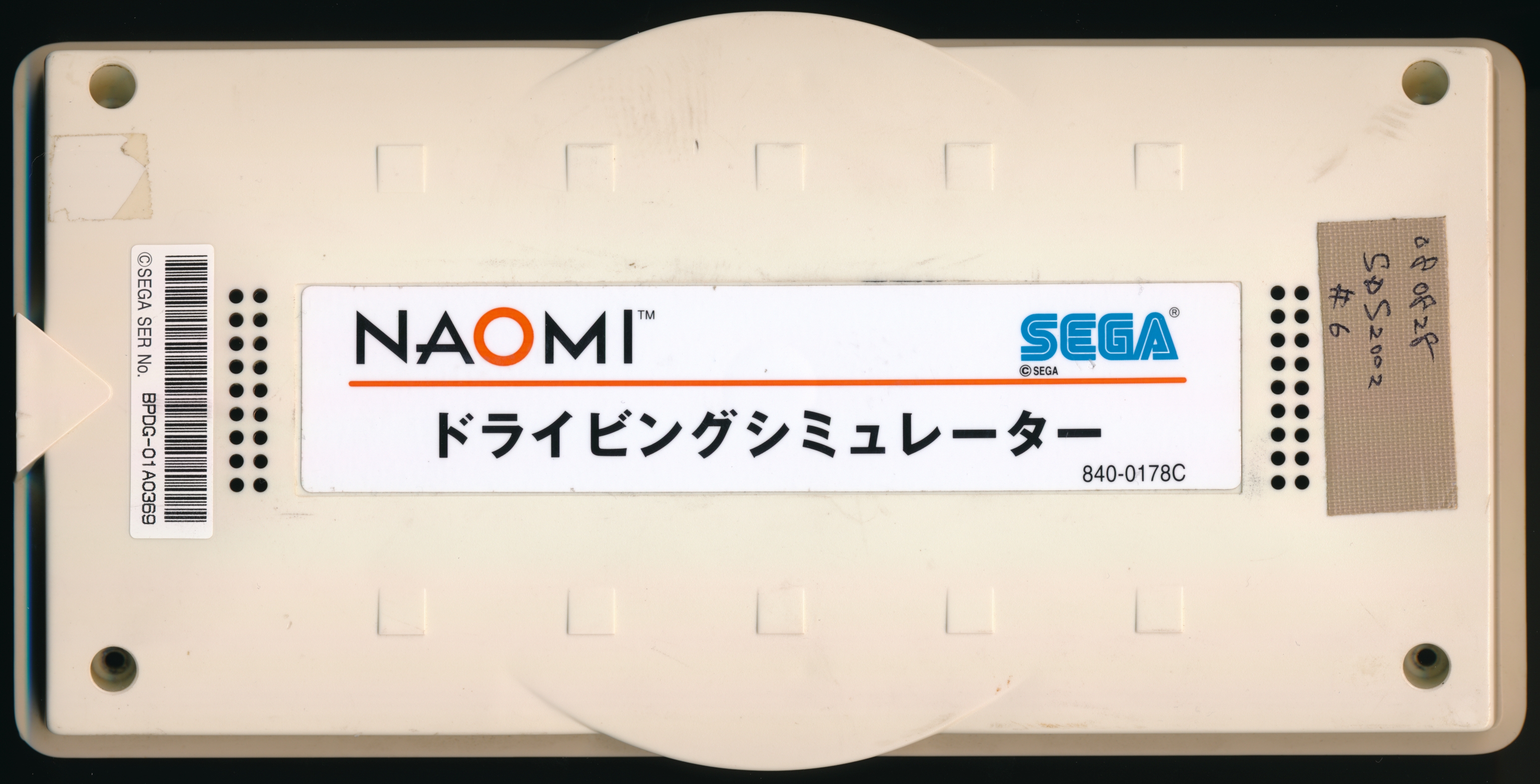

Cart
-

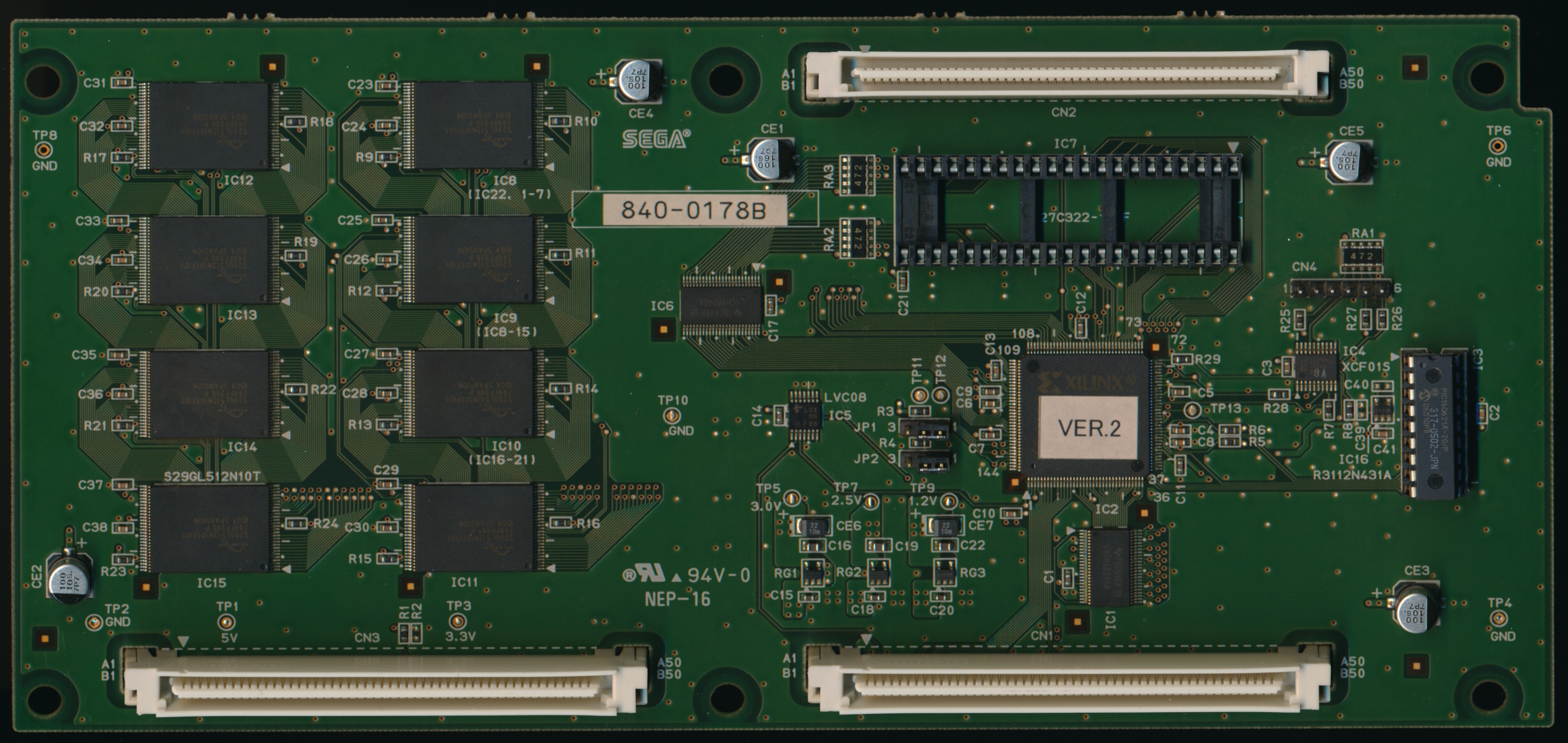

PCB component side
-

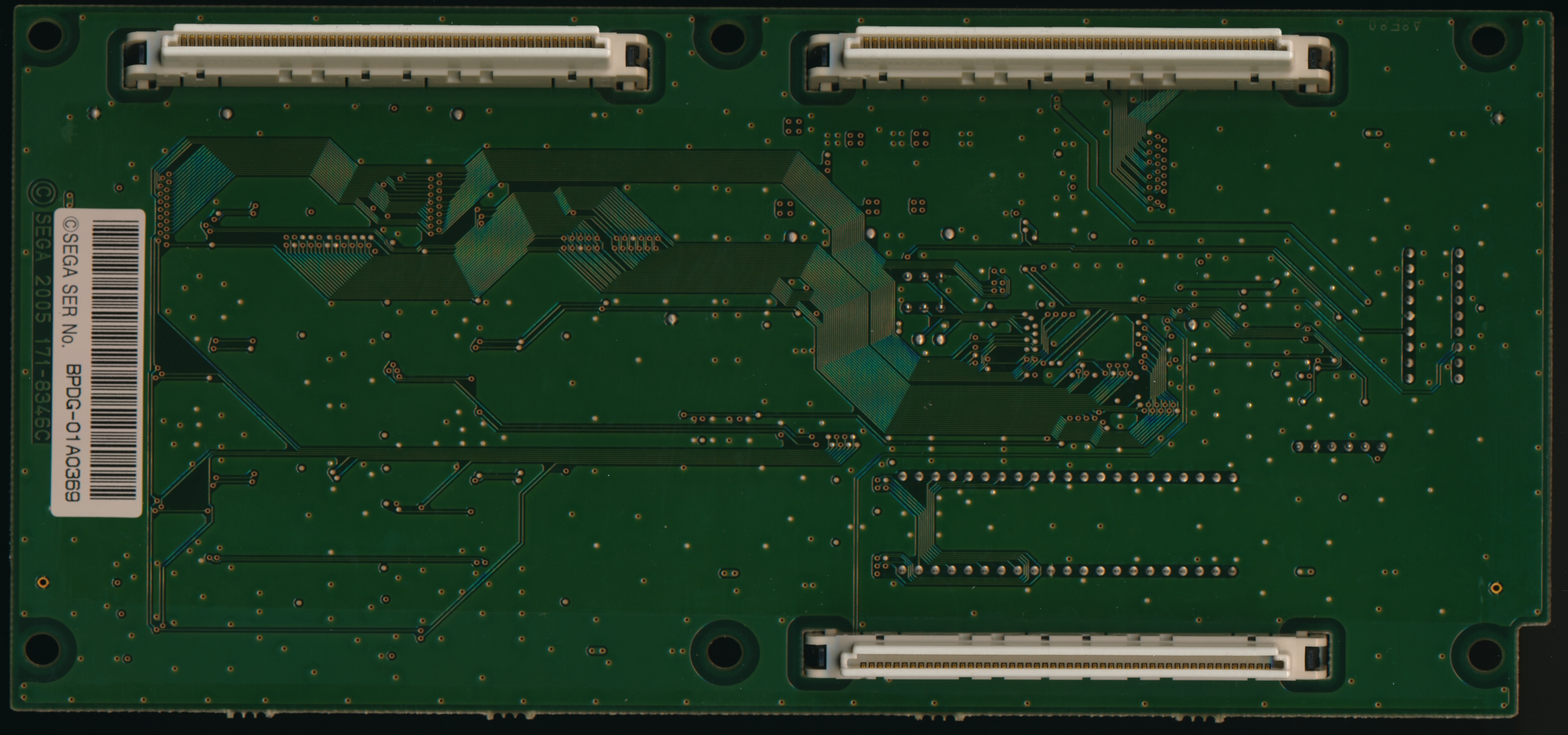

PCB solder side
-

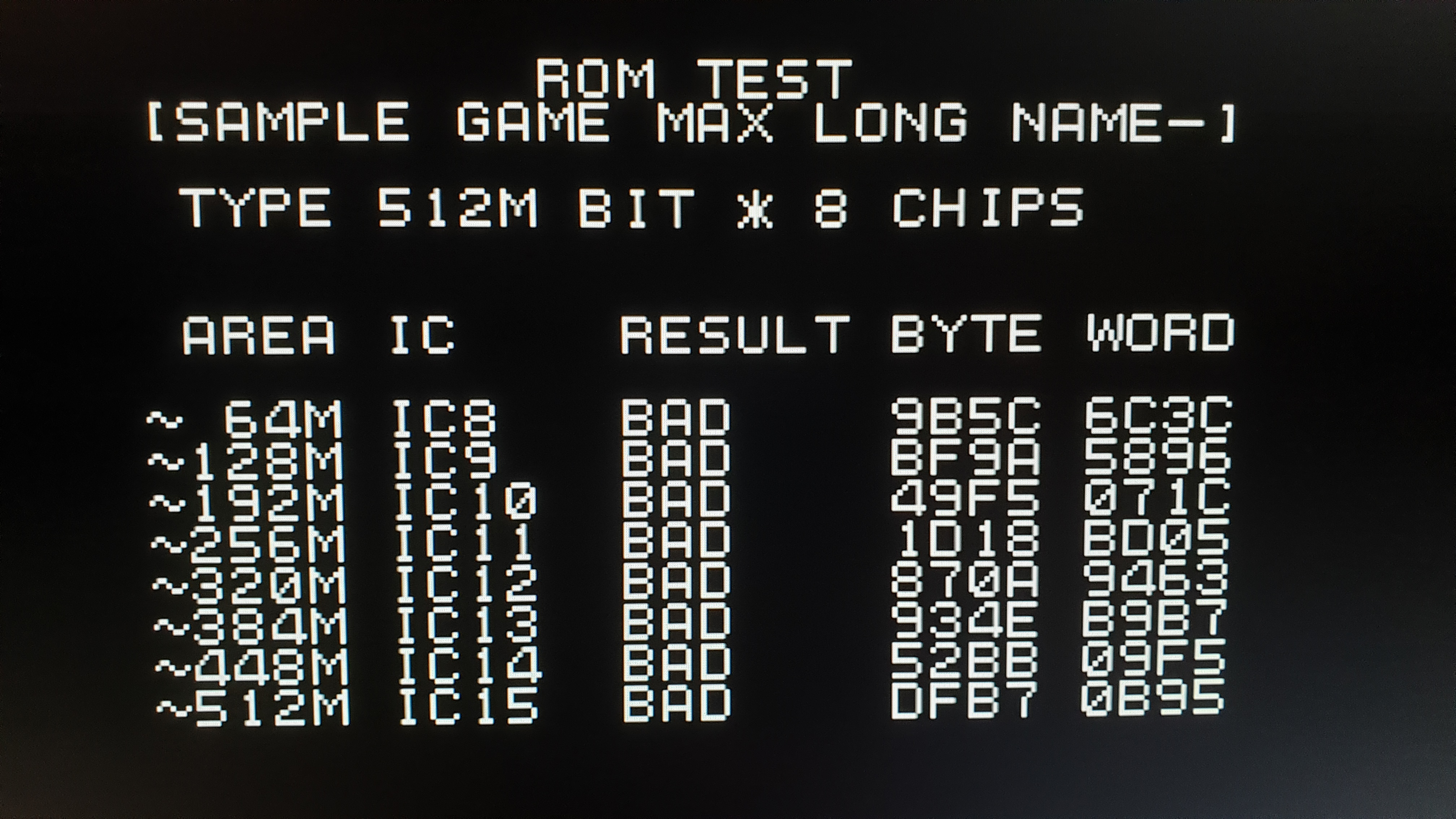

ROM BOARD TEST
-
Readme
