Pro Soccer
dumper | f205v |
date | 21/10/2007 |
emulator | MAME 0.63 |
dev | Bryan McPhail |
name | prosoccr on ProgettoEMMA prosoccr on Arcade Database |
description | Pro Soccer |
year | 1983 |
manufacturer | Data East |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | SY6502 | top PCB 12D | 8-bit Microprocessor - main | |
1x | C10707-1 | top PCB 11A | probably custom 80C51 - protection? | |
1x | DECO CPU16 M1018 2Z43 | top PCB 10D | Video? | |
2x | AY-3-8912 | top PCB 7A 7B | Programmable Sound Generator - sound | |
1x | uPC4558C | - | top PCB 1E | Dual Operational Amplifier - sound |
1x | uPC1181H | - | top PCB 1C | Audio Amplifier - sound |
1x | oscillator | 12.000MHz | bottom PCB X1 (13B) |
ROMs
QTY | Type | position | status |
---|---|---|---|
3x | M5L2764K | mid PCB 0,1,2 | dumped |
3x | M5L2764K | bottom PCB 3,4,5 | dumped |
5x | M5L2764K | top PCB 6,7,8,9,10 | dumped |
2x | M3-7603-5 | bottom PCB 11,12 | dumped |
RAMs
QTY | Type | position |
---|---|---|
2x | MSM2128-15RS | top PCB 6E 10B |
3x | MSM2128-15RS | mid PCB 1B 4B 8B |
1x | MSM2128-15RS | bottom PCB 8K |
1x | AM93422DC | bottom PCB 2E |
PLDs
QTY | Type | position | status |
---|---|---|---|
0x |
Others
1x 18x2 edge connector (top PCB CN2) 1x 50 pins flat cable connector to mid PCB and bottom PCB (top PCB CN1) 1x 50 pins flat cable connector to bottom PCB and top PCB (mid PCB CN3) 1x 50 pins flat cable connector to bottom PCB (mid PCB CN1) 1x 10x2 edge connector (bottom PCB CN1) 1x 50 pins flat cable connector to mid PCB and top PCB (bottom PCB CN2) 1x 50 pins flat cable connector to mid PCB (bottom PCB CN3) 1x trimmer (top PCB volume) 2x 8 DIP switches banks (top PCB SW1 SW2)(6C 6D)
Notes
top PCB is marked: "DATA EAST DECO SSI-16" and "DE-0148-1 MADE IN JAPAN" on component side
mid PCB is marked: "DECO DE-0157-1 CHB-01 MADE IN JAPAN" on component side
bottom PCB is marked: "DATA EAST DECO DSP-17A DE-0188-1 MADE IN JAPAN" on component side
top PCB is labelled: "SERIAL NO 21404" on component side
mid PCB is labelled: "SERIAL NO 21404" and "ORIGINAL PRODUCT SEAL B01814 DECO DATA EAST CORPORATION" on component side
mid PCB is labelled: "SERIAL NO 21404" on component side
label format is: --- -------------- | PRO SOCCER | -> game name | AM 10-3 | -> rom number | C 1983 | -> copyright | DATA EAST | -> copyright --------------
update 20210306: better description and pics, confirmed dump
Files
-

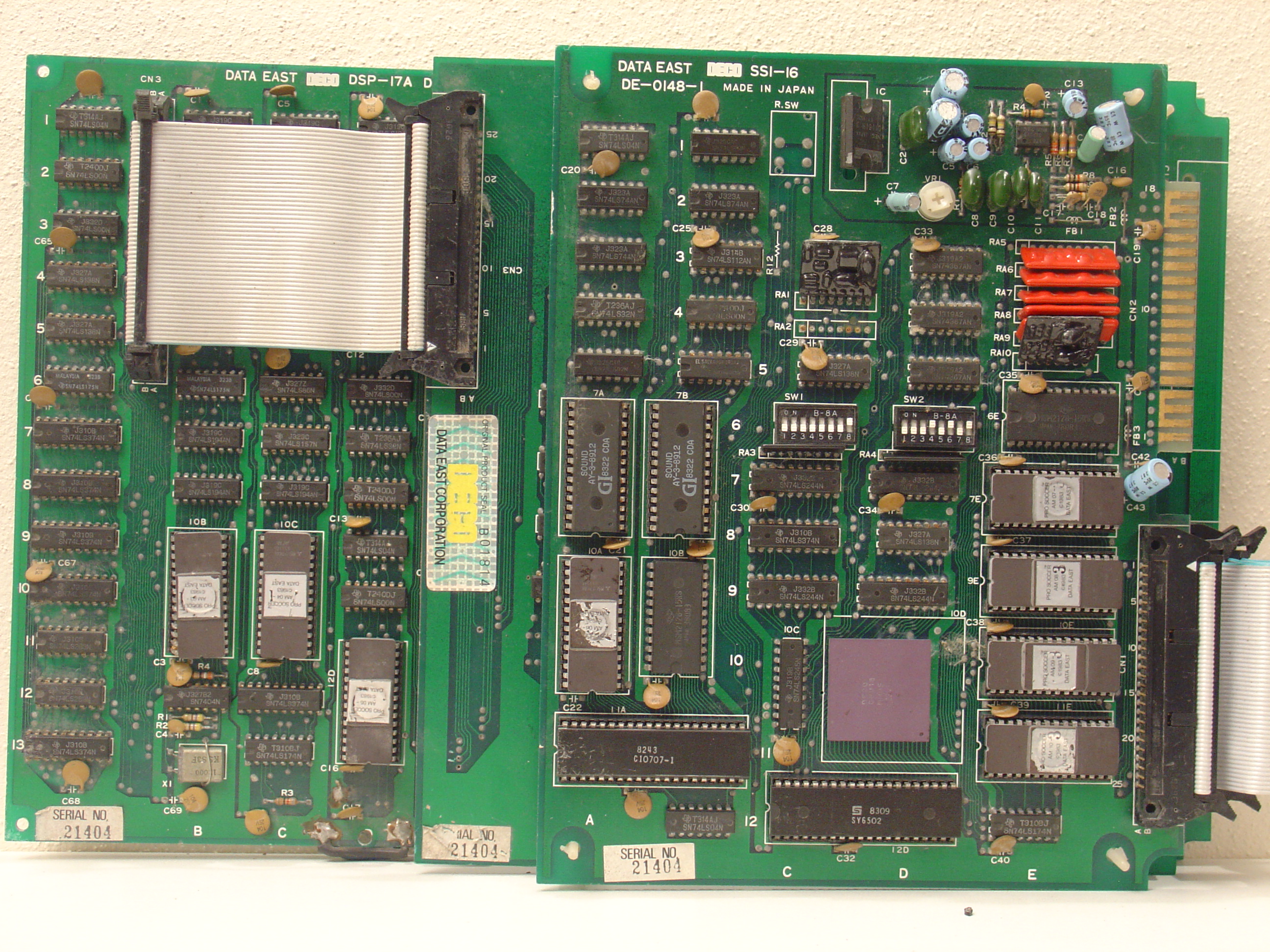

assembled PCBs 1
-

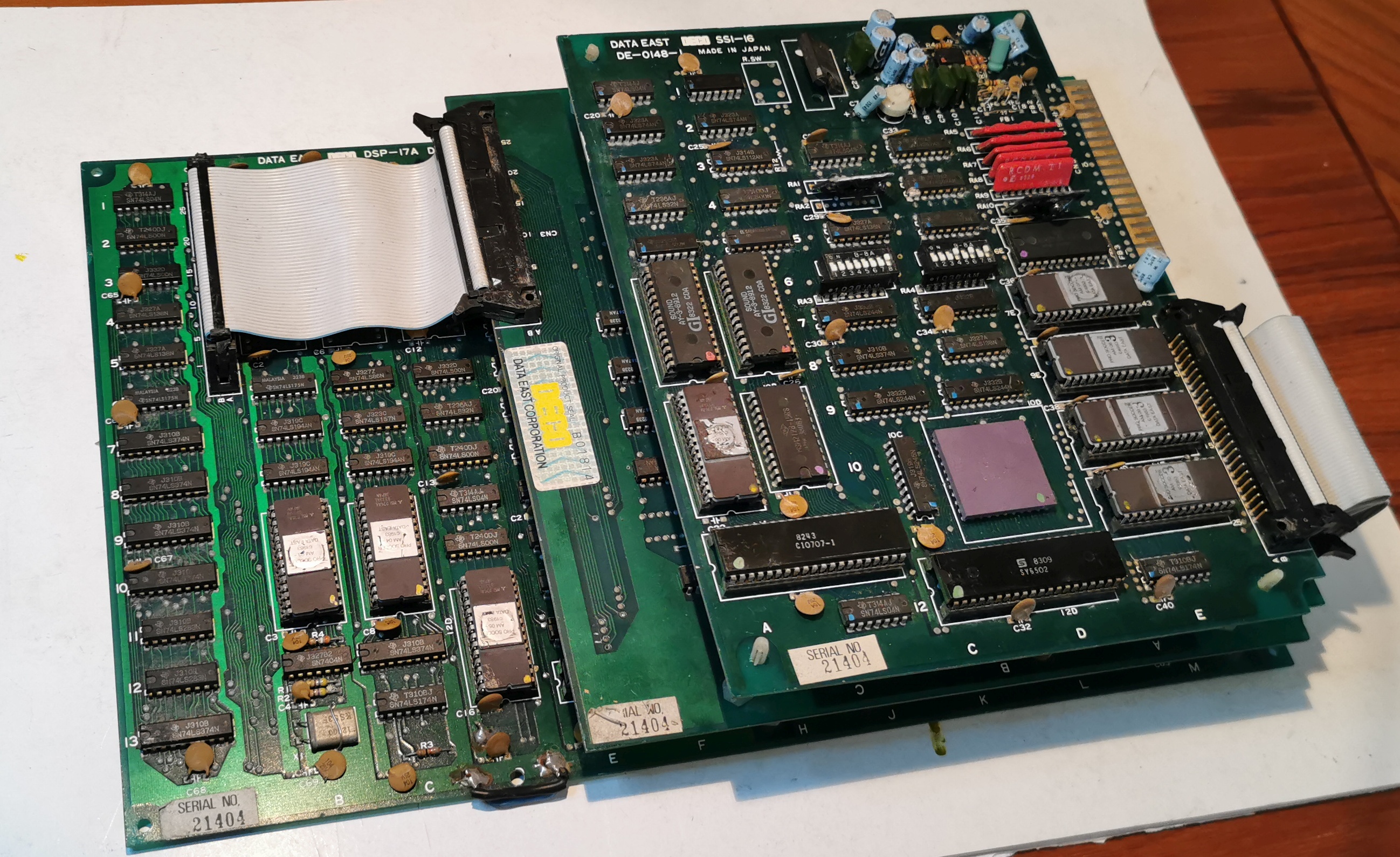

assembled PCBs 2
-

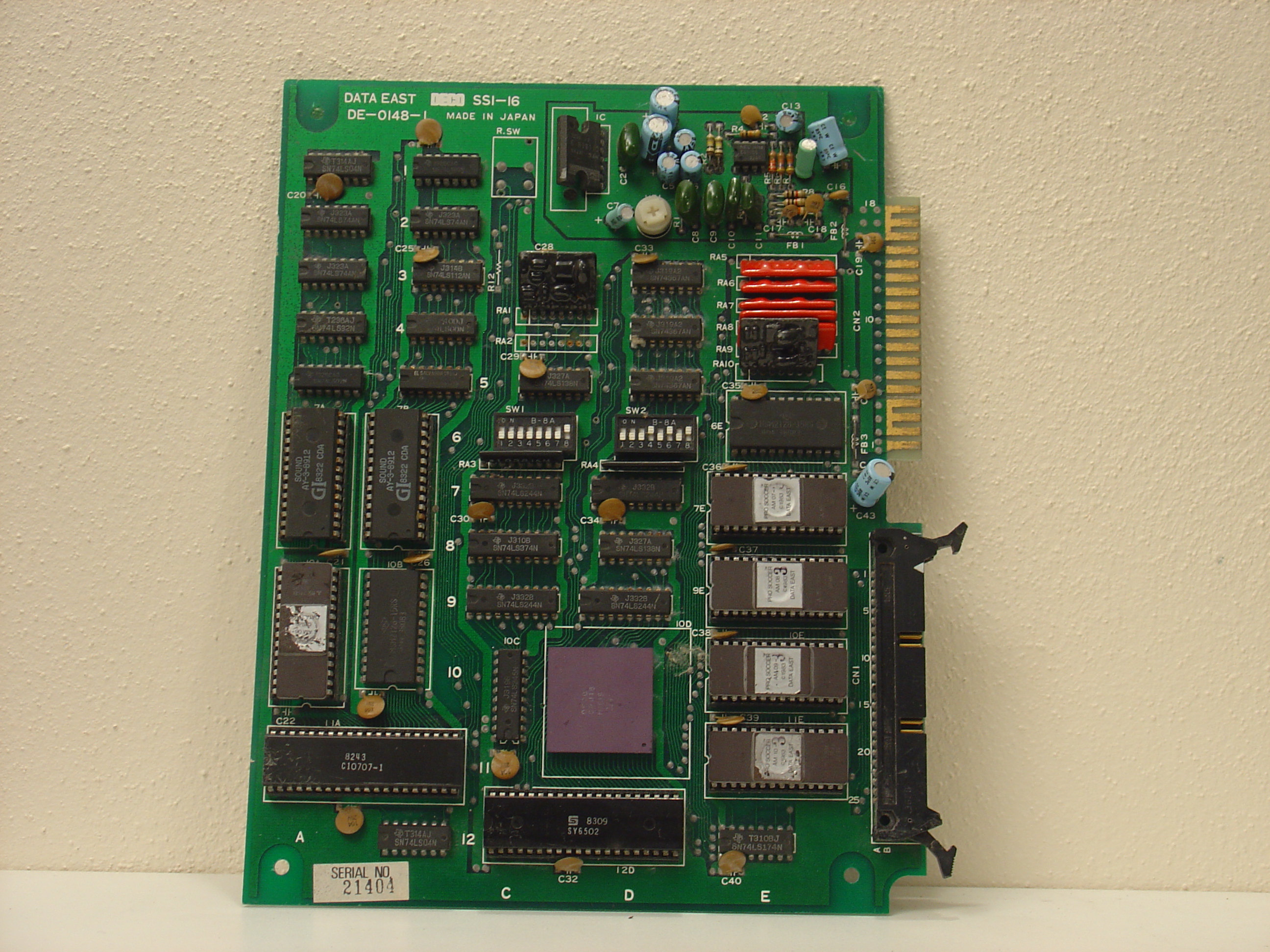

top PCB component side 1
-

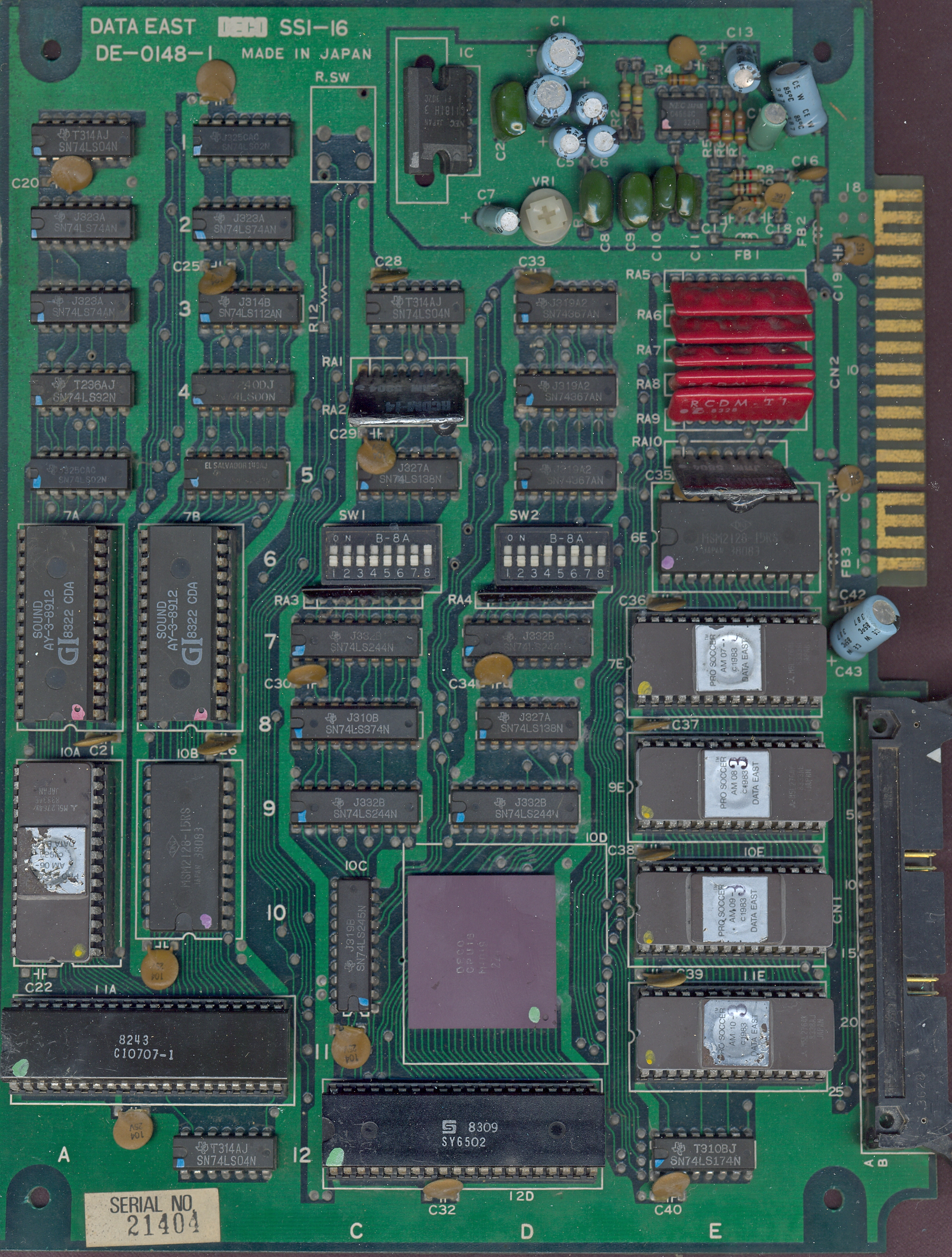

top PCB component side 2
-

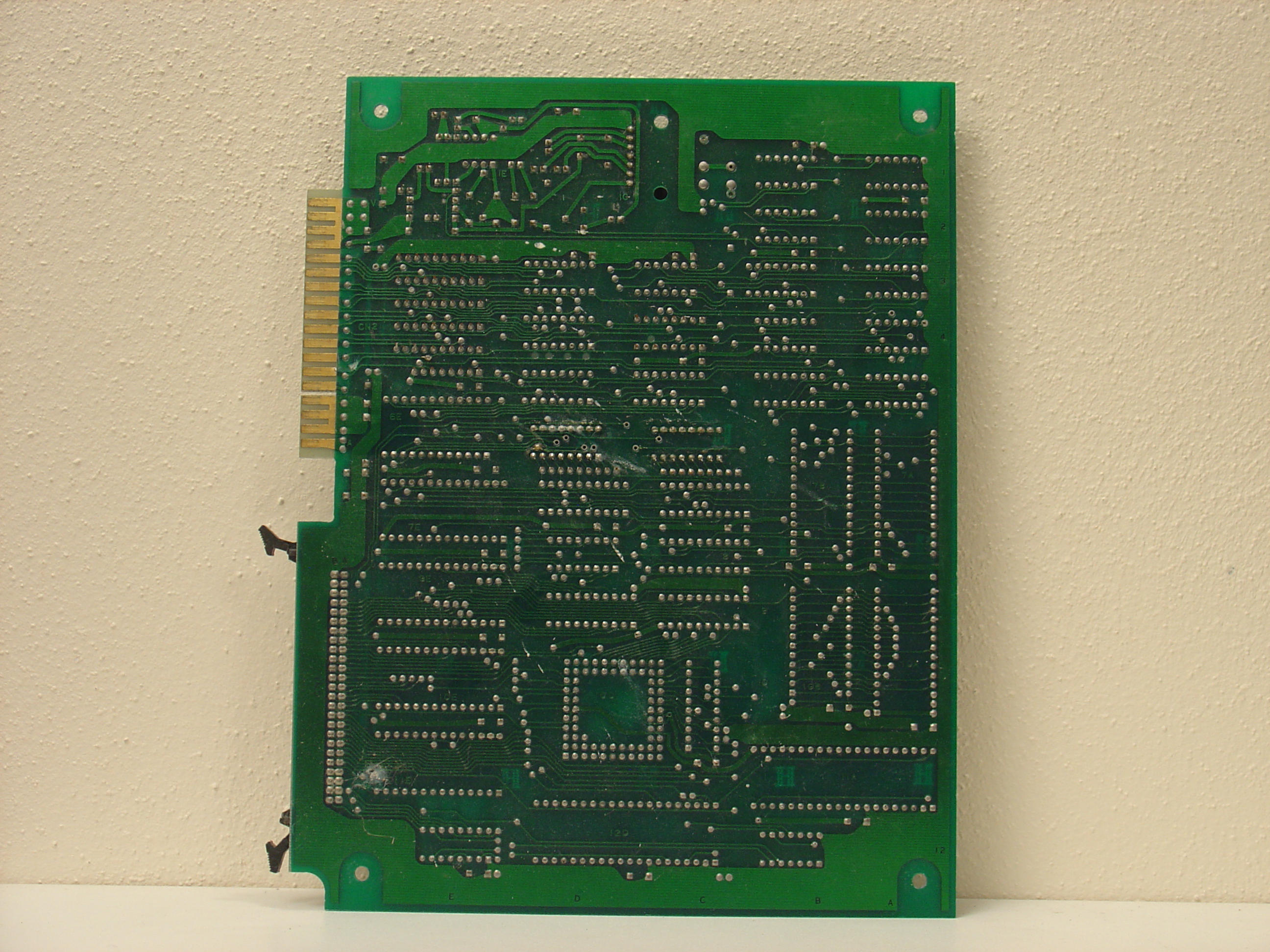

top PCB solder side 1
-

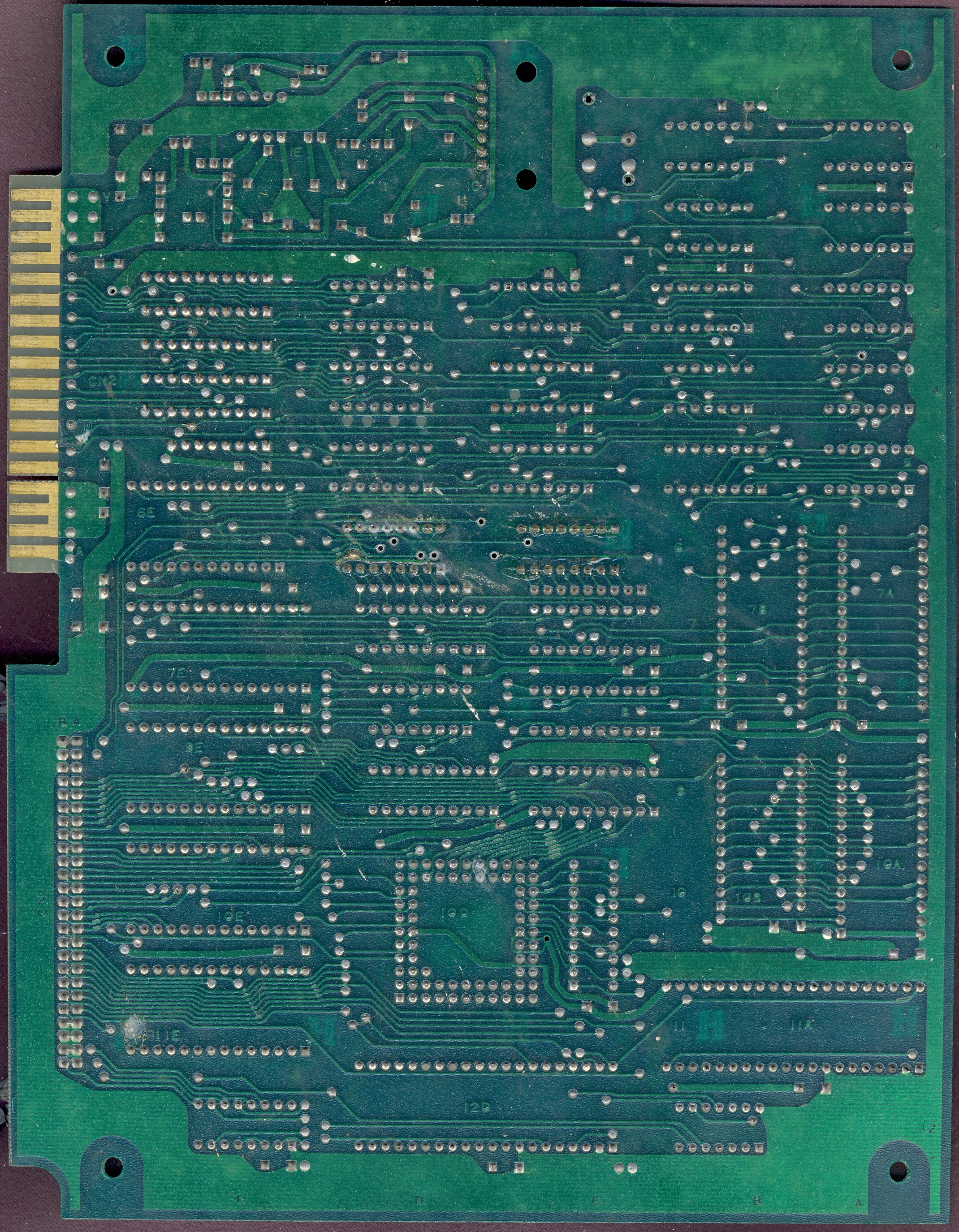

top PCB solder side 2
-

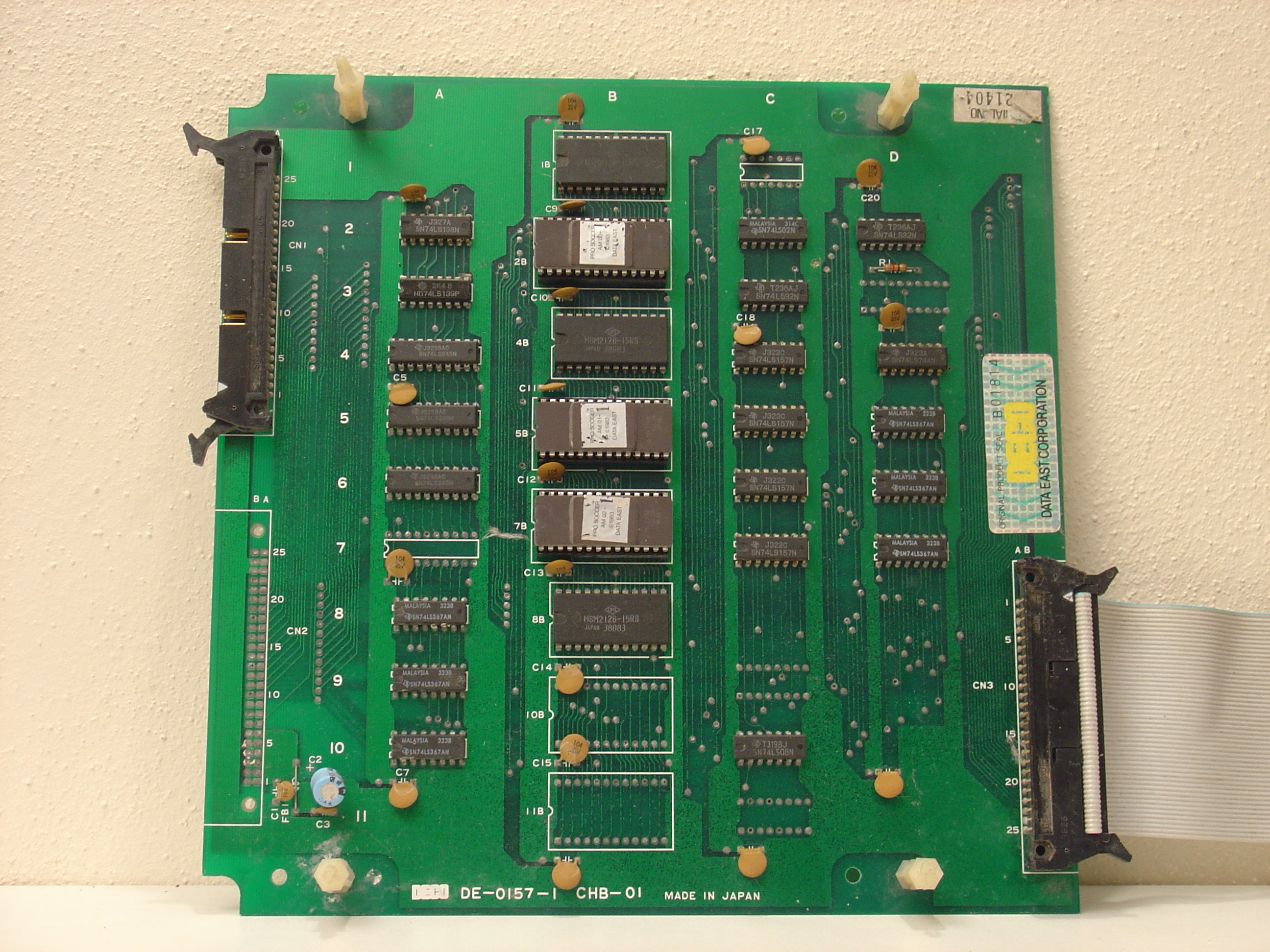

mid PCB component side 1
-

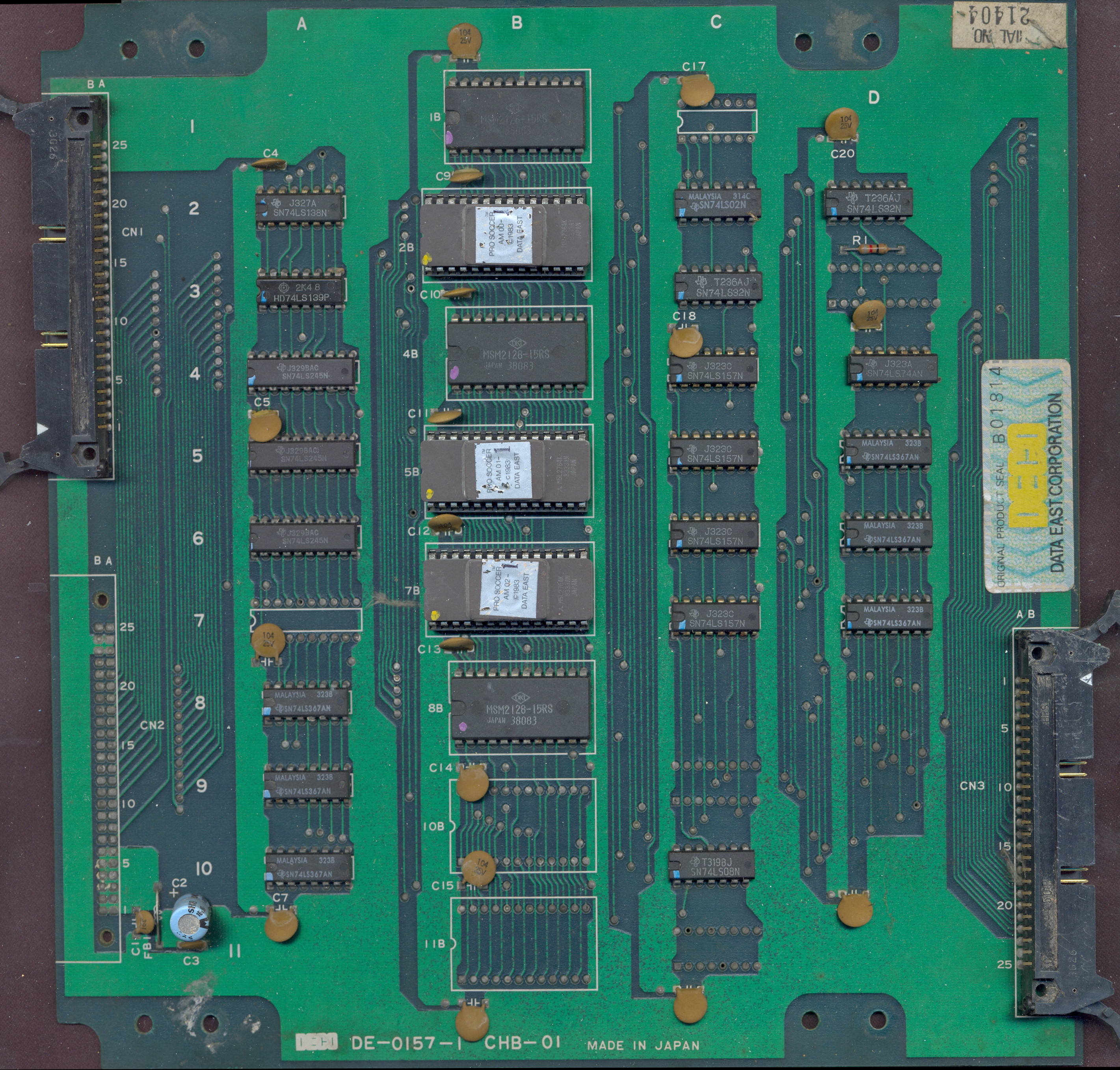

mid PCB component side 2
-

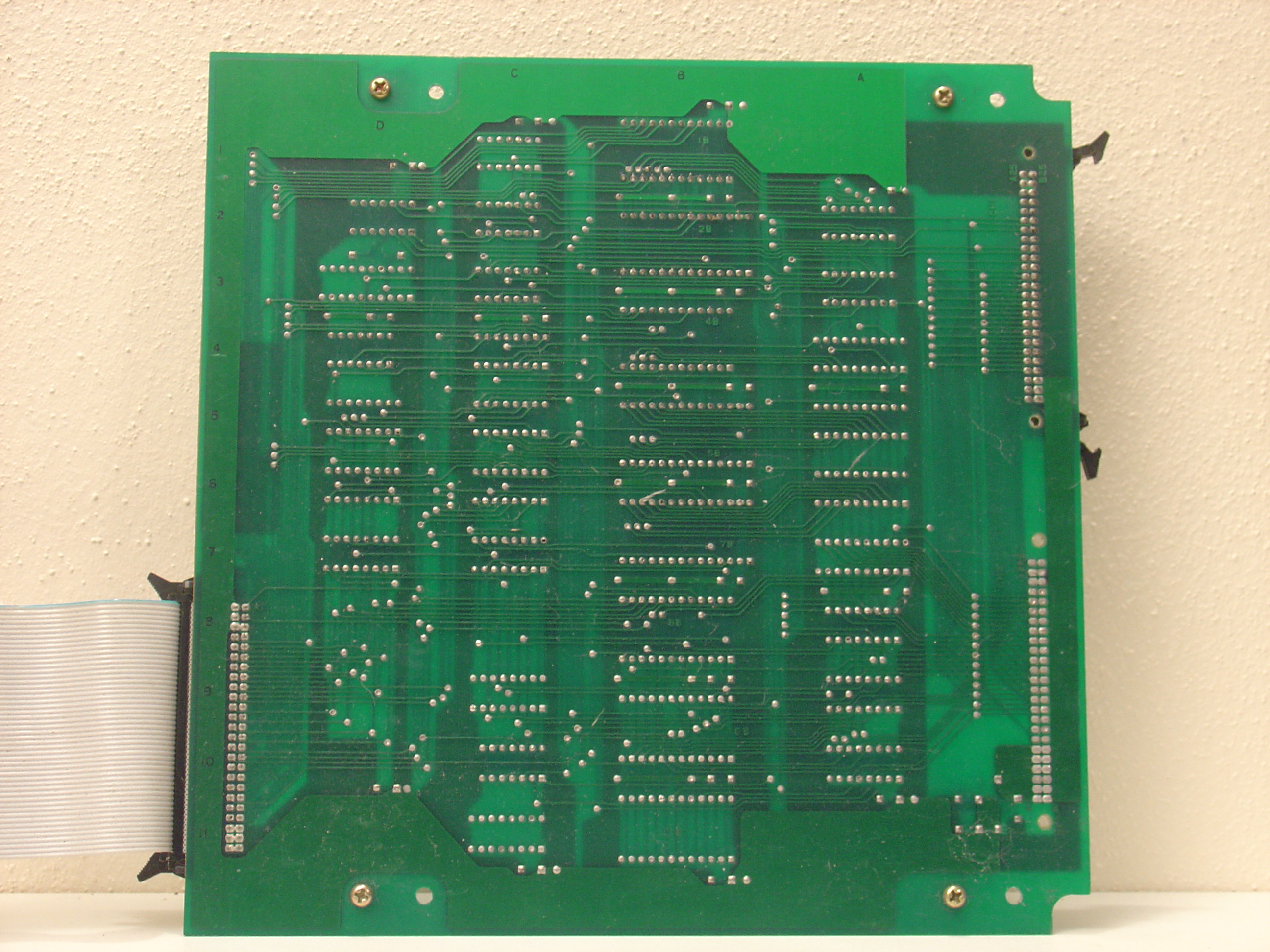

mid PCB solder side 1
-

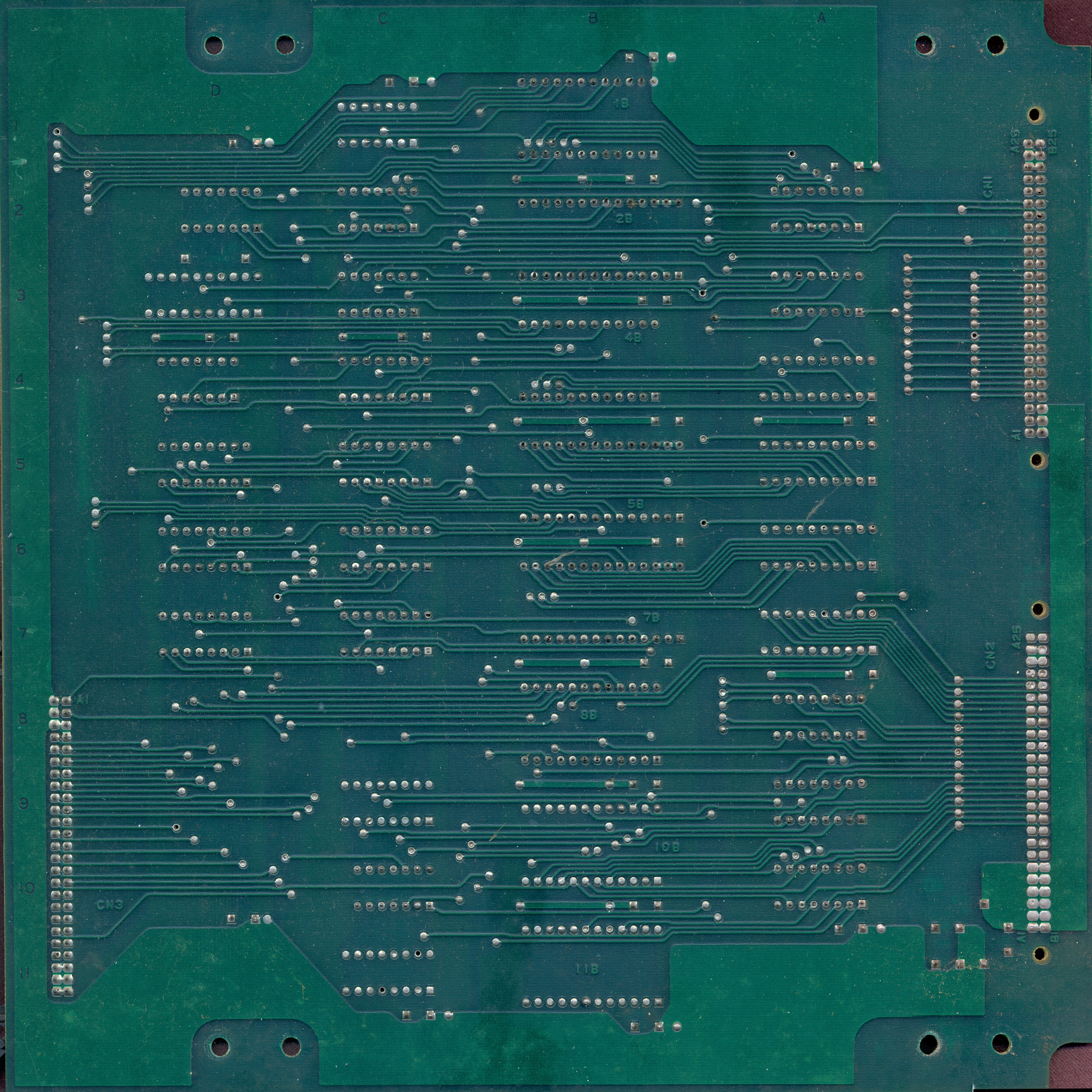

mid PCB solder side 2
-

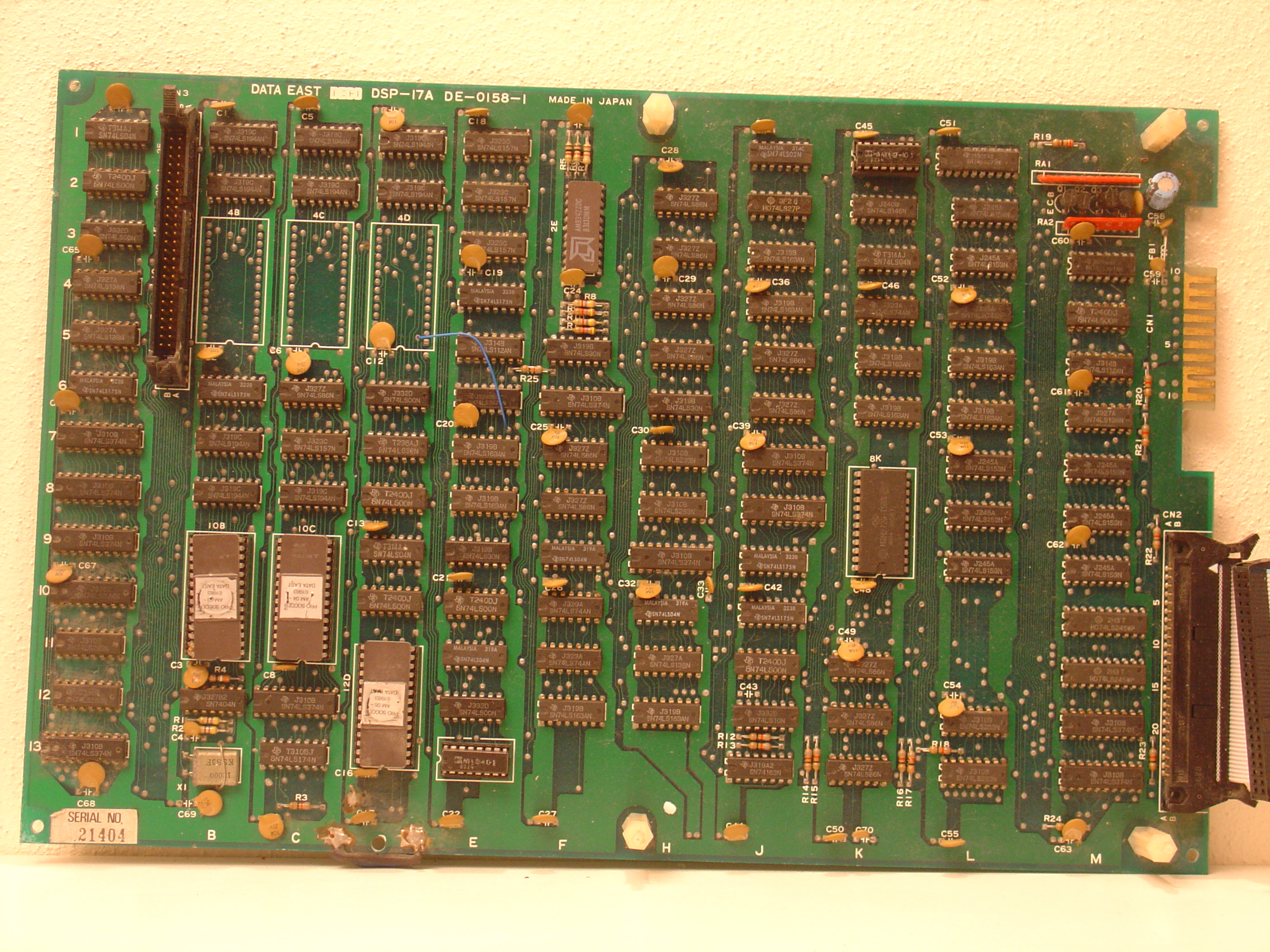

bottom PCB component side 1
-

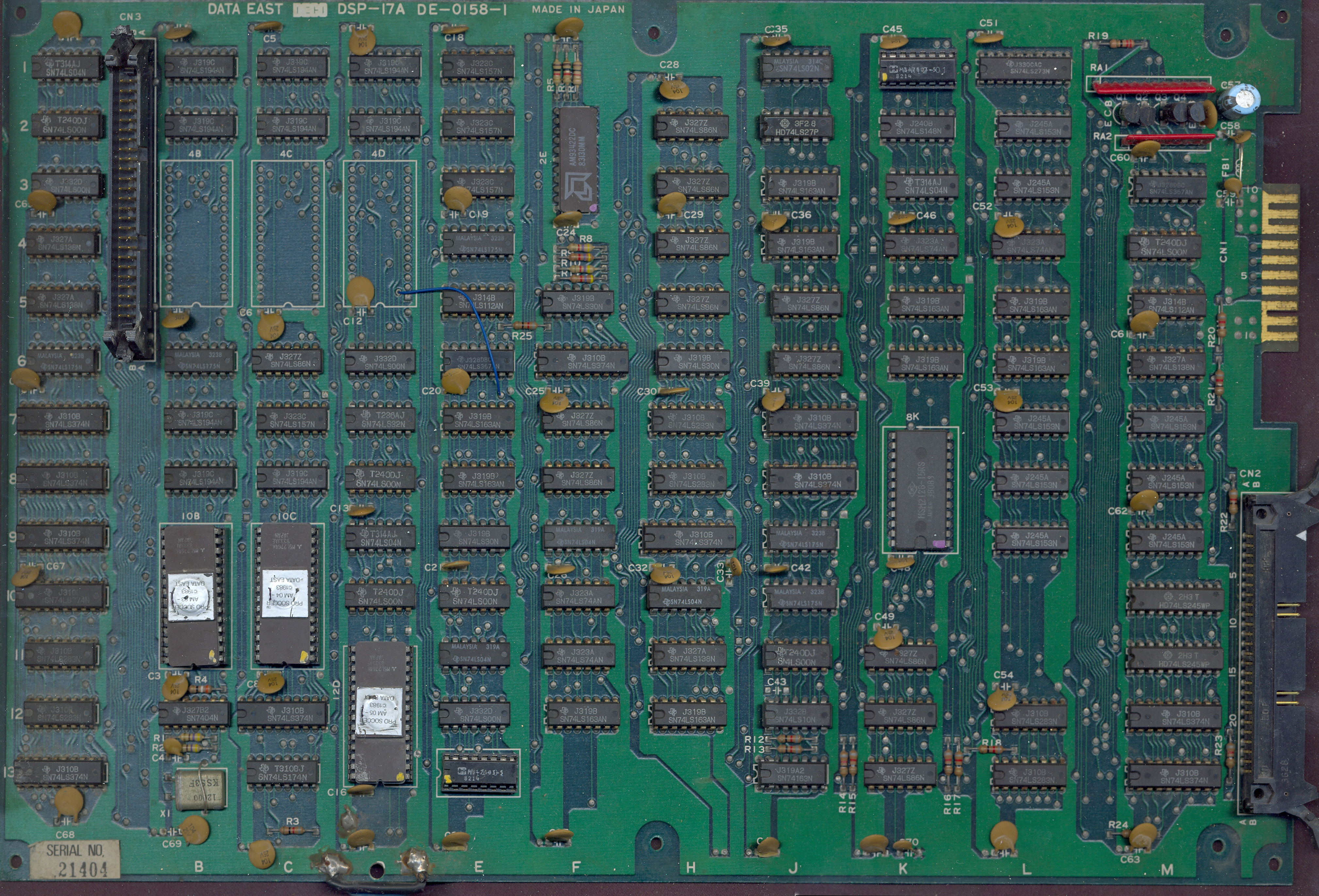

bottom PCB component side 2
-

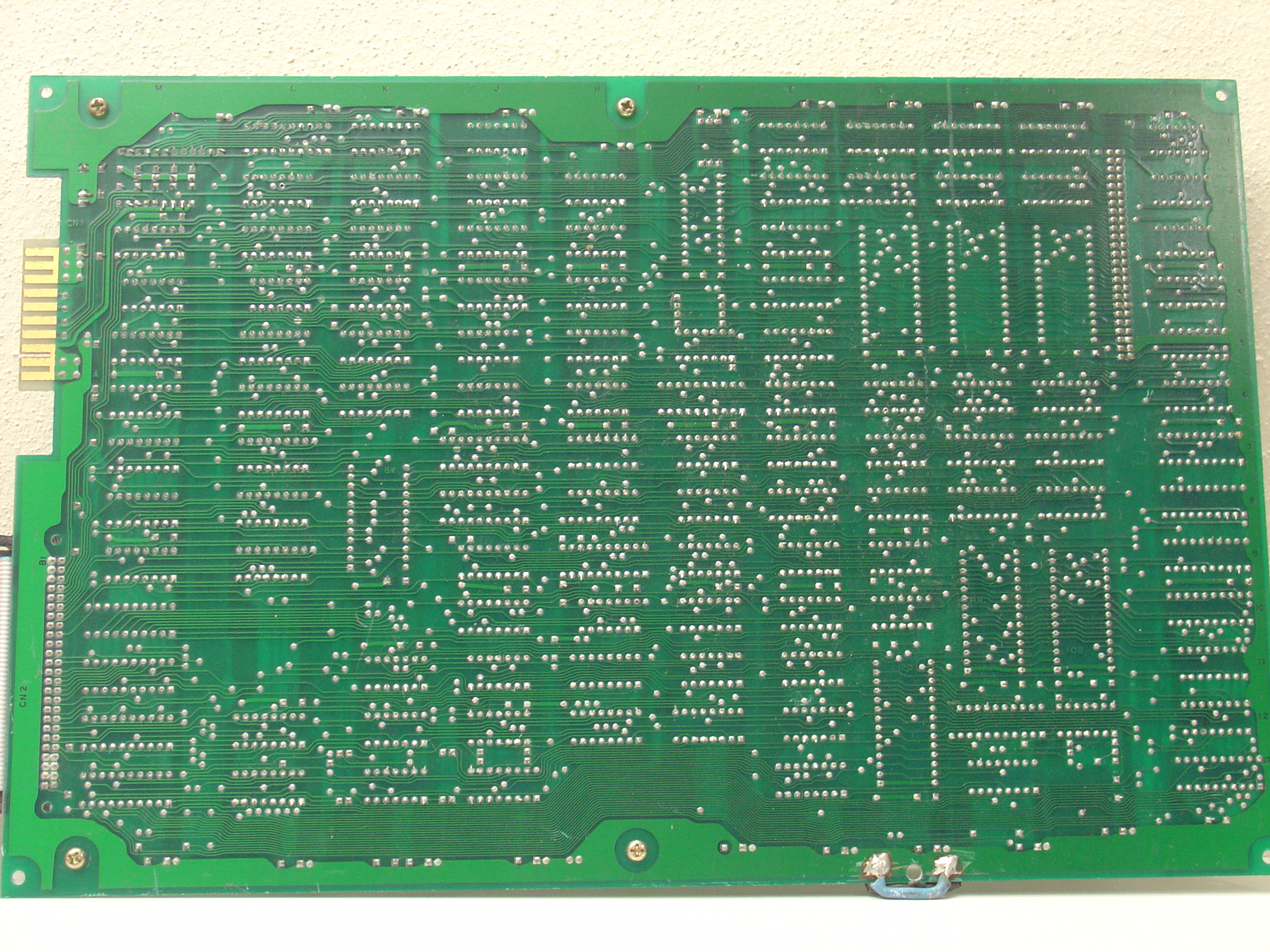

bottom PCB solder side 1
-

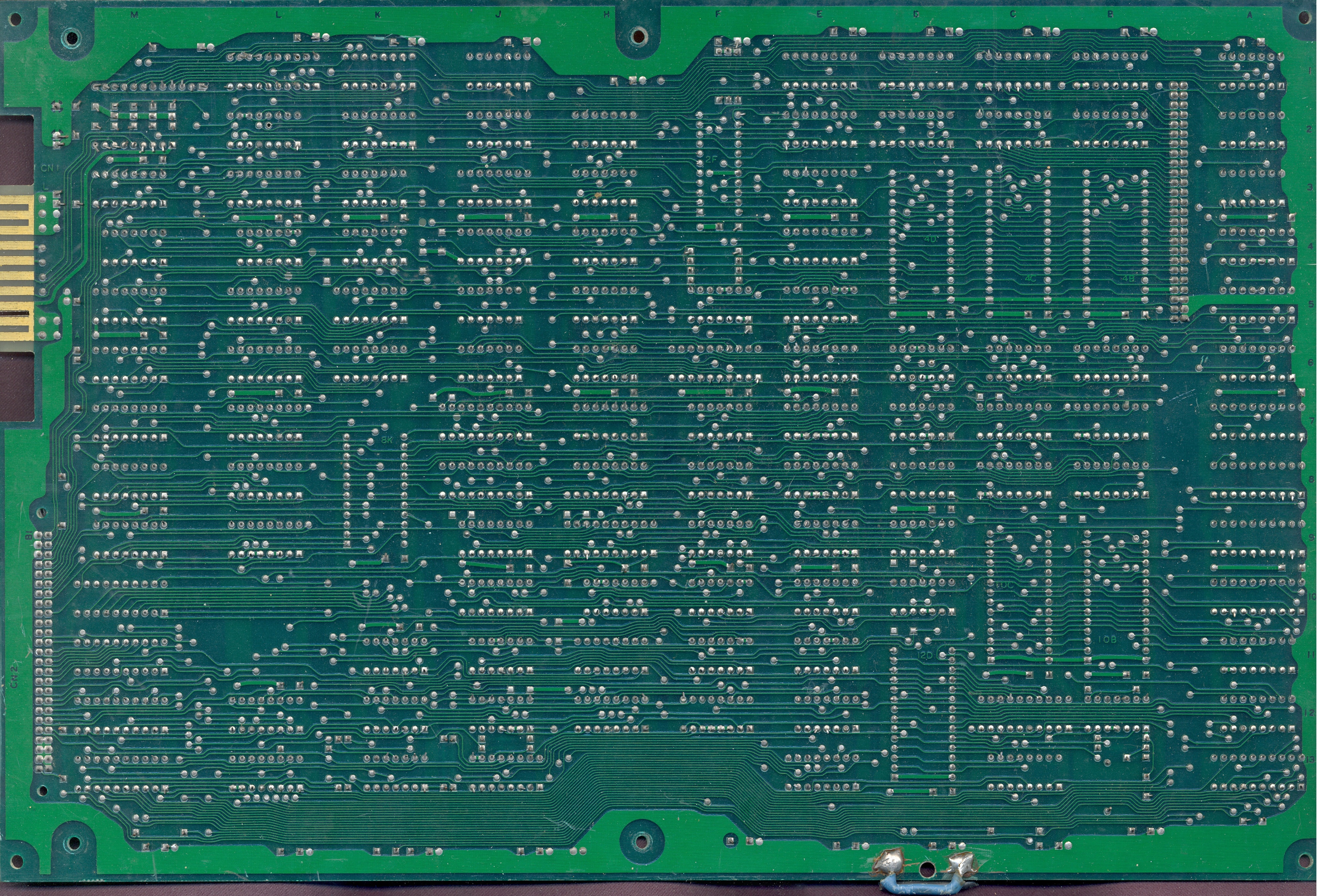

bottom PCB solder side 2
