Mushiking The King Of Beetles 2006 Second (Japan)
From Citylan
| dumper | Jorge Valero, rtw |
| date | 11/10/2020 |
| emulator | MAME 0.226 |
| dev | MetalliC |
| name | 1711 |
| description | Mushiking The King Of Beetles 2006 Second (Japan) |
| year | 2006.10.30 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A | 317-0444-JPN.ic3 | EPROM-Based 8-Bit CMOS Microcontroller |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCF01SVG | ic4 | not dumped |
| 2x | S29GL512N10T | FPR-24360.ic8, FPR-24361.ic9 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 840-0171C
EPR.ic7: not present
IC4# is marked "18"
Key: ?
update 20201011: new pics and complete description
Files
-

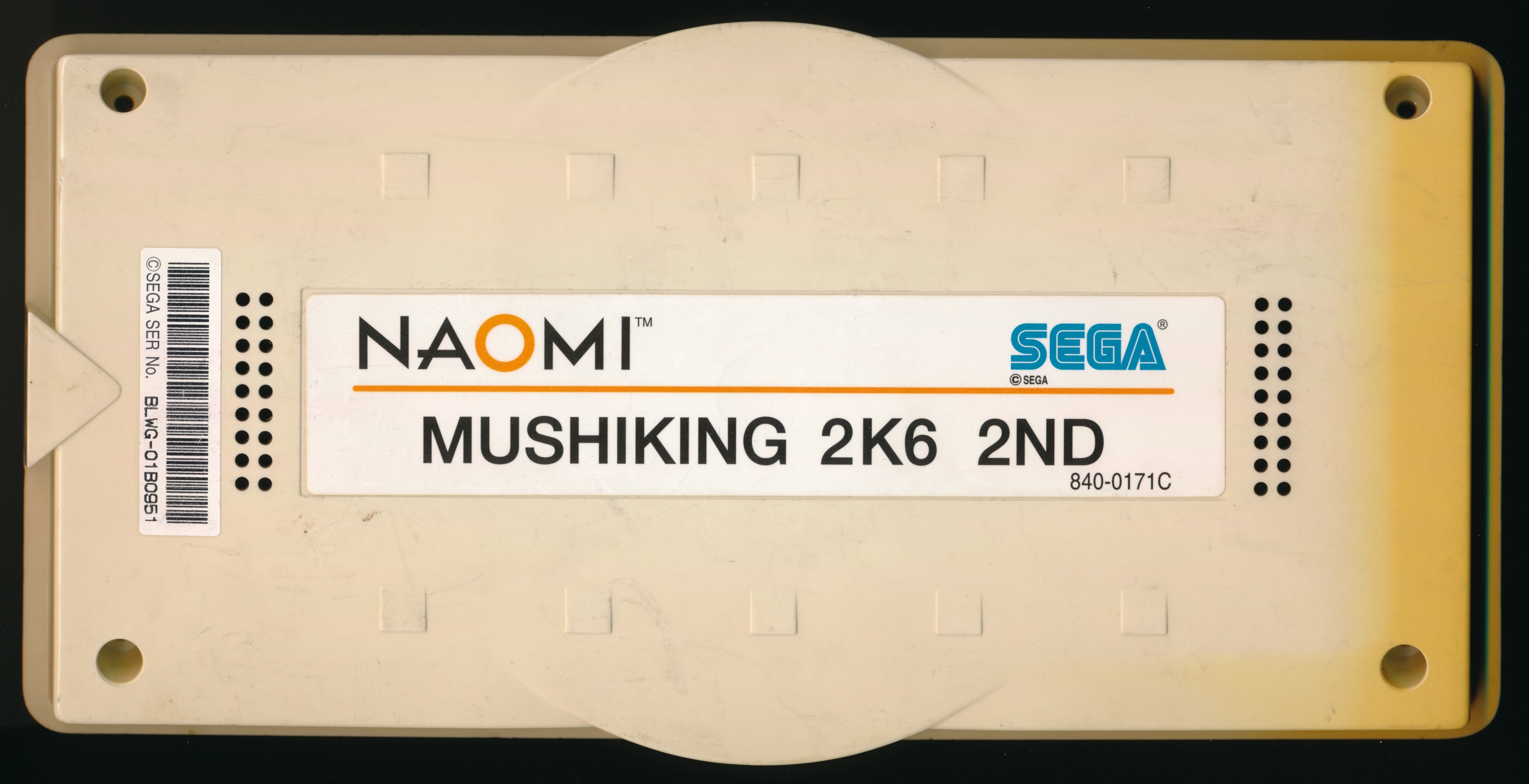

Cart 1
-
Cart 2
-
Cart 3
-
Cart detail 1
-
Cart detail 2
-

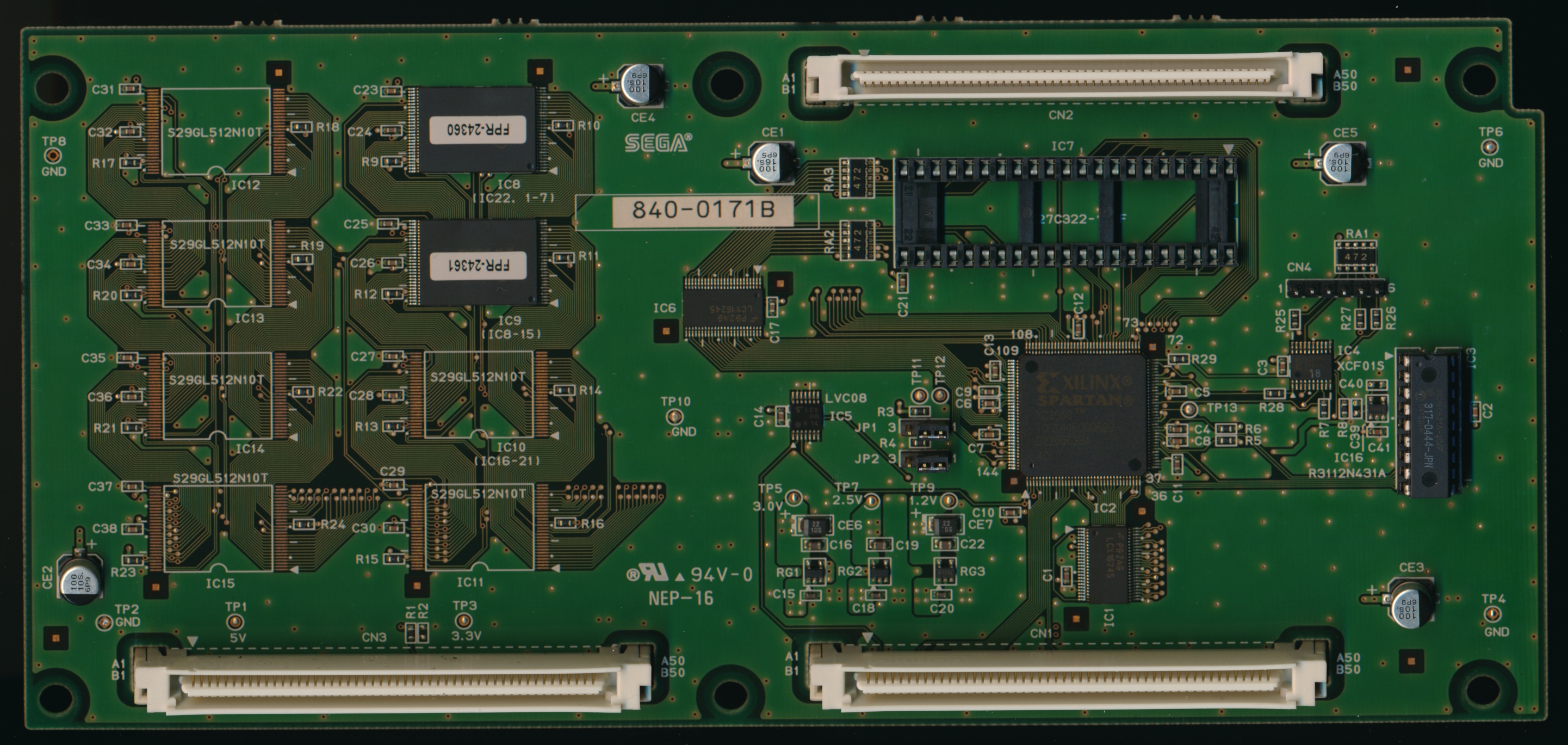

PCB component side
-
PCB solder side 1
-

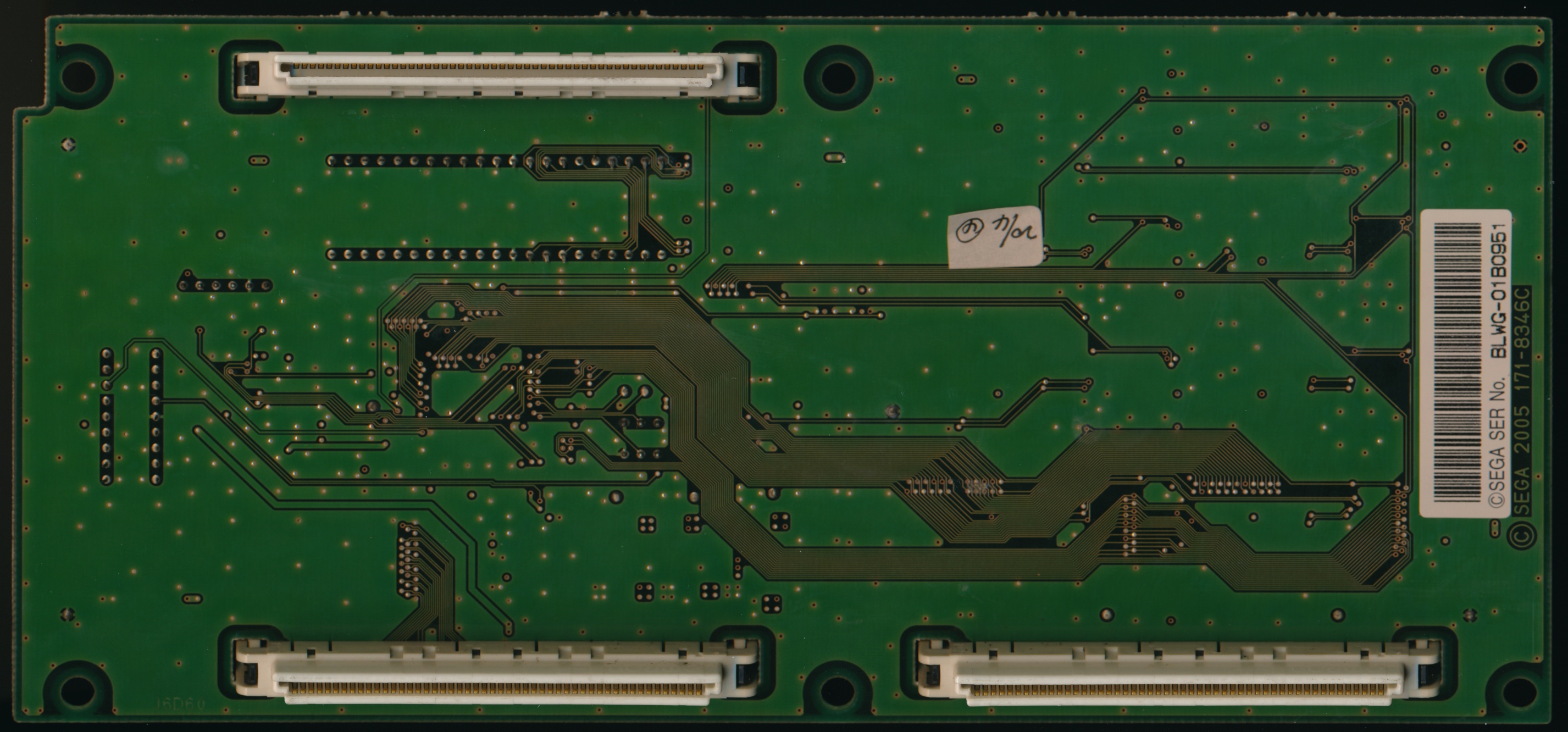

PCB solder side 2
-
PCB solder side detail 1
-
PCB solder side detail 2
-

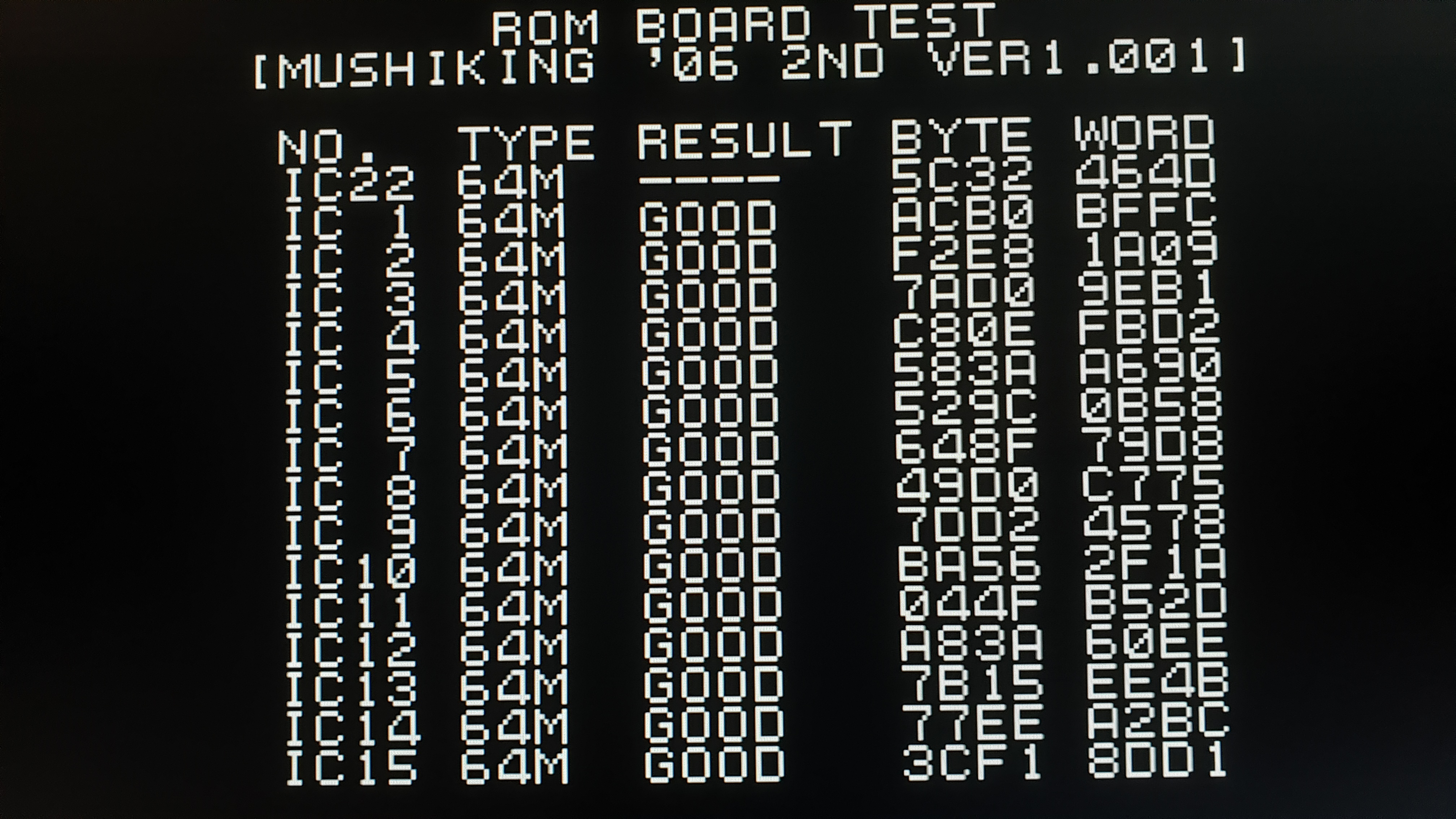

ROM board test 1
-
ROM board test 2
-
