Alien Front
From Citylan
| dumper | |
| date | |
| emulator | |
| dev |
| name | 1710 |
| description | Alien Front |
| year | 2000 |
| manufacturer | Wow Entertainment - Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | 23586.ic22 | not dumped |
| 5x | MaskROM 128Mb TSOP48 | MPR-23581.ic1-23585.ic5 | not dumped |
| 1x | X76F100 | ic46 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8132B
Cart N°: 840-0048C
Protection IC: SEGA 315-5881 (317-0293-COM)
Key: 0x28174343
Files
-

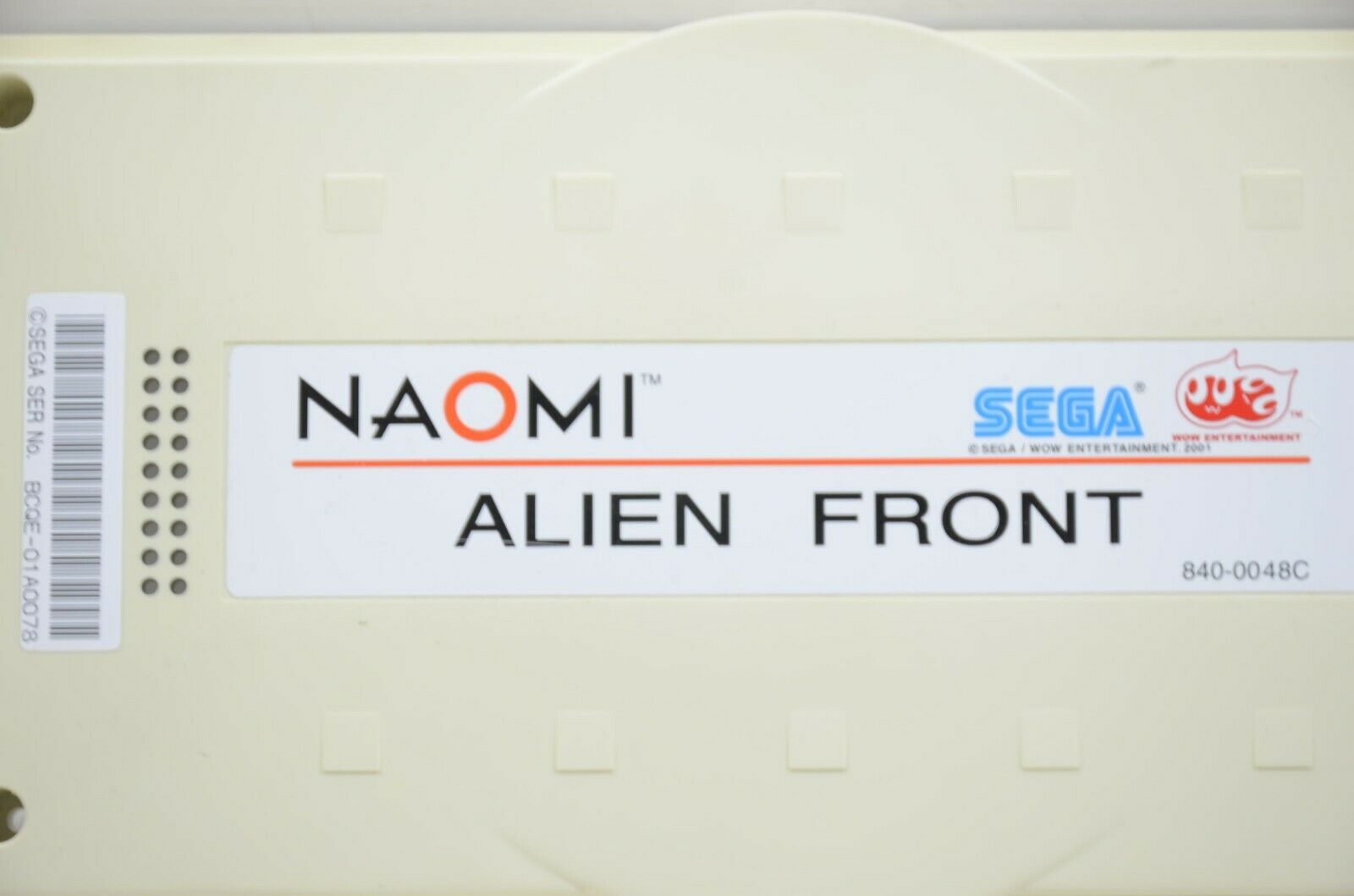

Cart
-

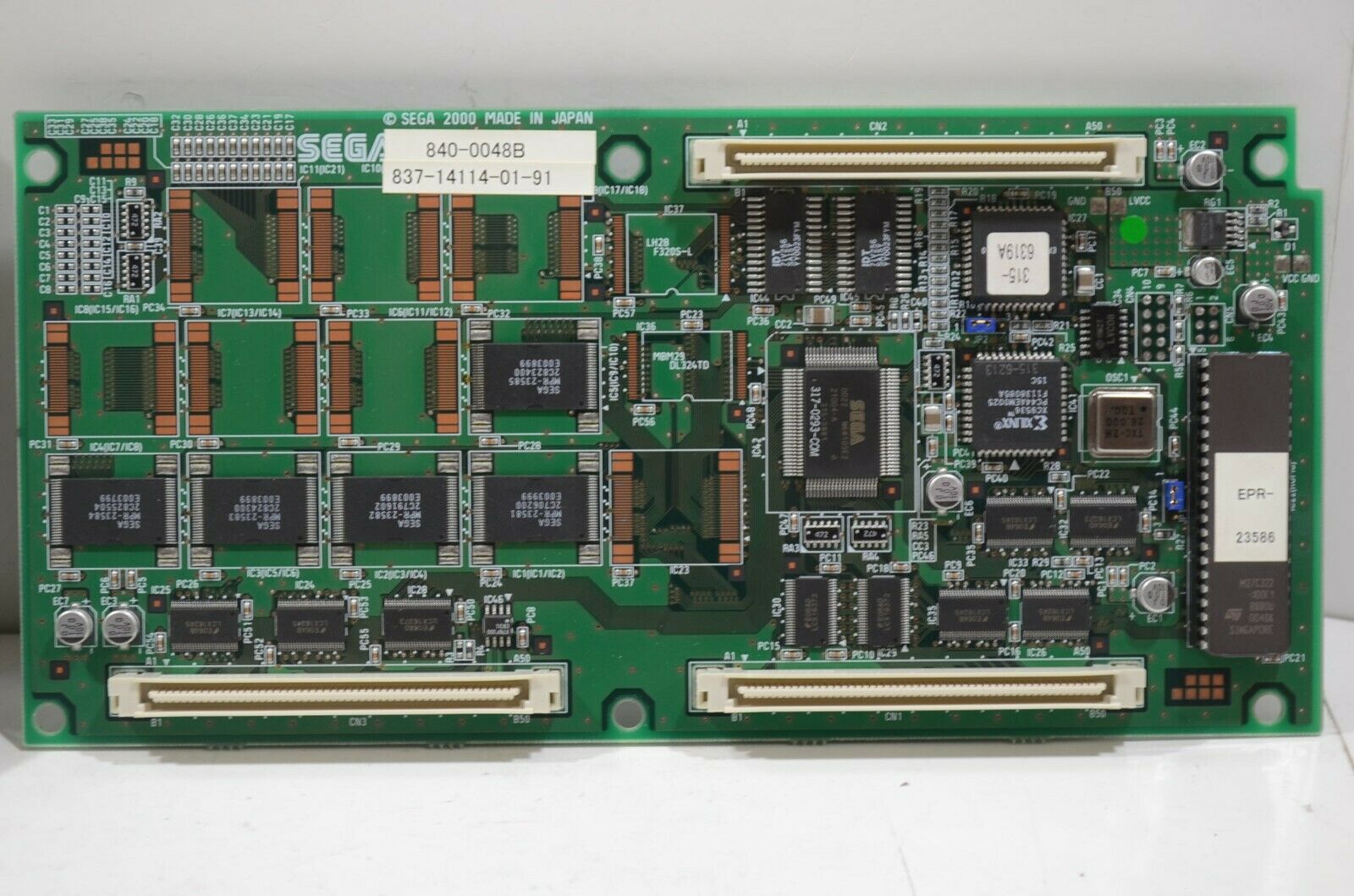

PCB component side
-

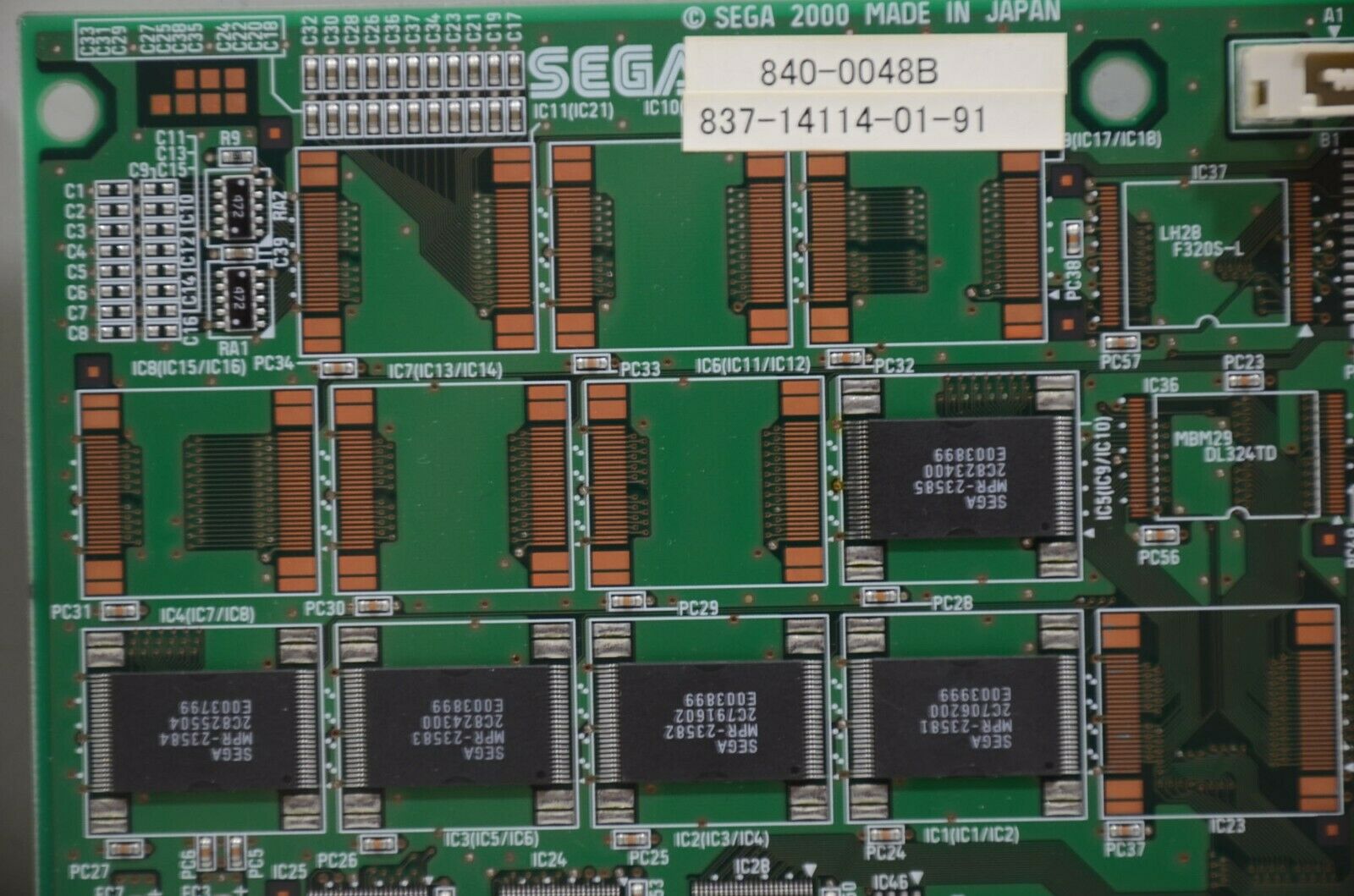

PCB component side detail 1
-

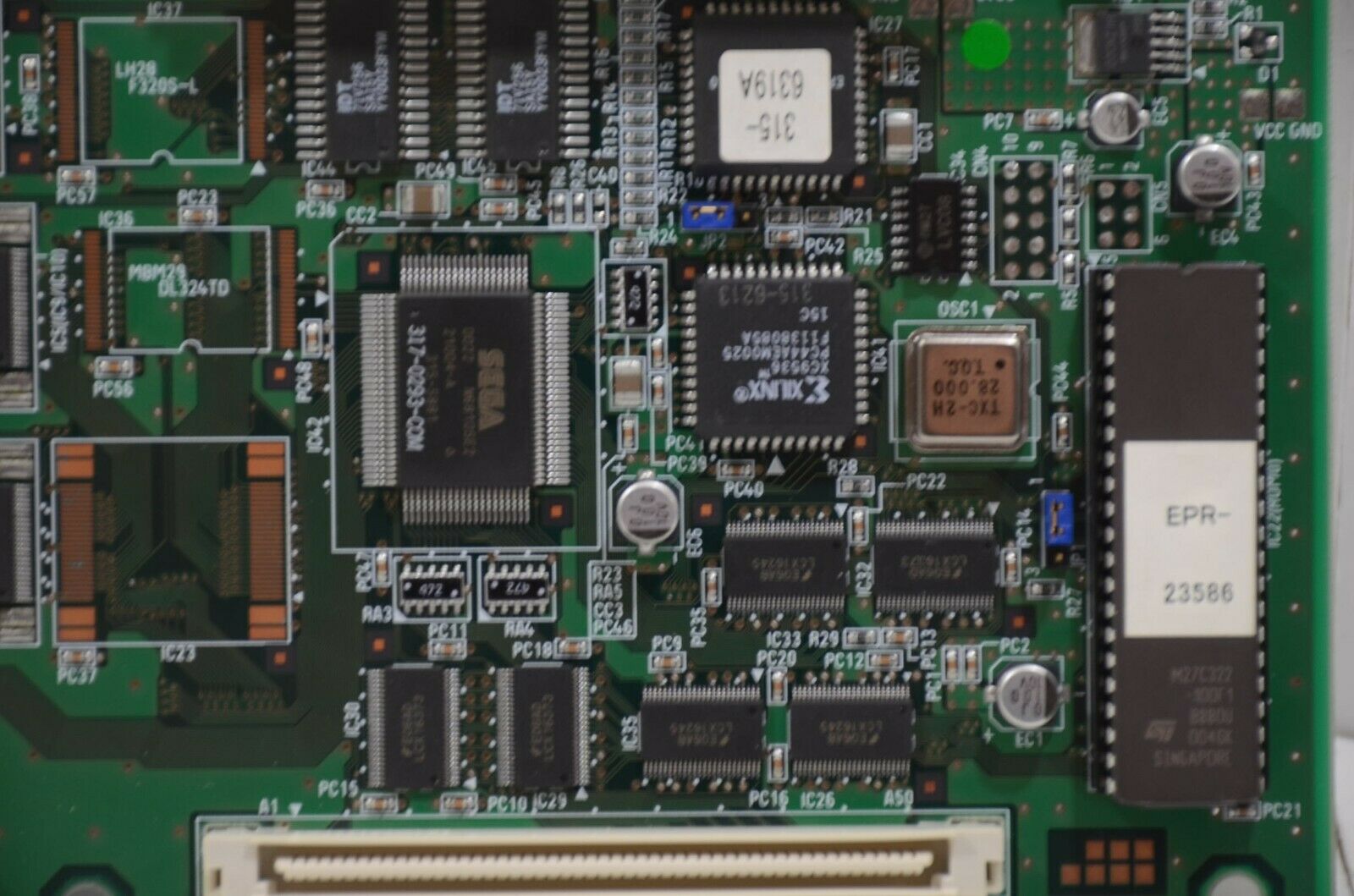

PCB component side detail 2
-

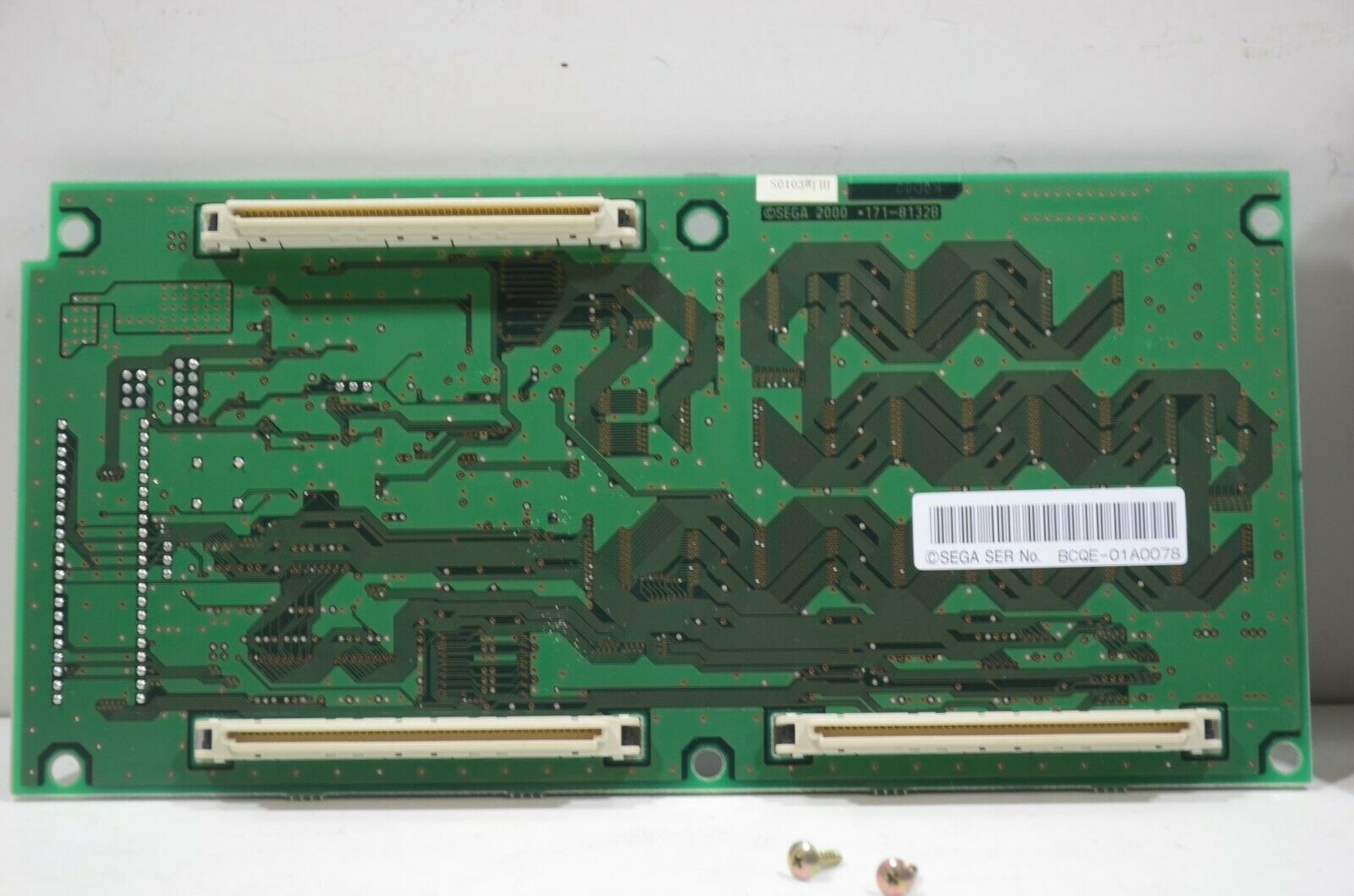

PCB solder side
