Scacco Matto / Space Win
From Citylan
| dumper | f205v |
| date | 07/09/2008 |
| emulator | MAME 0.127u3 |
| dev | David Haywood, Roberto Fresca |
| name | spacewin on ProgettoEMMA spacewin on Arcade Database |
| description | Scacco Matto / Space Win |
| year | 1996 |
| manufacturer | Playmark |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | u24 | 16/32-bit Microprocessor - main | |
| 1x | M6295 | u146 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | TDA2003 | - | td1 | Audio Amplifier - sound |
| 1x | 358D | - | u155 | Dual Operational Amplifier - sound |
| 1x | oscillator | 24.000000MHz | xl1 | |
| 1x | oscillator | 28.000000MHz | xl2 | |
| 1x | blu resonator | 1000J | y1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 7x | M27C1001 | 2-8 | dumped |
| 1x | M27C2001 | 1 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | DS1220Y-200 | u17 (not dumped) |
| 8x | HM3-65728DK-5 | u42 u73 u74 u75 u81 u88 u124 u125 |
| 2x | KM6264BL-7L | u2 u6 |
| 2x | HY6264ALP-10 | u36 u37 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | A1020B-PL84C | u110 u137 | read protected (respectively labelled "PlaYmark n°013574" and "PlaYmark n°013573") |
| 4x | PALCE22V10H-25PC/4 | u1 u77 u111 u112 | read protected |
| 1x | PALCE16V8H-25PC/4 | u104 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector
2x 6 legs connector
1x pushbutton 8cb1)
1x trimmer (volume)
Notes
PCB is marked: "PlaYmark 1996 - Milano Italy" on component side
PCB is marked: "LS" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labelled: "SCACCO M" and "SPACE WIN SPC28" on component side
Files
-

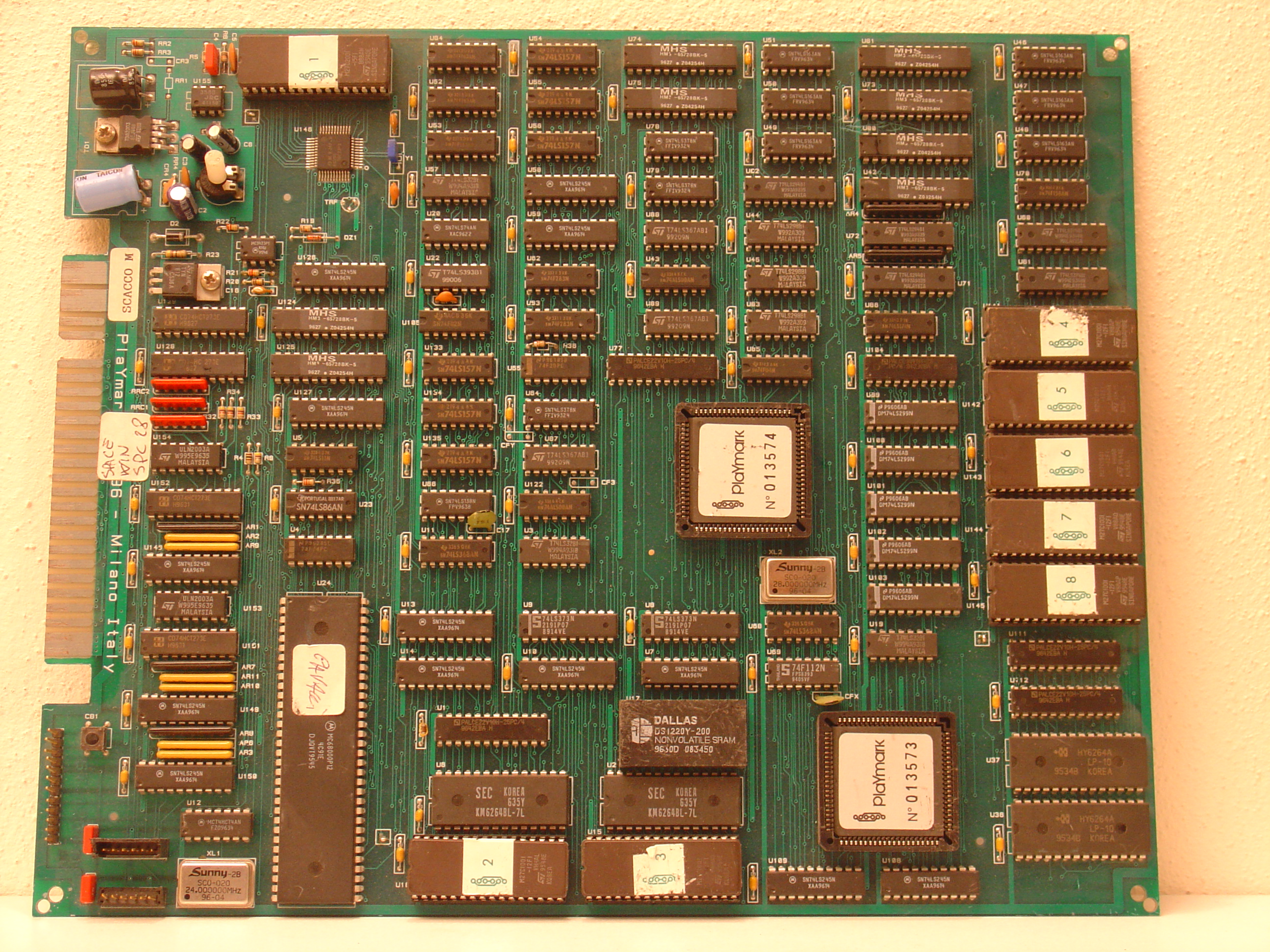

PCB component side
-

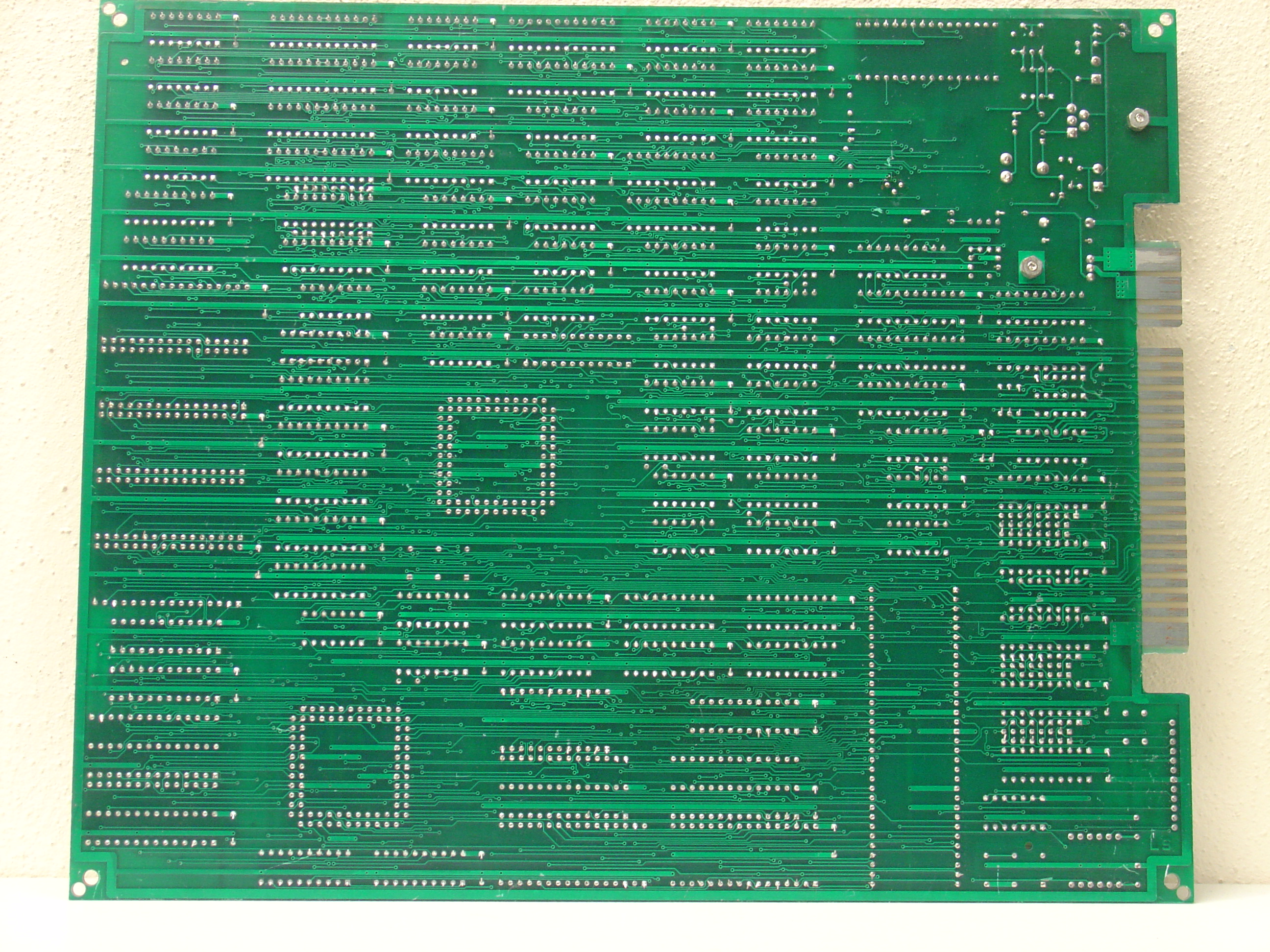

PCB solder side
