Jump Kids
From Citylan
| dumper | f205v |
| date | 29/03/2006 |
| emulator | MAME 0.61 |
| dev | David Haywood, Bryan McPhail |
| name | jumpkids on ProgettoEMMA jumpkids on Arcade Database |
| description | Jump Kids |
| year | 1993 |
| manufacturer | Comad |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | ic15 | 16/32-bit Microprocessor - main | |
| 1x | Z8400APS | ic21 | 8-bit Microprocessor - sound | |
| 1x | M6295 | ic52 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM324 | - | ic2 | Quad Operational Amplifier - sound |
| 1x | oscillator | 12.000MHz | close to main | |
| 1x | oscillator | 8.000MHz | close to sound | |
| 1x | oscillator | 14.31818 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27256 | 22 | dumped |
| 1x | 27C1000 | ic18 | dumped |
| 8x | 27020 | 23-30 | dumped |
| 1x | 27040 | 21 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks
Notes
Files
-

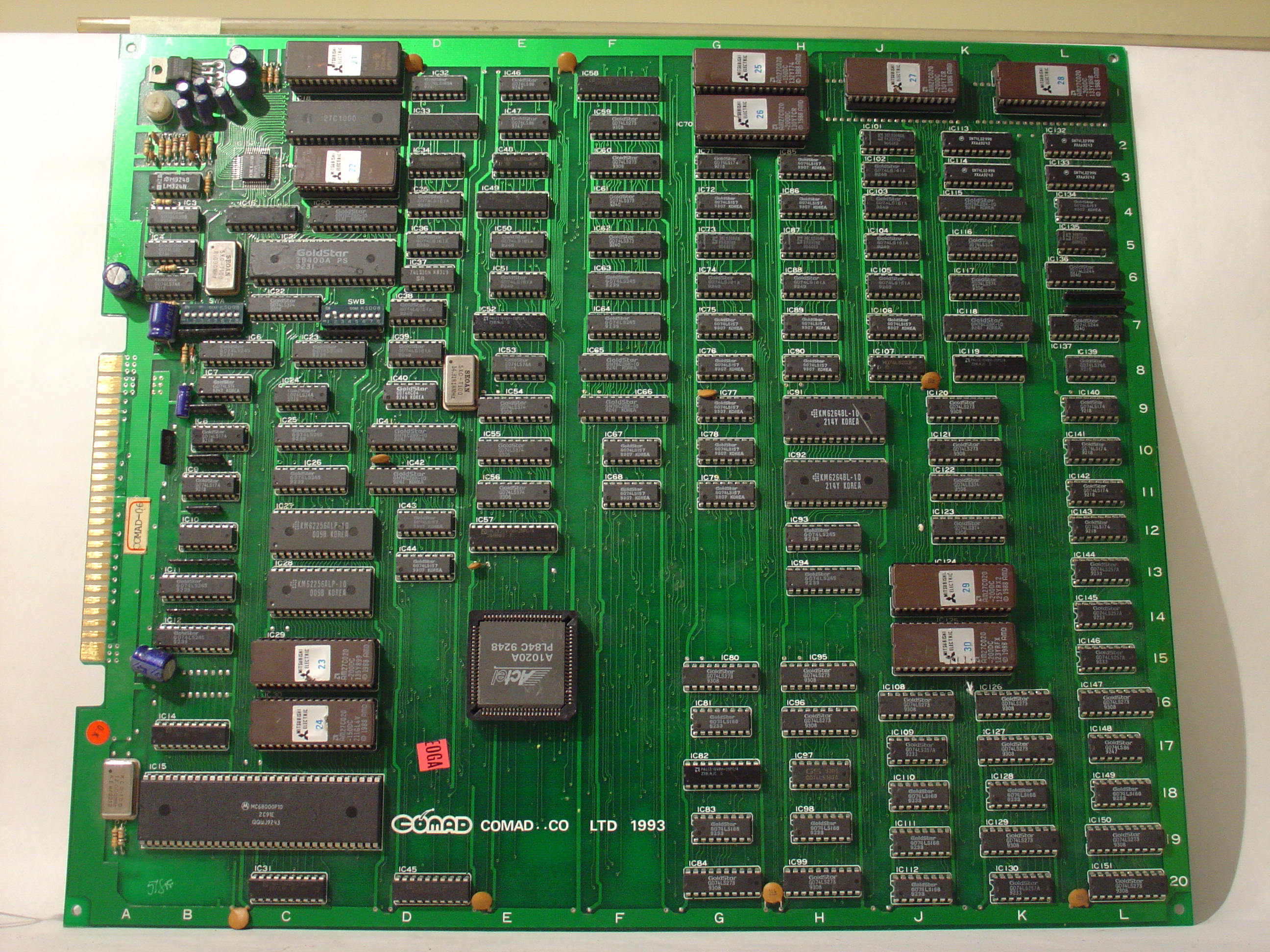

PCB component side
-

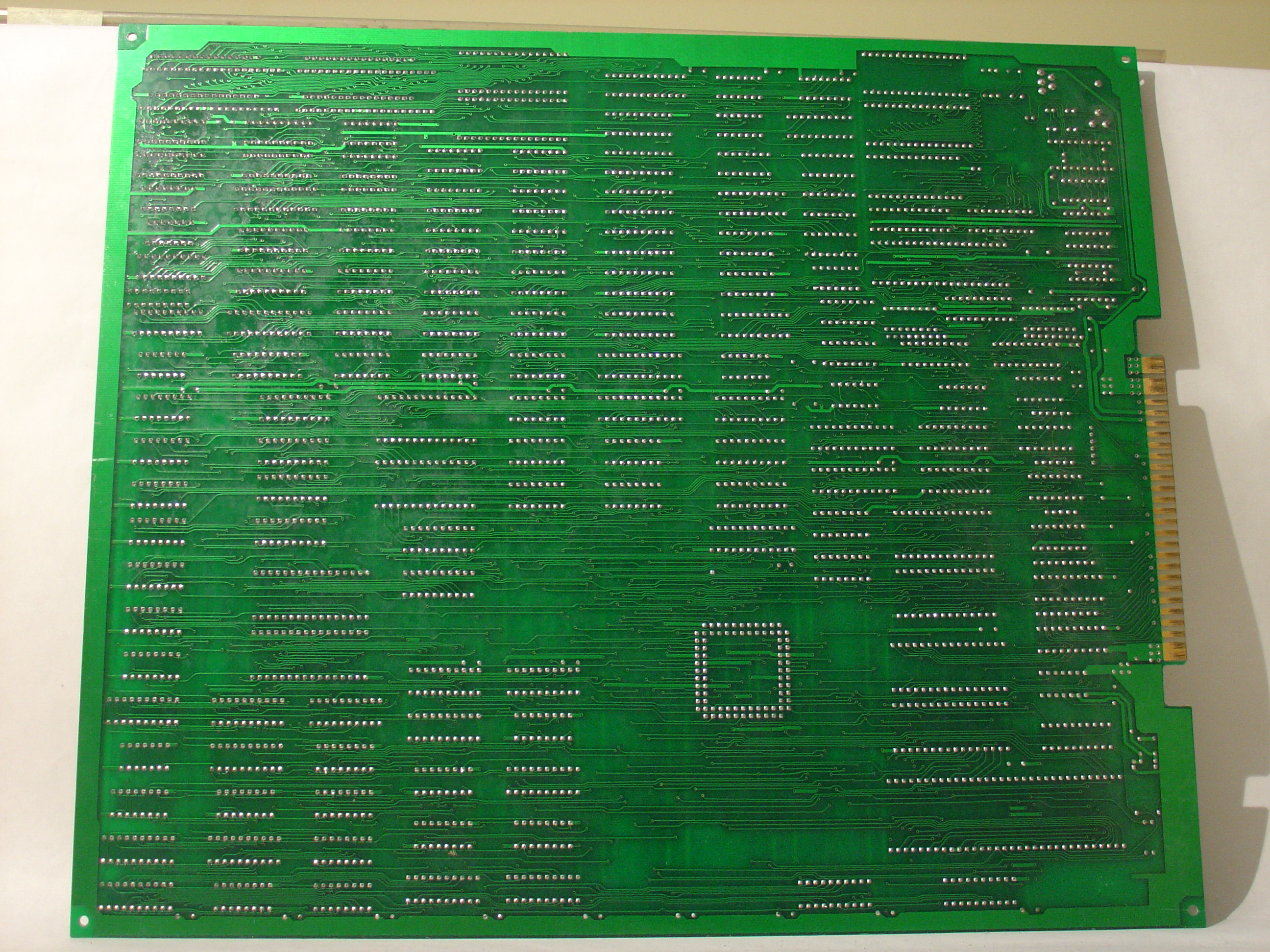

PCB solder side
