Breakout (Katari)
From Citylan
| dumper | f205v |
| date | 28/12/2004 |
| emulator | DICE 0.5 - MAME 0.161 |
| dev | Adam, Mike Ellery, f205v, Couriersud |
| name | breakout on ProgettoEMMA breakout on Arcade Database |
| description | Breakout (Katari) [TTL] |
| year | 1977 |
| manufacturer | Katari |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 14.318 | 1d |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MMI6531 | 3l |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)(between 8a and 9a)
3x switches (1/P 2/P @7n)(5B 3B @4a)(C/C NORM @6a) all missing.
Notes
PCB is marked: "BREAKOUT KATARI 77 B003131" on component side
update 20200411: complete description
Files
-

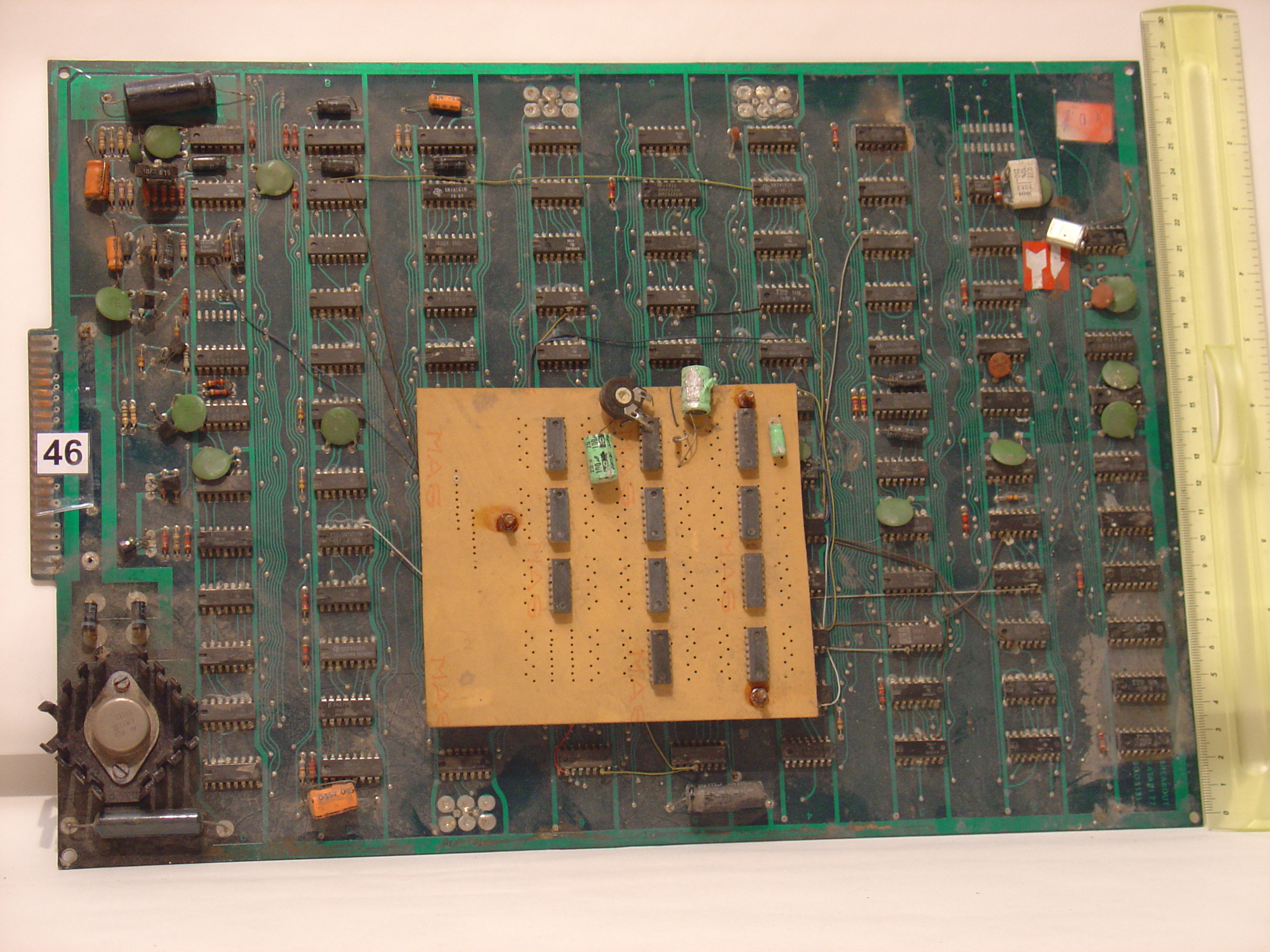

PCB component side
-

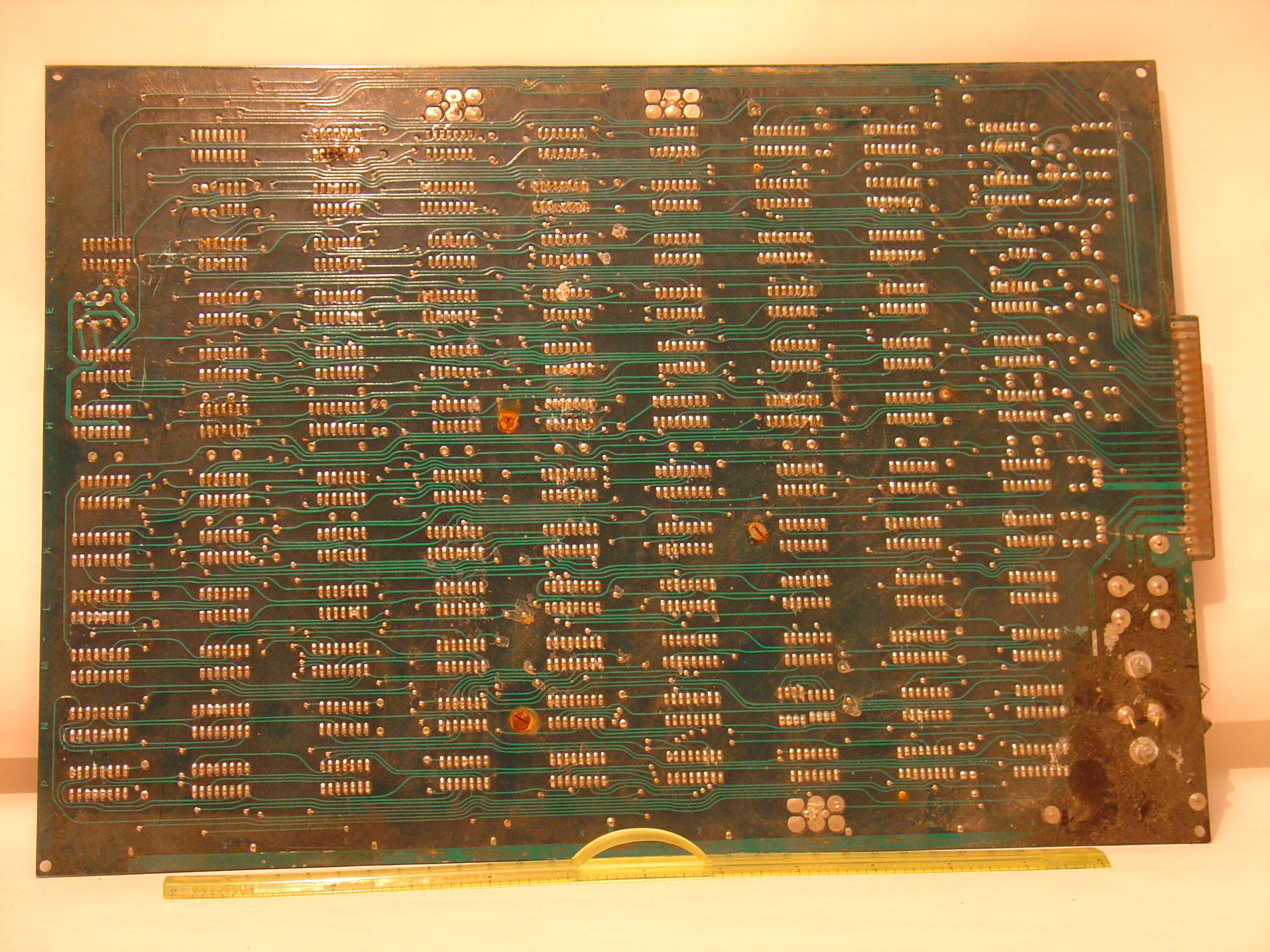

PCB solder side
