Speed Race (Seletron / Olympia)

From Citylan
Revision as of 09:00, 6 April 2020 by WikiSysop (talk | contribs)
Jump to navigationJump to search
EMU Infos
dumper f205v
date 04/04/2020
emulator
dev
PCB Infos
name 1694
description Speed Race (Seletron / Olympia)
year 1981?
manufacturer Seletron

Technical references

CPUs

QTY Type clock position function
1x MC68B09P 10h 8-bit Microprocessor - main
1x TBA820 - 9x Audio Amplifier - sound
1x oscillator 16MHz 1a

ROMs

QTY Type position status
10x D2708 dumped

RAMs

QTY Type position
1x AM9101BCP 9e
1x MWS5101AEL3 9d
4x uPD2114LC 4c,5c,6c,7c

PLDs

QTY Type position status
0x

Others

1x 22x1 edge connector (connectors only on solder side)
1x trimmer (volume)(9x)
1x 8 DIP switches bank (12c)

Notes

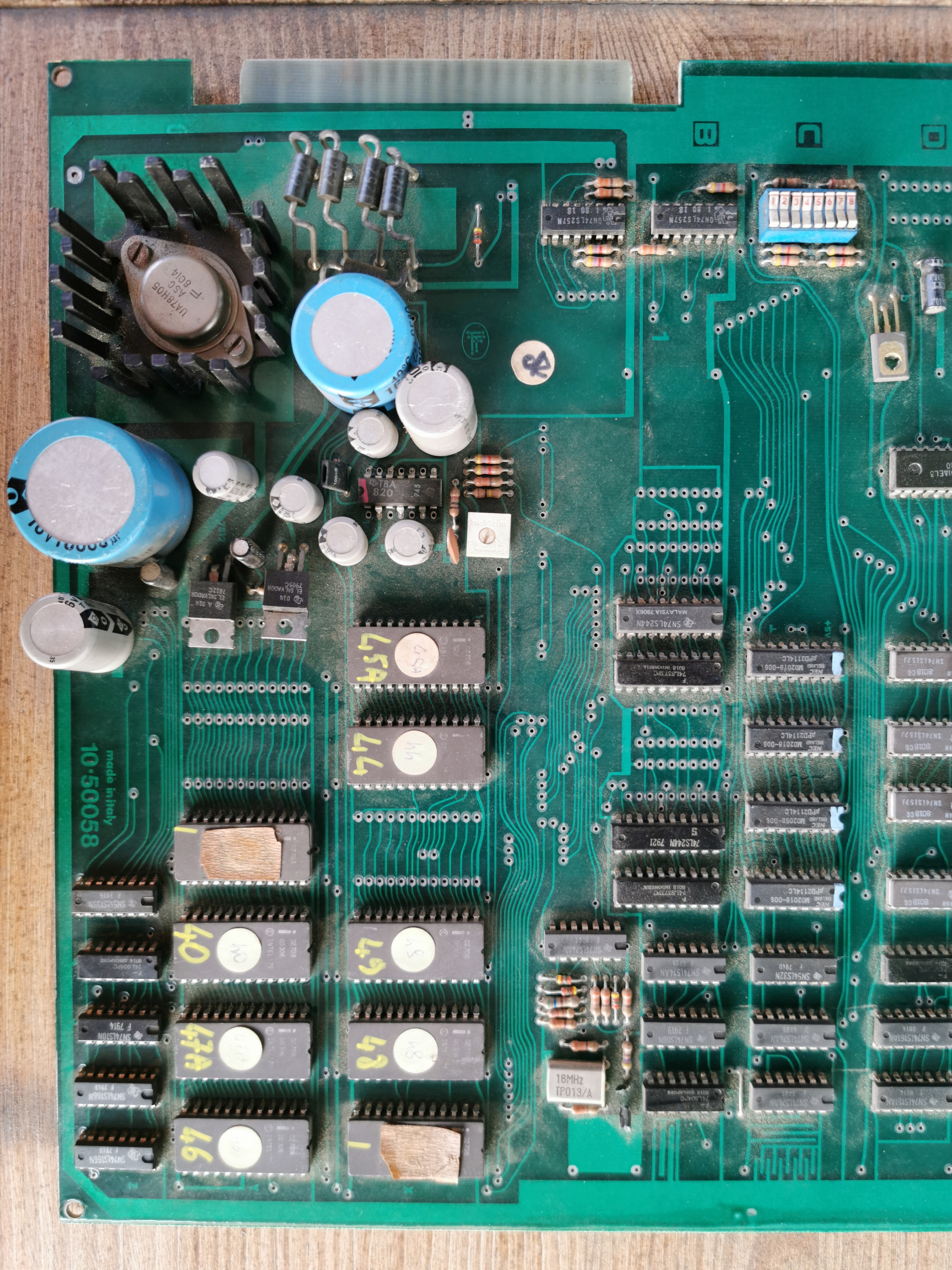

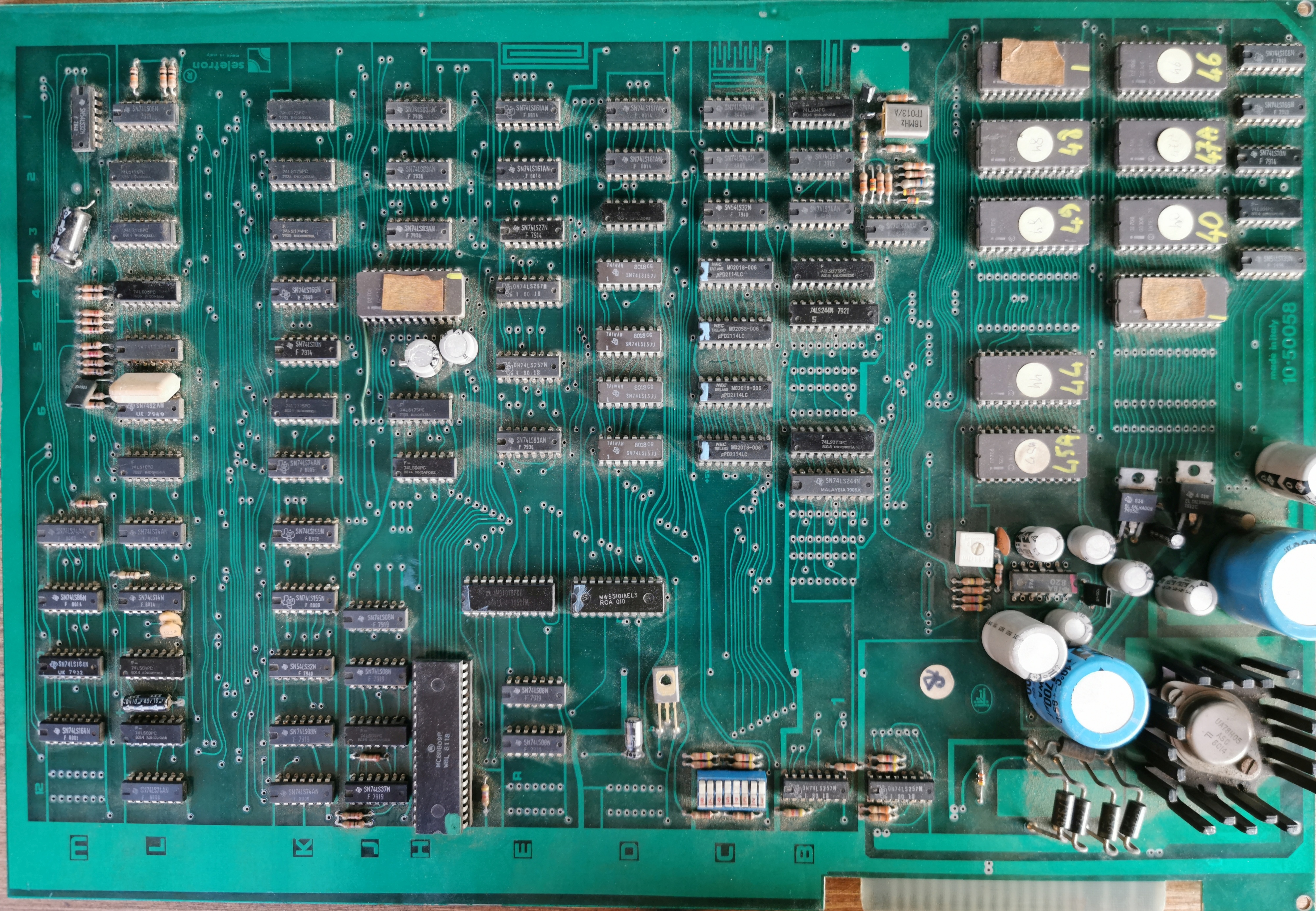

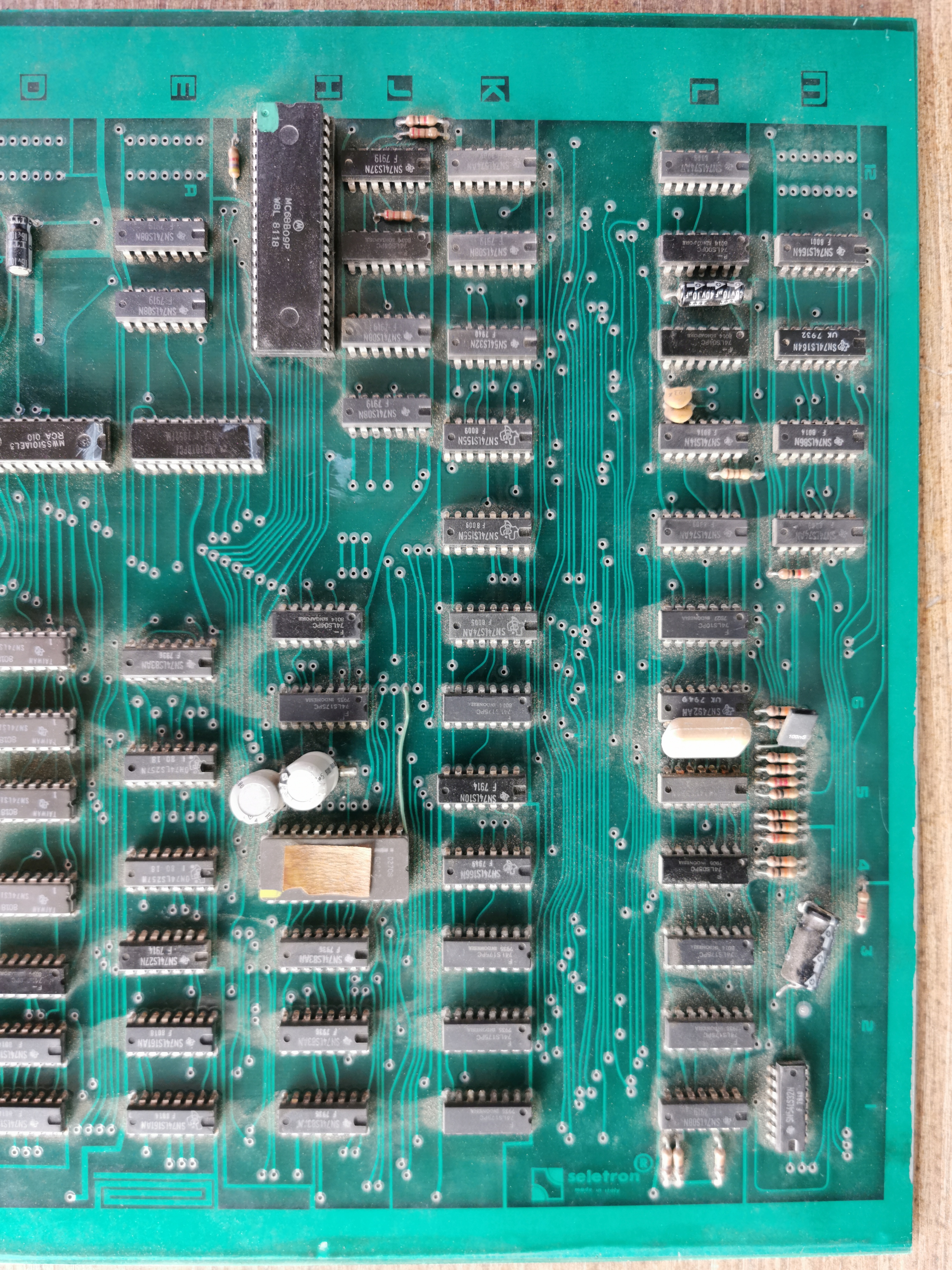

PCB is marked: "seletron (R) made in italy", and "made in italy 10-50058" on component side

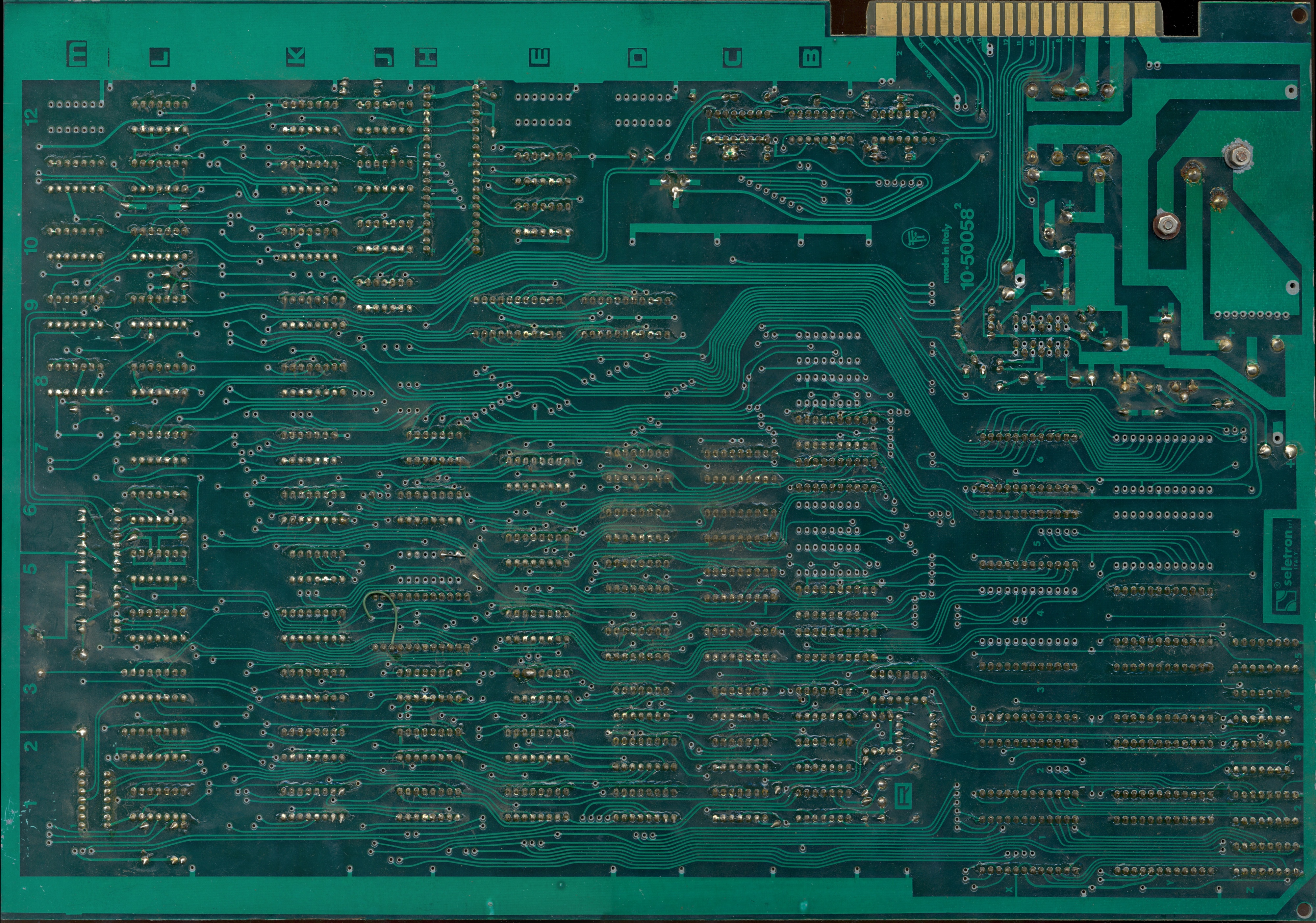

PCB is marked: "R", "(R) seletron srl ITALY" and "made in italy 10-50058-2" on solder side
