Drive Out (bootleg)

EMU Infos
dumper	f205v
date	29/03/2020
emulator	MAME 0.220
dev	David Graves, Nicola Salmoria

PCB Infos
name	driveout on ProgettoEMMA driveout on Arcade Database
description	Drive Out (bootleg)
year	1991
manufacturer

Technical references

CPUs

QTY	Type	clock	position	function
1x	68000	13.98MHz(@15)	u1	16/32-bit Microprocessor - main
1x	Z8400BB1-Z80Bcpu	3.996MHz(@6)	u19	8-bit Microprocessor - sound
1x	M6295	999.1kHz(@6) - 999.1kHz(@6)	u27	4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x	LM358	-	u31	Dual Operational Amplifier - sound
1x	TDA2003	-	u30	Audio Amplifier - sound
1x	oscillator	14000	oz1
1x	oscillator	8.00000	oz2
1x	oscillator	18.432	oz3

ROMs

QTY	Type	position	status
1x	AM27C512	3	dumped
1x	AM27C010	2	dumped
2x	M27C2001	6,7	dumped
4x	AM27C040	1,4,5,8	dumped

RAMs

QTY	Type	position
1x	SYC6116L-45TP	u21
4x	HM3-65764H-5	u54,u55,u38,u43
2x	HY6264ALP-10	u93,u96
2x	KM62256ALP-10	u4,u5
10x	KM64C464P-8	u109,u110,u111,u112,u135,u136 u137,u138,u139,u140,u141,u142

PLDs

QTY	Type	position	status
2x	TPC1020AFN-084C	u49,u50	read protected
10x	GAL16V8A-25LP	u41,u64,u74,u75,u80 u89,u90,u91,u113,u130	read protected
11x	GAL20V8A-25LP	u40,u44,u51,u52,u53,u123 u125,u131,u132,u133,u134	read protected
2x	GAL22V10-15LP	u45,u101	read protected
16x	GAL22V10-25LP	u6,u7,u8,u15,u47,u76,u77,u78,u79,u82 u83,u99,u100,u122,u128,u129	read protected

Others

1x 28x2 JAMMA edge connector
1x trimmer (volume)(AV1)
2x 8 DIP switches banks(S1,S2)

Notes

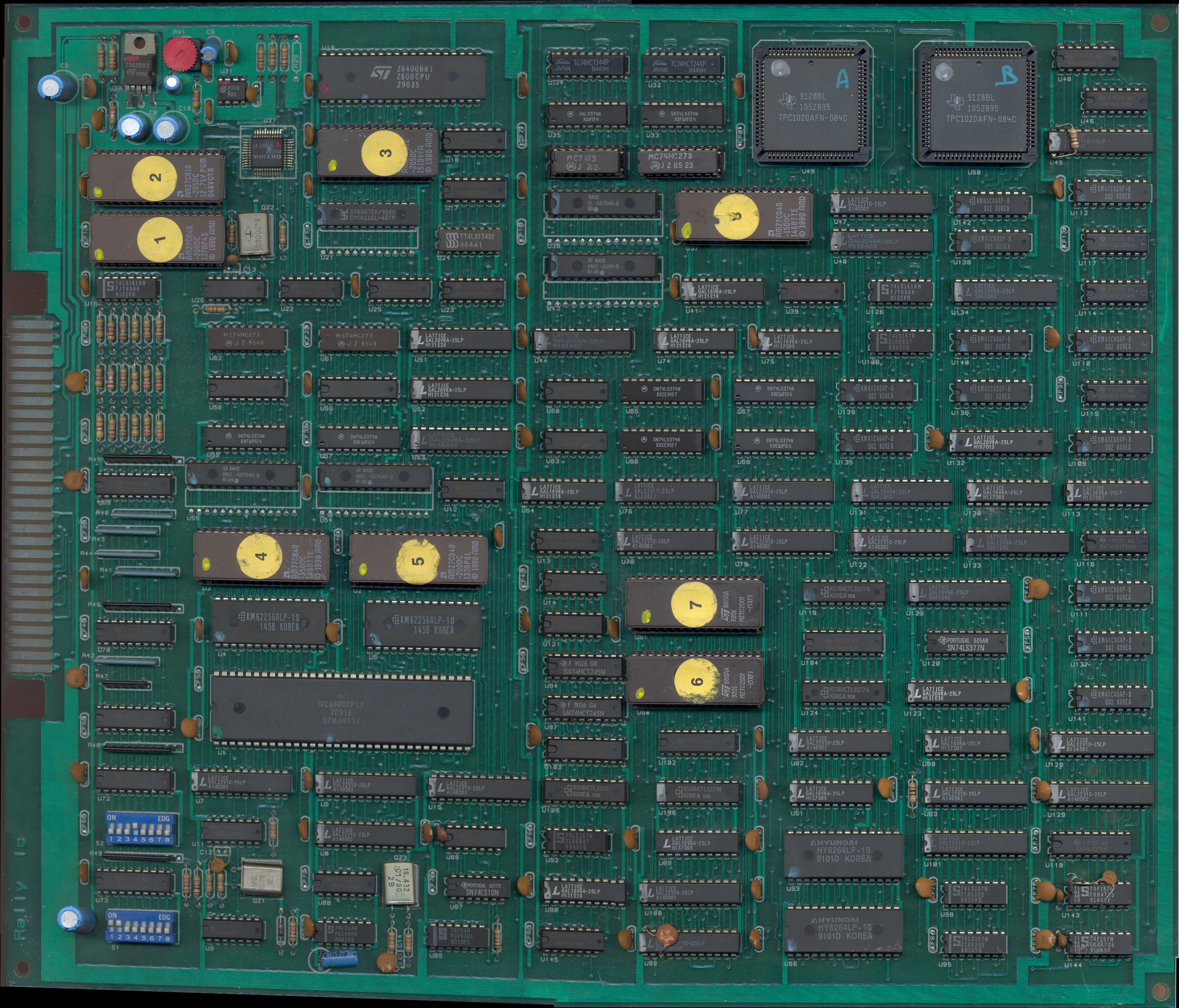

PCB is marked: "Rally lc" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")

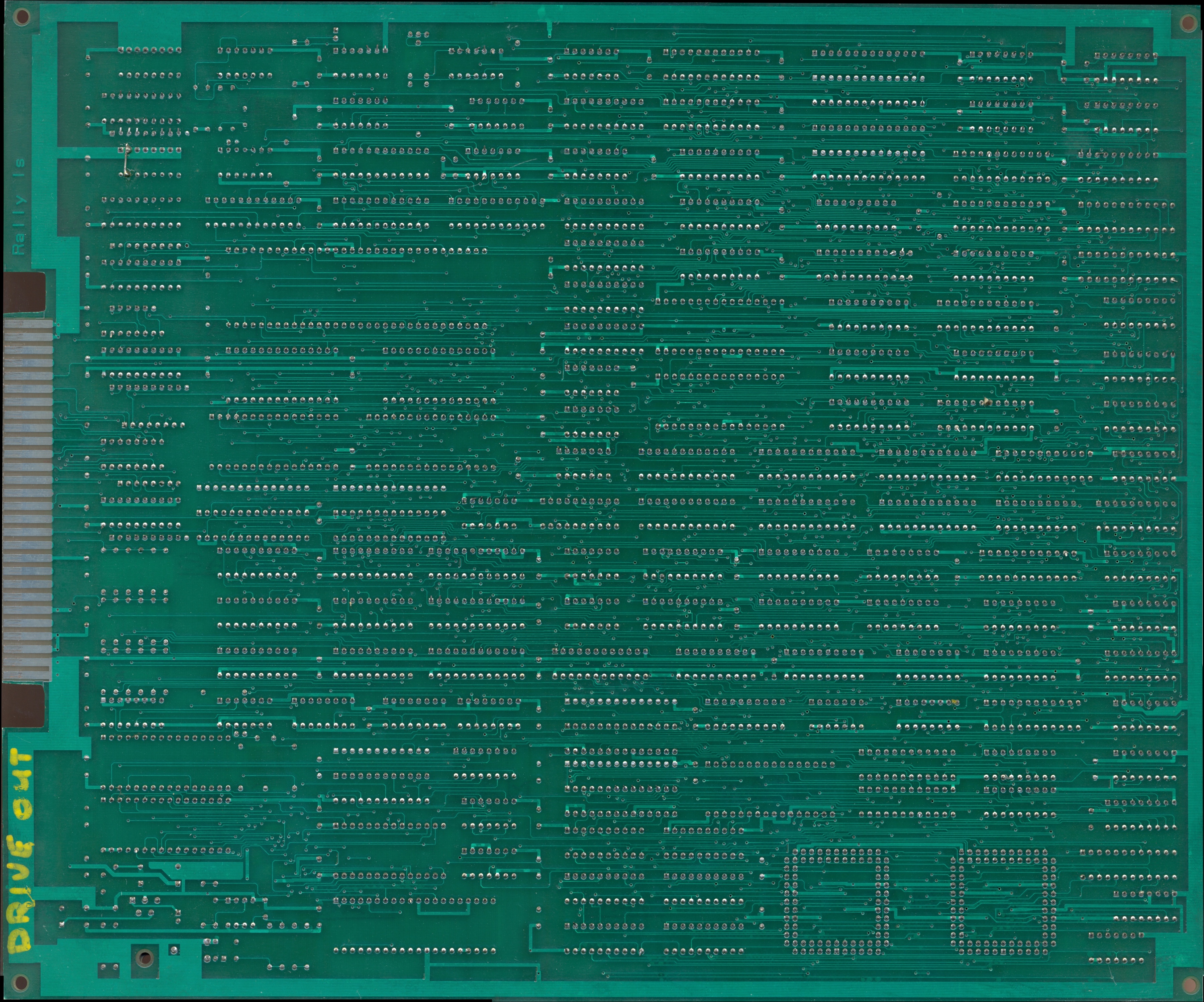

PCB is marked: "rally ls" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
