Multi 5 / New Multi Game 5 (set 1)

EMU Infos

dumper	f205v
date	08/01/2006
emulator	MAME 0.86u5
dev	Pierpaolo Prazzoli

PCB Infos

name	nmg5 on ProgettoEMMA nmg5 on Arcade Database
description	Multi 5 / New Multi Game 5 (set 1)
year	1998
manufacturer	Yun Sung

Technical references

CPUs

QTY	Type	clock	position	function
1x	MC68000P12F			16/32-bit Microprocessor - main
1x	Z0840006PSD-Z80CPU			8-bit Microprocessor - sound
1x	AD-65			4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x	KS8001			FM Operator Type-L II (OPL II) - sound
1x	KS8002			D/A Converter (DAC) - sound
1x	LM358-KA358	-		Dual Operational Amplifier - sound
1x	LM124-224-324	-		Quad Operational Amplifier - sound
1x	uPC1241	-		Audio Amplifier - sound
1x	oscillator	16.000000MHz	close to main
1x	oscillator	14.31818MHz	close to main
1x	oscillator	4.000MHz	close to sound

ROMs

QTY	Type	position	status
1x	27512	xh15 (sound)	dumped
1x	27010	xra1 (sound)	dumped
5x	27020	ufa1, uj1, uf1, uh1, uf2 (GFX)	dumped
8x	27040	srom1-8 (GFX)	dumped

RAMs

QTY	Type	position
2x	MCM2018AN45
5x	HT6116-70
2x	KM6264AL-10P
2x	HY62256ALP-10
2x	KM62256ALP-10

PLDs

QTY	Type	position	status
2x	QuickLogic QL2003-XPL84C		read protected
11x	PALCE16V8H-25PC/4		read protected
1x	PALCE20V8H-25PC/4		read protected
1x	GAL22V10		read protected

Others

1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks (DSW1, DSW2)

Notes

PCB is marked: "YS-1301" and "YUN SUNG" on component side
PCB is labelled: "21$ NEW MULTI 5 22MY8/FK" on component side

---

update 20190715: I found a second PCB for the same game. Checked and confirmed dump, better description.

Files

•

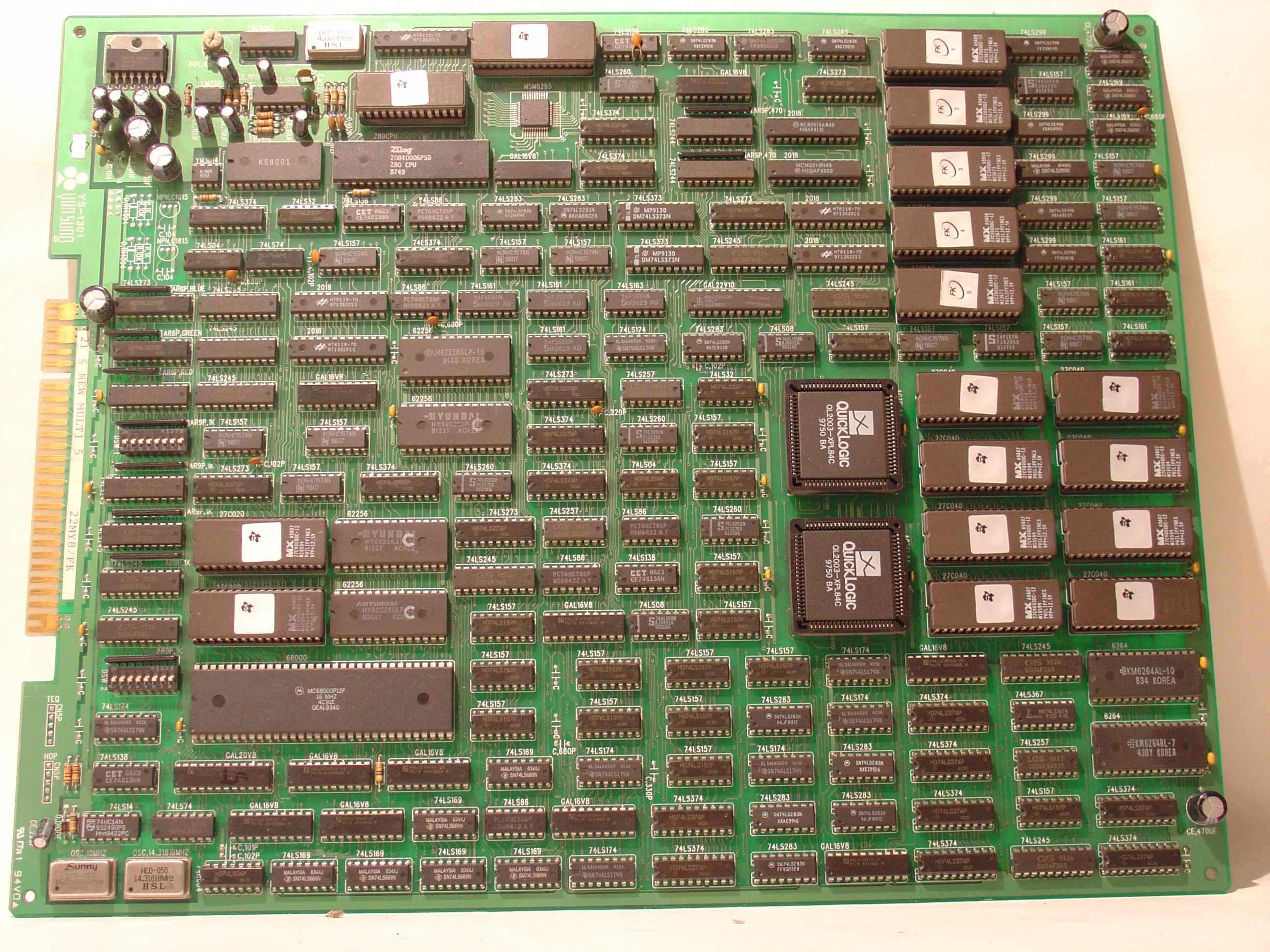

  1st PCB component side

•

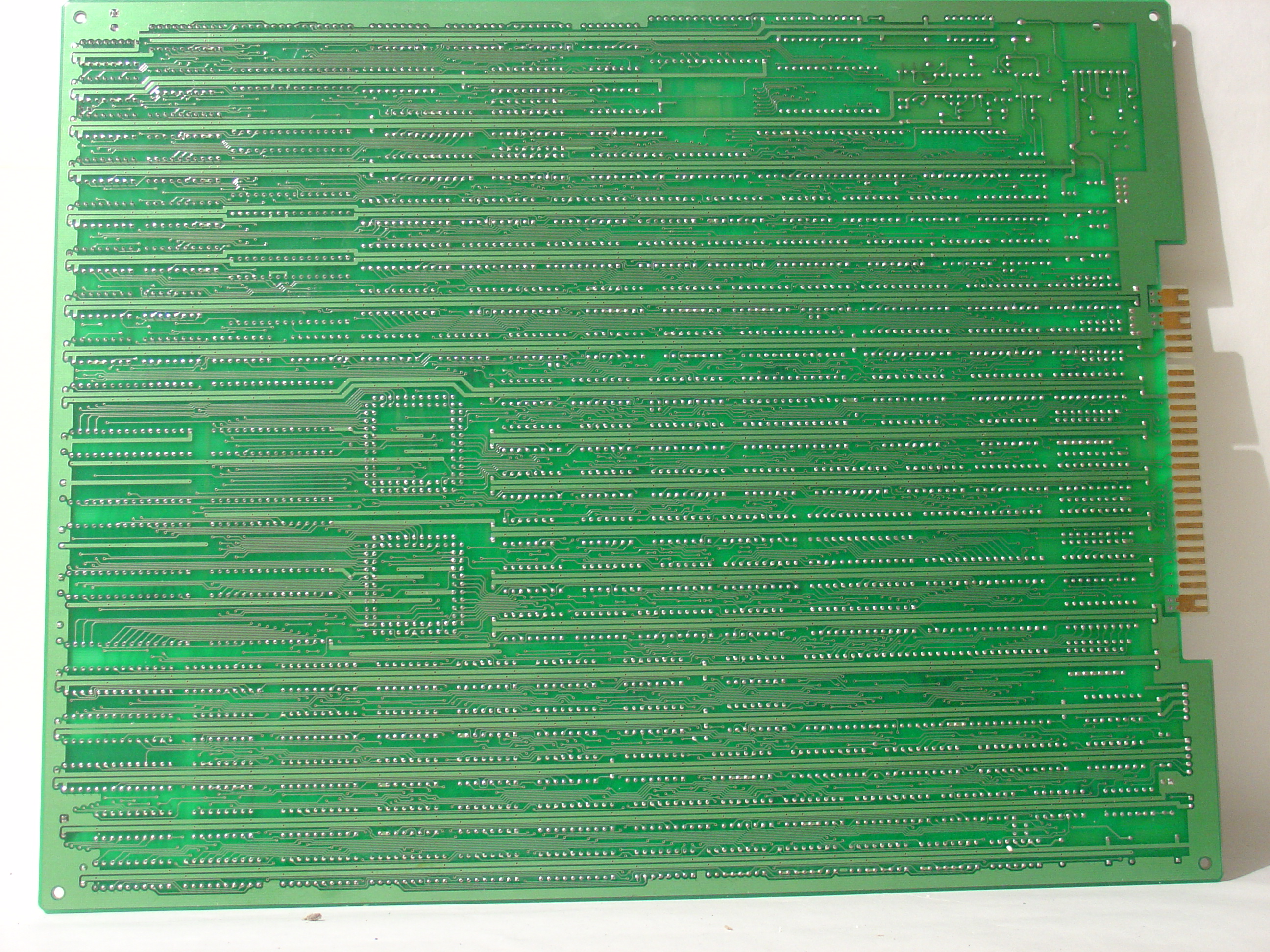

  1st PCB solder side

•

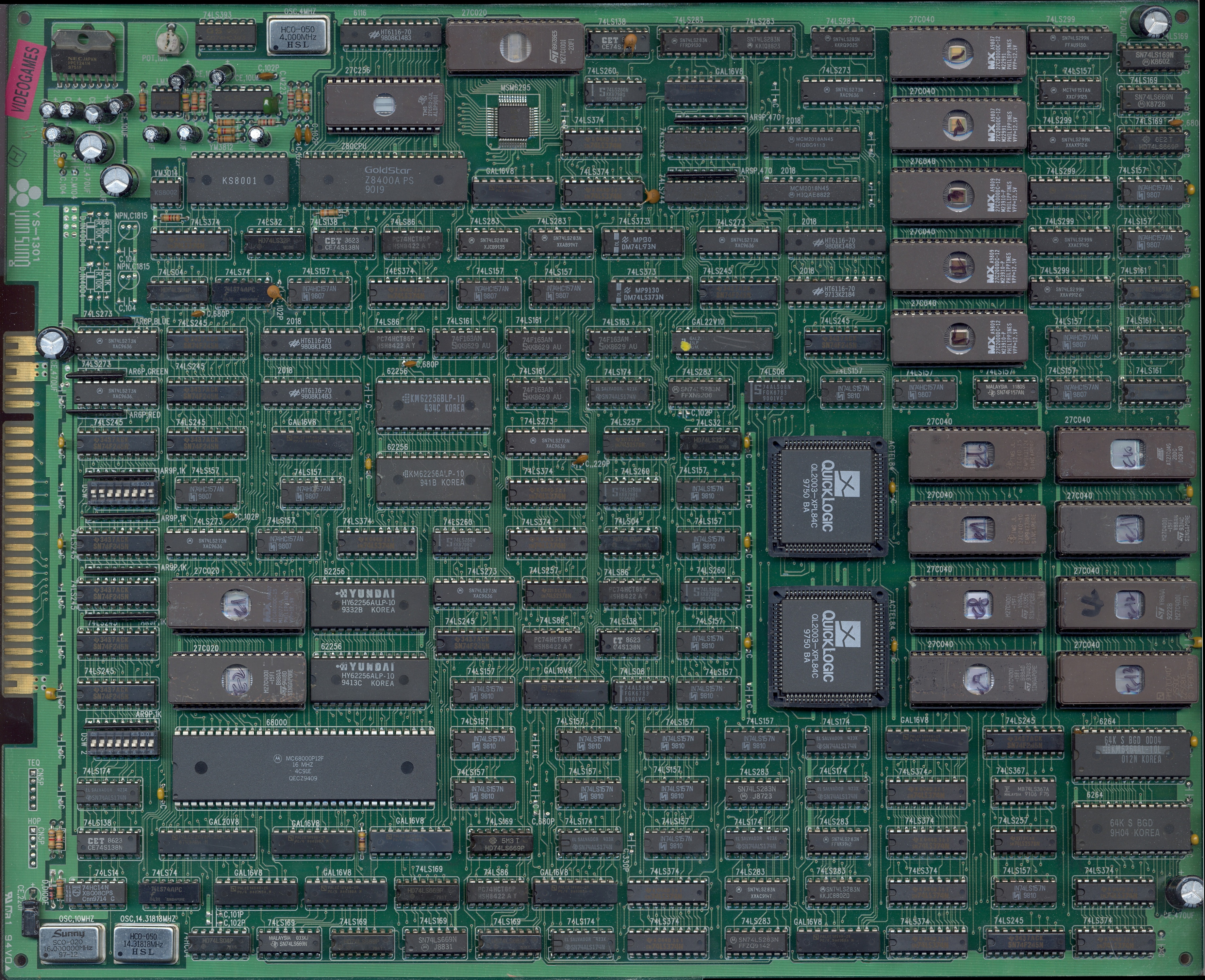

  2nd PCB component side

•

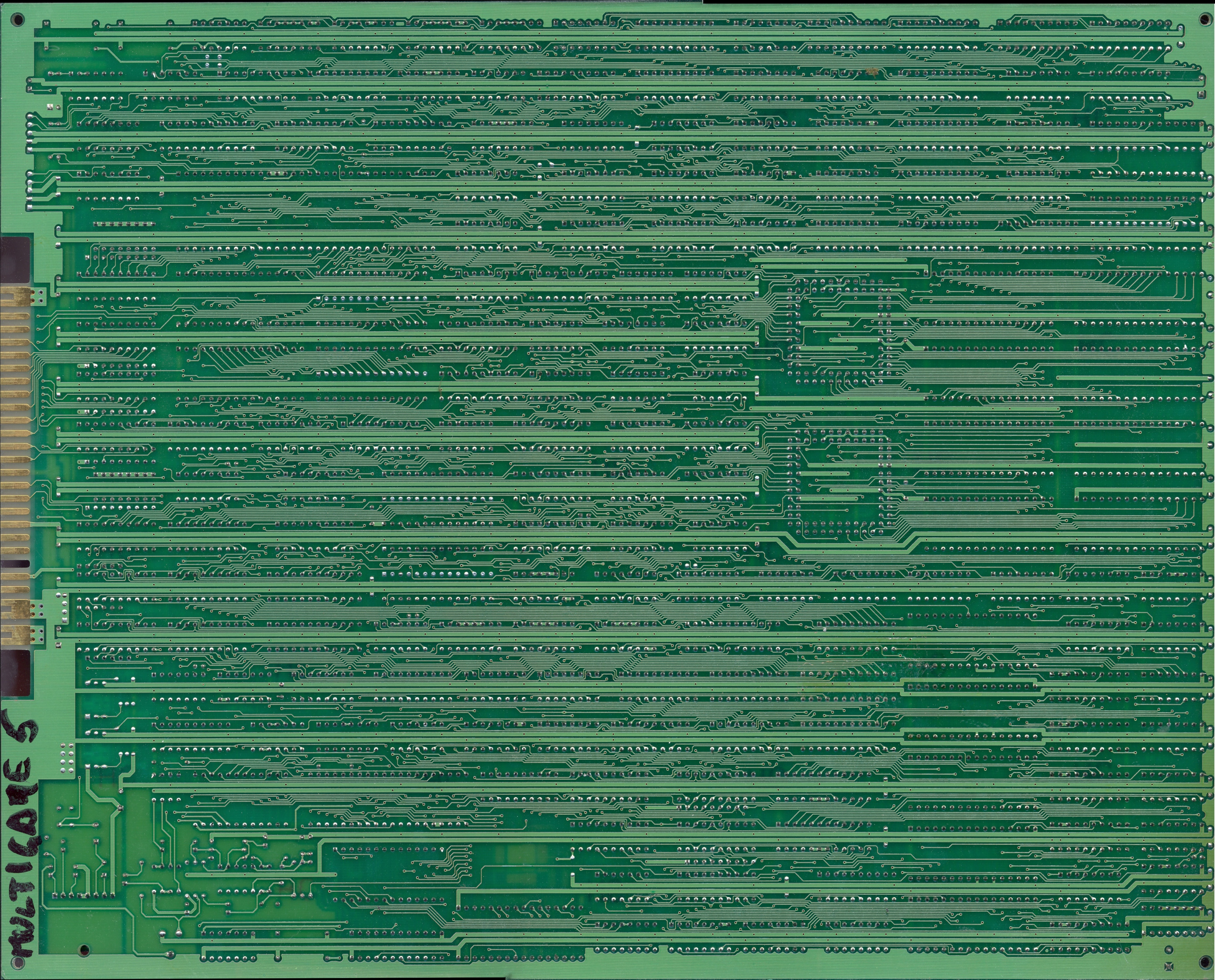

  2nd PCB solder side

•

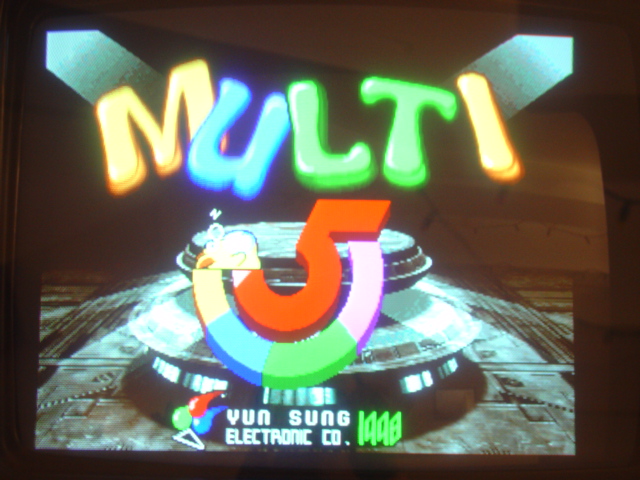

  Title

•

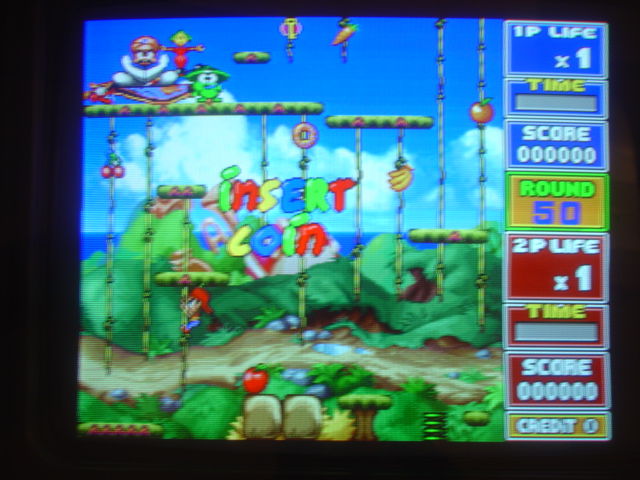

  Attract mode

•

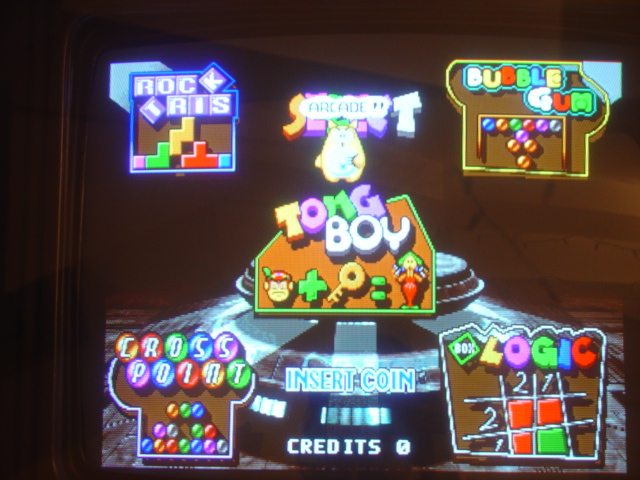

  Select

•

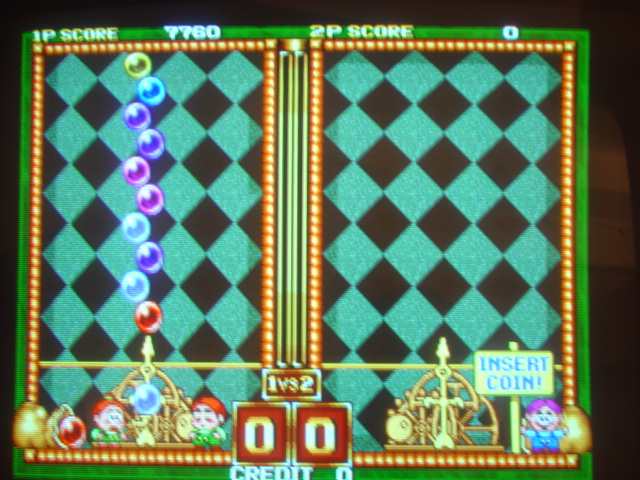

  In game 1

•

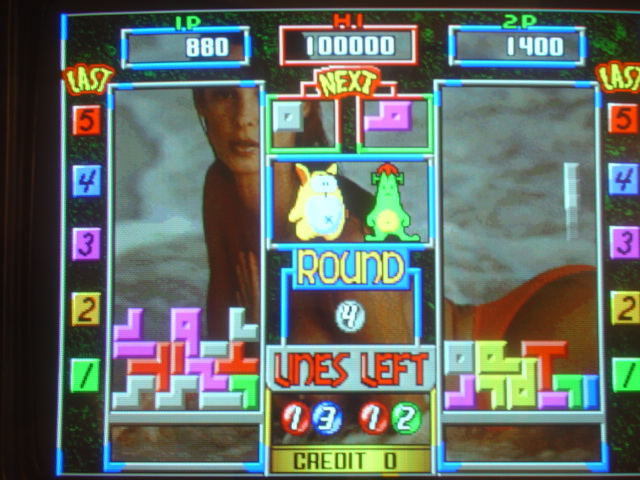

  In game 2

•

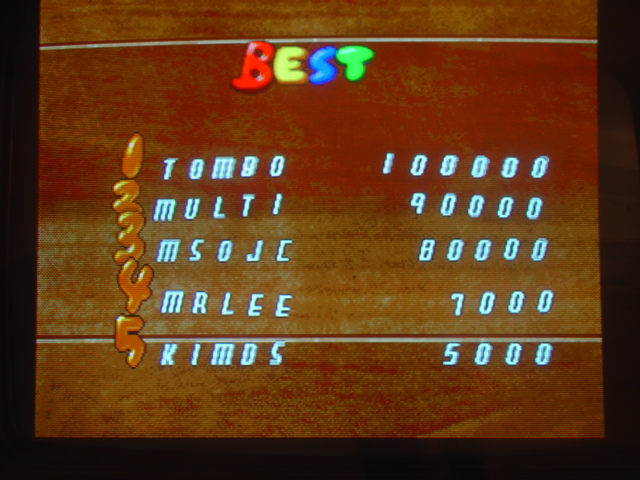

  Hiscore 1

•

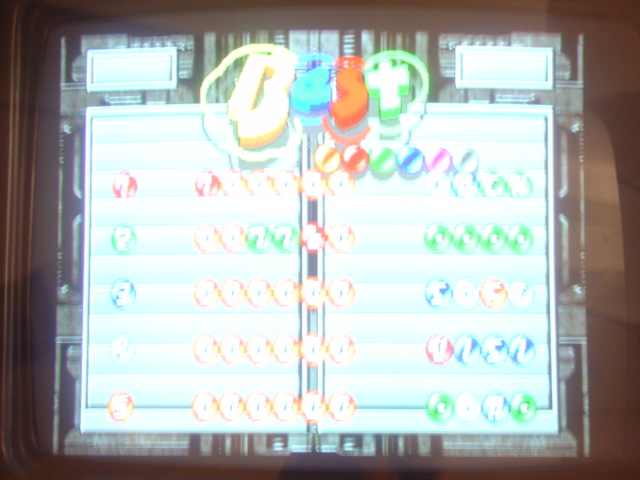

  Hiscore 2
