Samba De Amigo

From Citylan
Revision as of 16:31, 17 June 2019 by WikiSysop (talk | contribs) (Created page with "{| style="float: right;" border="1" cellpadding="3" cellspacing="0" |+ style="background:silver" | EMU Infos |- |dumper || |- |date || |- |emulator || |- |dev || |} {| sty...")
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)
Jump to navigationJump to search
EMU Infos
dumper
date
emulator
dev
PCB Infos
name 1672
description Samba De Amigo
year 1999
manufacturer Sega

Technical references

CPUs

QTY Type clock position function
1x oscillator 28.000 osc1

ROMs

QTY Type position status
1x M27322 EPR-22966.ic22 not dumped
16x M27W064 22950.ic1 - 22965.ic16s not dumped
1x X76F100 ic37 not dumped

RAMs

QTY Type position
2x IDT71256 ic44,ic45

PLDs

QTY Type position status
1x 315-6213 ic41 read protected

Others

Notes

It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0020C
Protection IC: SEGA 315-5881 (317-0270-COM)
Key: 0x280a8b5d

Files

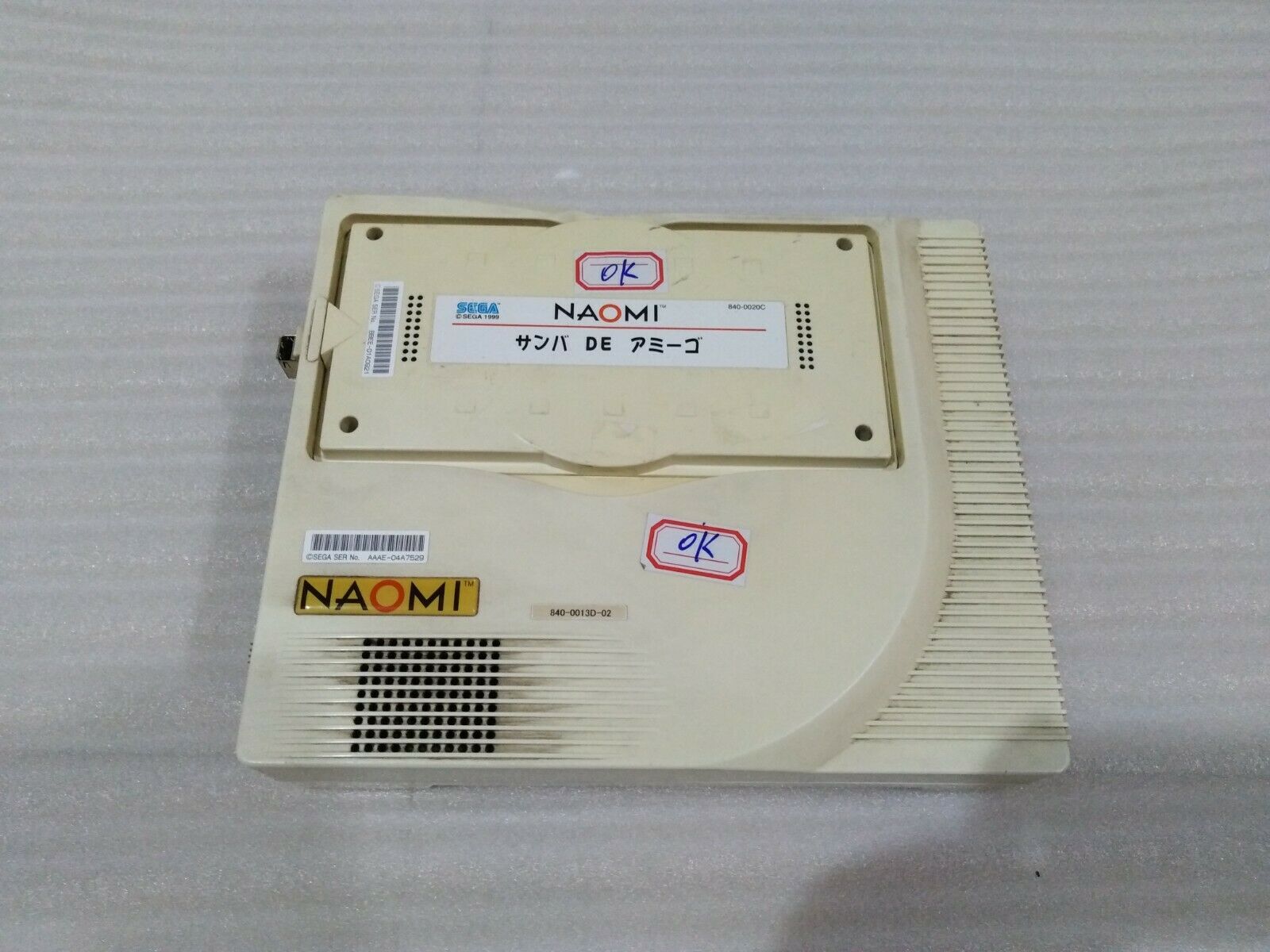

  • Cart

    Cart

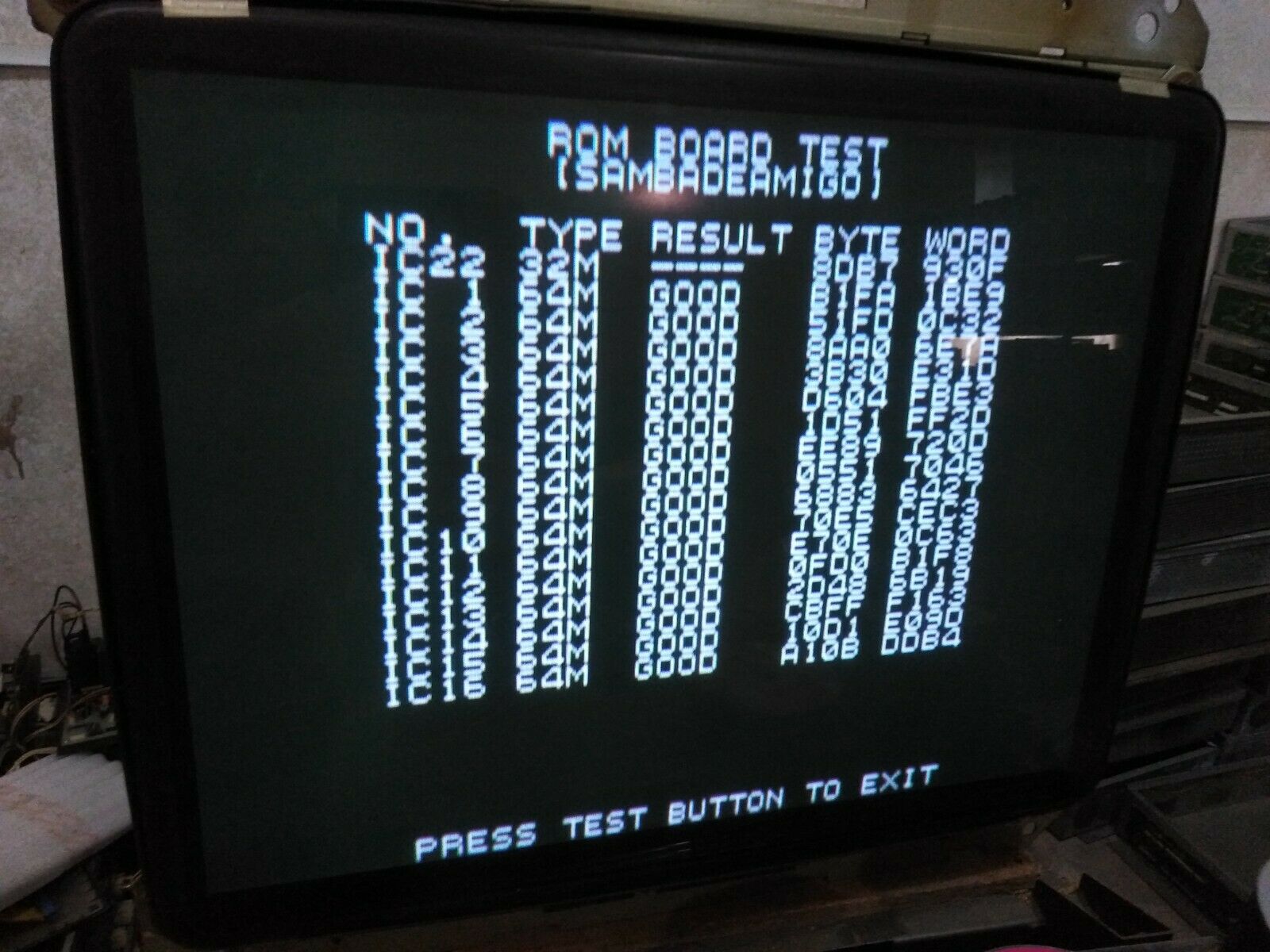

  • ROM board test

    ROM board test

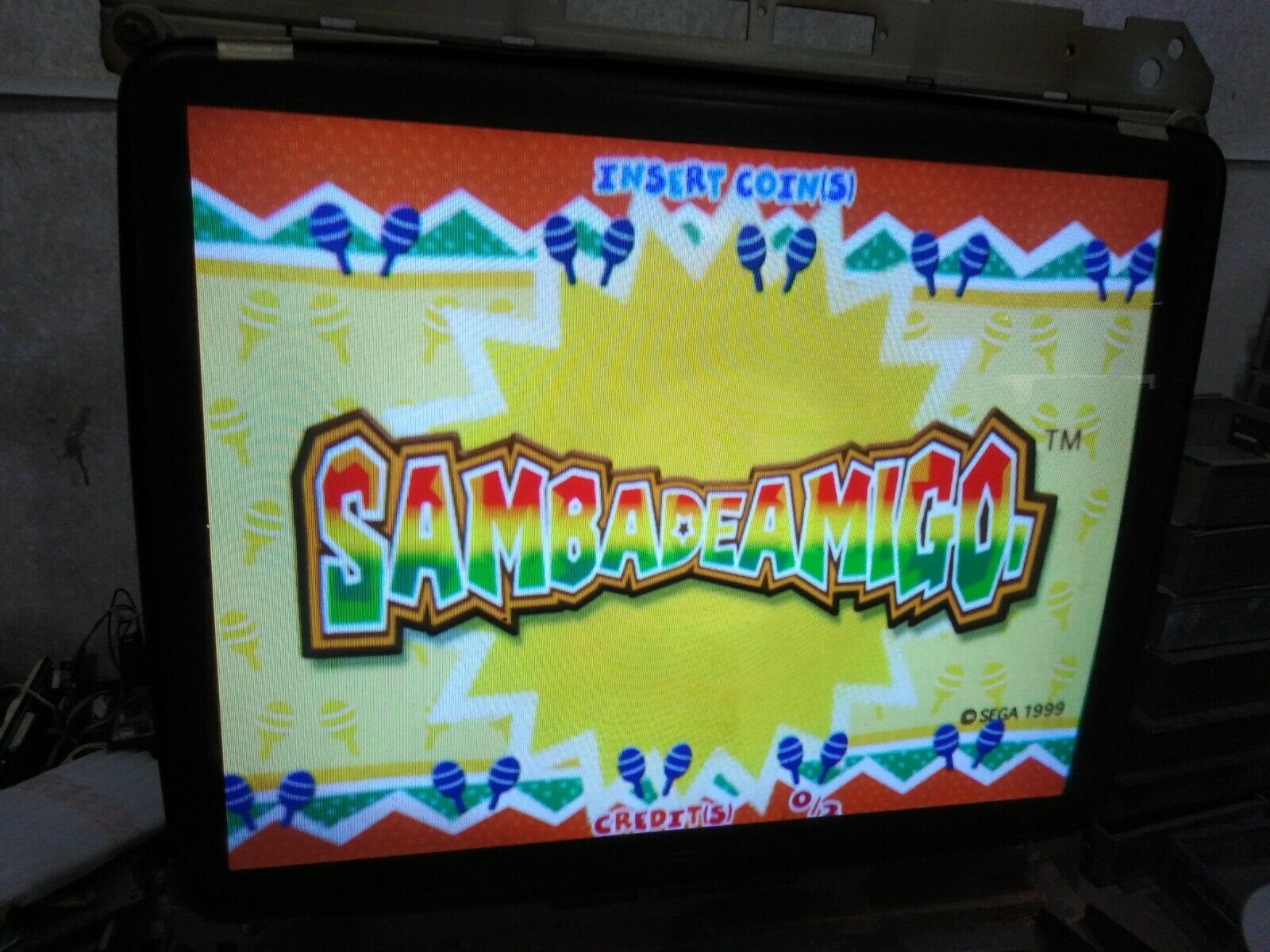

  • title

    title

1672
