Makyou Senshi (Japan)
From Citylan
| dumper | f205v |
| date | 13/05/2005 |
| emulator | MAME 0.35b3 |
| dev | Bryan McPhail |
| name | makyosen on ProgettoEMMA makyosen on Arcade Database |
| description | Makyou Senshi (Japan) |
| year | 1987 |
| manufacturer | Data East |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 6309 | 3MHz | 8-bit Microprocessor - main | |
| 1x | 6502 | 1.5MHz | 8-bit Microprocessor - sound | |
| 1x | YM2203 | 1.5MHz | FM Operator Type-N (OPM) - sound | |
| 1x | YM3526 | 3MHz | FM Operator Type-L (OPL) - sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 11x | M27256 | 1-5-7-9-11-13-14-17-18-20-22 | dumped |
| 11x | TMS27C512 | 2-3-4-6-8-10-12-15-16-19-21 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL16R4NC | read protected |
Others
Notes
top PCB is marked: "DATA EAST MADE IN JAPAN DE-0269-1"
bottom PCB is labeled: "DATA EAST MADE IN JAPAN DE-0259-0"
Files
-

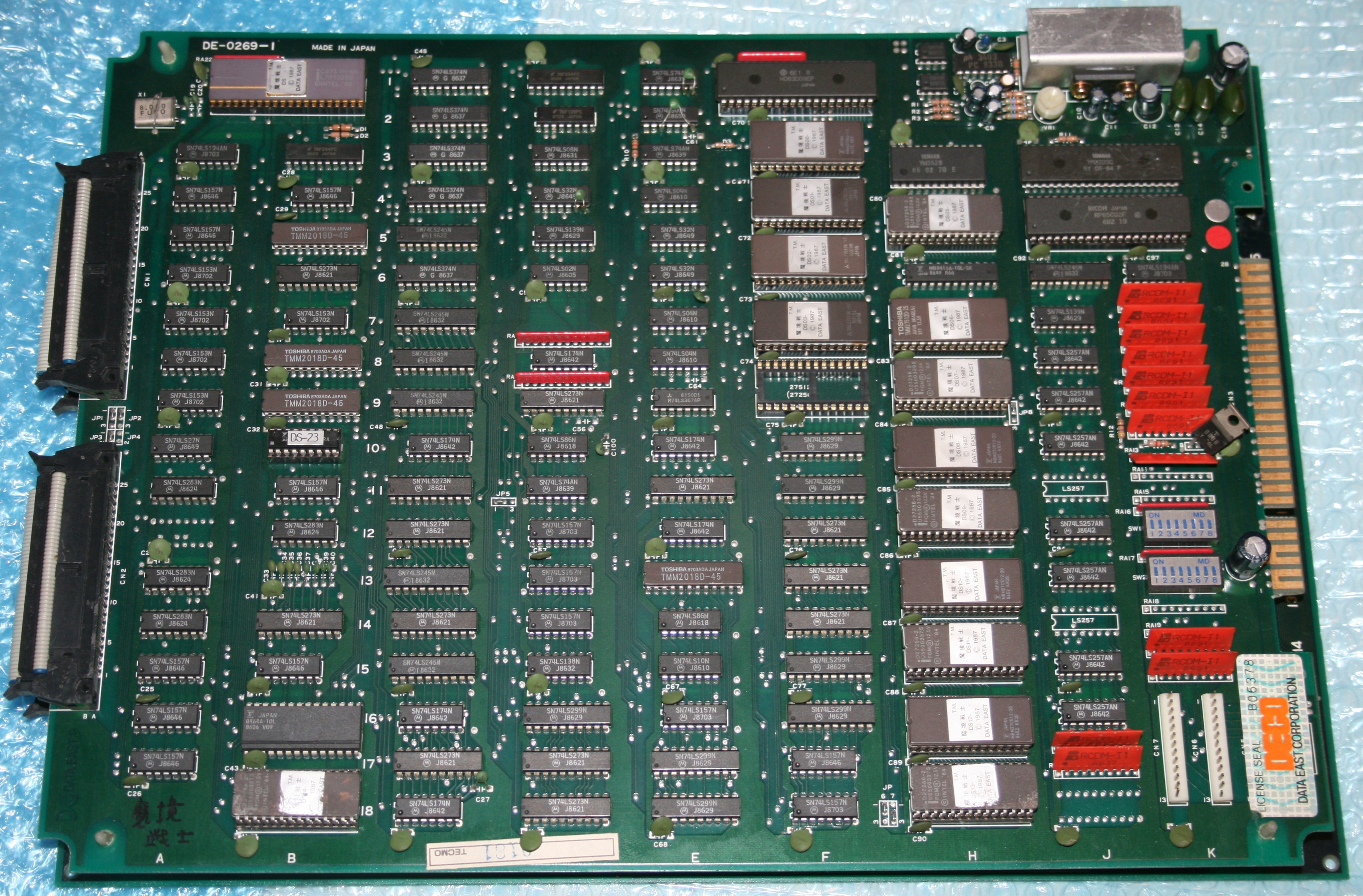

top PCB component side
-

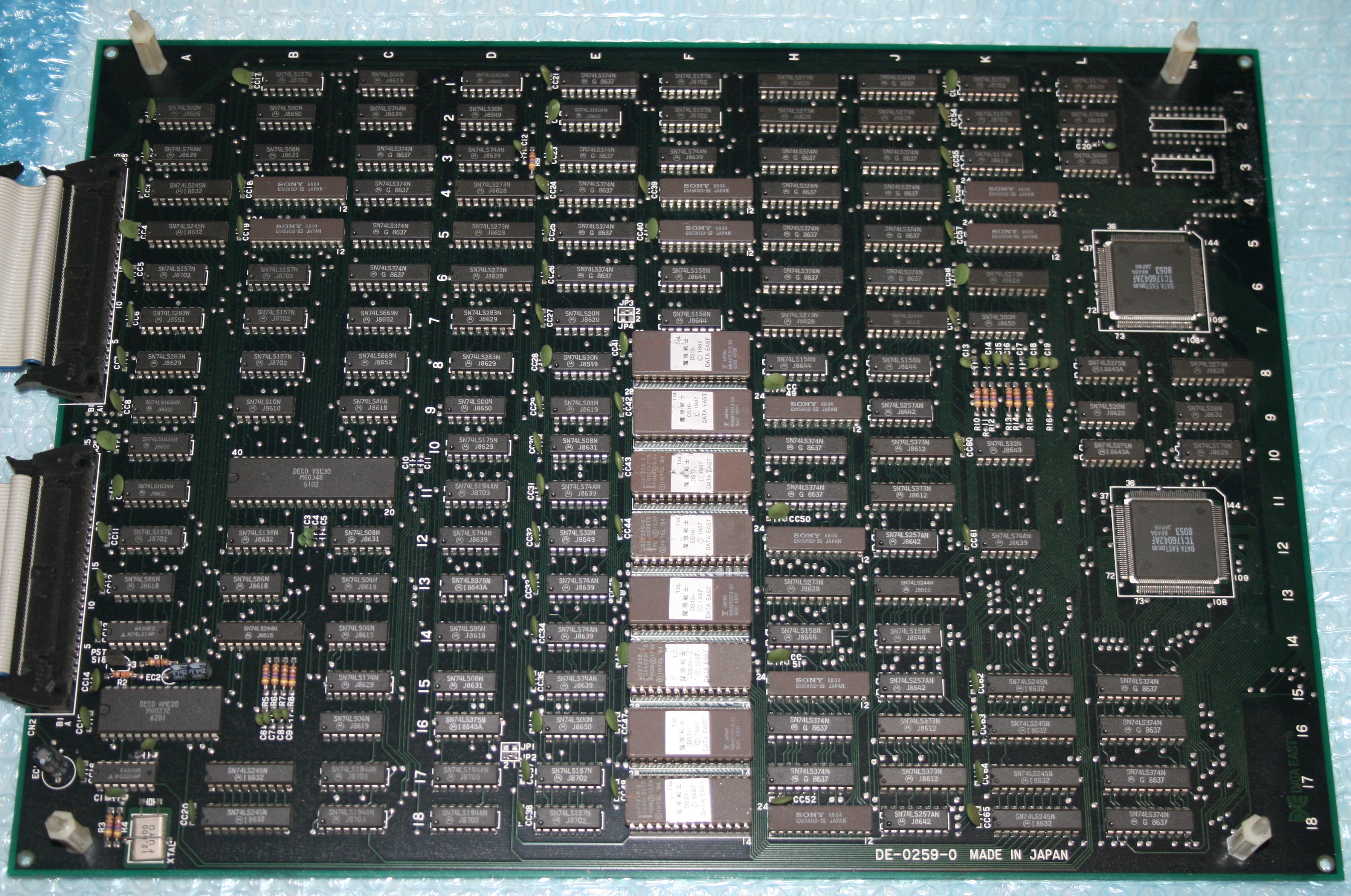

bottom PCB component side
