EMU Infos
dumper f205v
date 23/06/2018
emulator
dev
PCB Infos
name 1610
description Supersport
year 197x
manufacturer Polycon

Technical references

CPUs

QTY Type clock position function
1x AY-3-8610 main

ROMs

QTY Type position status
0x

RAMs

QTY Type position
0x

PLDs

QTY Type position status
0x

Others

1x 22x2 edge connector

Notes

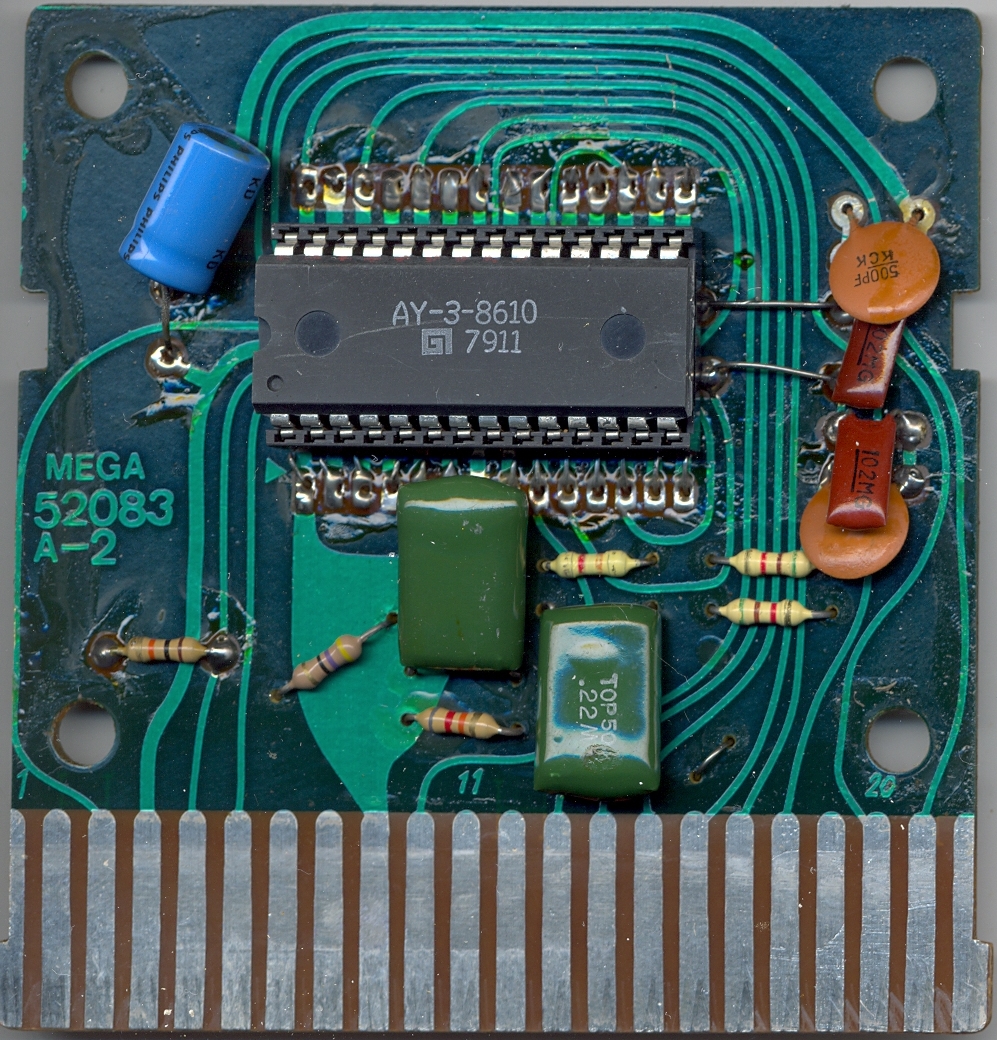

PCB is marked: "MEGA 52083A-2" on component side

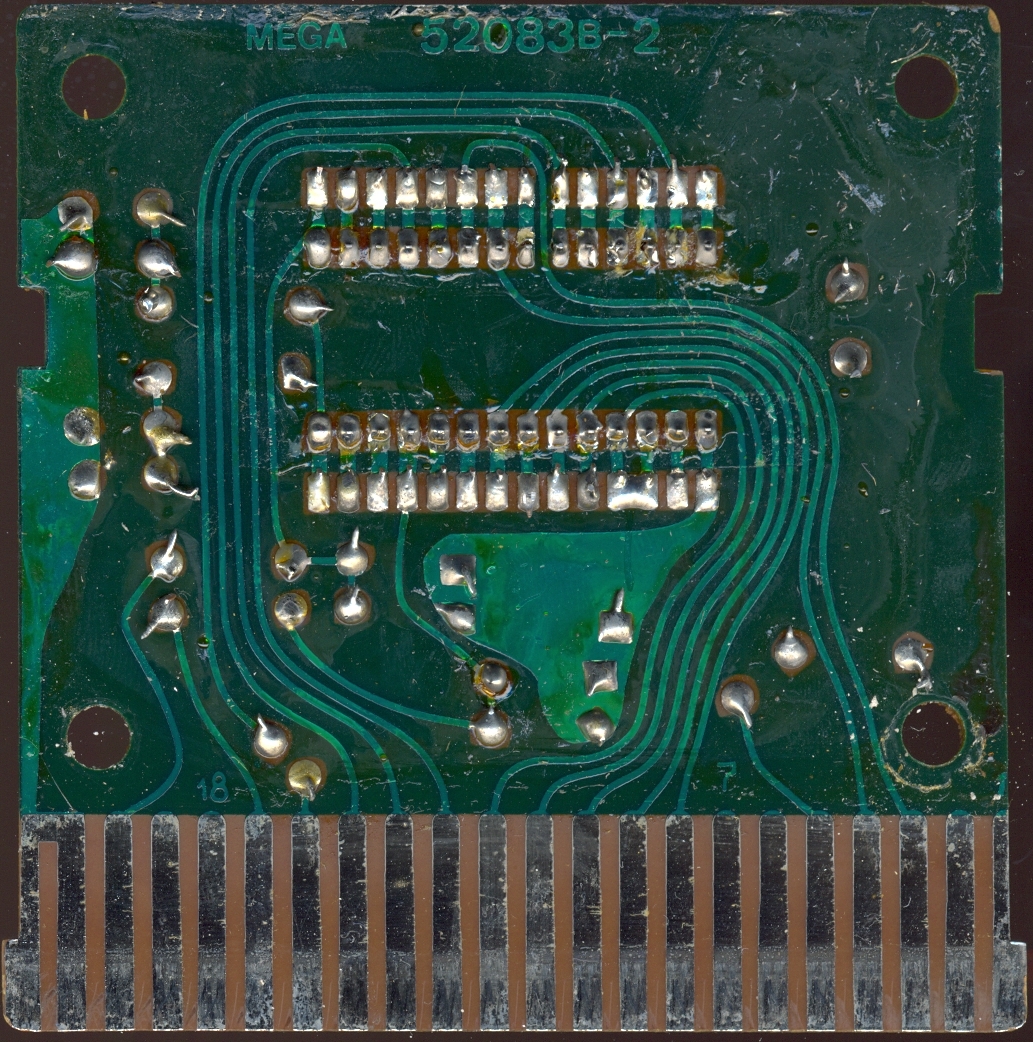

PCB is marked: "MEGA 52083B-2" on solder side
Cart N°: CT610

Files

1610
