Derby Owners Club 2000
From Citylan
dumper | |
date | |
emulator | |
dev |
name | 1614 |
description | Derby Owners Club 2000 |
year | 1999 |
manufacturer | Hitmaker - Sega |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | oscillator | 28.000 | osc1 |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | M27322 | EPR-22222.ic22 | not dumped |
16x | M27W064 | ic1 - ic16s | not dumped |
1x | X76F100 | ic37 | not dumped |
RAMs
QTY | Type | position |
---|---|---|
2x | IDT71256 | ic44,ic45 |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0020C
Protection IC: not present
Key: no key
Files
-
box
-

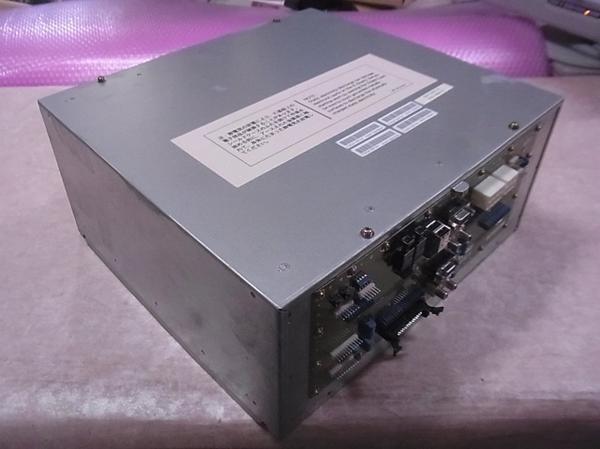

case top
-

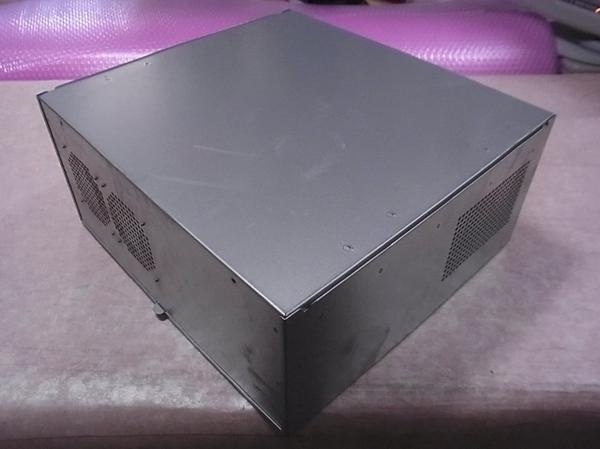

case bottom
-

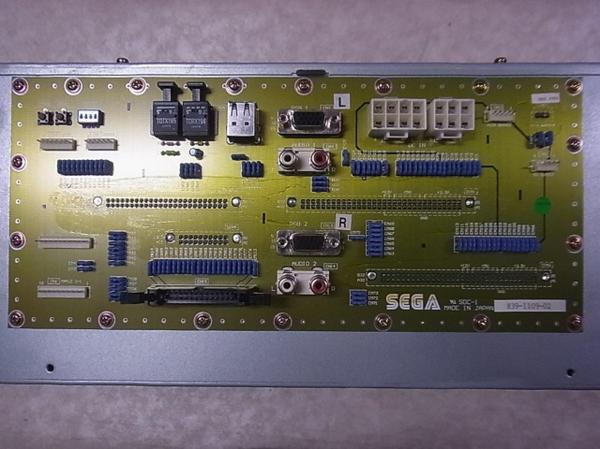

case bck
-

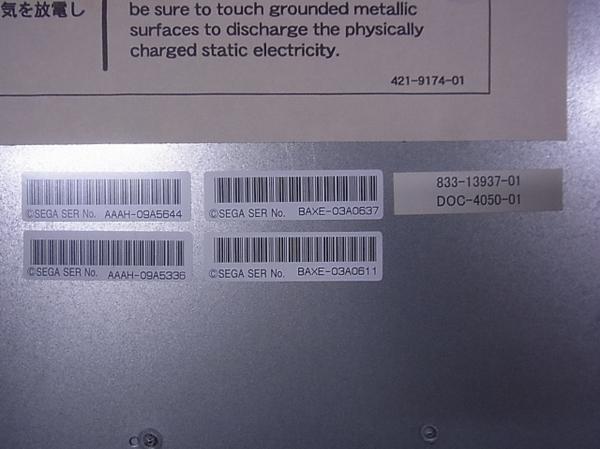

case labels
-

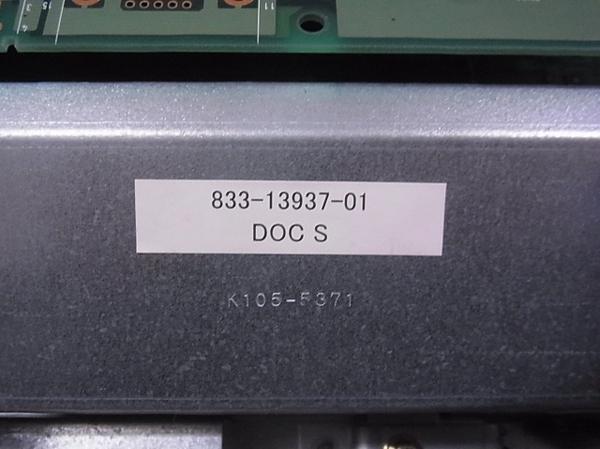

case interior label
-

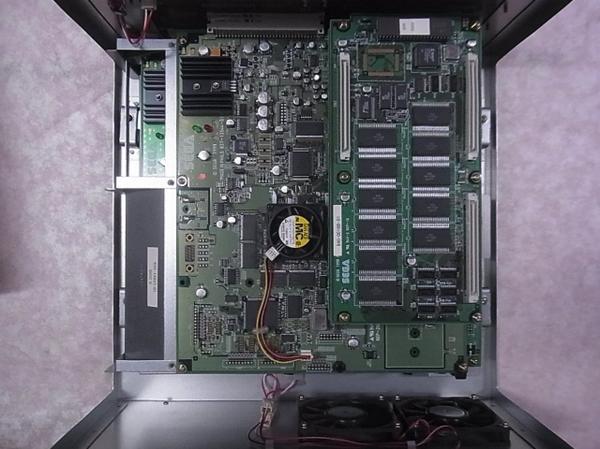

PCB component side
-

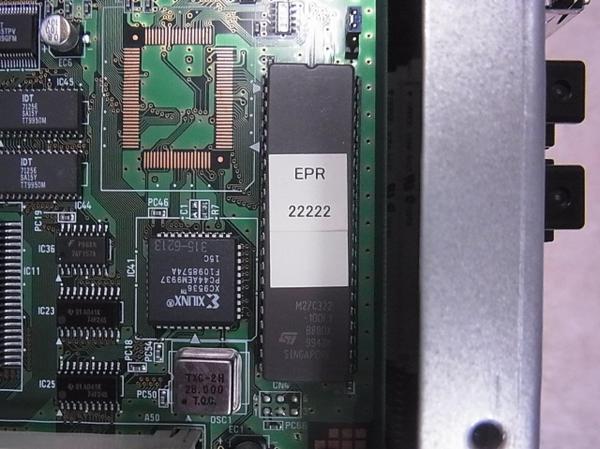

PCB component side detail
-

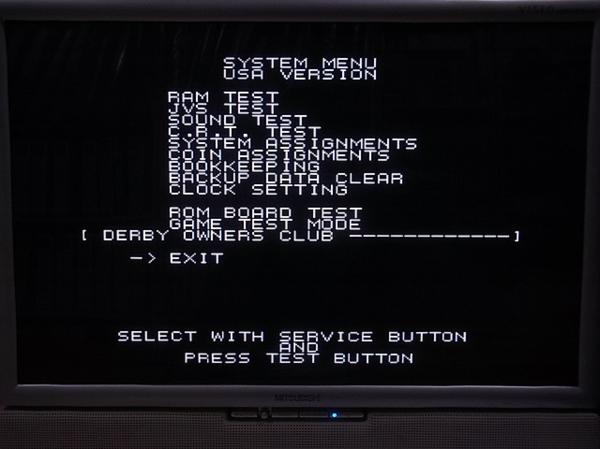

system menu
-

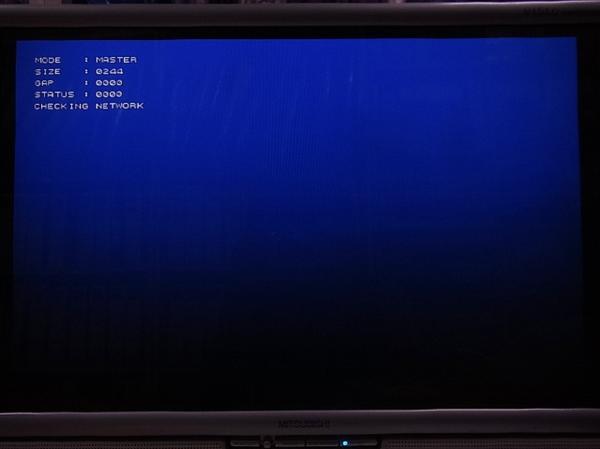

test screen
