Paradar
From Citylan
| dumper | f205v, Corrado Tomaselli, Gnoppi |
| date | 18/09/2007 |
| emulator | |
| dev |
| name | 595 |
| description | Paradar |
| year | 1995 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC705C8 | 1D | 8-bit EPROM Microcomputer Unit - main (internal ROM not dumped) | |
| 1x | 6845 | 1B | CRT Controller (CRTC) | |
| 1x | NEC D7759C | 1A | ADPCM Speech Synthesizer LSIs - sound | |
| 1x | TDA2002 | 0F | Audio Amplifier - sound | |
| 1x | oscillator | 10.000MHz | 9D |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27C64 | 5B,7B,8B | dumped |
| 1x | 27512 | 5A | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | TC5517BPL-20 | 2B |
| 1x | TC5517AP-2 | 3B |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | GAL16V8B-25LP | 9C | dumped |
Others
1x 36x2 thin edge connector
1x red LED (9D)
1x trimmer (volume) (1F)
1x trimmer (unknown) (9A)
1x 8 DIP switches bank (2F)
1x 3x2 jumpers IMP (9A)
1x battery 3.6V (1F, missing)
Notes
PCB is marked: "VIDEOS A A"
It's manufactured in Italy
very similar to Winner
Files
-

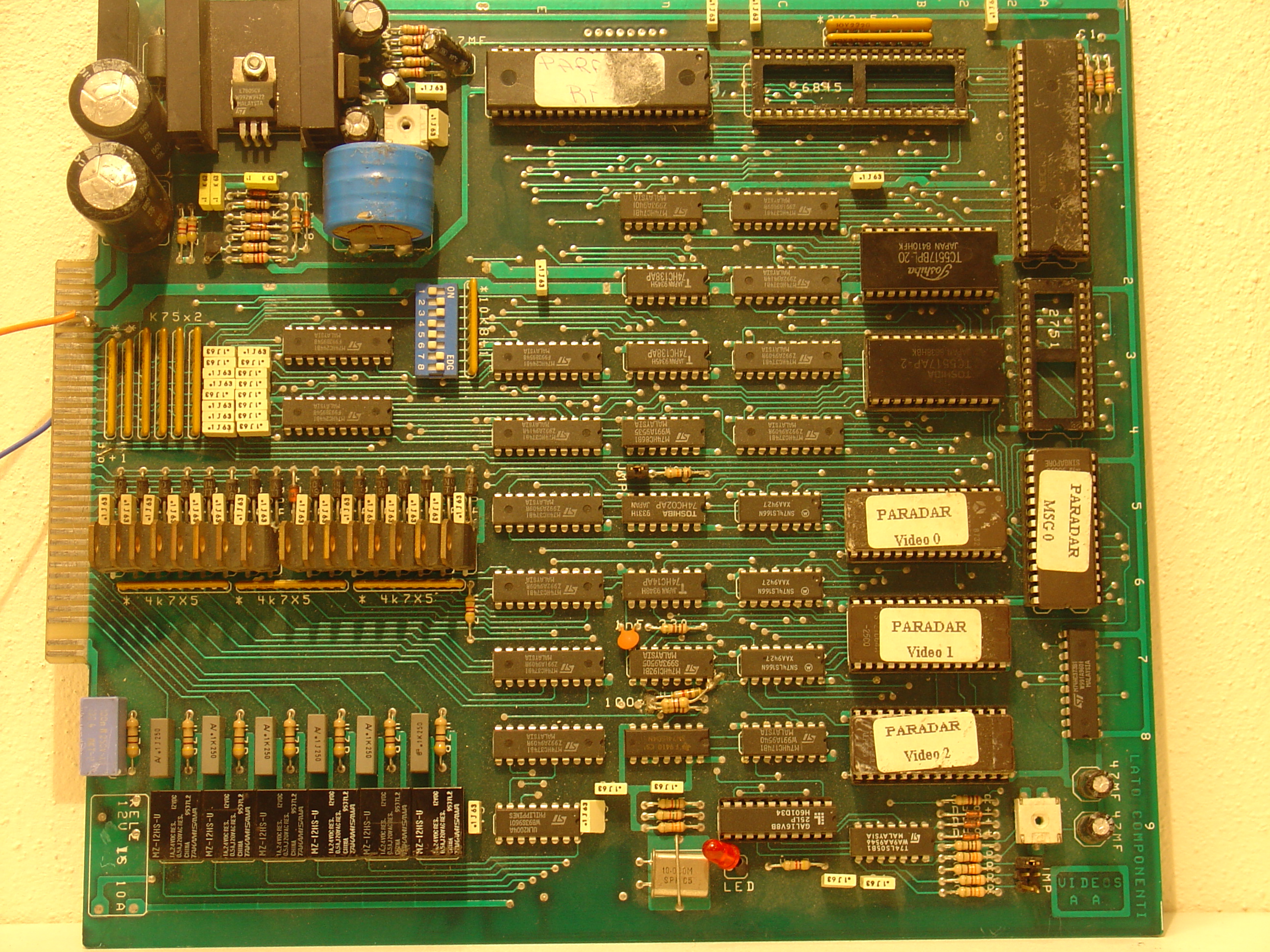

PCB component side
-

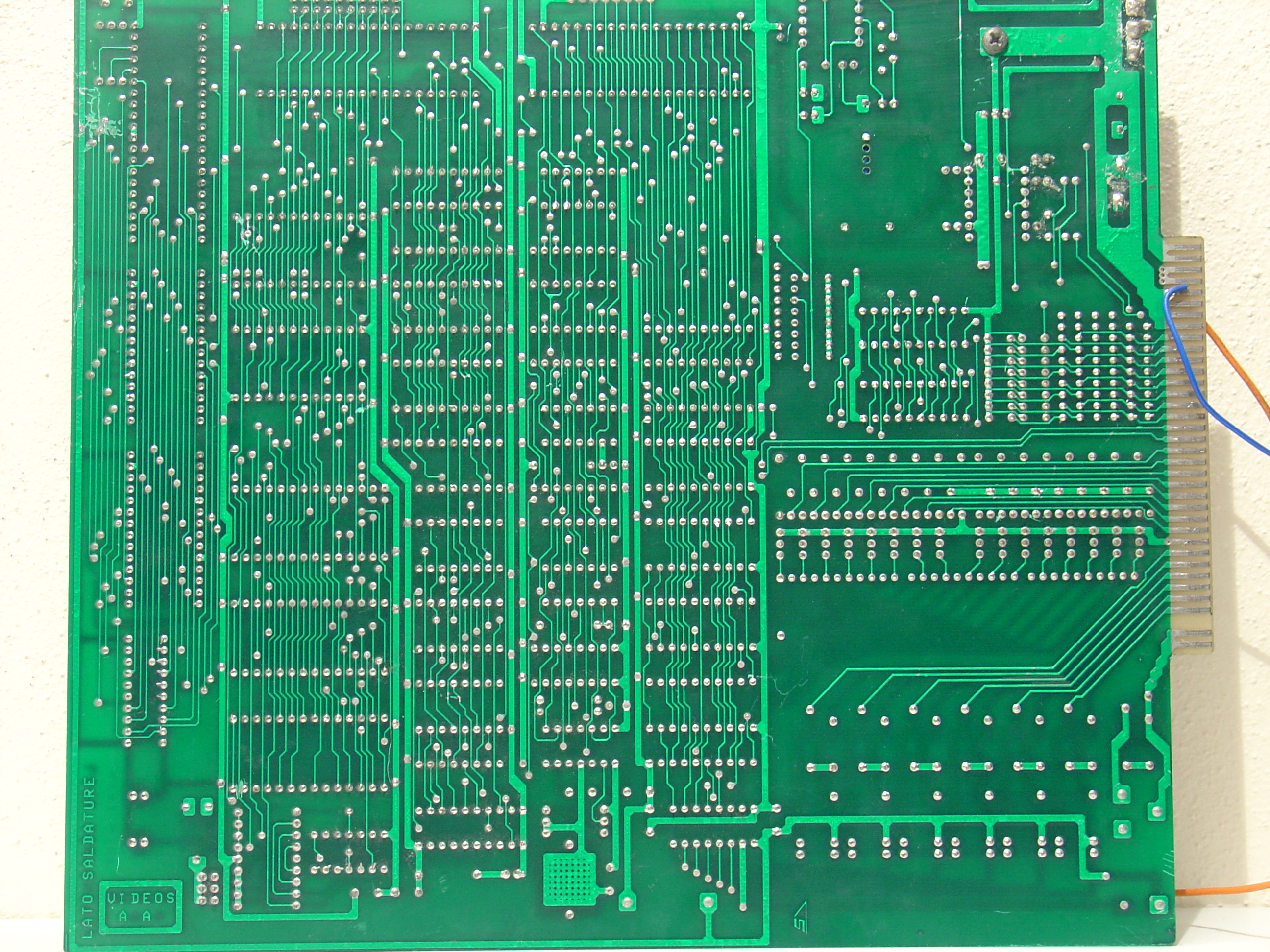

PCB solder side
-
