EMU Infos
dumper Rtw
date 17/12/2013
emulator MAME 0.152
dev R. Belmont
PCB Infos
name tduno on ProgettoEMMA
tduno on Arcade Database
description Touch de Uno! / Unou Nouryoku Check Machine
year 1999.08.07
manufacturer Sega

Technical references

CPUs

QTY Type clock position function
1x oscillator 28.000 osc1

ROMs

QTY Type position status
1x M27322 EPR-22073.ic22 dumped
4x M27W064 MPR-22074.ic1 - MPR-22077.ic4 dumped
1x X76F100 ic37 dumped

RAMs

QTY Type position
2x IDT71256 ic44,ic45

PLDs

QTY Type position status
1x 315-6213 ic41 read protected

Others

Notes

It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0008C
Protection IC: SEGA 315-5881 (317-0255-JPN)
Key: 0x28028ea5

Files

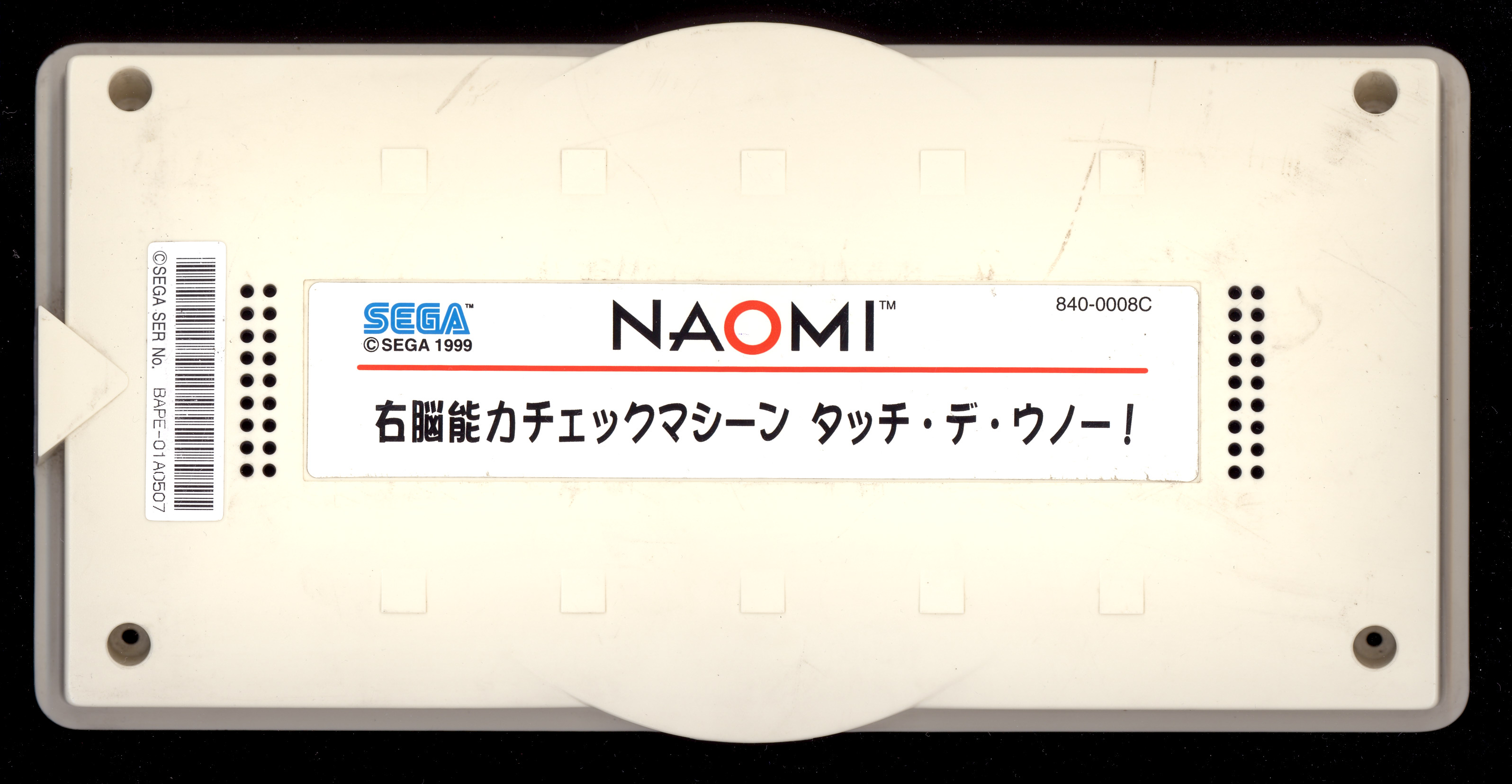

  • Cart

    Cart

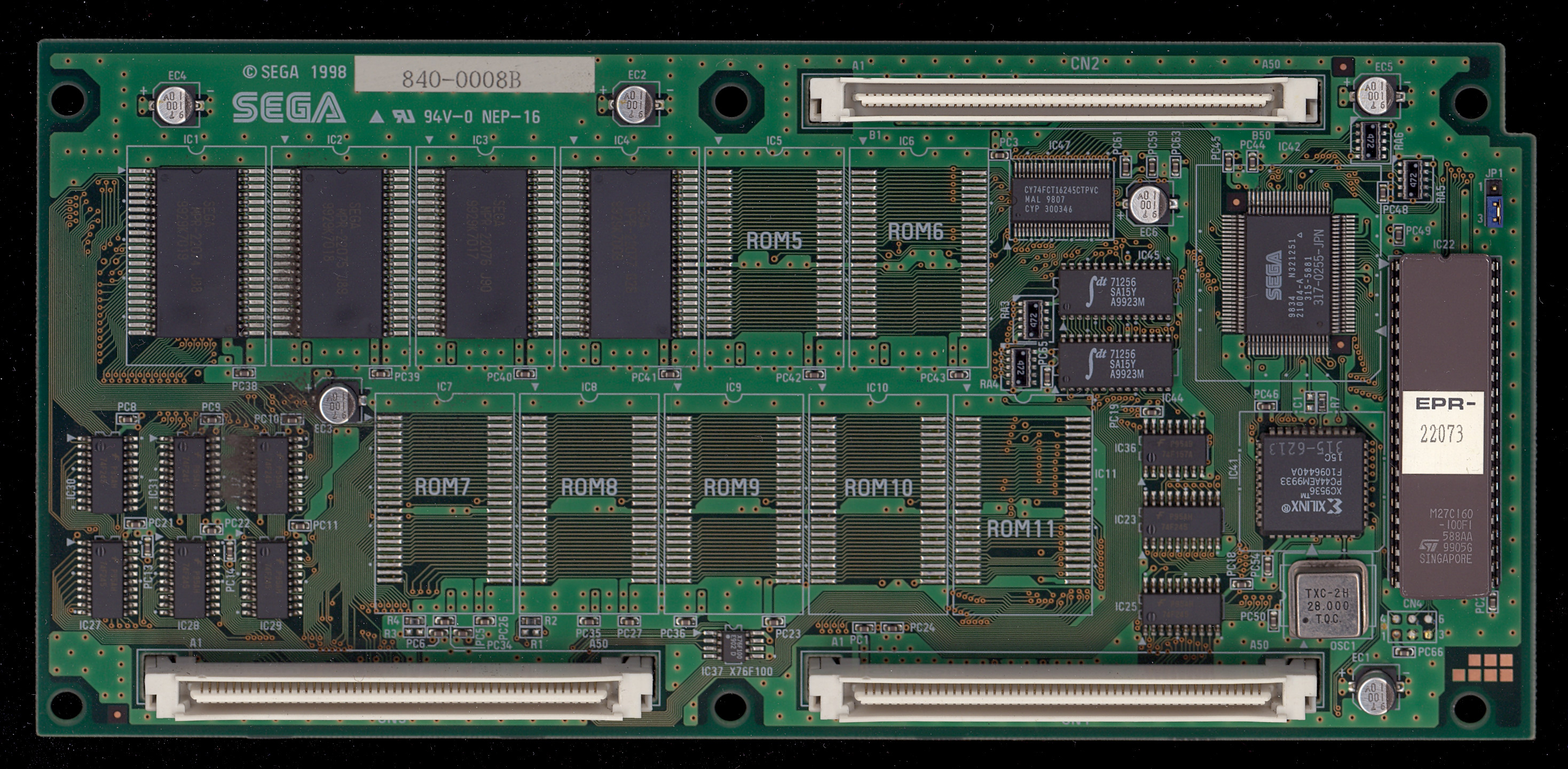

  • PCB component side

    PCB component side

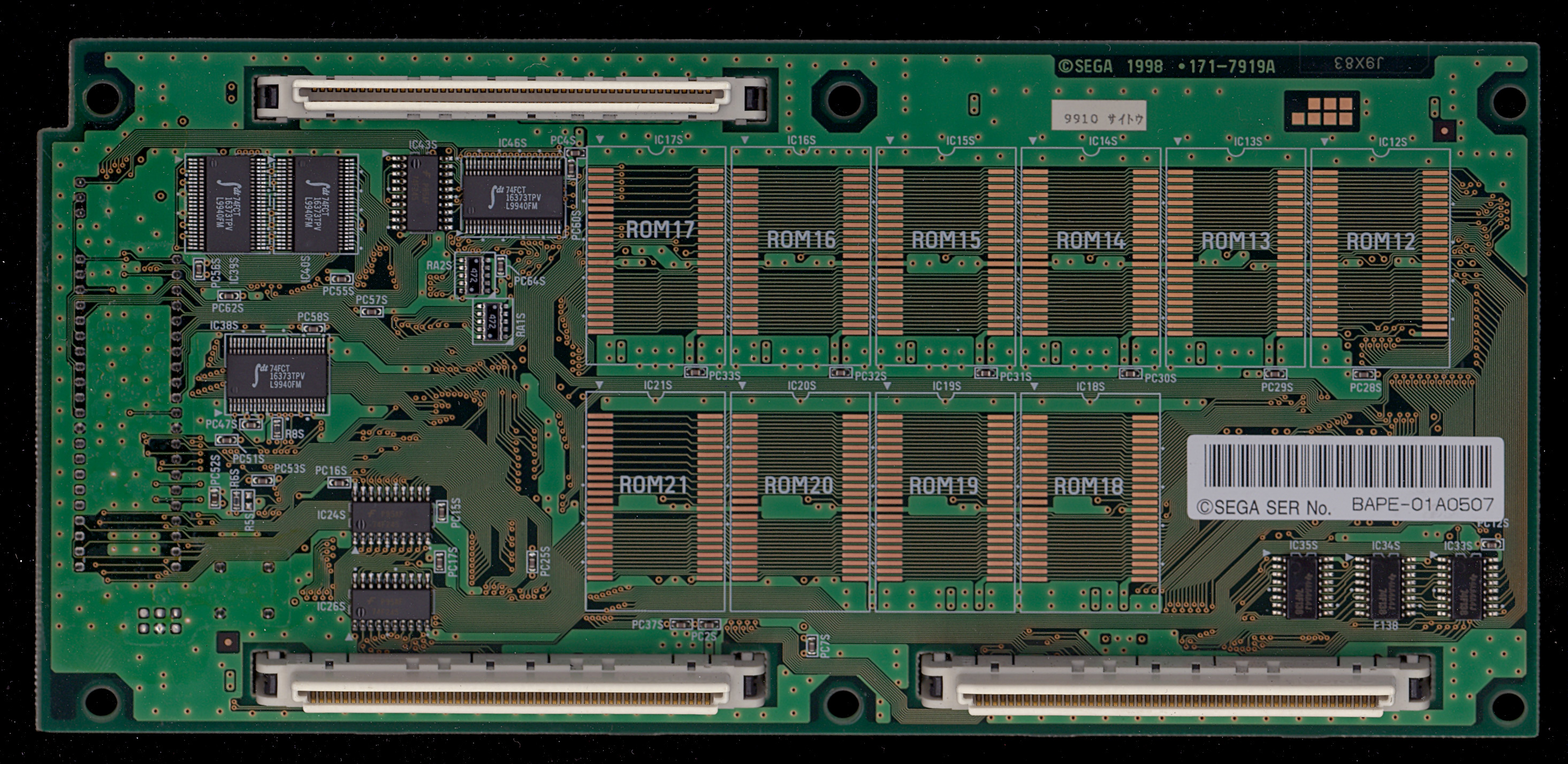

  • PCB solder side

    PCB solder side

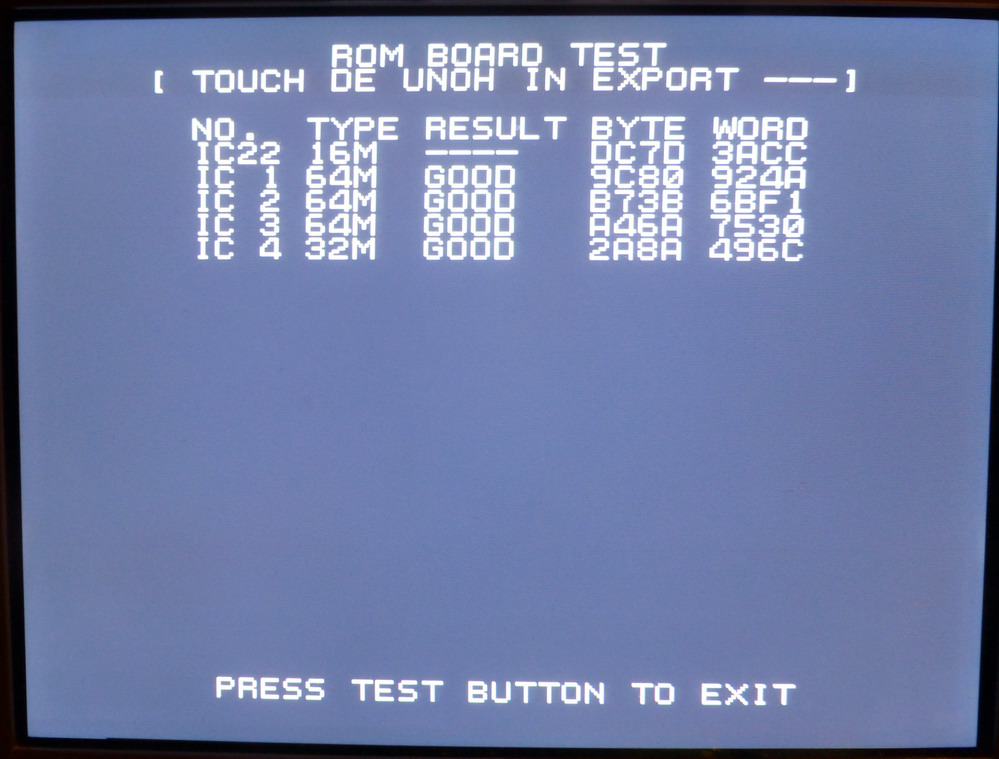

  • ROM board test
