Radirgy Noa (Japan)
From Citylan
| dumper | Rtw |
| date | 03/11/2011 |
| emulator | MAME 0.153 |
| dev | Rtw |
| name | radirgyn on ProgettoEMMA radirgyn on Arcade Database |
| description | Radirgy Noa (Japan) |
| year | 2009.06.11 |
| manufacturer | Milestone - Lucky |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A | 317-5138-JPN.ic3 | EPROM-Based 8-Bit CMOS Microcontroller (not dumped) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCF01SVG | ic4 | not dumped |
| 4x | S29GL512N10T | ic8, ic9 (ic10 and ic11 are present but empty) | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 841-0062C
EPR.ic7: not present
IC2# is labeled "VER.2" - IC4# is marked "8A" - IC10 and IC11 Populated, Empty
Files
-

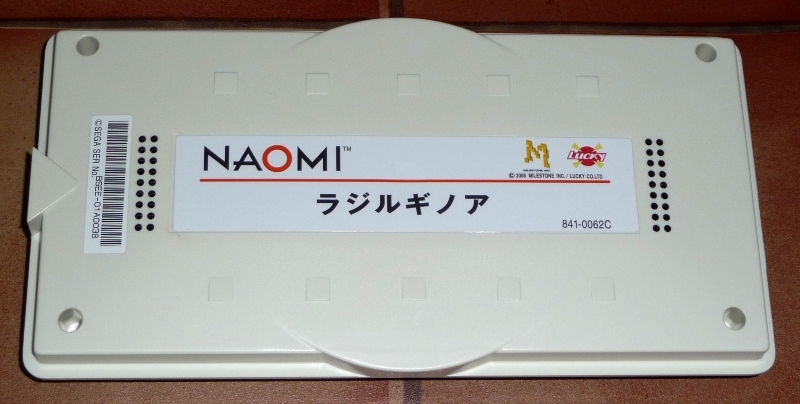

Cart 1
-

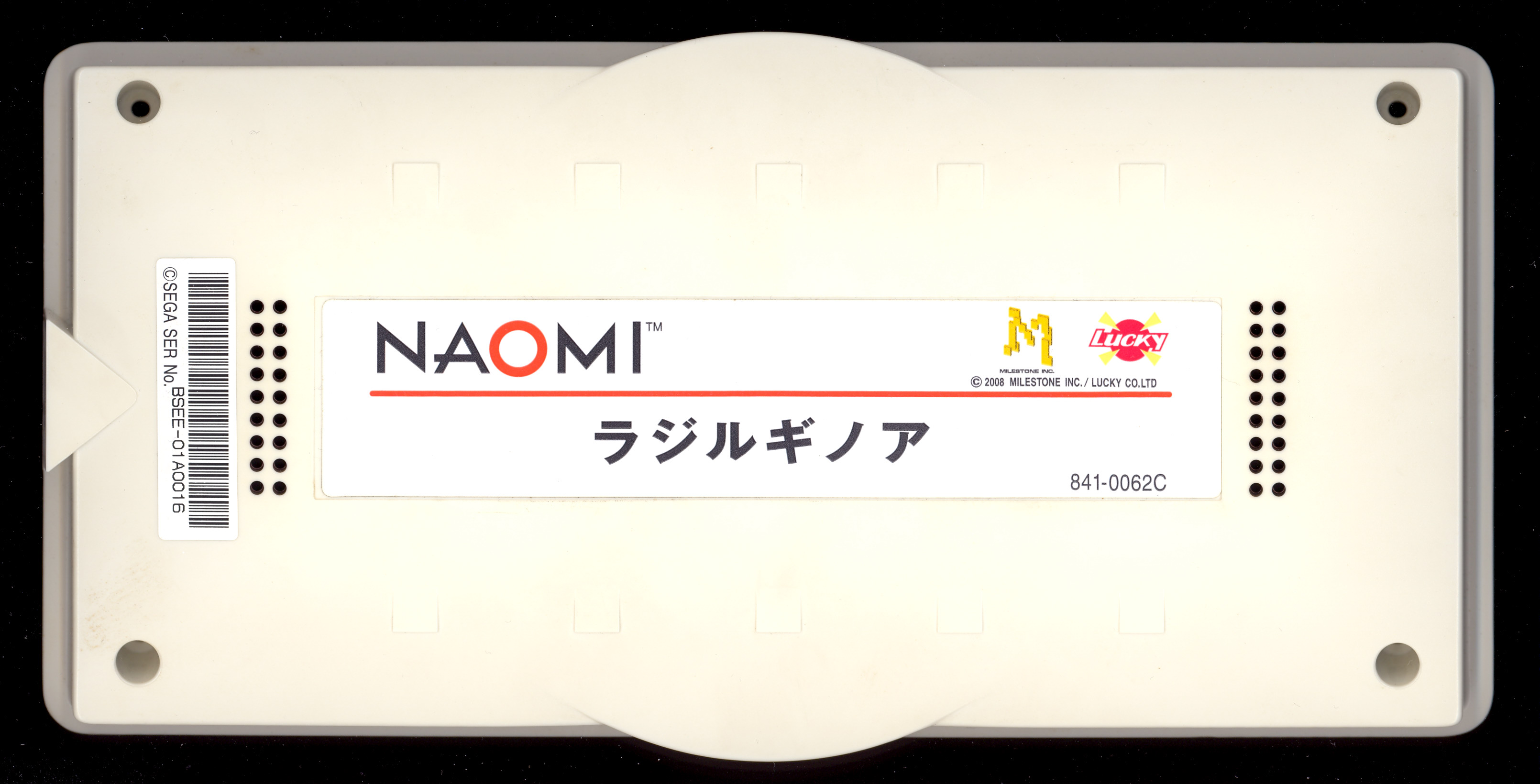

Cart 2
-

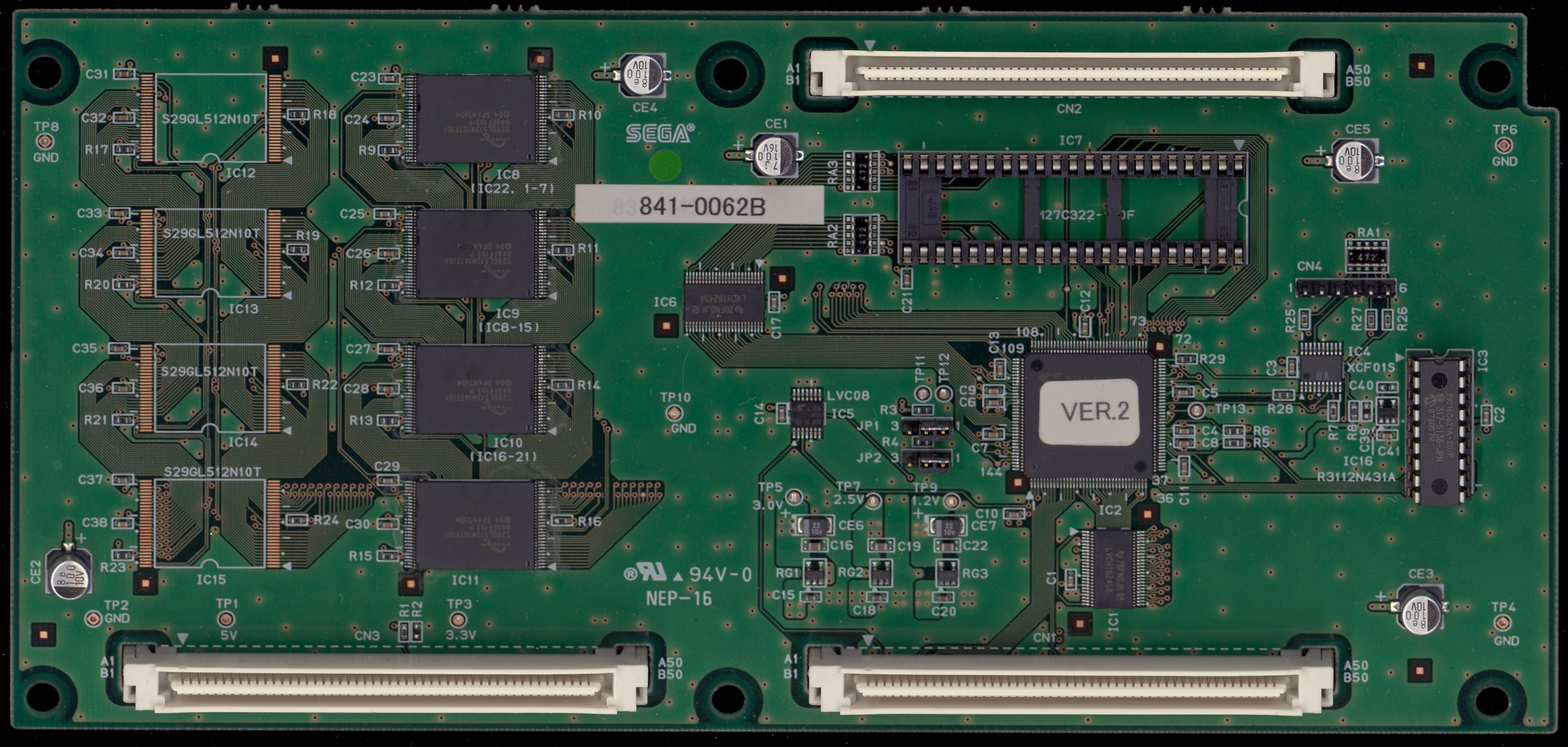

PCB component side
-

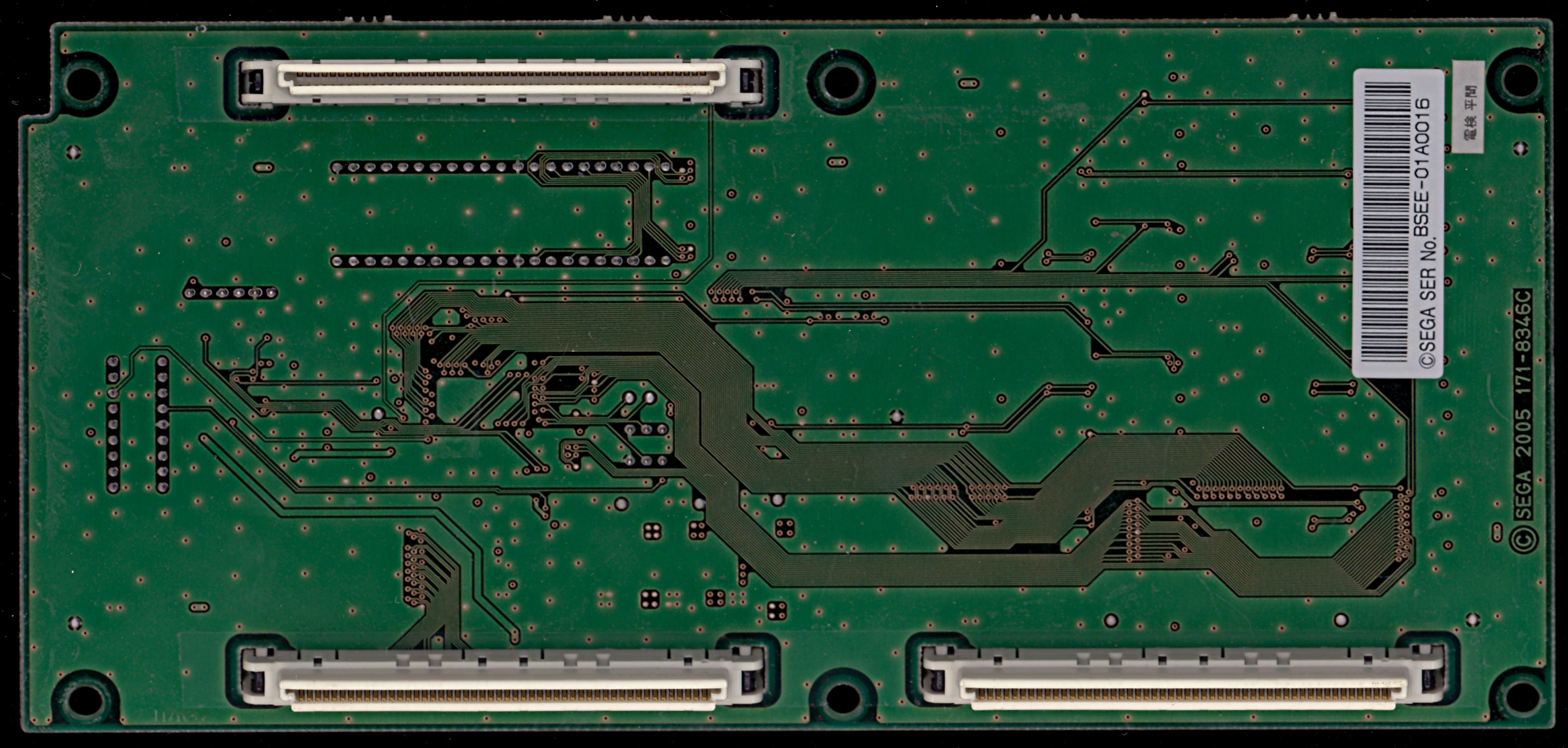

PCB solder side
-

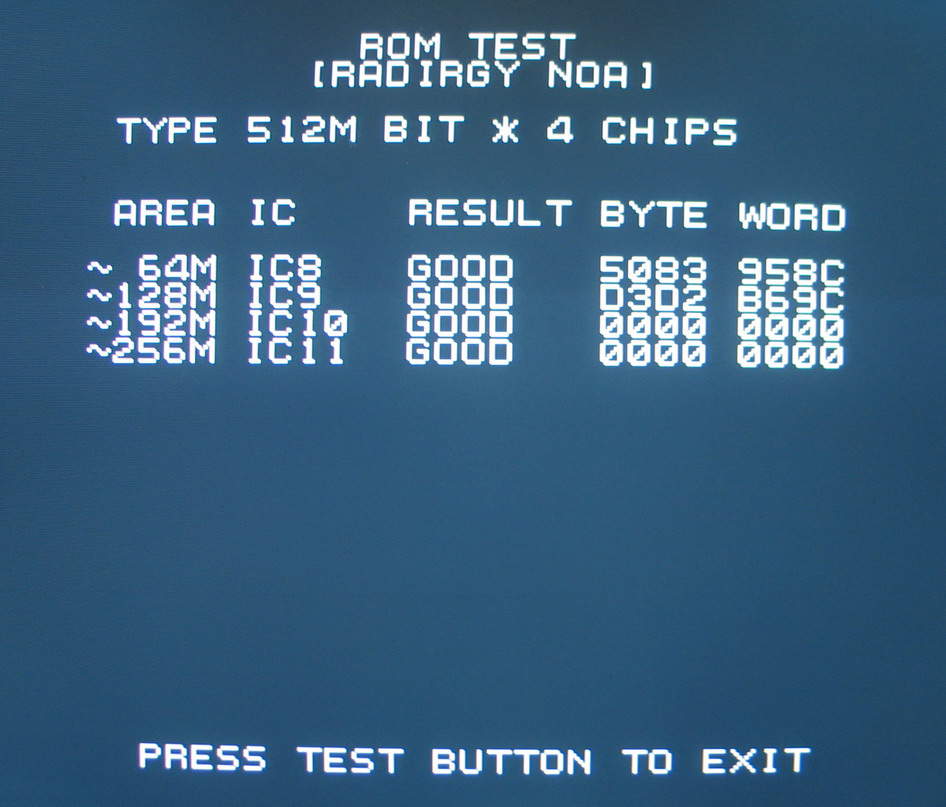

ROM BOARD TEST
-
Readme
