Star Horse (live and backup)
From Citylan
dumper | "someone" |
dump date | 28/01/2014 |
emulator | MAME 0.153 |
dev | R. Belmont |
name | shorsel on ProgettoEMMA shorsel on Arcade Database |
description | Star Horse (live and backup) |
year | 2000.12 |
manufacturer | Sega |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | oscillator | 28.000 | osc1 |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | M27C322 | epr-23626.ic22 | dumped |
17x | DA28F640J5 | ic1s-ic17s | dumped |
1x | X76F100 | ic37 | dumped |
RAMs
QTY | Type | position |
---|---|---|
2x | IDT71256 | ic44,ic45 |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | EPM7064 315-6206 | ic41 | read protected |
Others
Notes
It's a NAOMI SATELLITE cart.
Cart type: 171-7885A
Cart N°: 840-0055C
Protection IC: not present
Key: no key
requires 837-13785 ARCNET&IO BD
Files
-

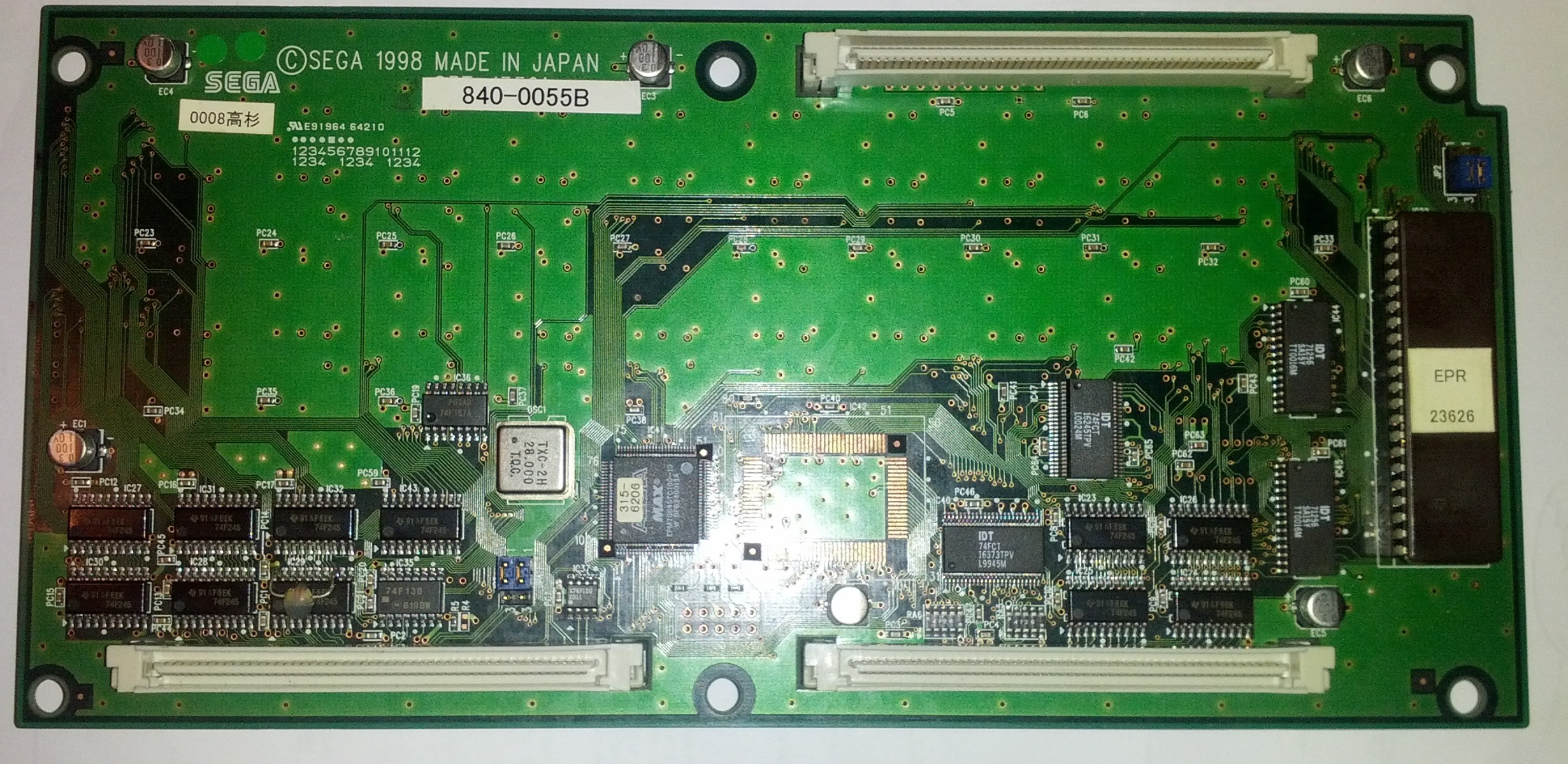

PCB component side
-

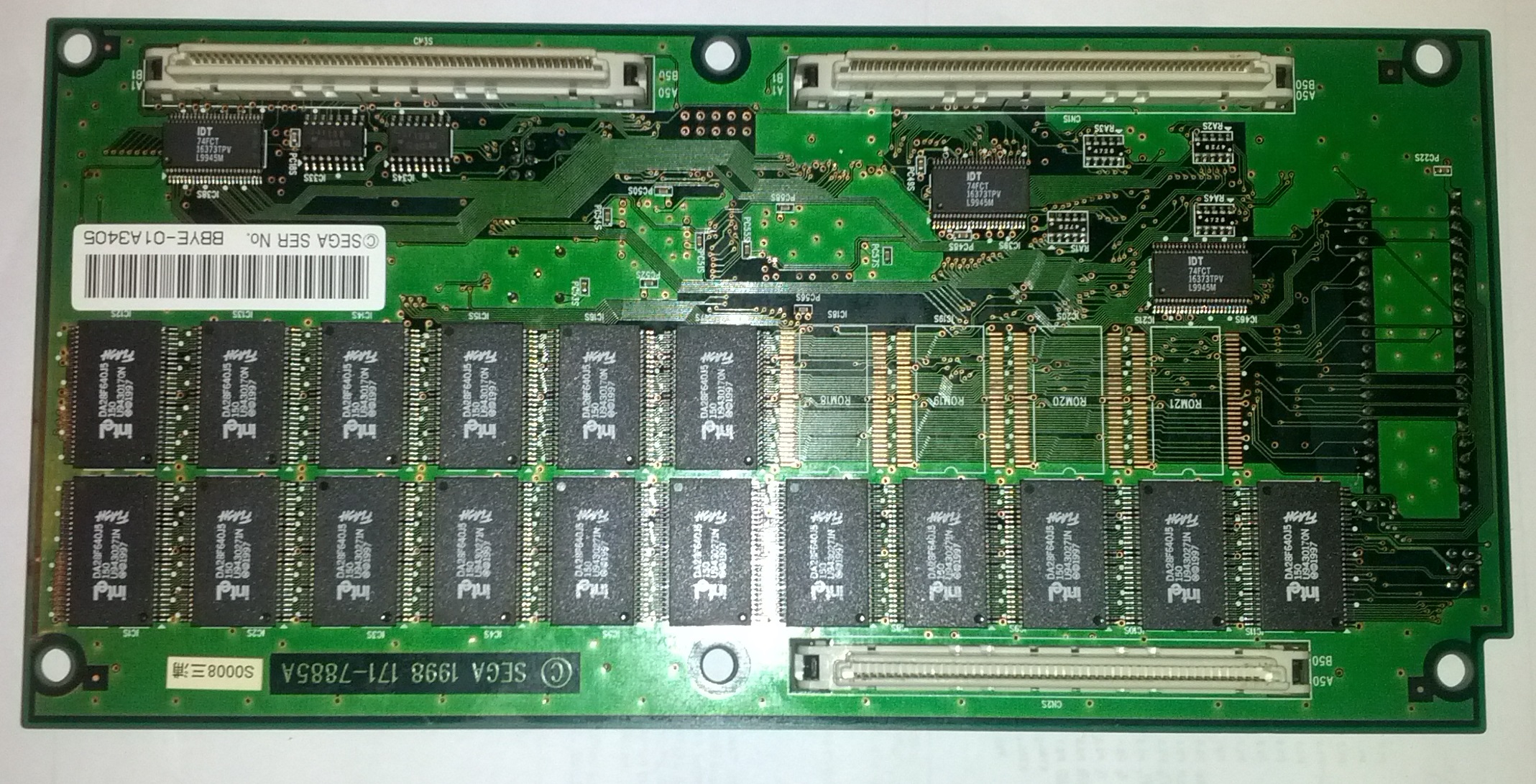

PCB solder side
-
Read me
