Star Horse Progress (sound & backup, Rev A)
From Citylan
dumper | Rtw |
date | 20/01/2017 |
emulator | MAME 0.182 |
dev | MetalliC |
name | shorseps on ProgettoEMMA shorseps on Arcade Database |
description | Star Horse Progress (sound & backup, Rev A) |
year | 2002 |
manufacturer | Sega |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | oscillator | 28.000 | osc1 |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | M27C322 | EPR-24097A.ic22 | dumped |
6x | MaskROM 128Mb TSOP48 | MPR-24098.ic1 - MPR-24103.ic6 | dumped |
RAMs
QTY | Type | position |
---|---|---|
2x | IDT71V256 | ic44,ic45 |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | 315-6213 | ic41 | read protected |
1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI SATELLITE cart.
Cart type: 171-8132B
Cart N°: 840-0121C
Protection IC: not present
Key: no key
requires 837-13785 ARCNET&IO BD
Files
-

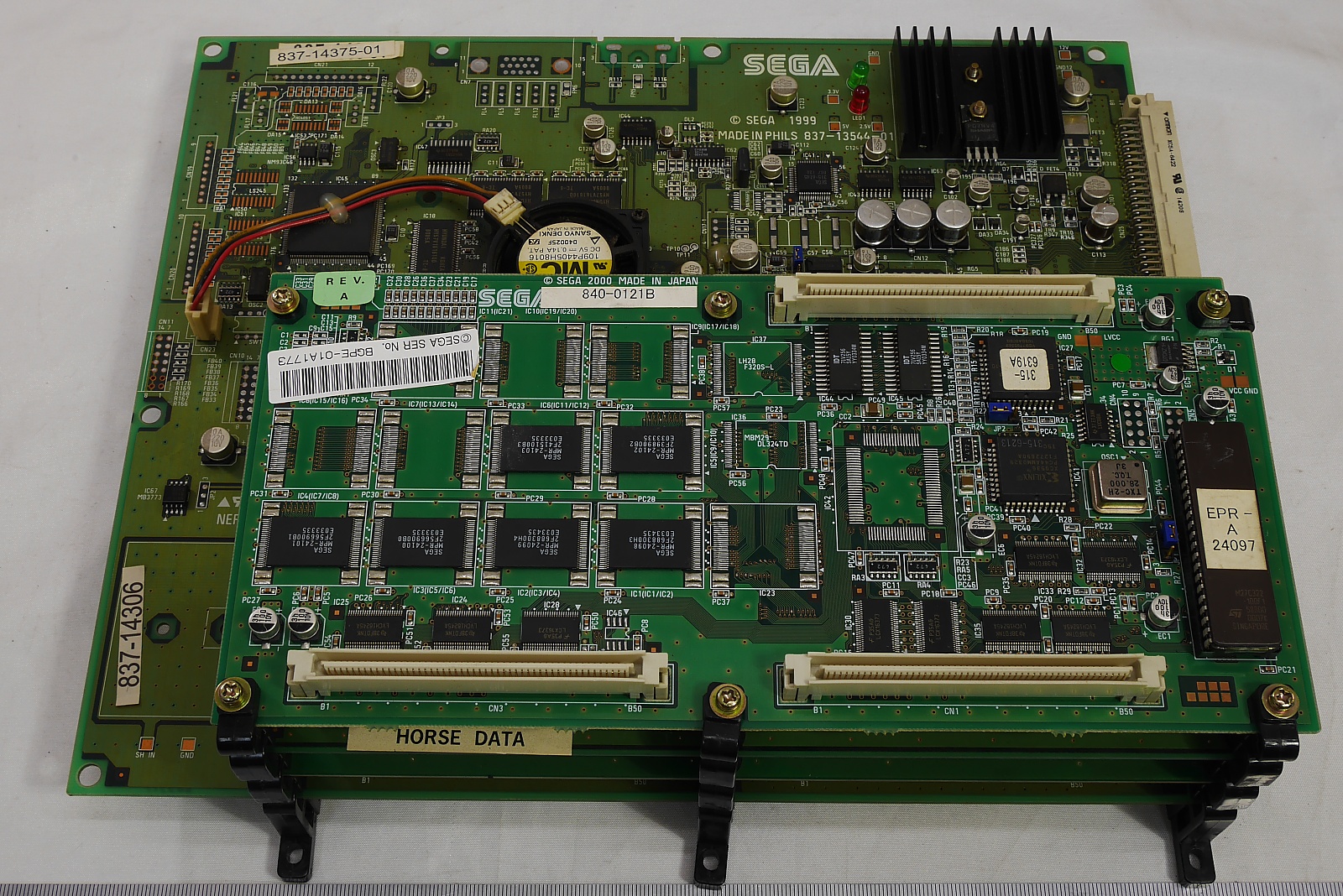

PCB component side
-
ARCNET&IO PCB component side
