Golden Star (LED game)
From Citylan
| dumper | f205v |
| date | 04/09/2005 |
| emulator | |
| dev |
| name | 231 |
| description | Golden Star (LED game) |
| year | 1997.06 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC705C8ACS | 8-bit EPROM Microcomputer Unit - main (internal ROM not dumped) | ||
| 1x | D7759C | ADPCM Speech Synthesizer LSIs - sound | ||
| 1x | TDA2002 | Audio Amplifier - sound | ||
| 1x | blu resonator |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS27C512 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 0x |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 28x2 connector (maybe NOT jamma)
1x 8 dip switches
1x trimmer (volume)
5x multidigit segment leds (solder side)
1x 3 digits segment leds (solder side)
1x 5 digits segment leds (solder side)
48x coloured leds (solder side)
Notes
PCB is marked: "PM96" and "2-0197" and "IGAV"
Files
-

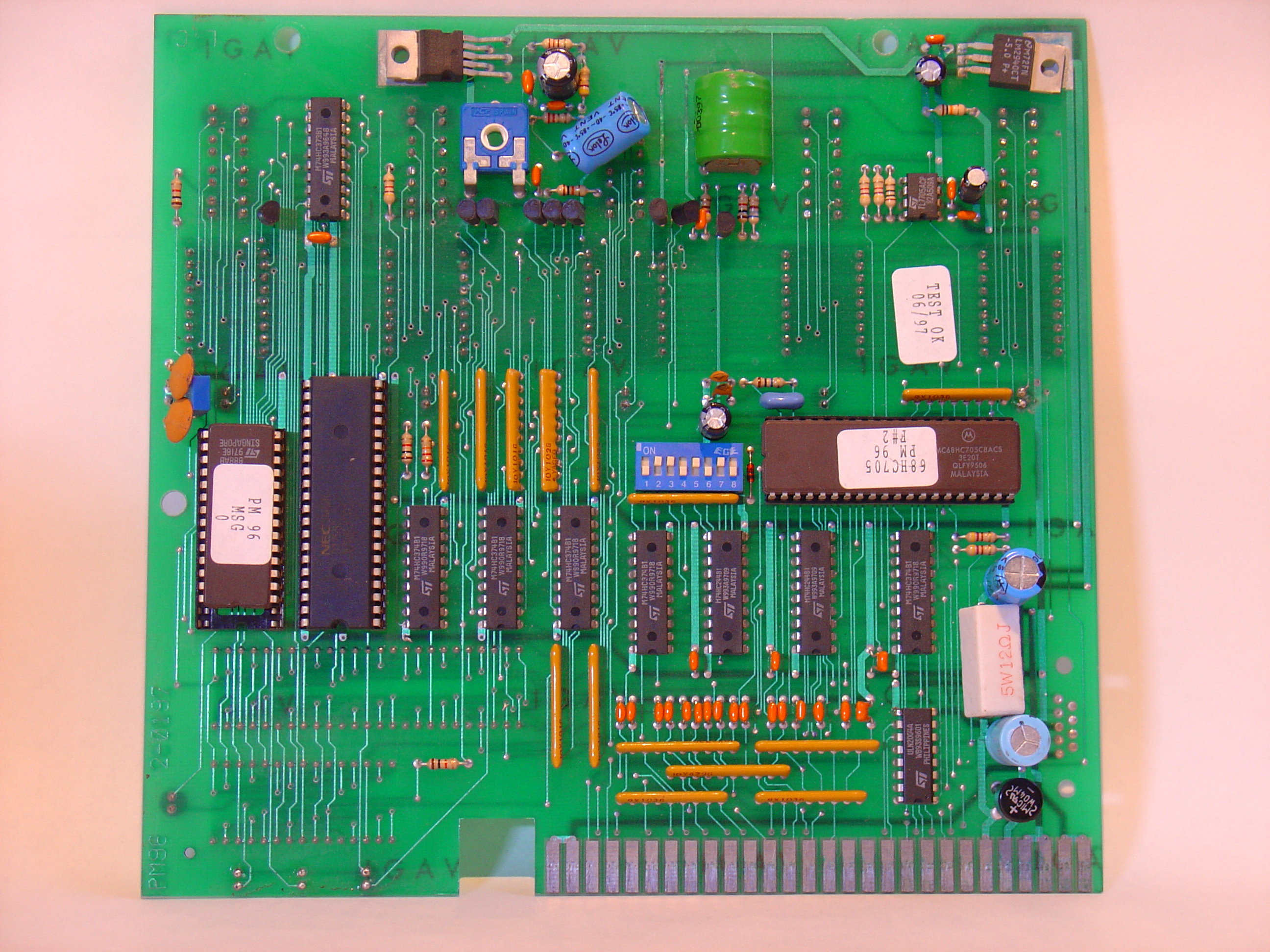

PCB component side
-

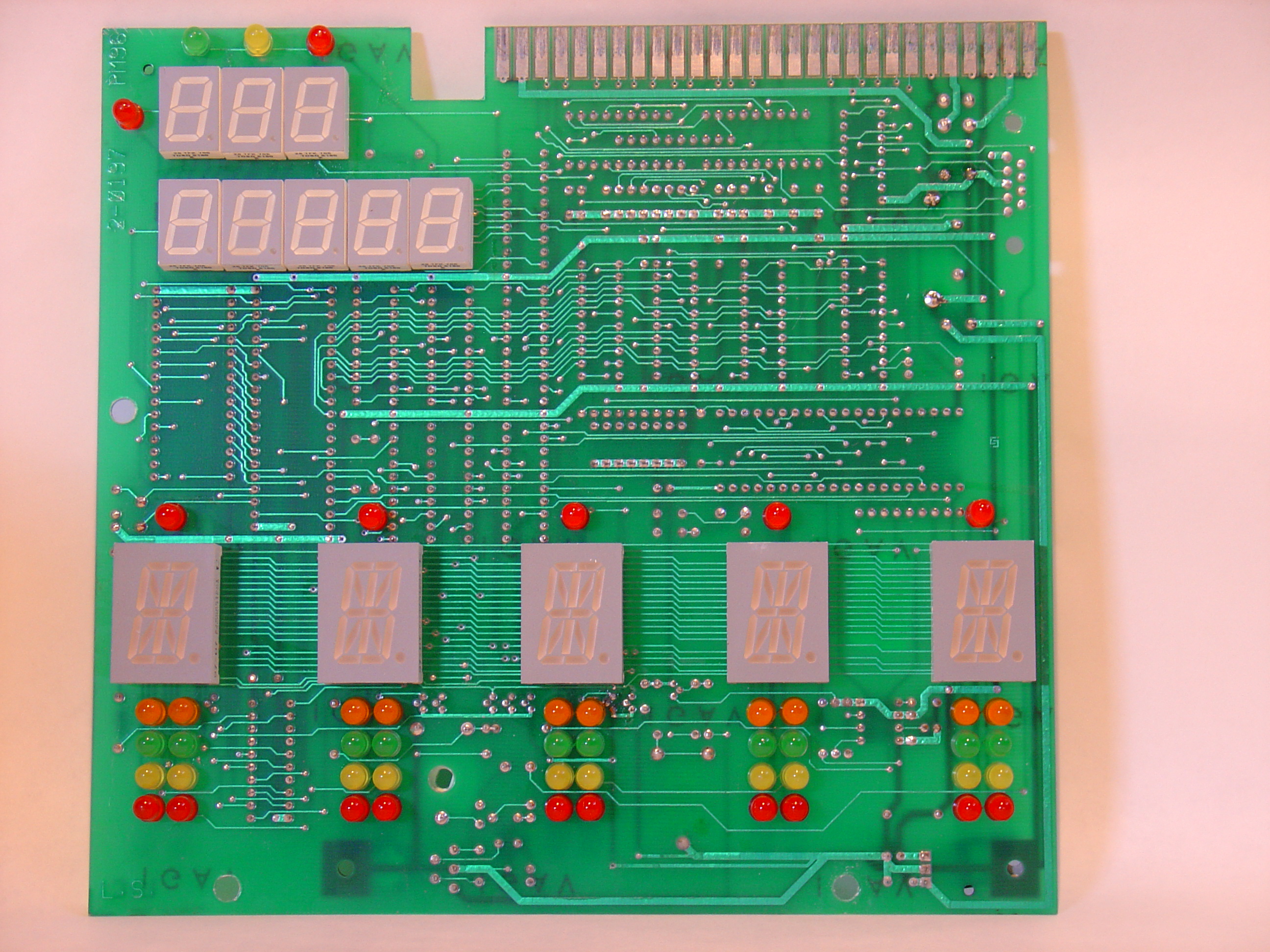

PCB solder side
-

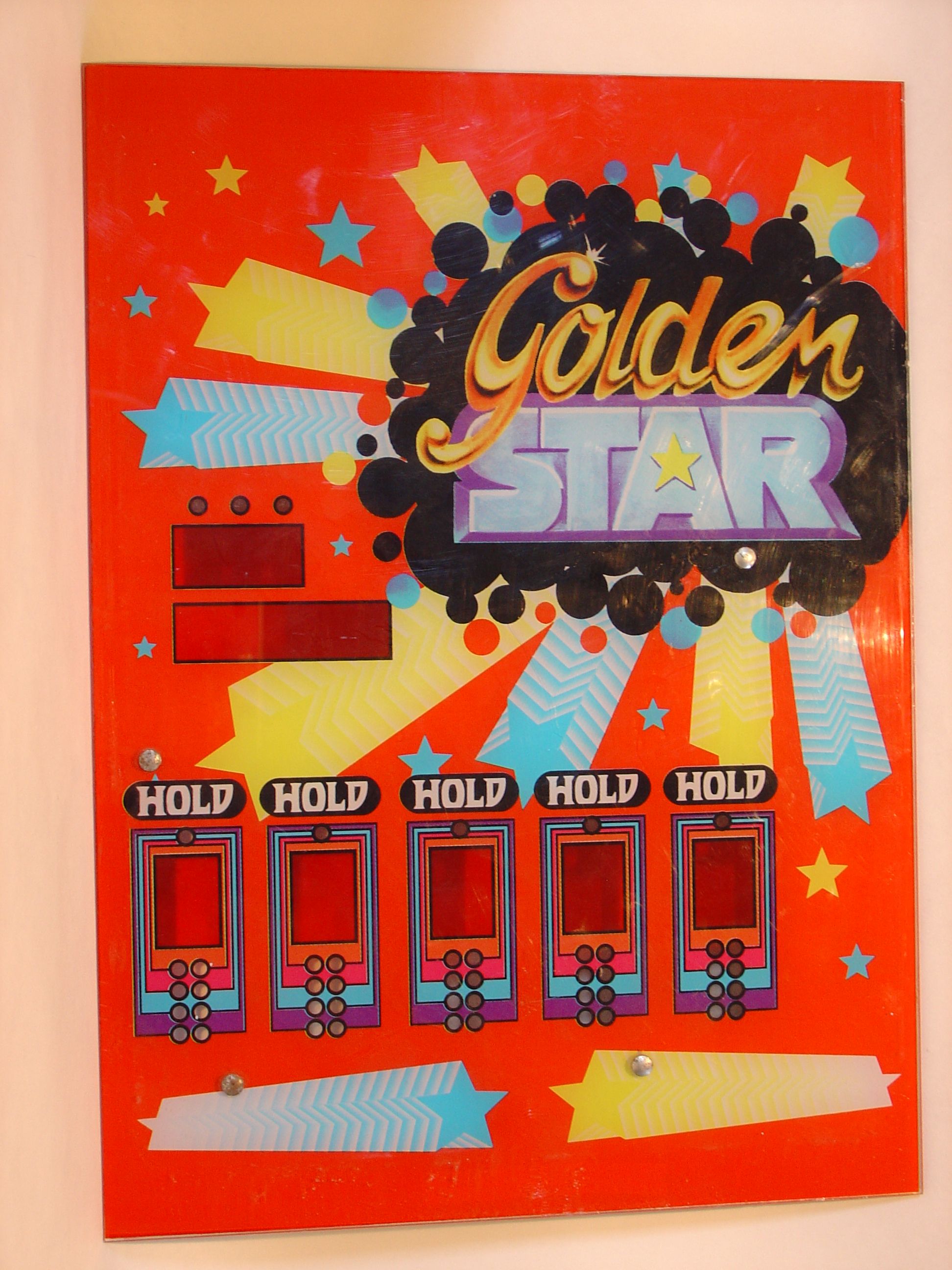

Overlay panel
-
ROMs
231
